Testing Procedure

For testing procedure, see Fig 1 and Fig 2 .

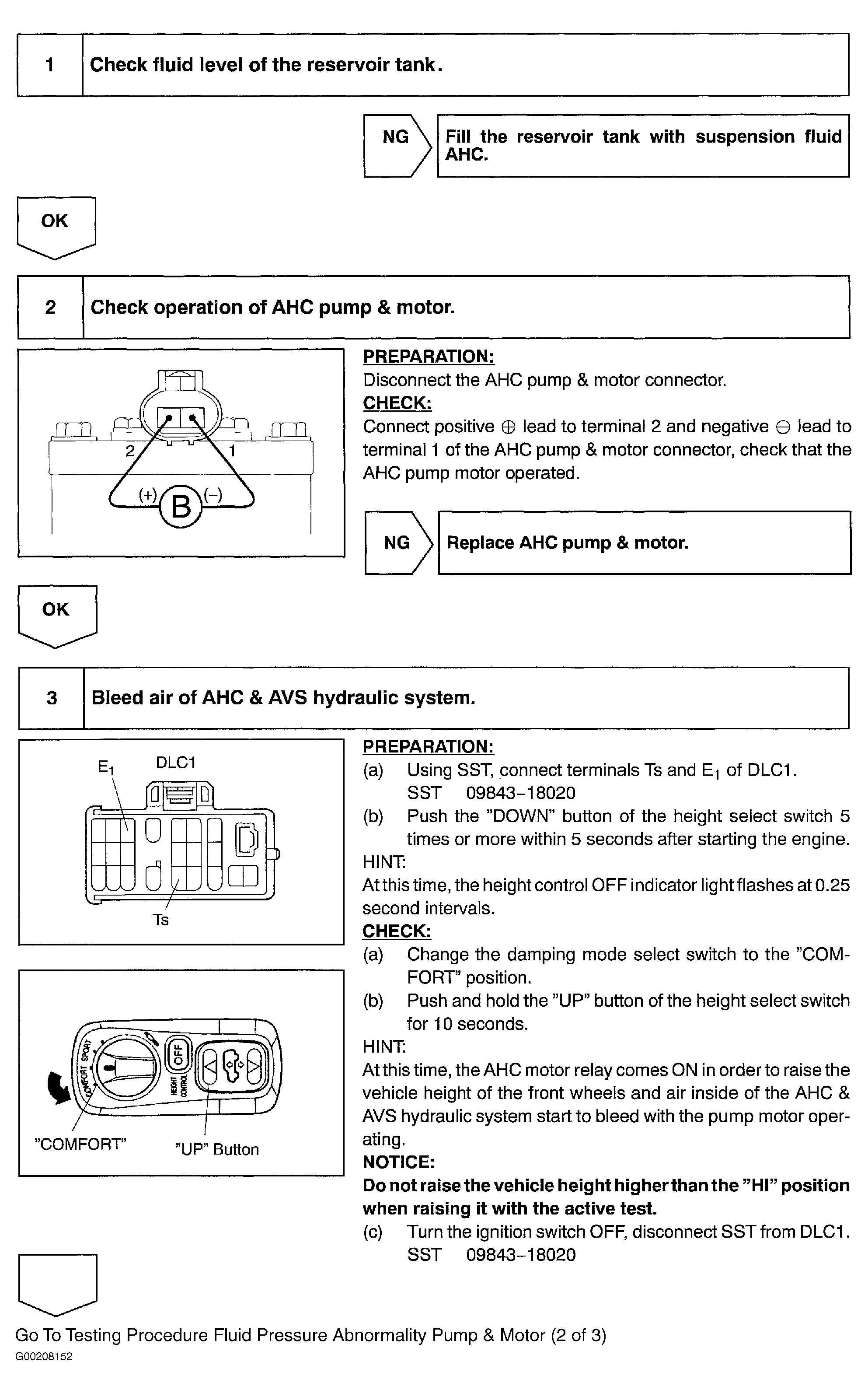

Fig 1: Testing Procedure Fluid Pressure Abnormality Pump & Motor (1 Of 2)
G00208152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

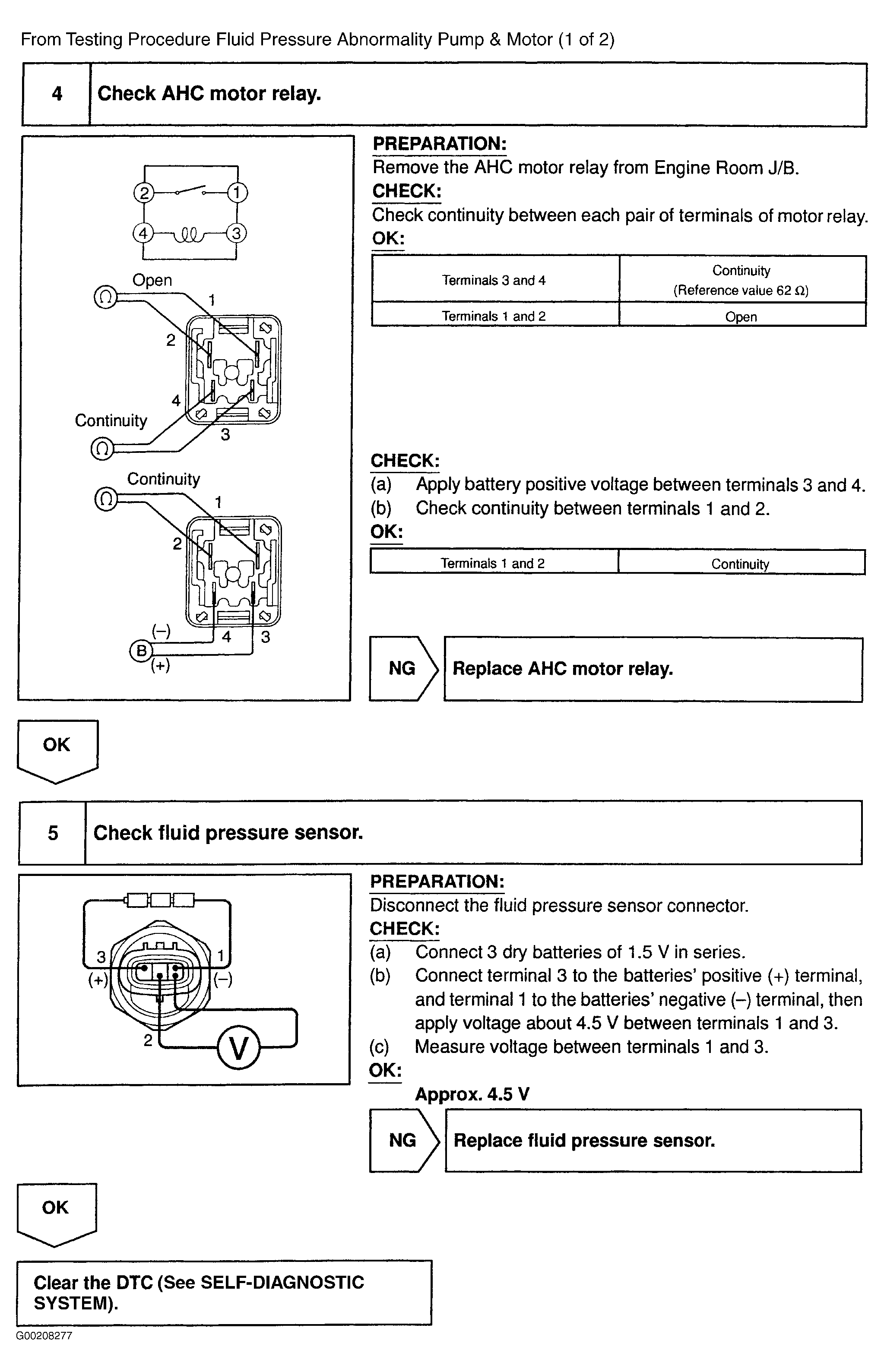

Fig 2: Testing Procedure Fluid Pressure Abnormality Pump & Motor (2 Of 2)
G00208277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
