Function Of Components

To identify function of components, see Fig 1.

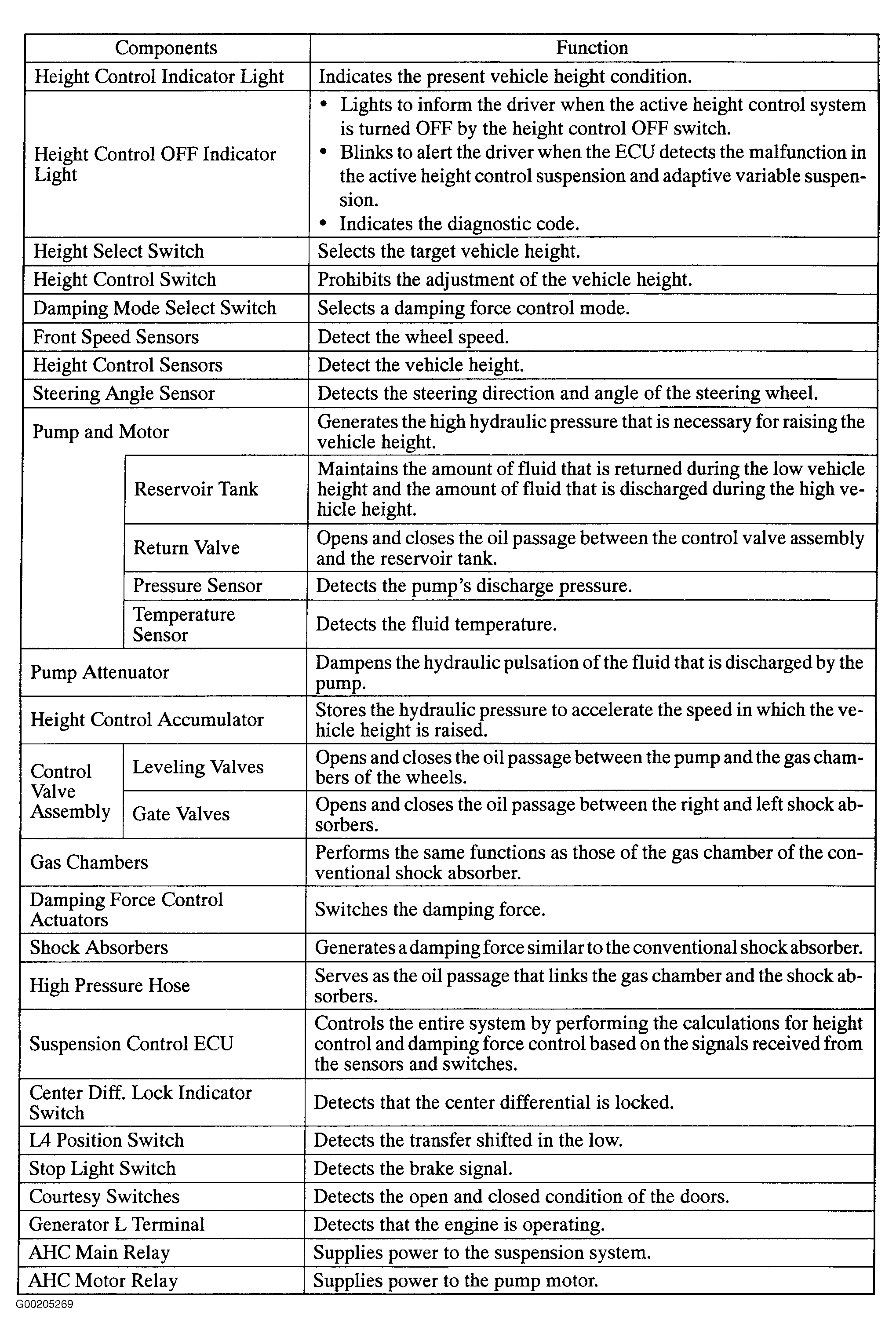

Fig 1: Identifying Function Of Components
G00205269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
