System Operation: Cornering

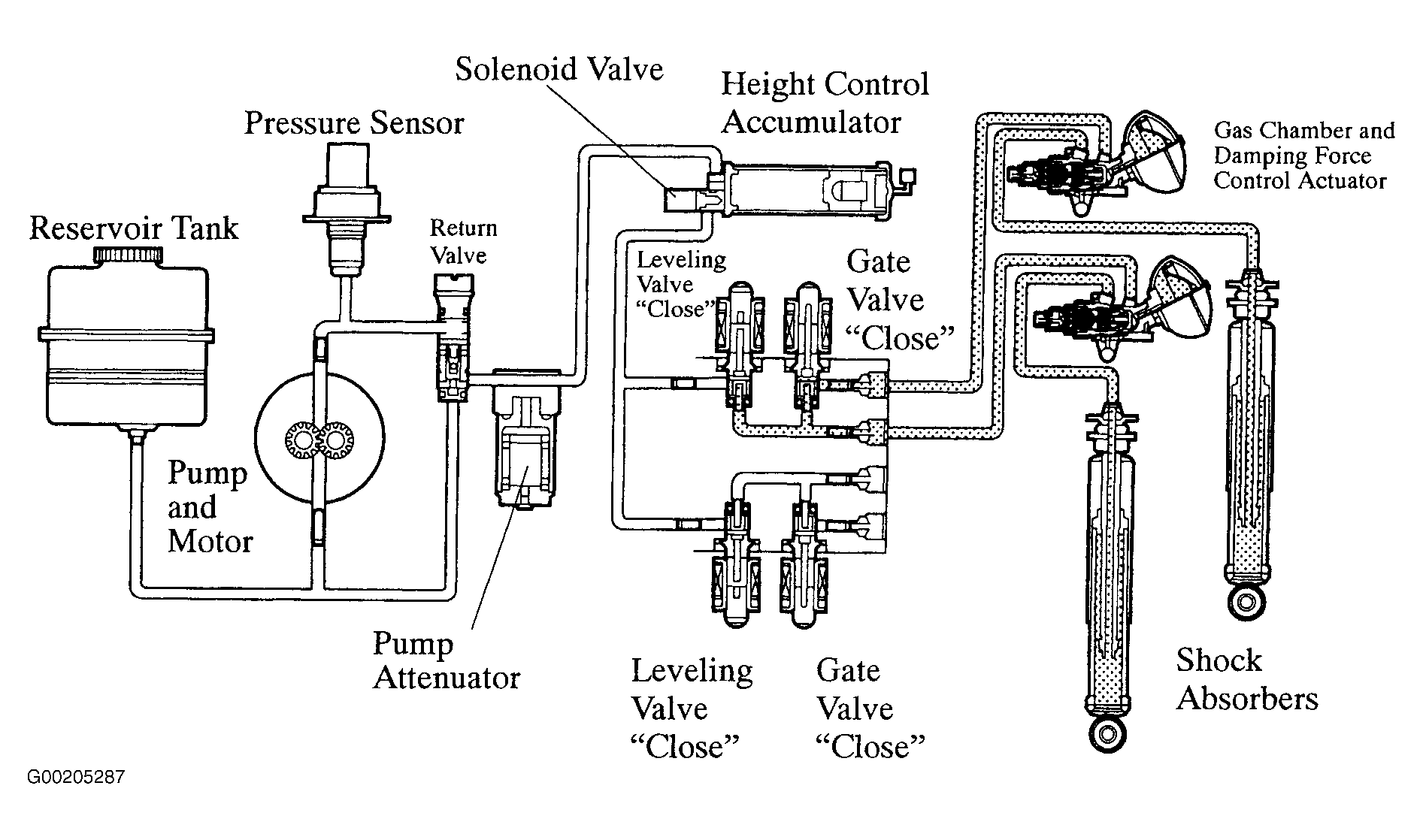

High pressure in gas chamber and shock absorber is shut off with leveling valve. Gate valve is closed and left and right shock absorbers are shut off from each other. Damping force is controlled in accordance with road surface conditions and operating condition of steering wheel. See Fig 1.
