Body Control Systems: Locations

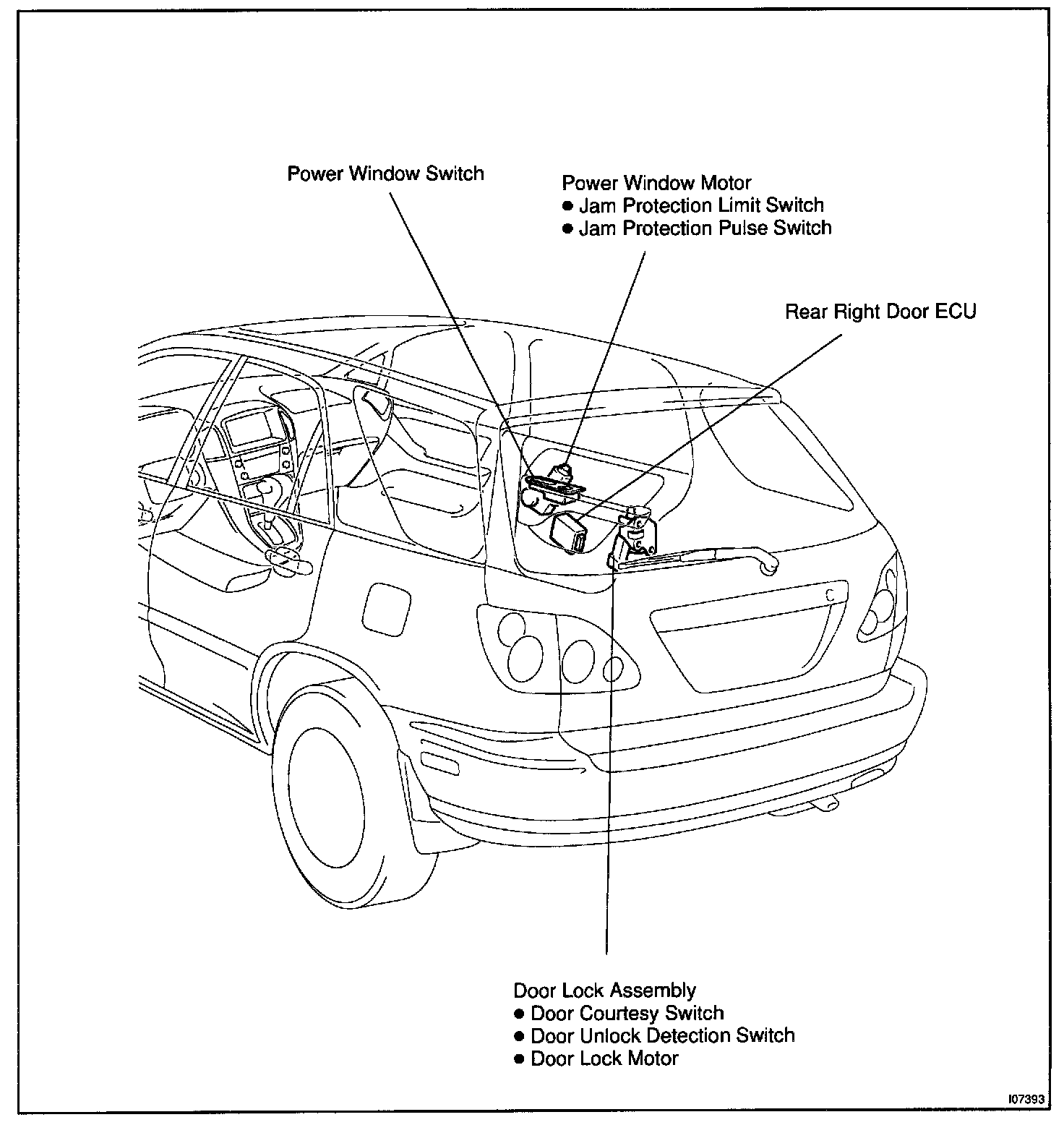

Rear Right Door Control System:

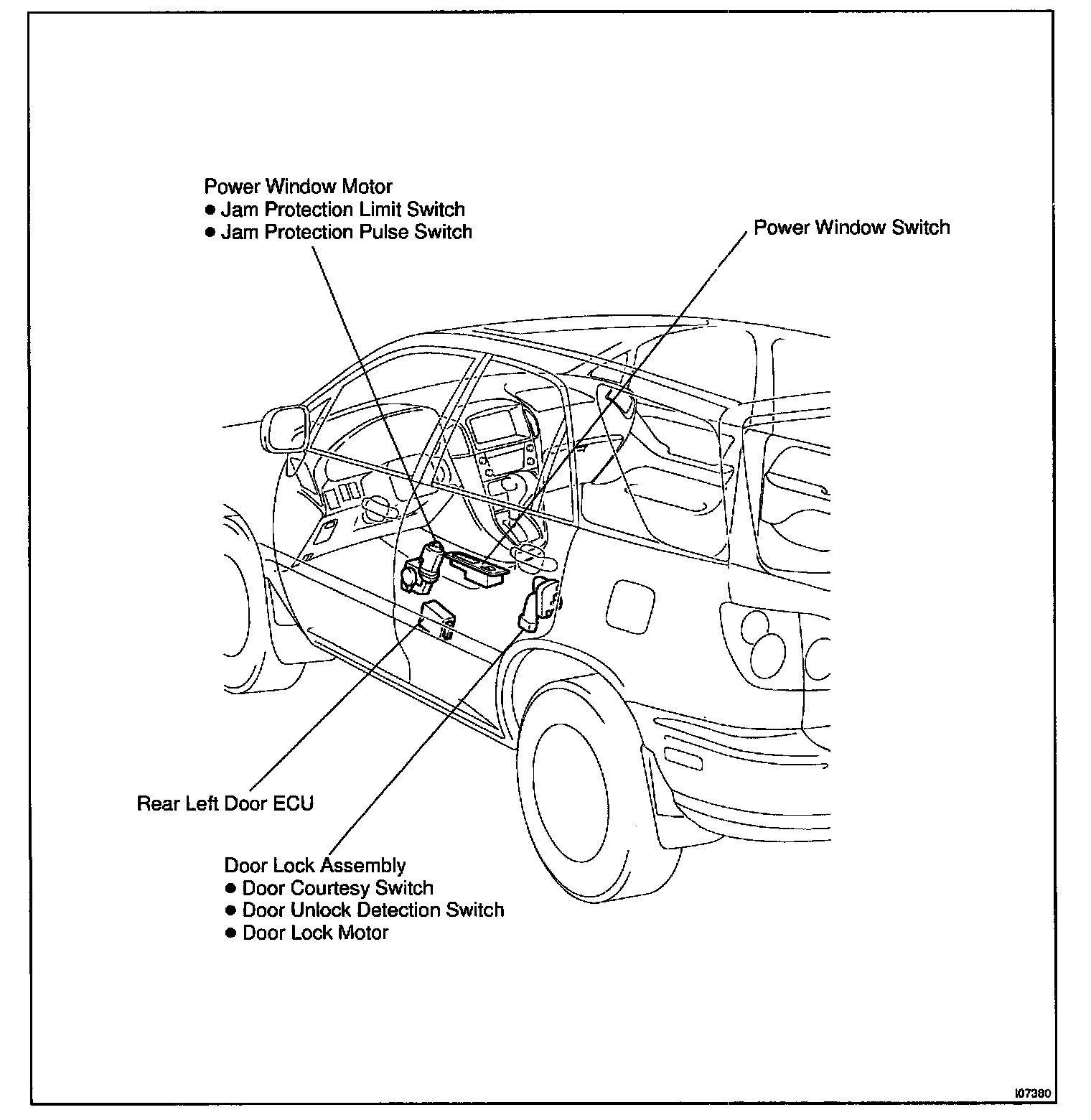

Rear Left Door Control System:

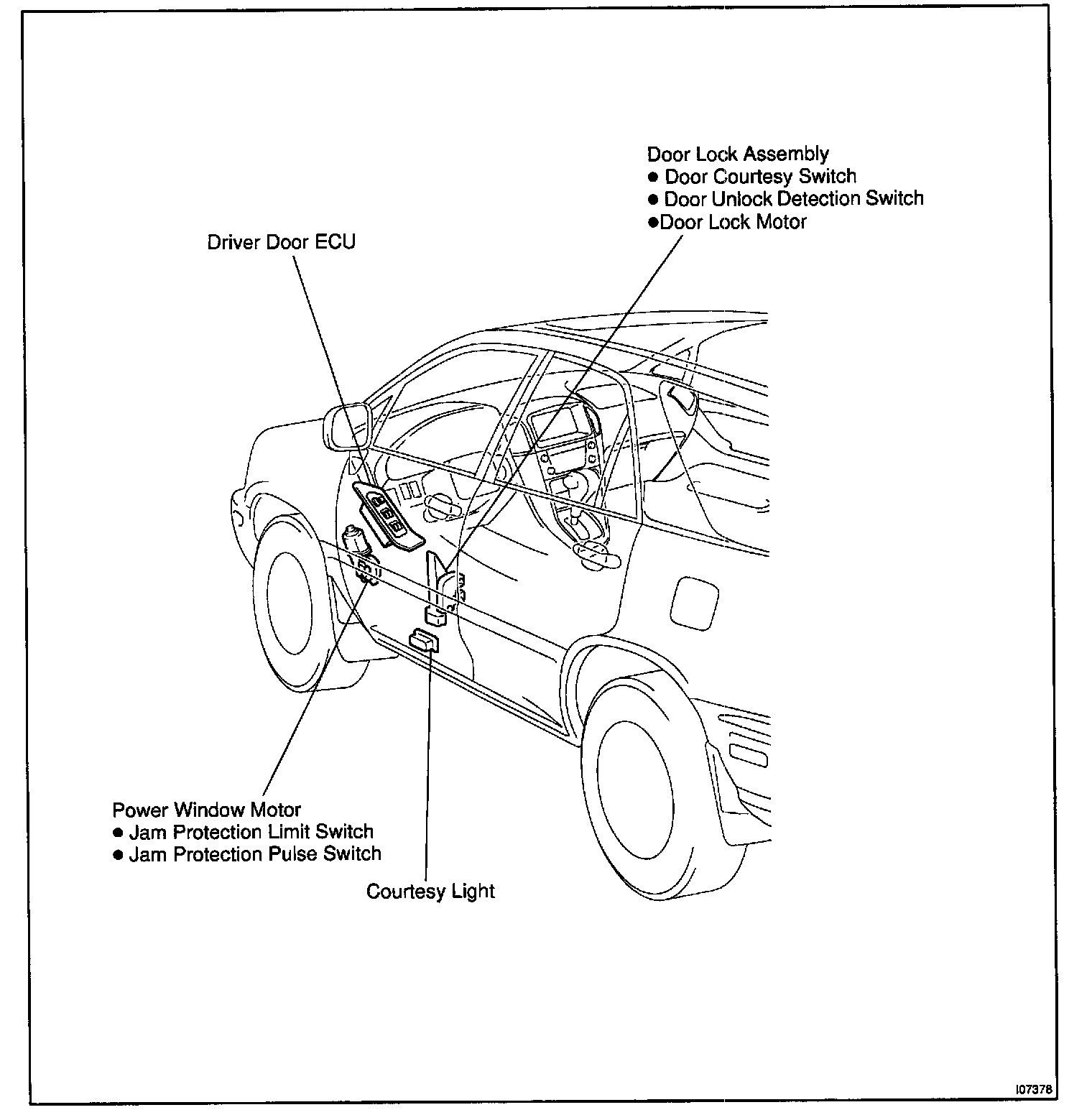

Driver Door Control System:

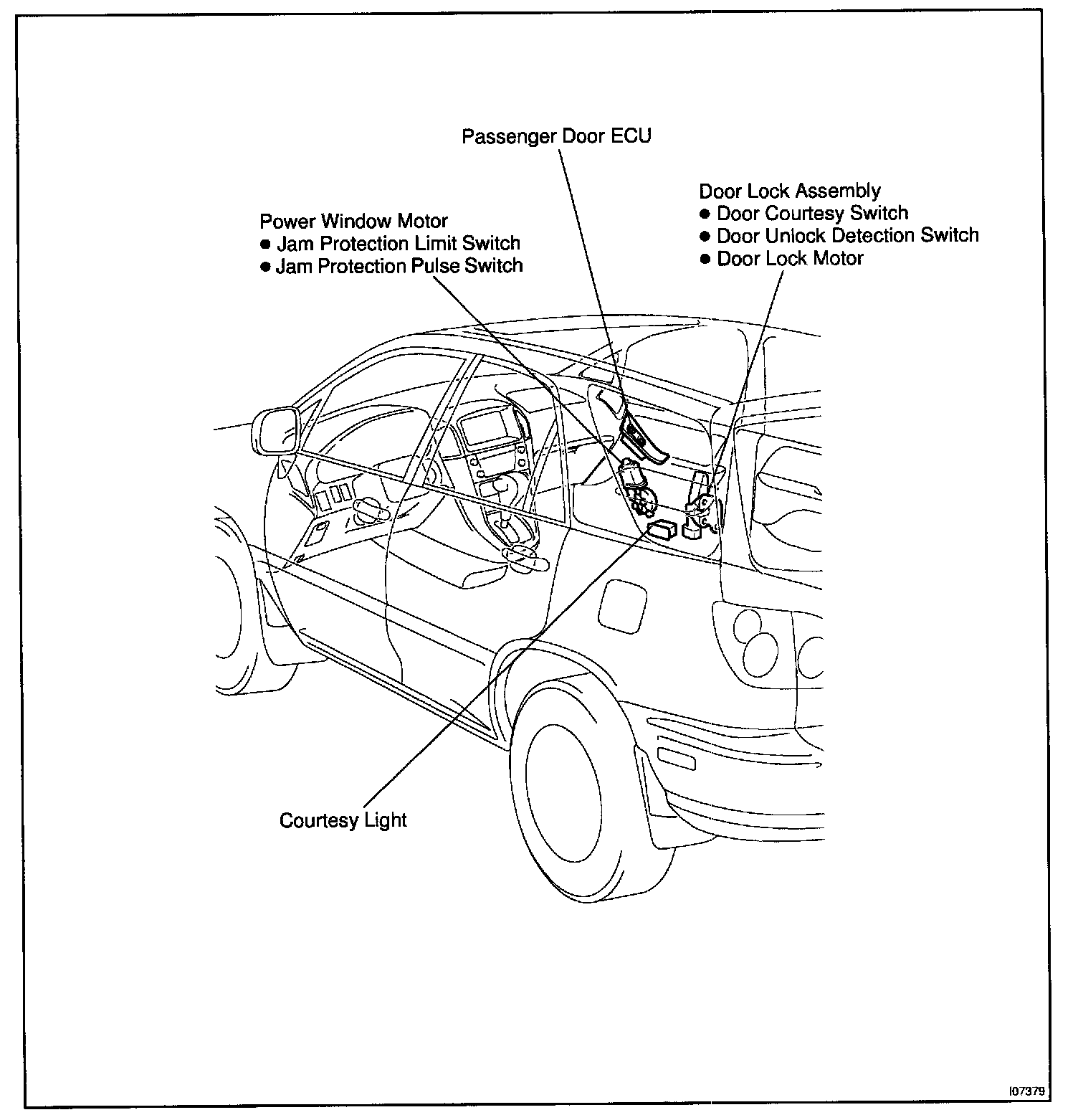

Passenger Door Control System:
