Cylinder Head Assembly

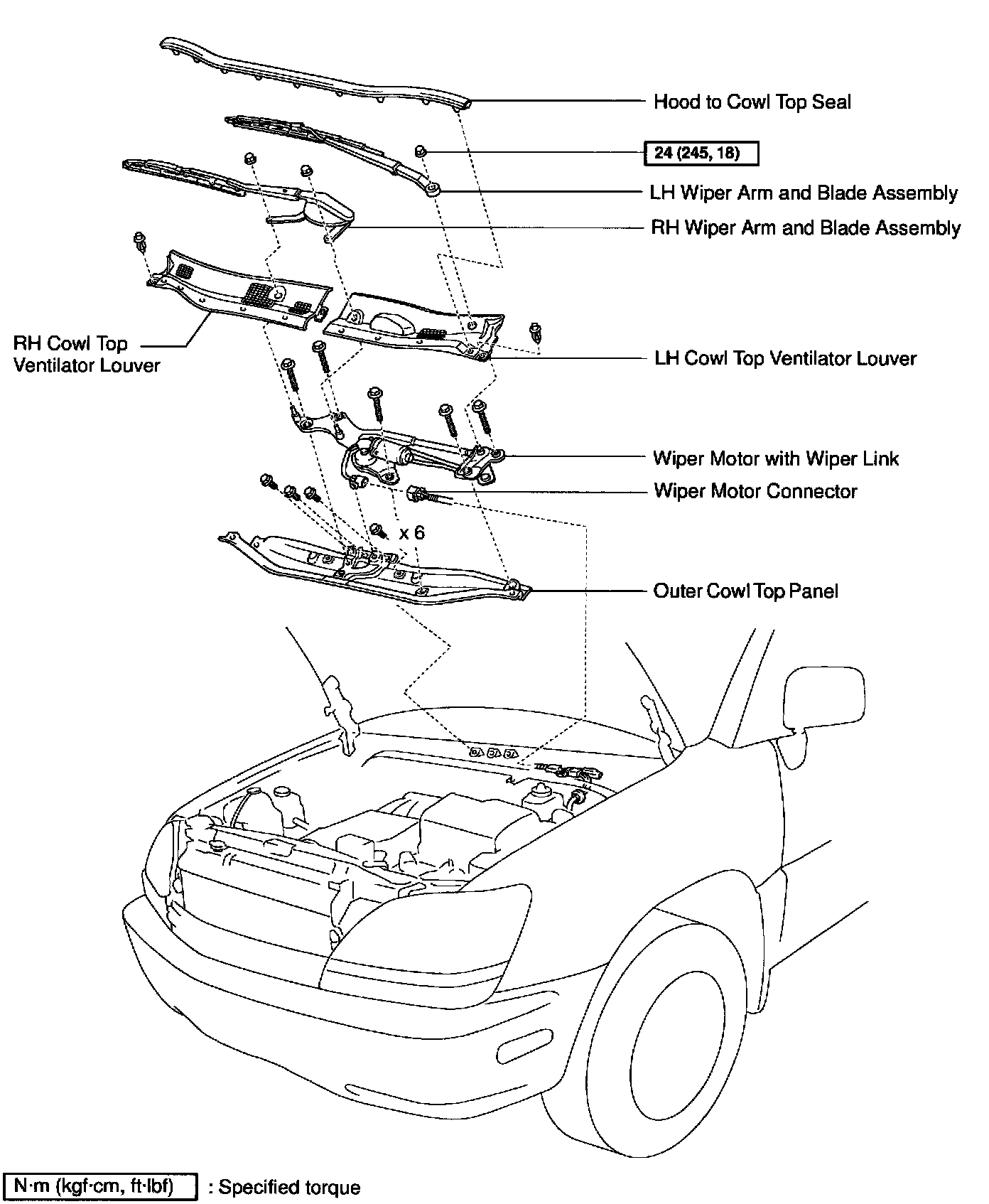

UNDERHOOD VIEW

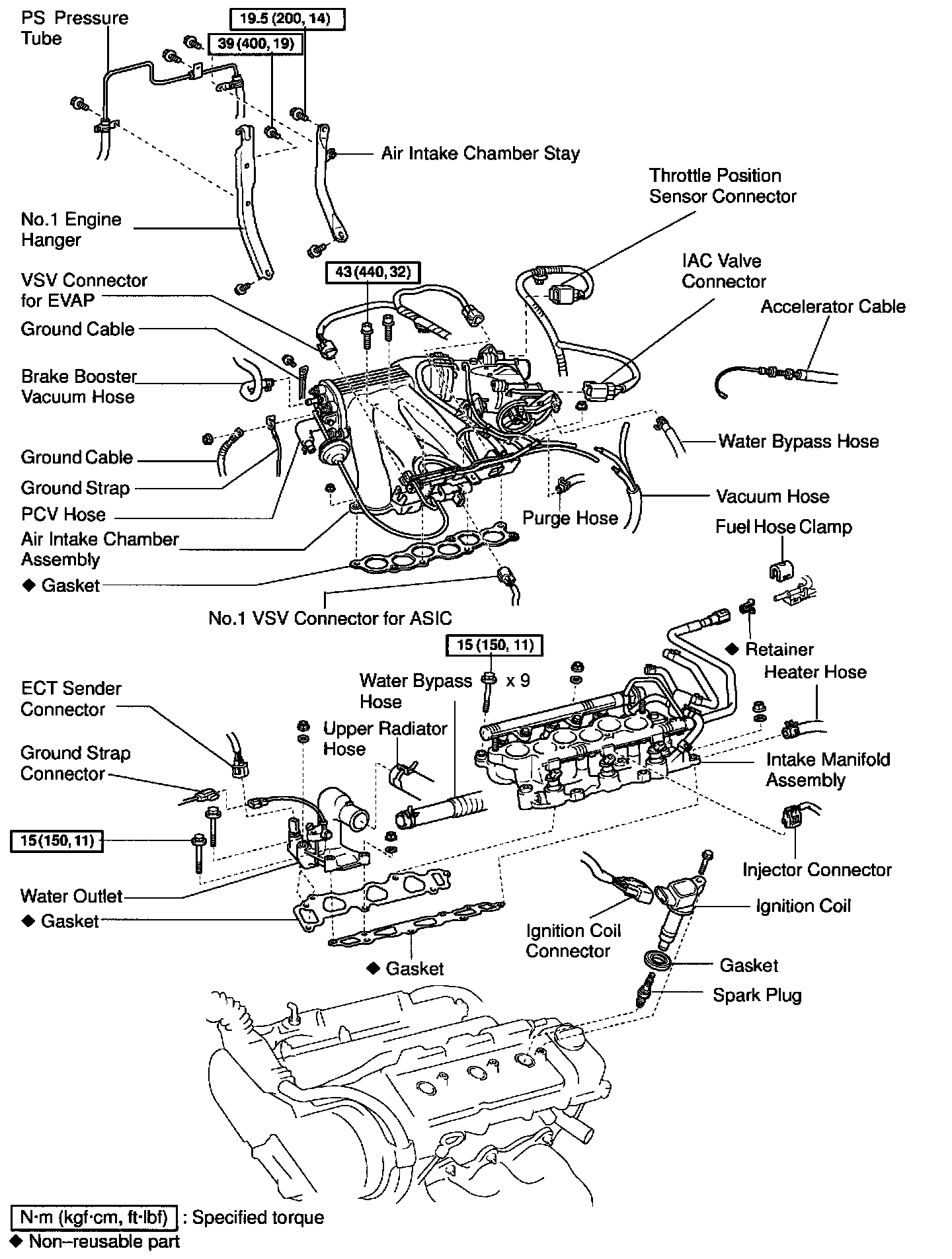

Part 1 of 2

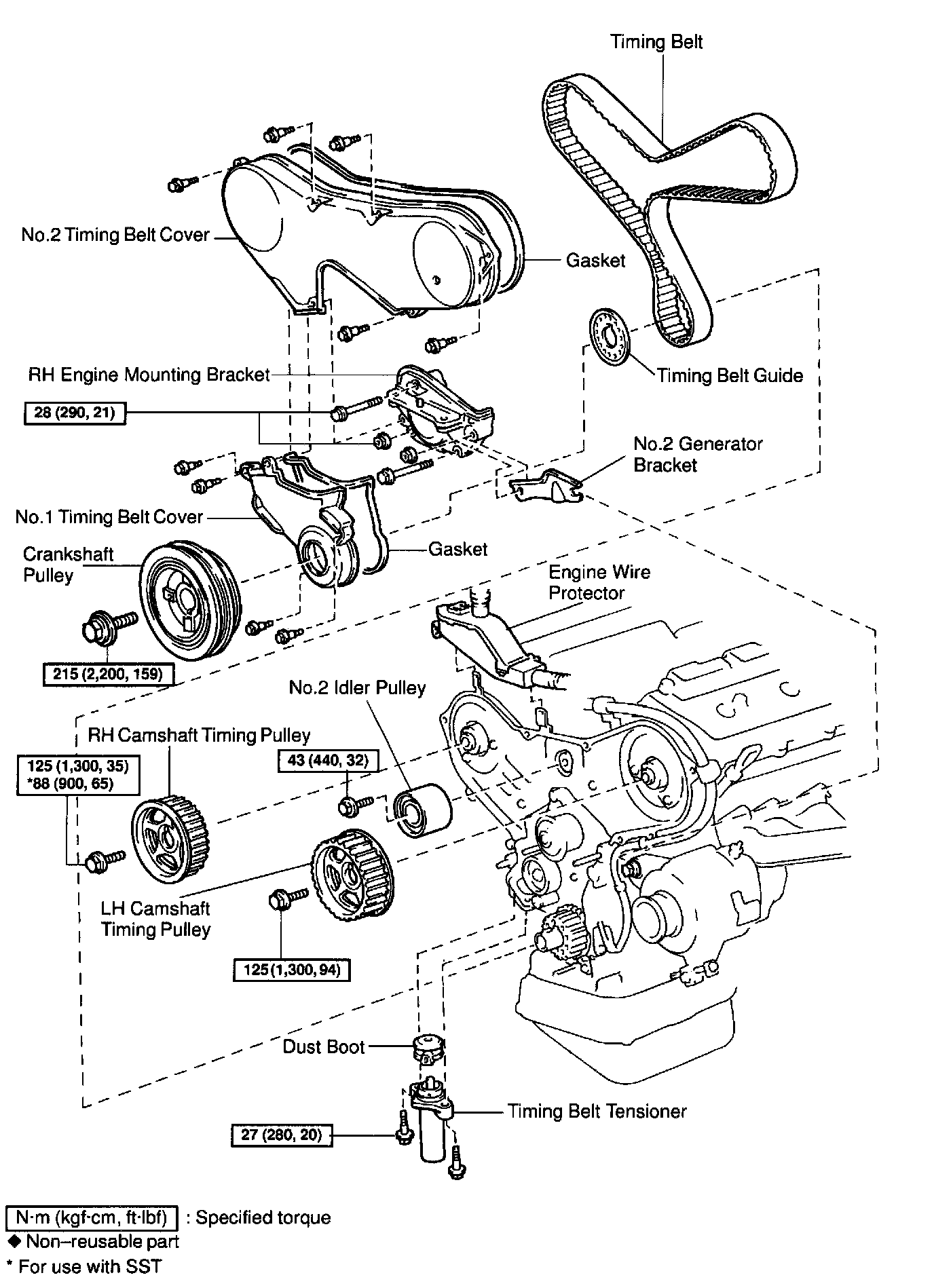

Part 2 of 2

CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

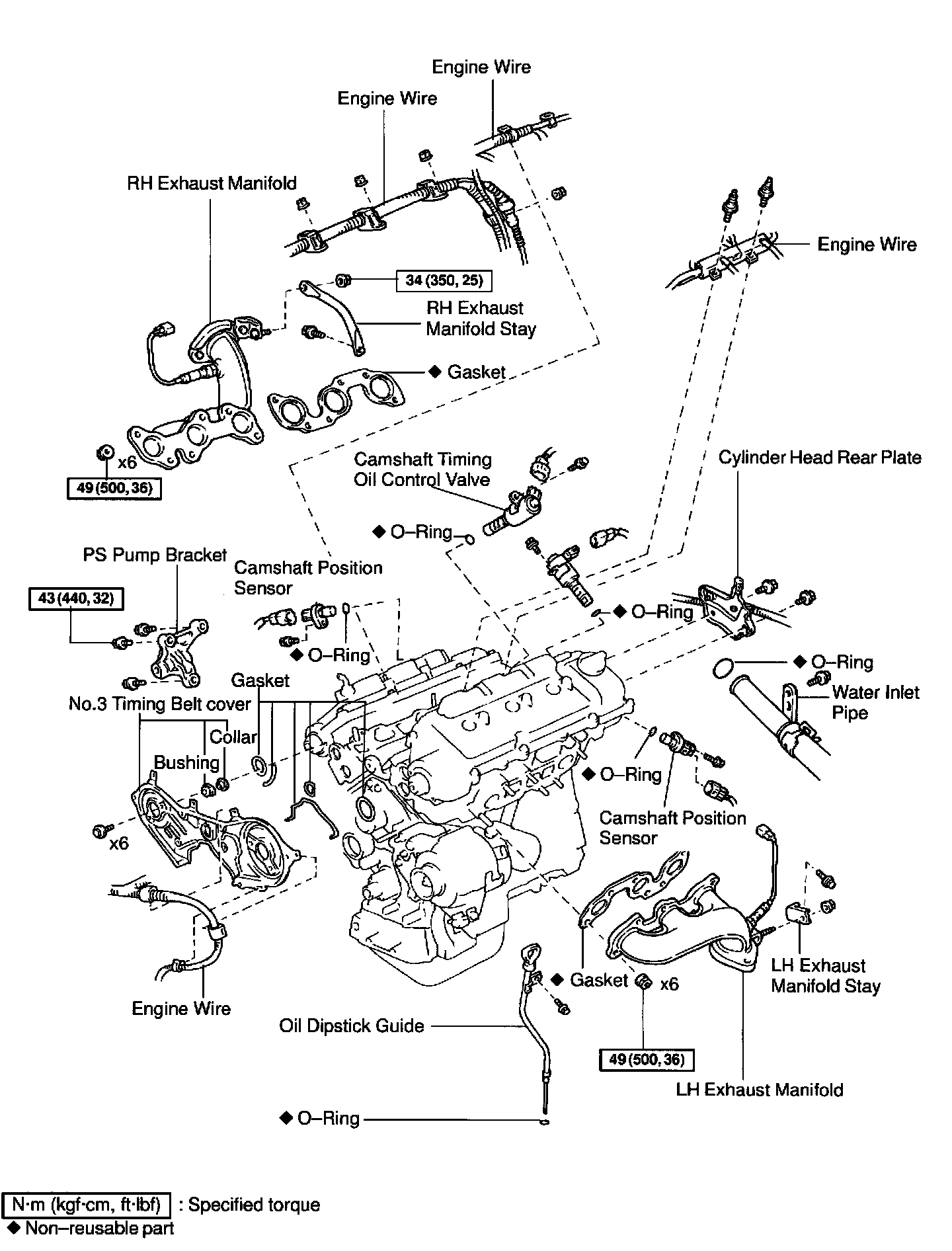

Part 1 of 4

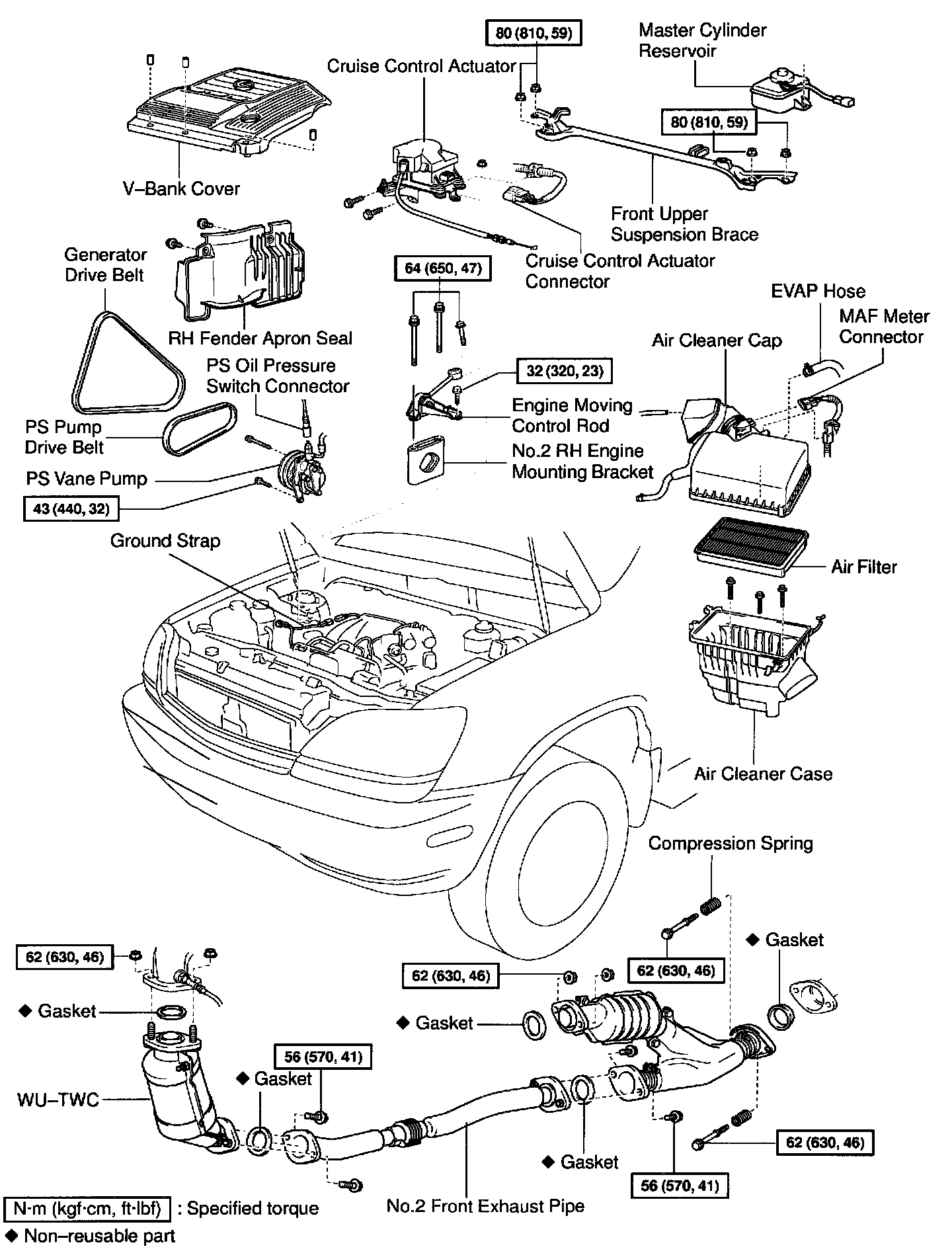

Part 2 of 4





Part 3 of 4

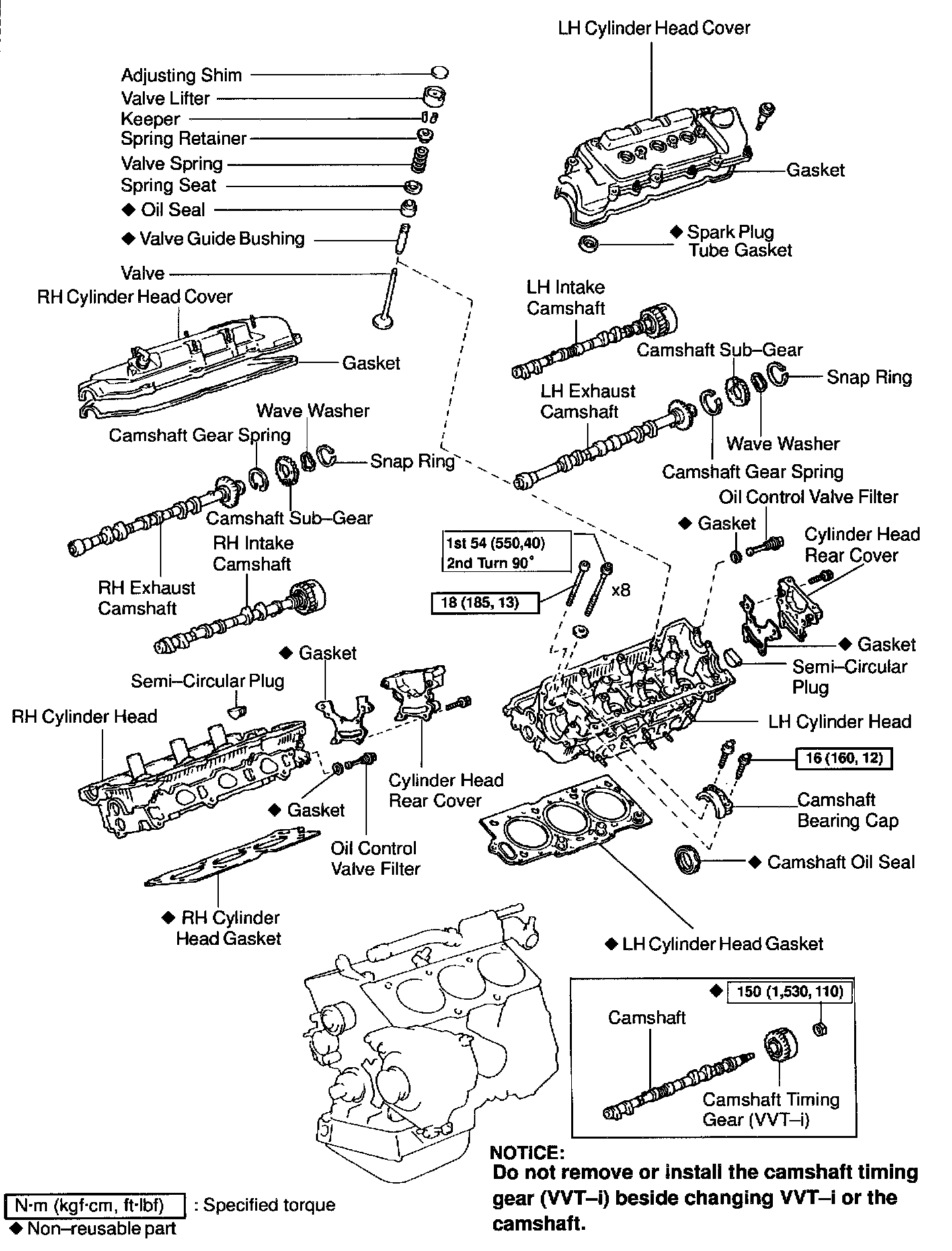

Part 4 of 4
