System Diagram

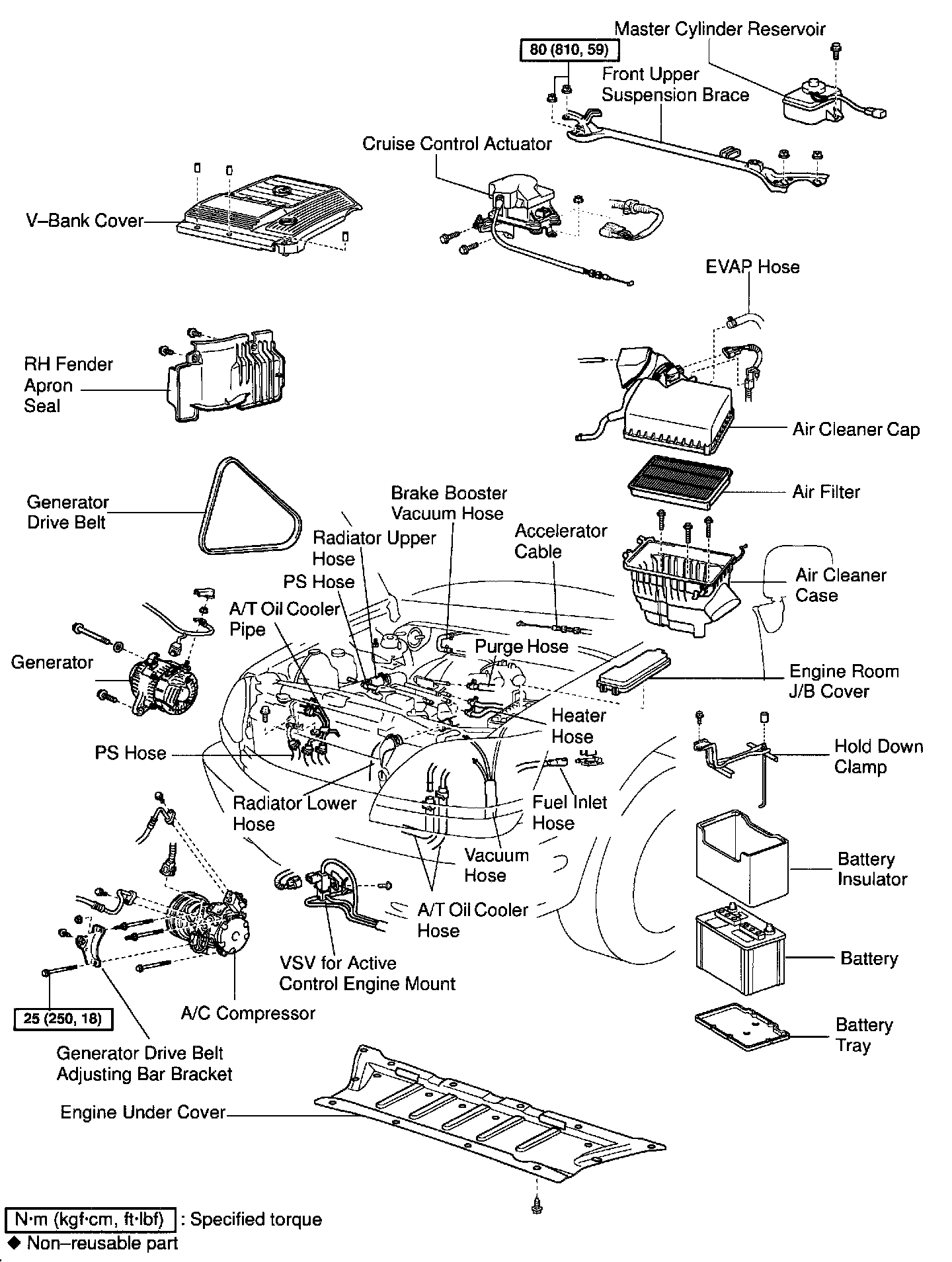

UNDERHOOD VIEW

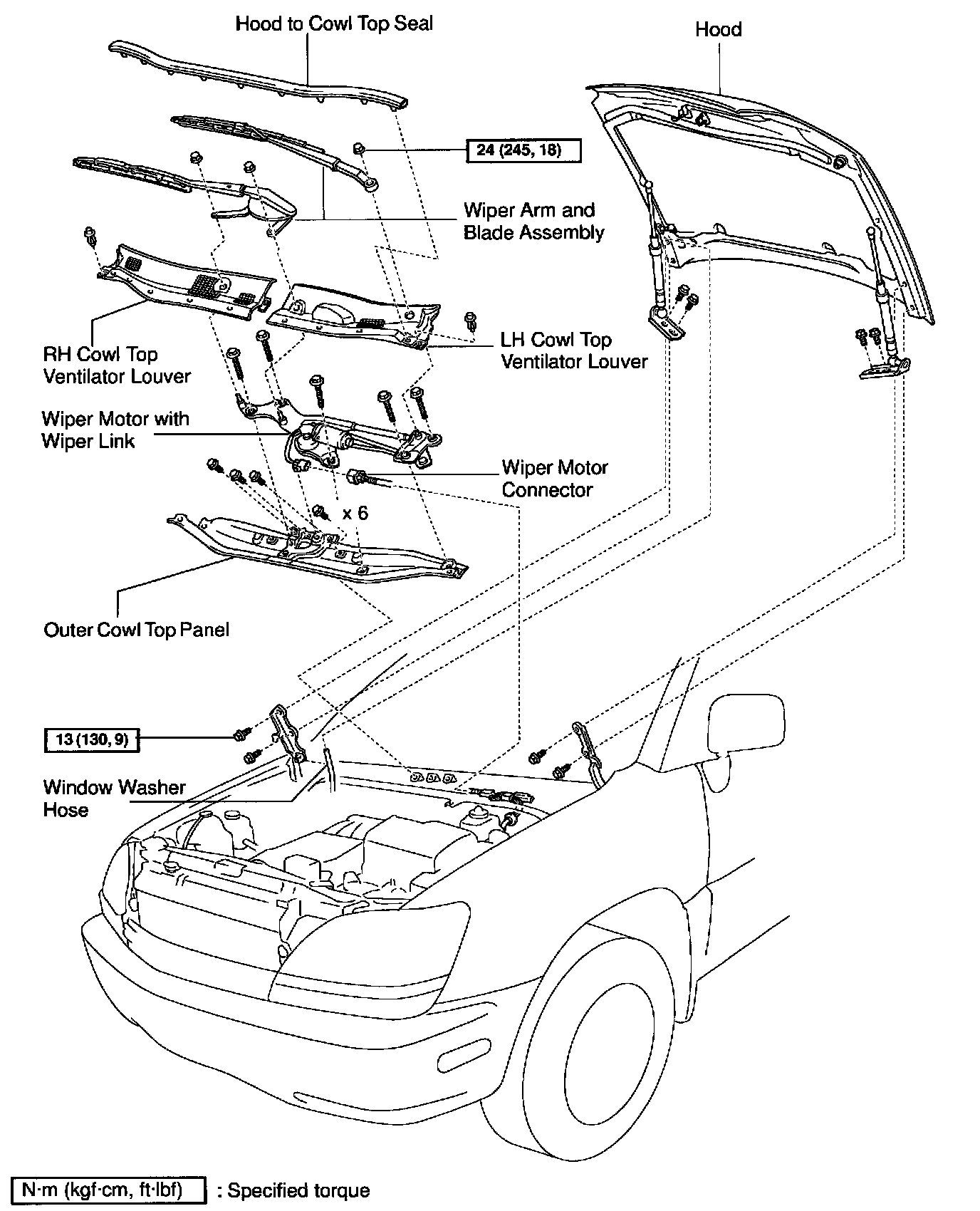

Part 1 of 3

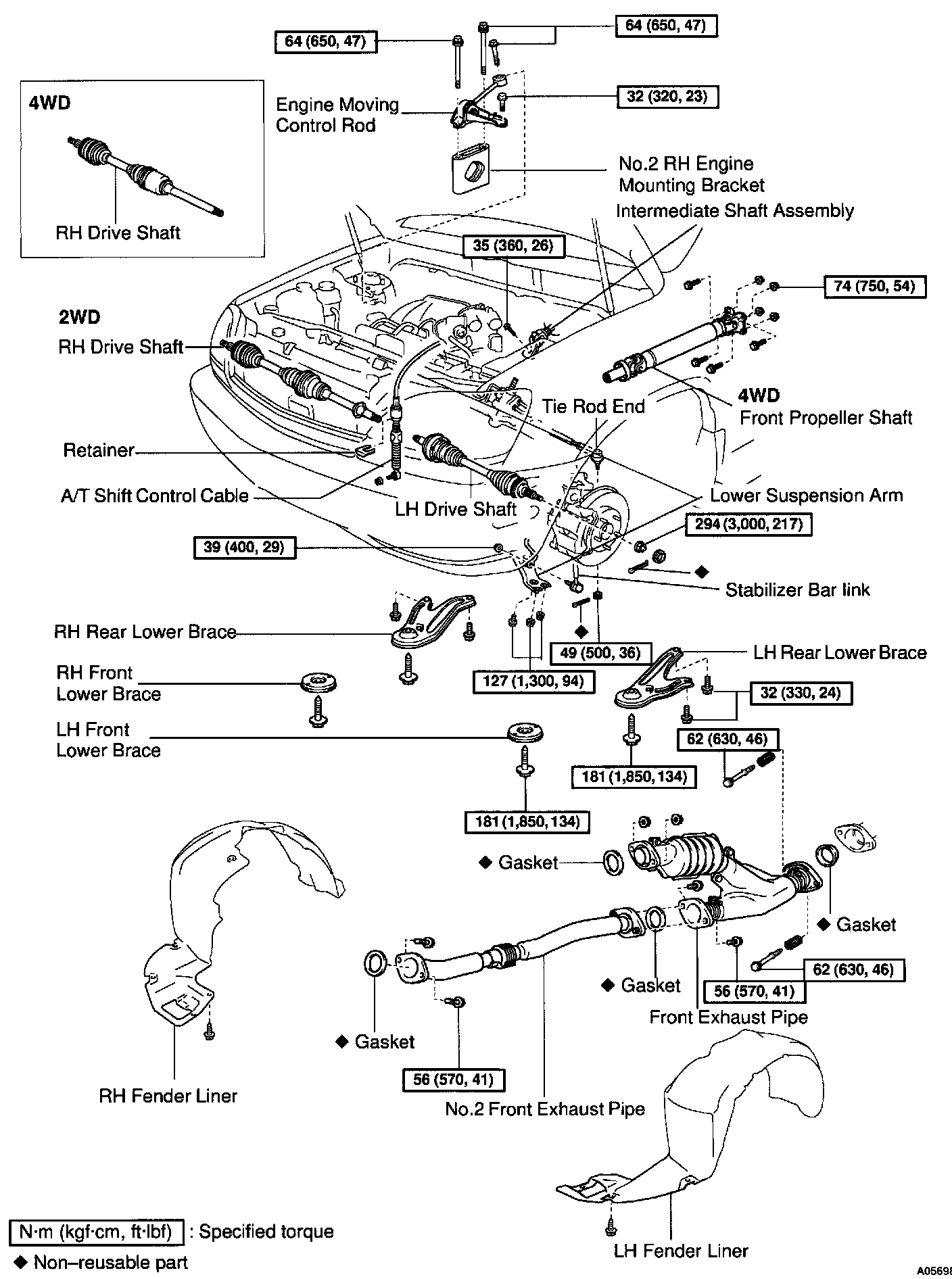

Part 2 of 3

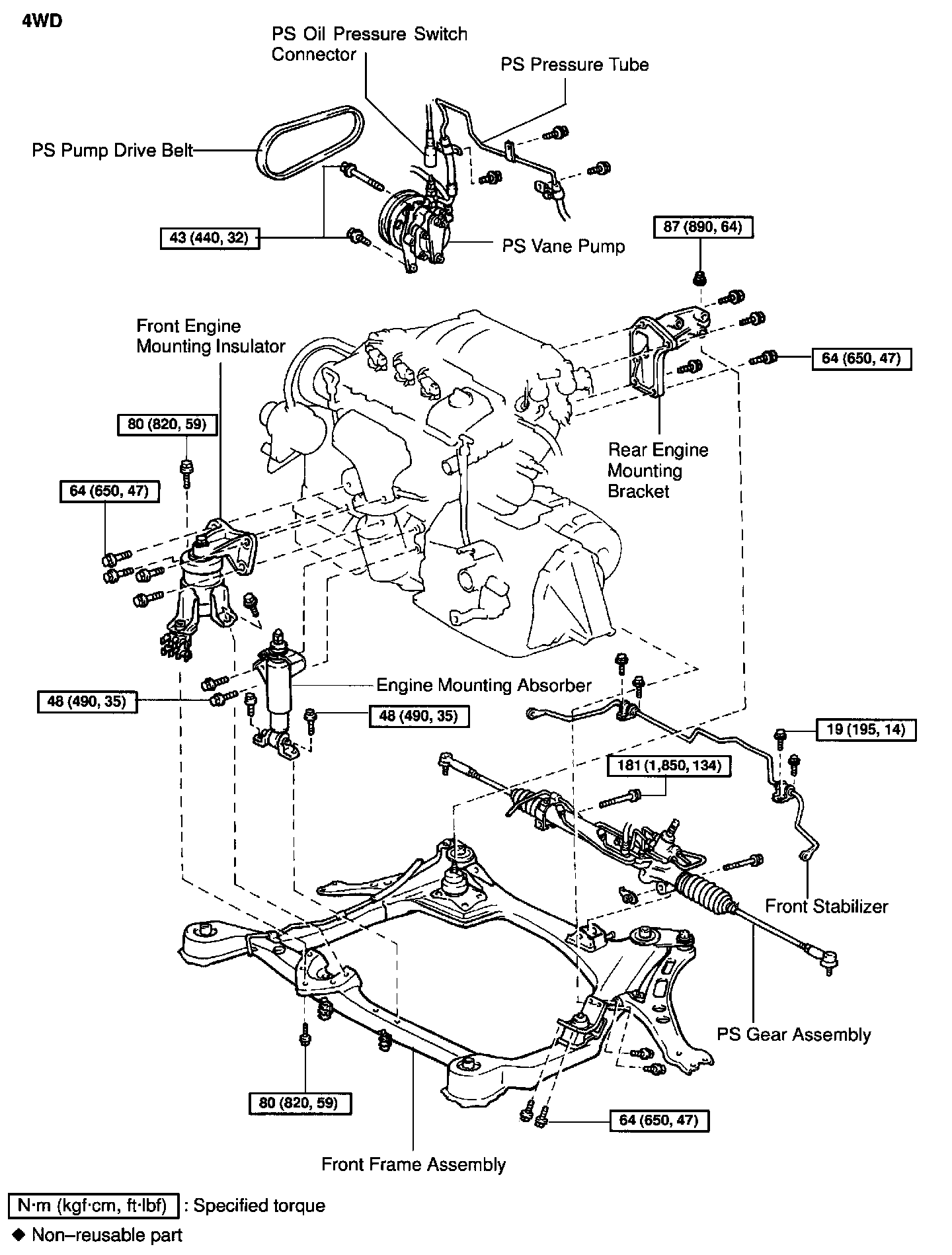

Part 3 of 3





ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
