Air Flow Meter/Sensor: Service and Repair

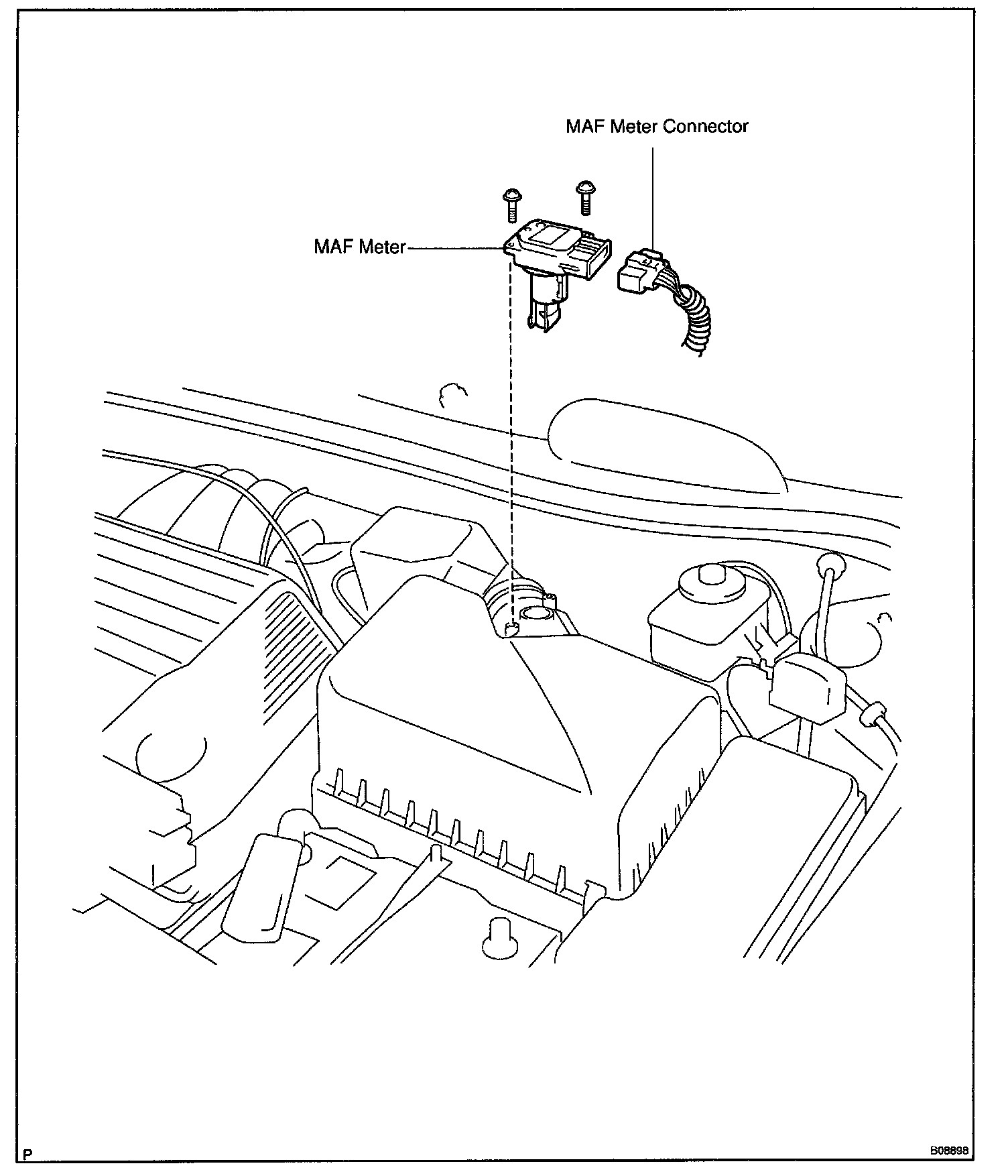

COMPONENTS

REMOVAL




REMOVE MAF METER
a. Disconnect the MAF meter connector.
b. Remove the 2 screw, MAF meter and gasket.

HINT: At the time of installation, please refer to the following items. Use a new gasket.

INSTALLATION
Installation is in the reverse order of removal.
