Component Identification

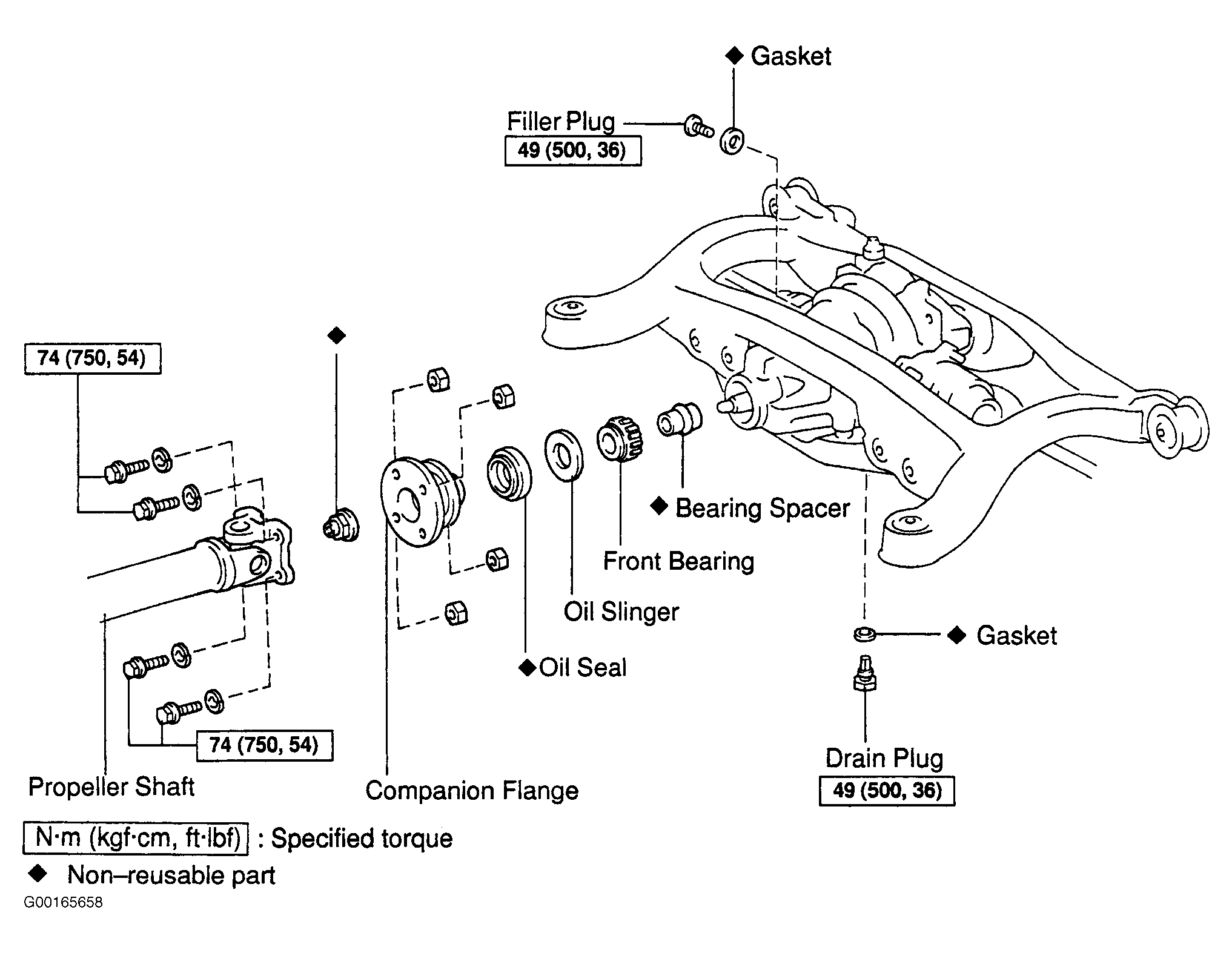

Fig 1: Identifying Rear Differential Front Oil Seal Components
G00165658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

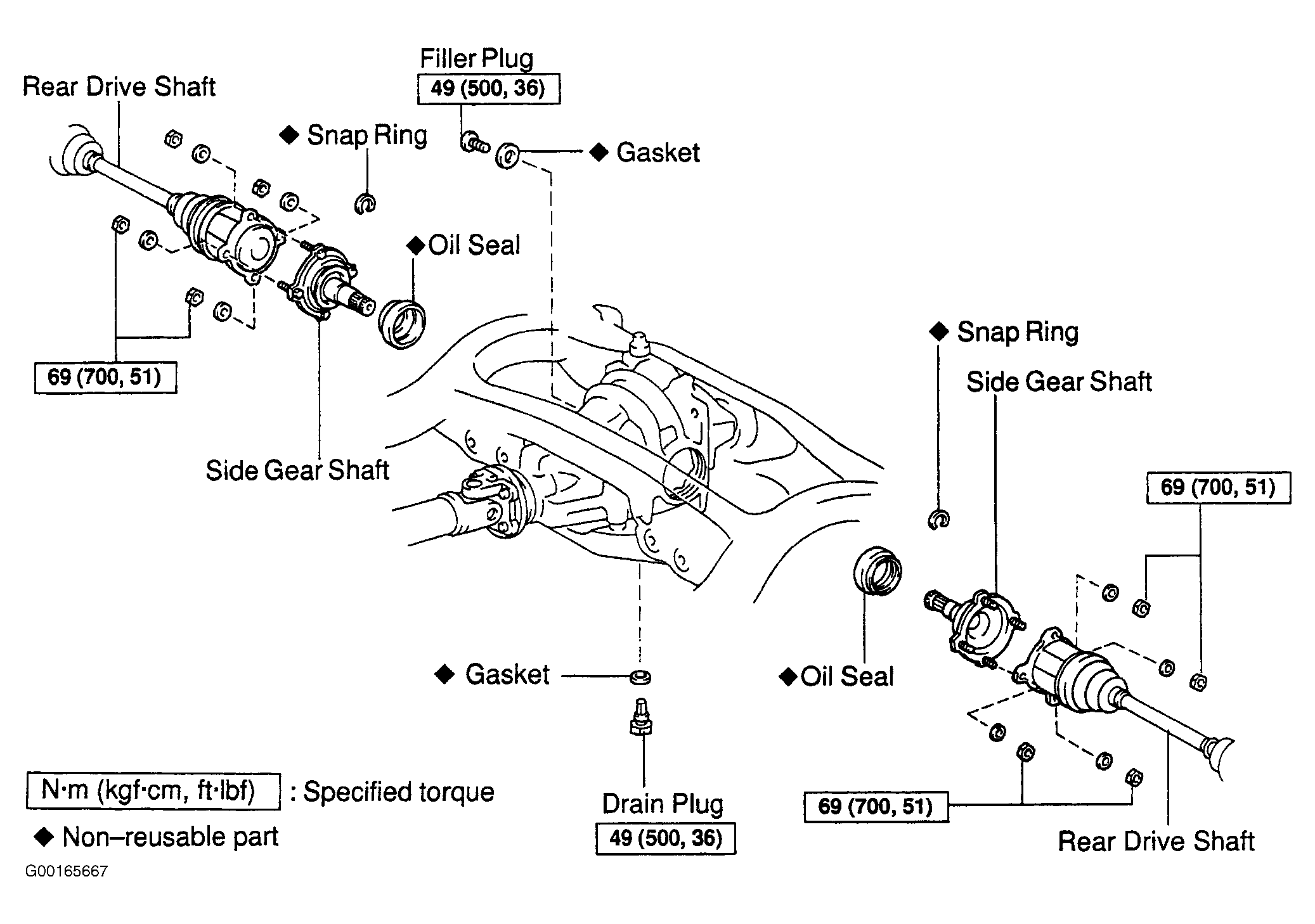

Fig 2: Identifying Rear Differential Side Gear Shaft Oil Seal (W/LSD) Components
G00165667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Differential Carrier (4WD) Components (1 Of 2)
G00165672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

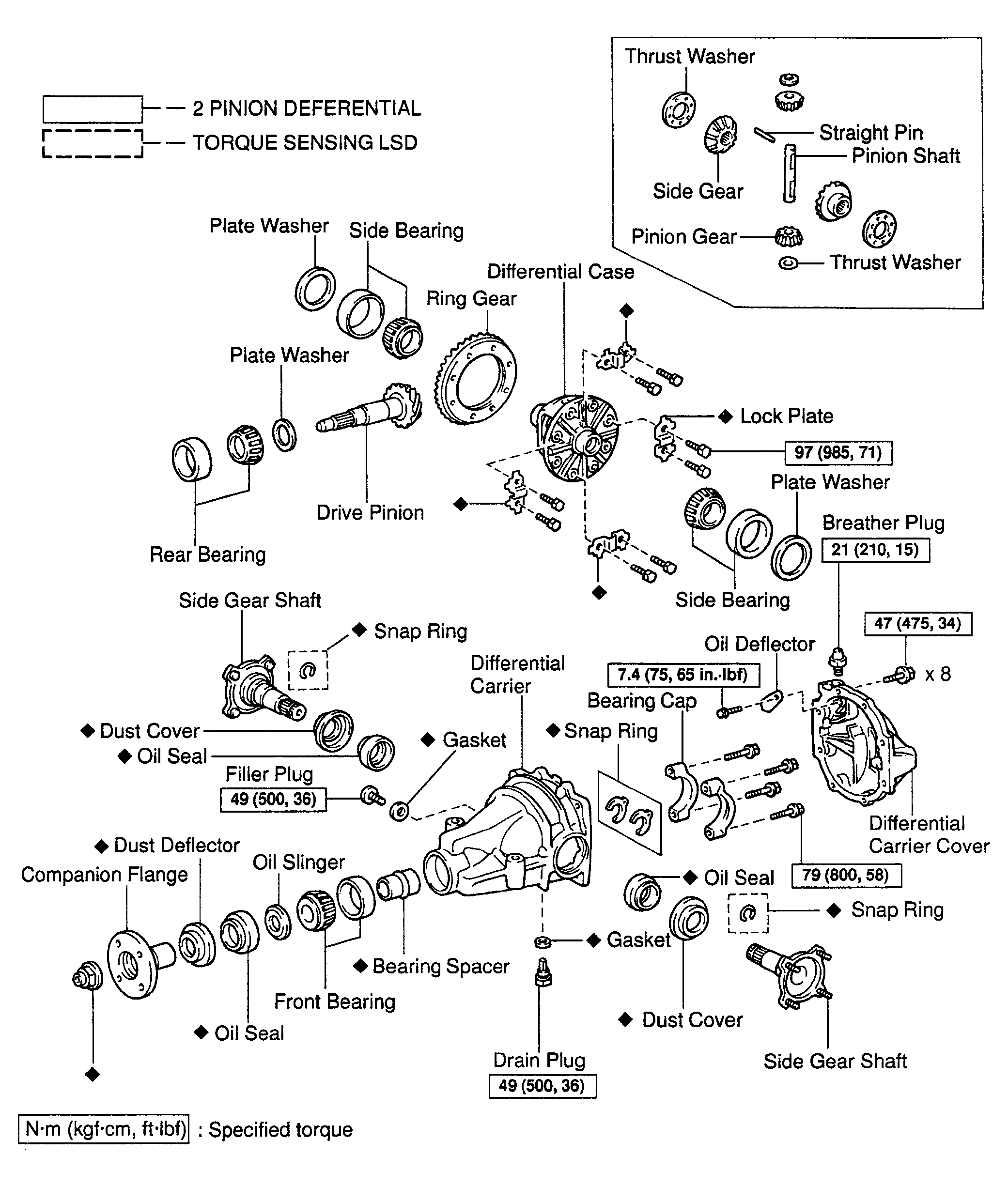

Fig 4: Identifying Rear Differential Carrier (4WD) Components (2 Of 2)
G00165673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
