Home
>>
Lexus
>>
2000
>>
SC 400 V8-4.0L (1UZ-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Locations
>>
Connector Locations
>>
Power Mirror Control System
>>
W/ Driving Position Memory
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
W/ Driving Position Memory

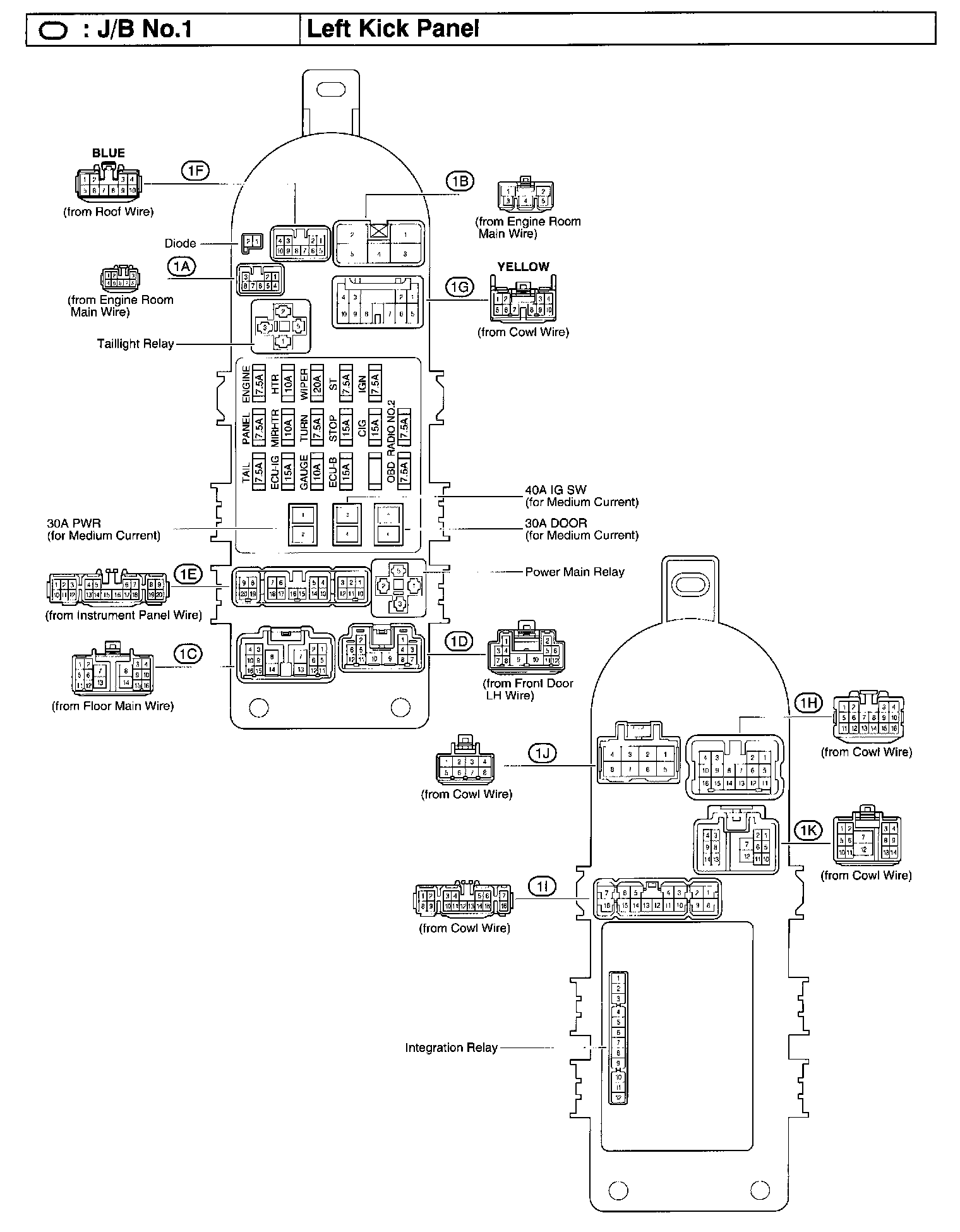

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
FIG 22
