How To Proceed With Troubleshooting

Troubleshoot in accordance with the following procedures .

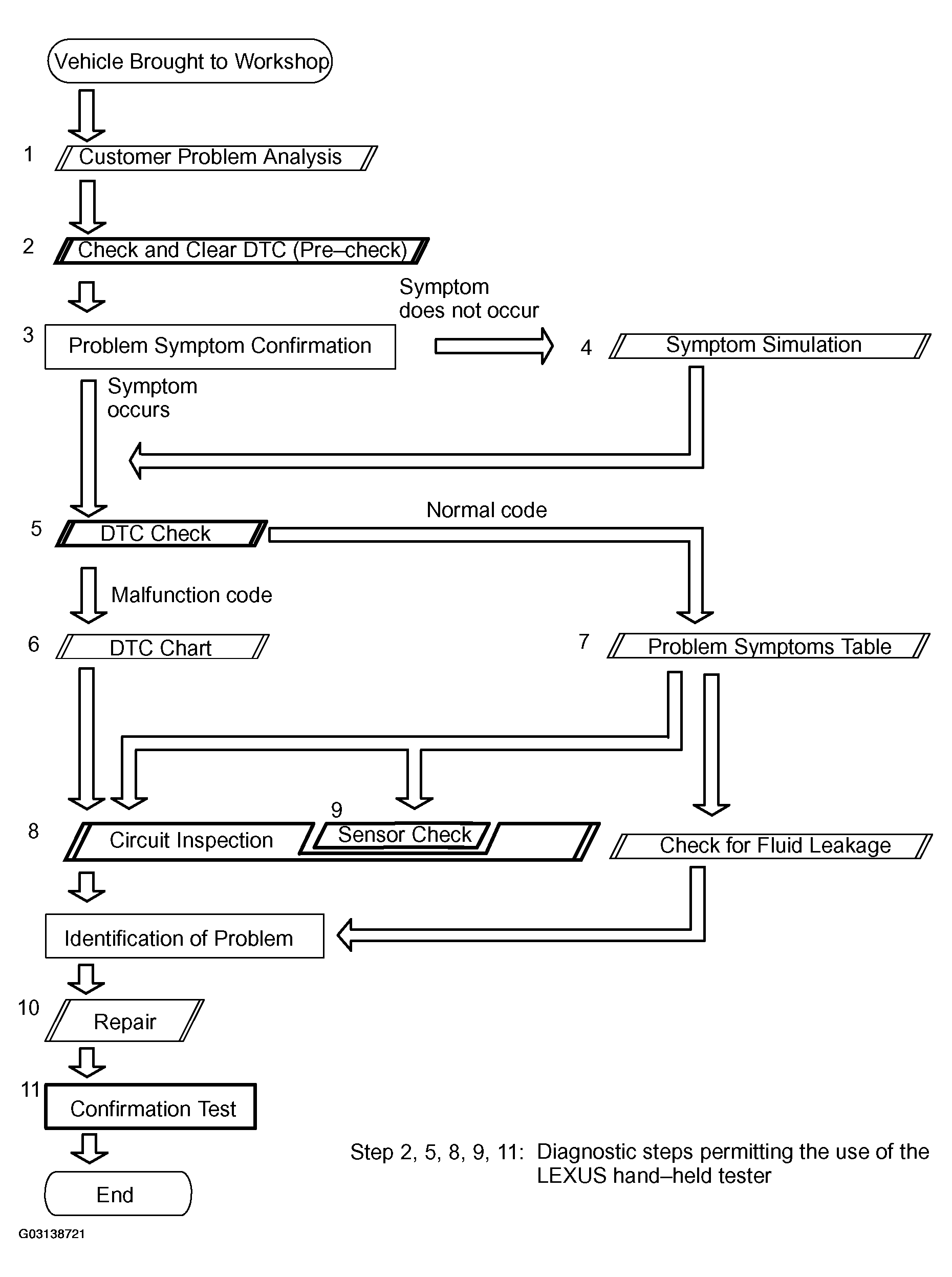

Fig 1: ABS & Traction Control System Troubleshooting Flow Chart
G03138721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
