Abs & VSC Actuator: Components

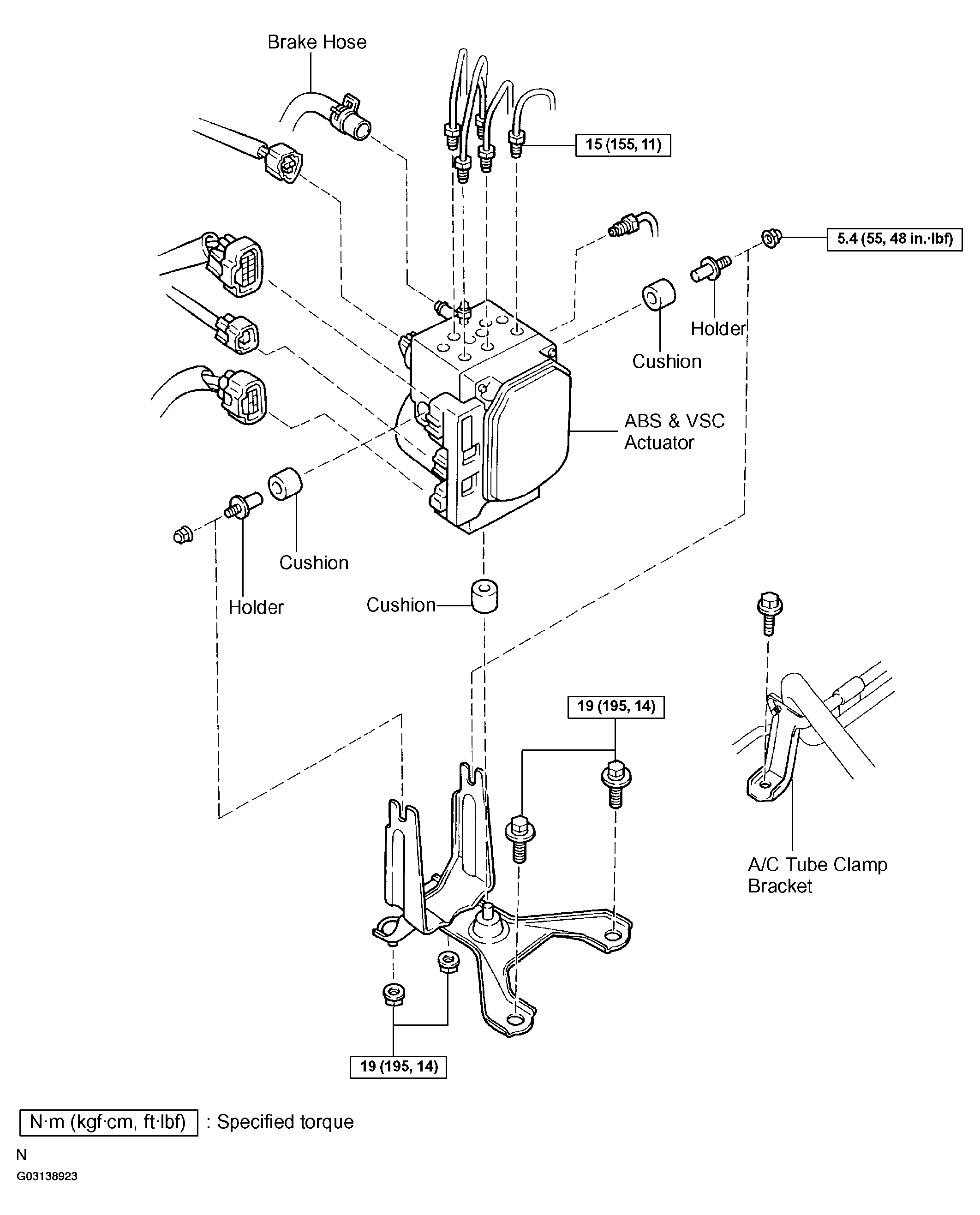

Fig 1: Exploded View Of ABS & VSC Actuator Assembly

G03138923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
