Cooling System (Mechanical): Radiator: Installation

INSTALL ELECTRIC COOLING FAN TO RADIATOR
1. Install the electric cooling fan with the 6 bolts.
  Torque: 5.0 N.m (50 kgf.cm, 44 in.lbf)
2. Connect the radiator reservoir hose to the radiator.
INSTALL RADIATOR AND ELECTRIC COOLING FAN ASSEMBLY
1. Install the 2 lower radiator supports to the radiator.
2. Attach the 2 lower radiator supports on the radiator to the body bracket.
3. Install the radiator and electric cooling fan assembly with the 2 upper radiator supports and 2 nuts.

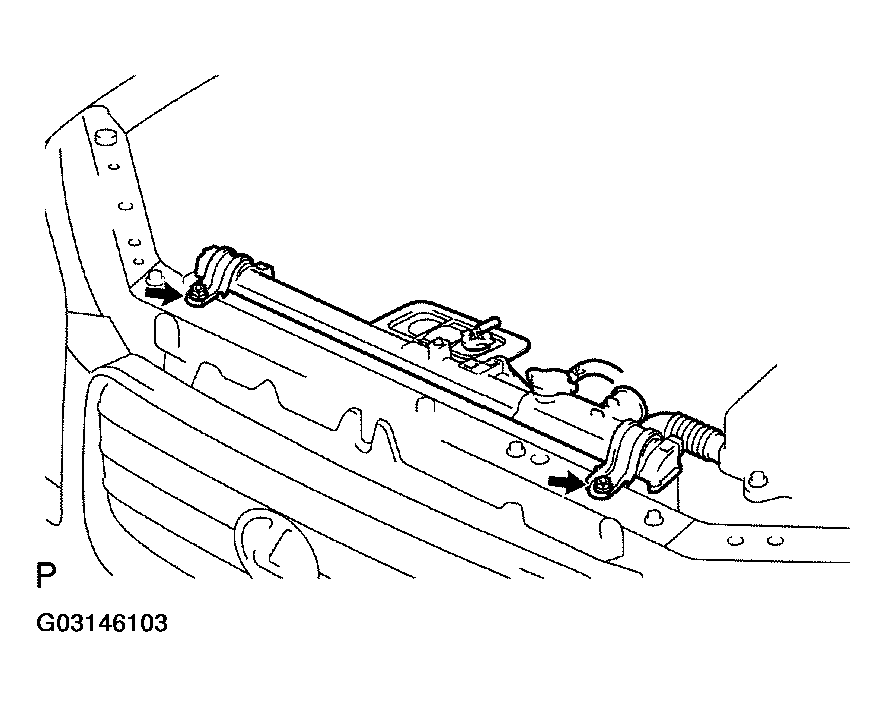

  Fig 1: Installing Upper Radiator Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13.5 N.m (135 kgf.cm, 10 ft.lbf)
4. Connect these parts:
  - Upper radiator hose to radiator
  - Lower radiator hose to radiator
  - ECM outlet duct to ECM box
  - Wire for electric cooling fan to clamp on electric cooling fan
  - 2 electric cooling fan connectors
  - ECT switch connector for electric cooling fan
  - 2 oil cooler hoses for A/T to radiator
INSTALL AIR CLEANER AND MAF METER ASSEMBLY
INSTALL AIR CLEANER INLET
FILL WITH ENGINE COOLANT
START ENGINE AND CHECK FOR ENGINE COOLANT AND A/T FLUID LEAKS
INSTALL ENGINE UNDER COVER
