Power Tilt & Power Telescoping

NOTE: Use appropriate illustration for overhaul procedure. See Fig 1 and Fig 2 .

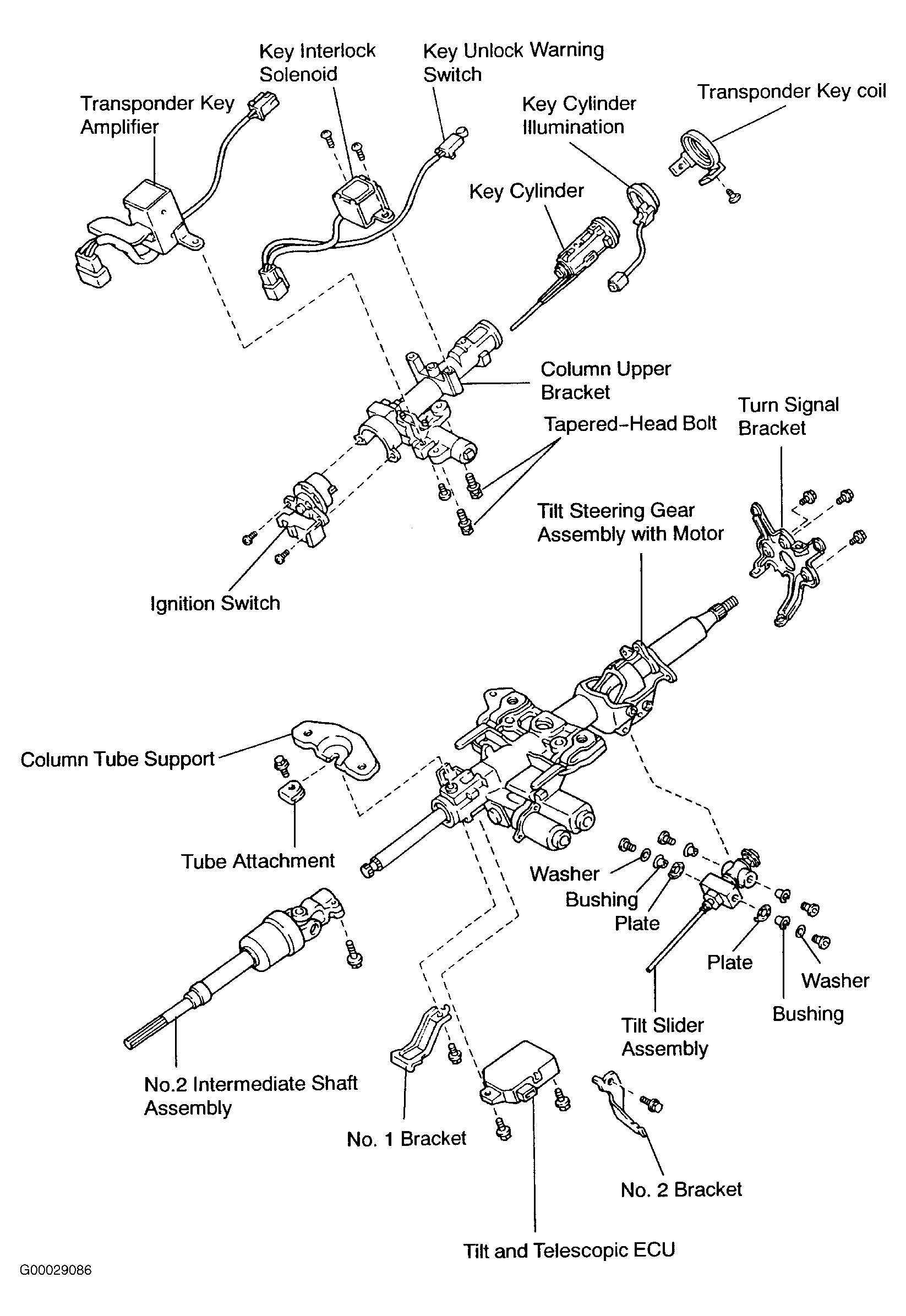

Fig 1: Exploded View Of Power Tilt & Telescope Column (GS300 & GS430)
G00029086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

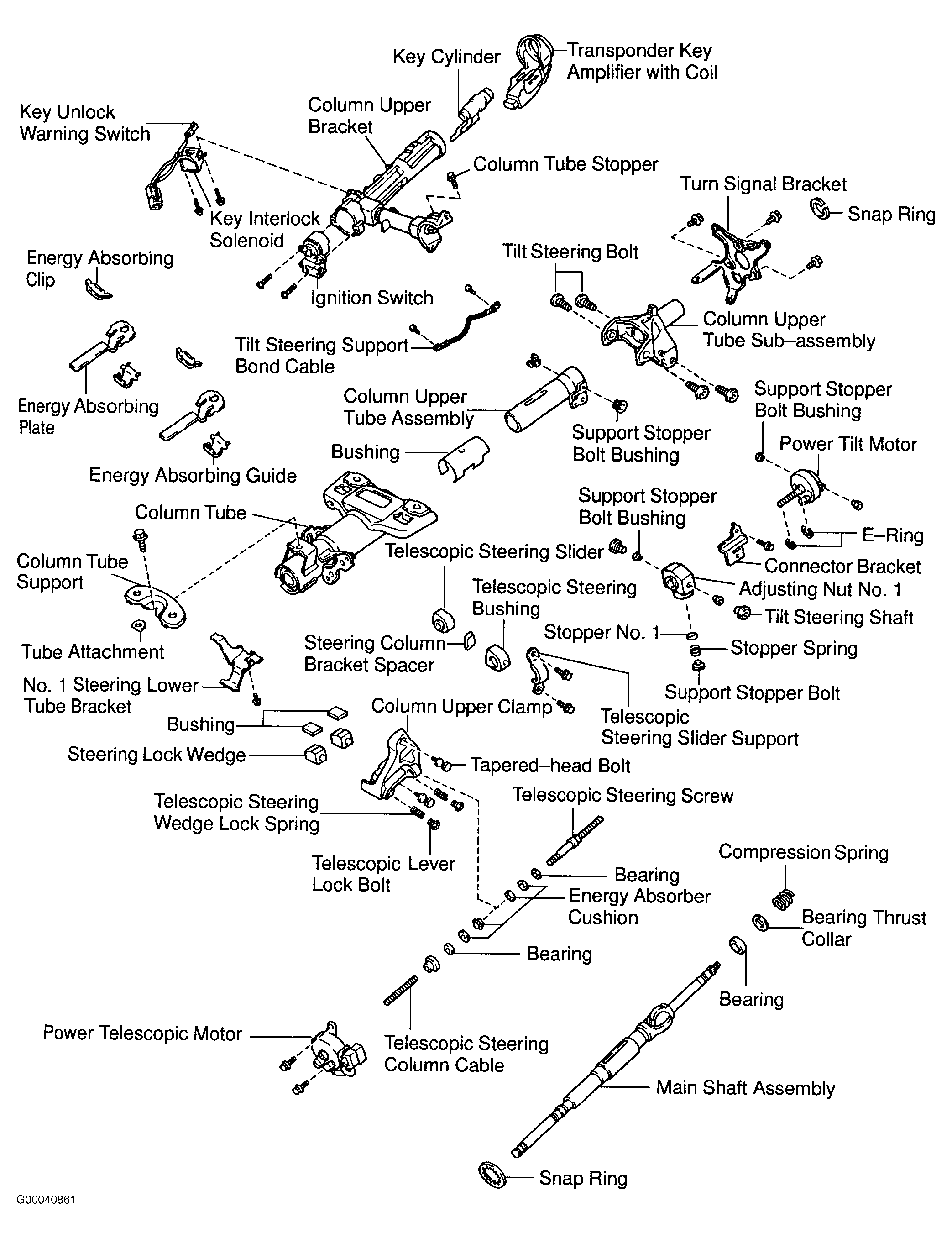

Fig 2: Exploded View Of Power Tilt & Telescope Column Assembly (LS430)
G00040861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
