Power Source Circuit

CIRCUIT DESCRIPTION

This circuit supplies power to operate the driver door ECU.

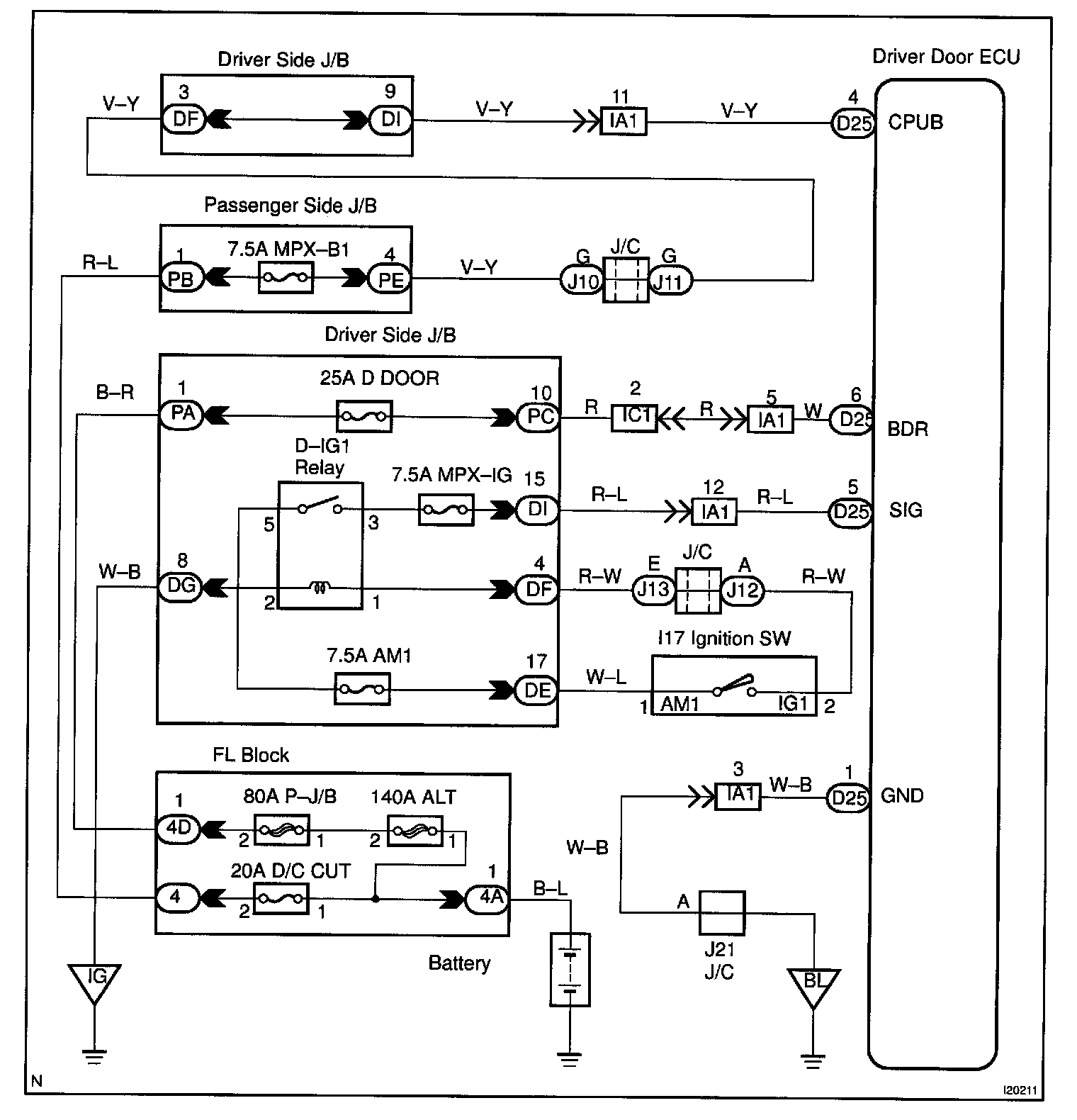

Wiring Diagram:

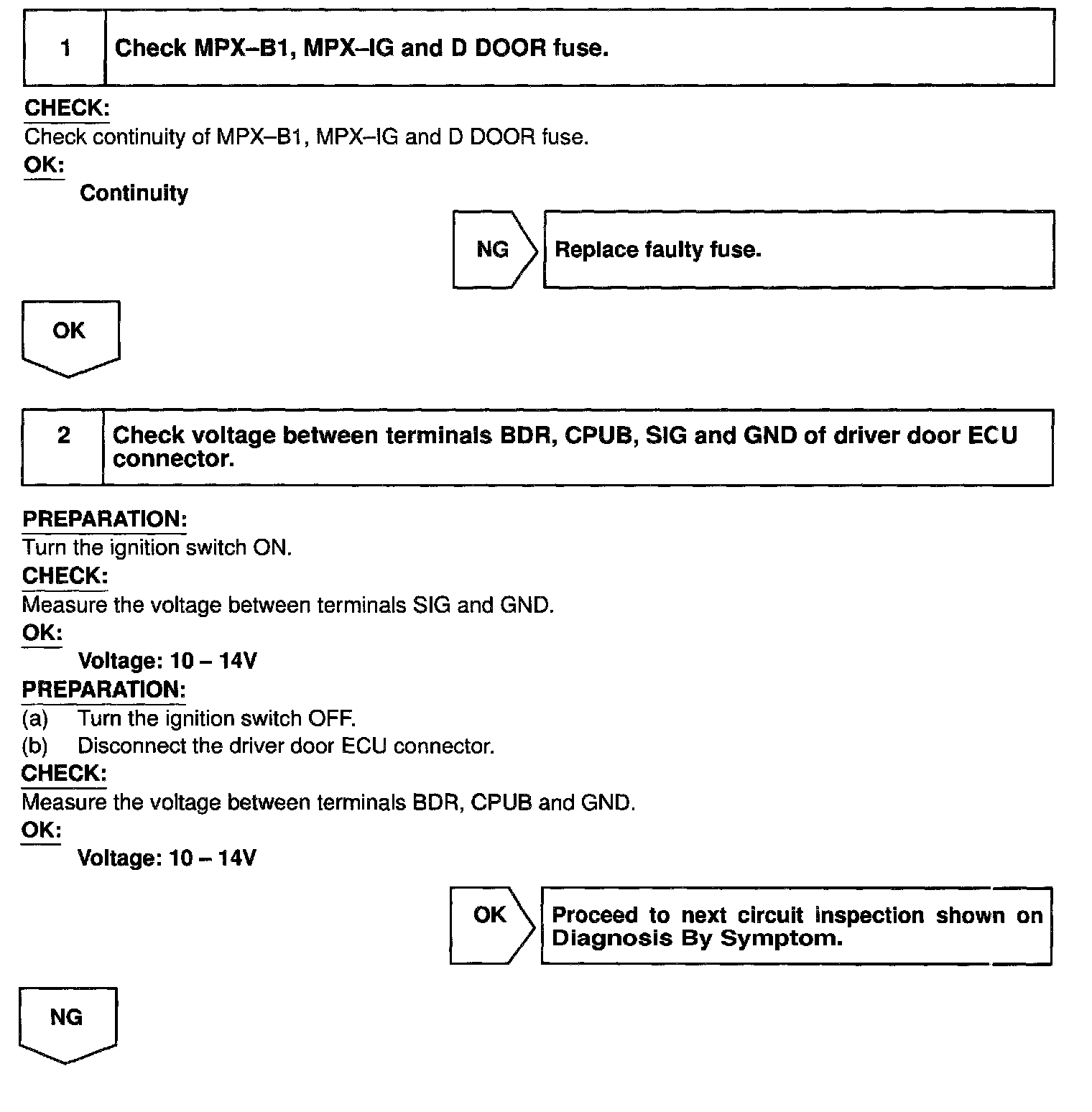

Steps 1 - 2:




Step 3:




INSPECTION PROCEDURE
