Component Locations

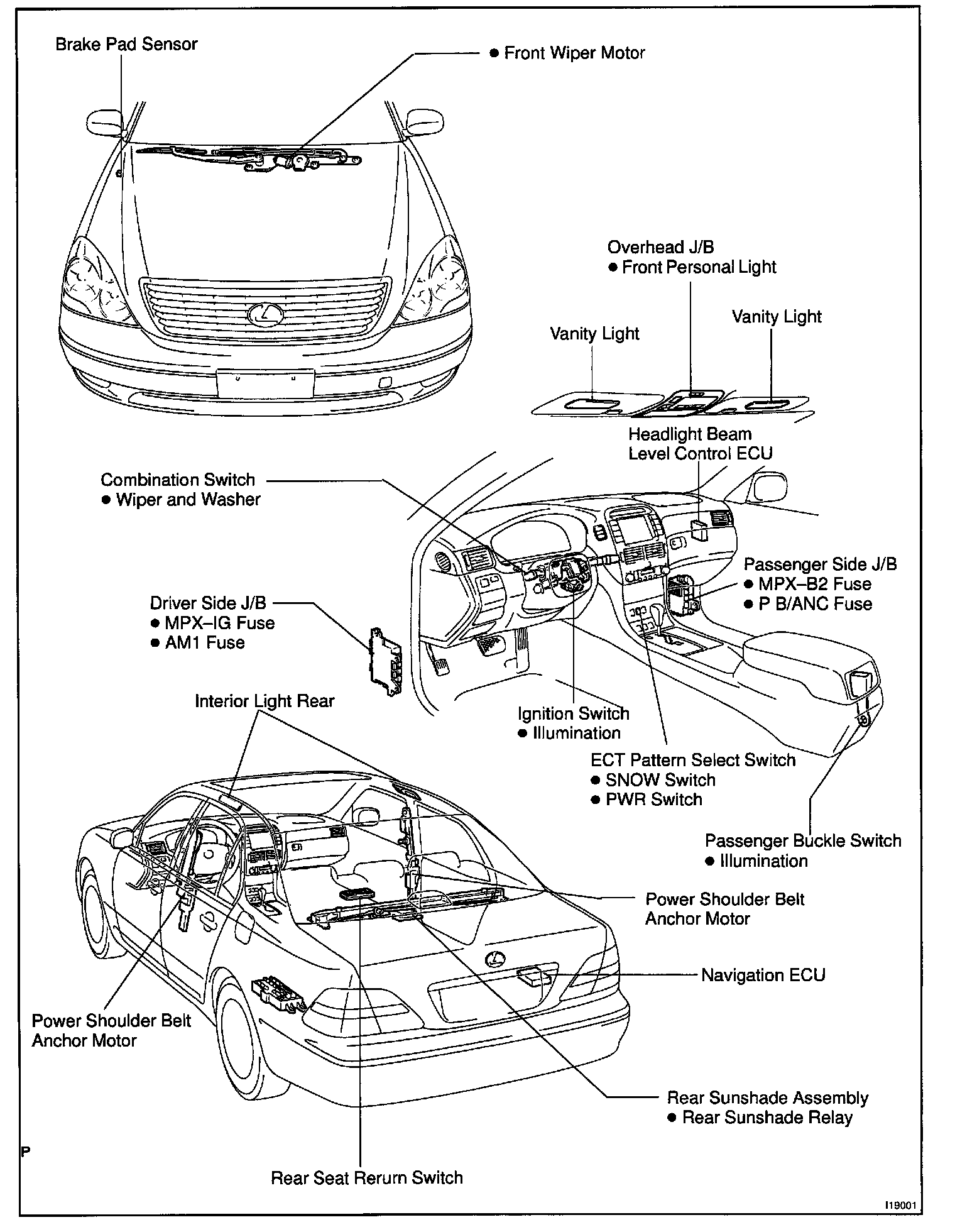

Drive Side Junction Block (Body NO.2) Control System:

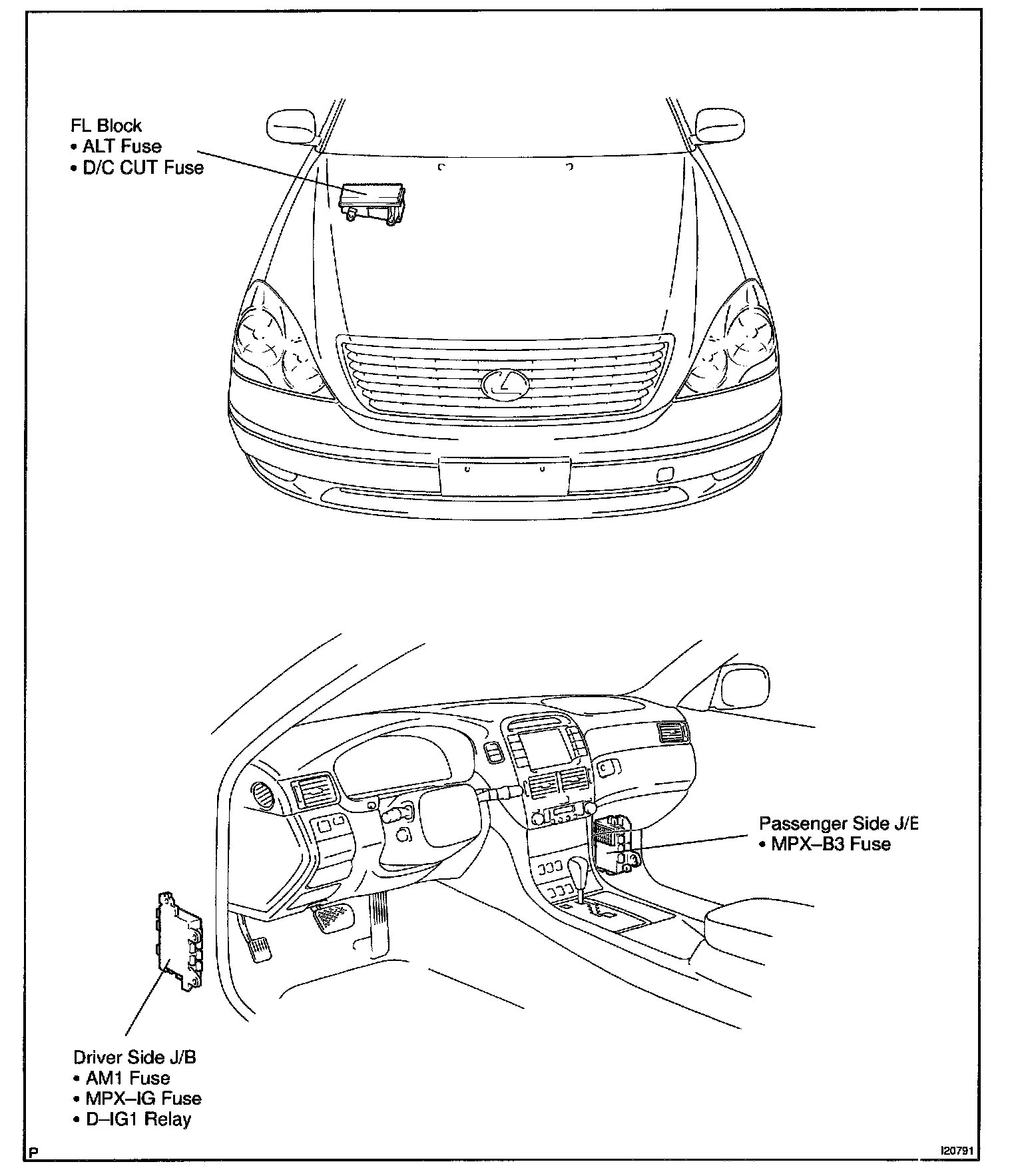

Passenger Side Junction Block (Body NO.3) Control System:

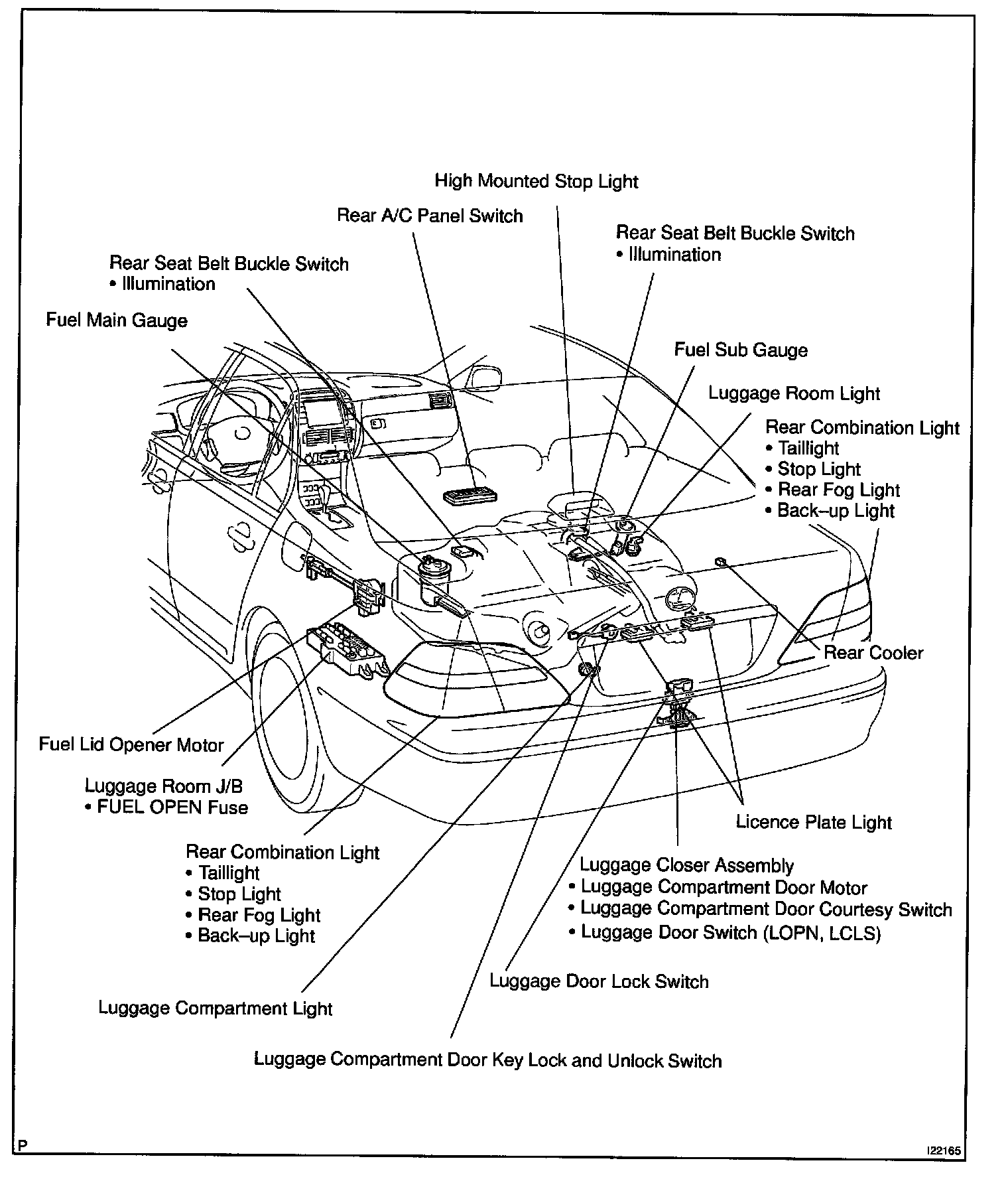

Luggage Room Junction Block (Body NO.4) Control System (Part 1):

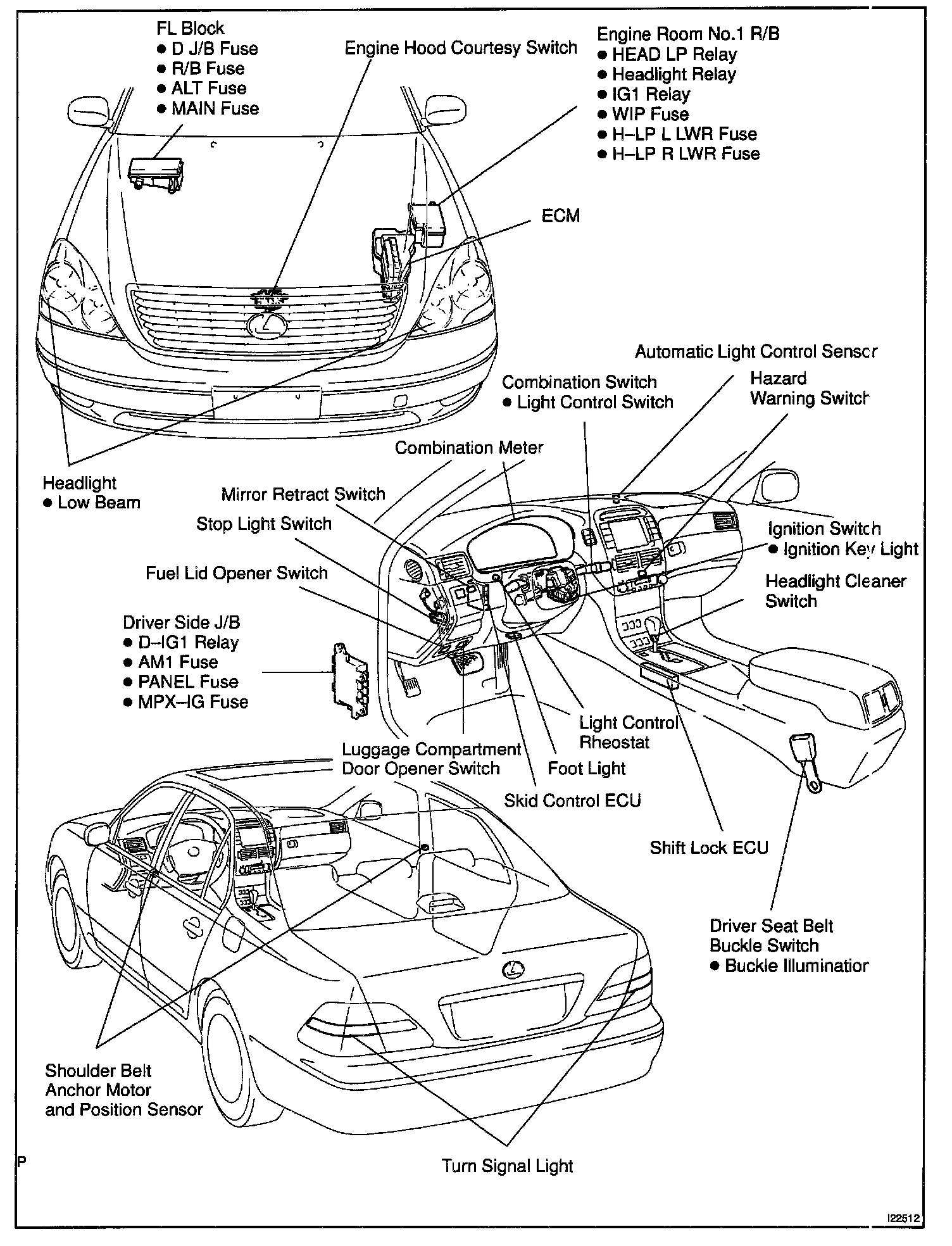

Luggage Room Junction Block (Body NO.4) Control System (Part 2):
