Luggage Compartment Door Key Lock and Unlock Switch Circuit

CIRCUIT DESCRIPTION

The luggage door key lock and unlock switch is built in the luggage door key cylinder.

The switch goes on when the luggage door key cylinder is turned to the unlock side with the key.

Wiring Diagram:






Step 1:

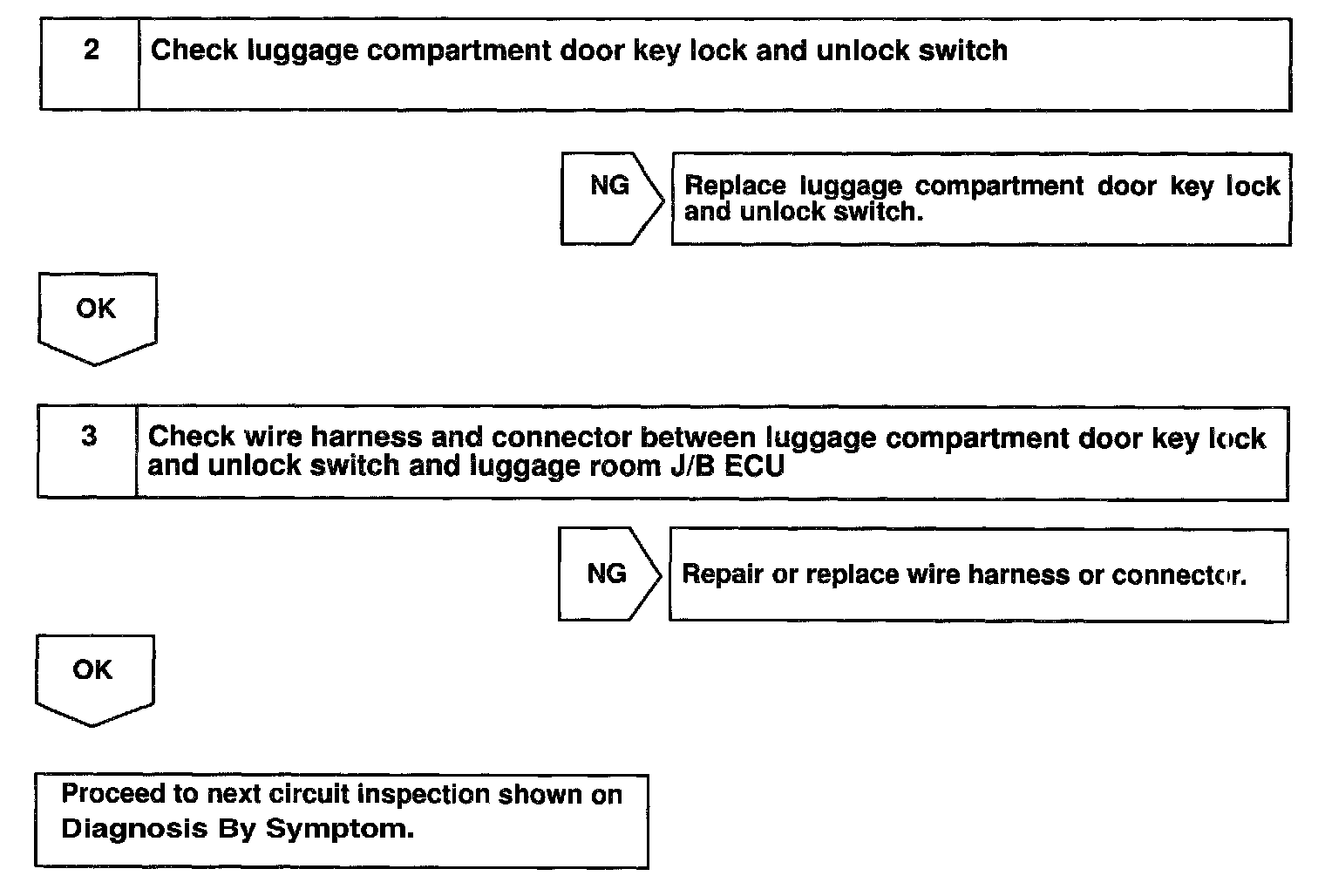

Steps 2 - 3:




INSPECTION PROCEDURE
