Front Suspension (LS430)

Ensure riding height, camber, and steering axis inclination are correct. See RIDING HEIGHT ADJUSTMENT . Also see CAMBER ADJUSTMENT and STEERING AXIS INCLINATION under WHEEL ALIGNMENT PROCEDURES.
Measure caster of each front wheel. See WHEEL ALIGNMENT SPECIFICATIONS . Adjust caster (if necessary) by replacing No. 2 bushing bracket. See Fig 1. Raise vehicle with wheel in full rebound position. Remove nut and washer from rear of lower No. 2 bushing. Remove bolts from right and left sides of lower No. 2 bushing bracket and remove bracket from lower arm.

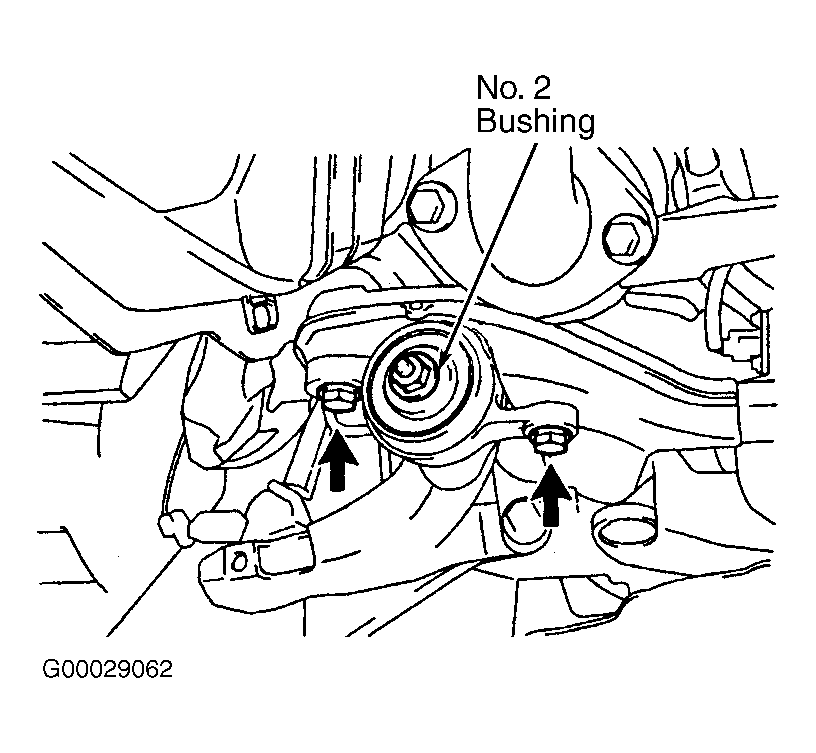

Fig 1: Identifying Rear No. 2 Bushing Bracket (LS430)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a bearing splitter and a press, remove lower No. 2 bushing from bracket. Replace with correct bracket. See REAR NO. 2 BUSHING BRACKET REPLACEMENT SELECTION table. Reinstall bushing. Install lower bracket into lower arm shaft. Install washer and nut to rear of lower No. 2 bushing and hand tighten. Install two bolts to right and left side of lower No. 2 bushing bracket and tighten to 64 ft. lbs. (87 N.m) . Lower vehicle until wheels are completely grounded. Tighten nut to rear of lower No. 2 bushing to 101 ft. lbs. (137 N.m) .

REAR NO. 2 BUSHING BRACKET REPLACEMENT SELECTION

Adjustment Amount ⁽¹⁾

Part No.

+30°

48652-50040

-30°

48652-50050

⁽¹⁾

Dinension is in degrees.
