Front Axle Shafts: Identification

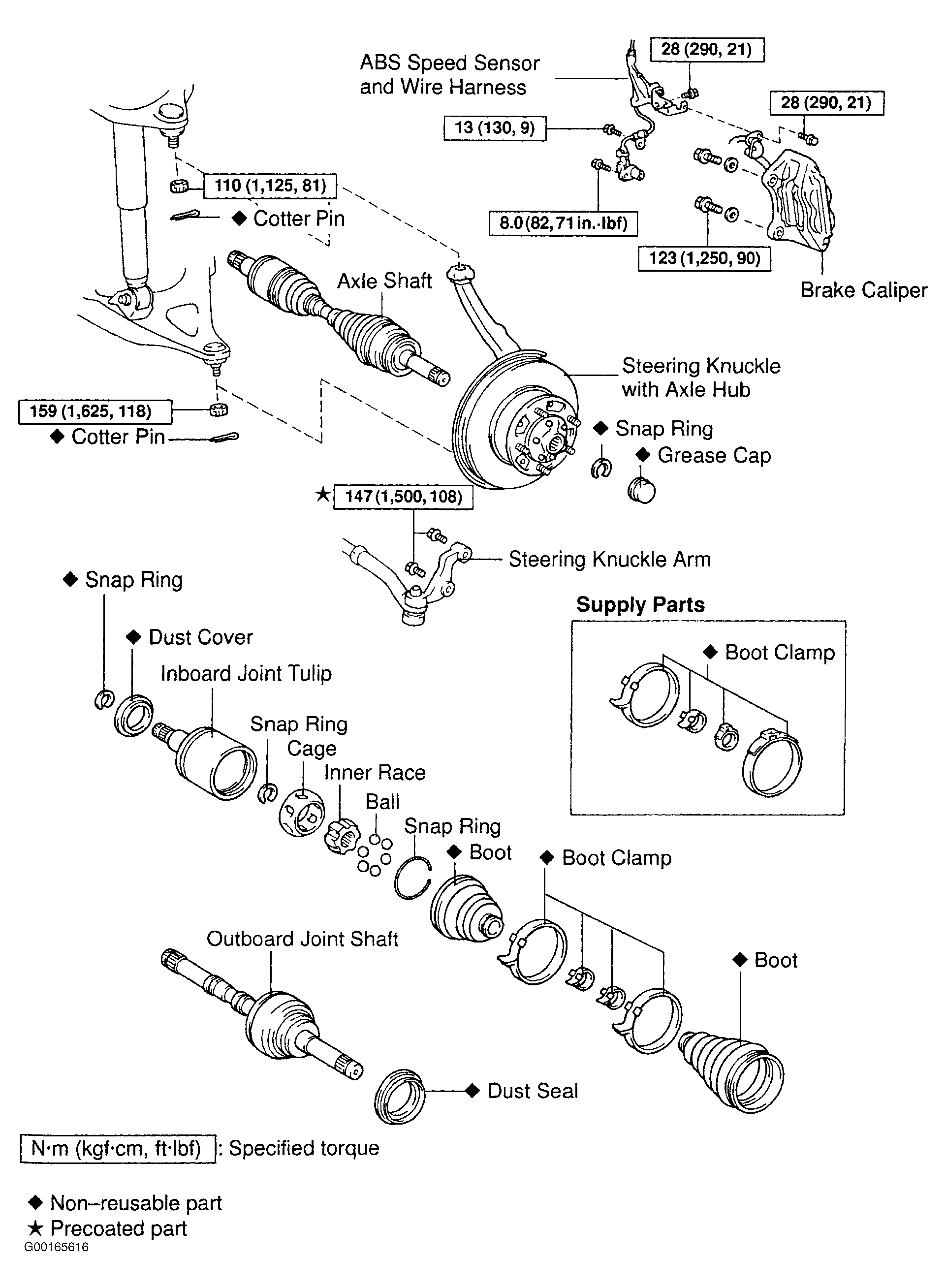

Fig 1: Exploded View Of Front Axle Shaft Assembly
G00165616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
