Connector Code Lists

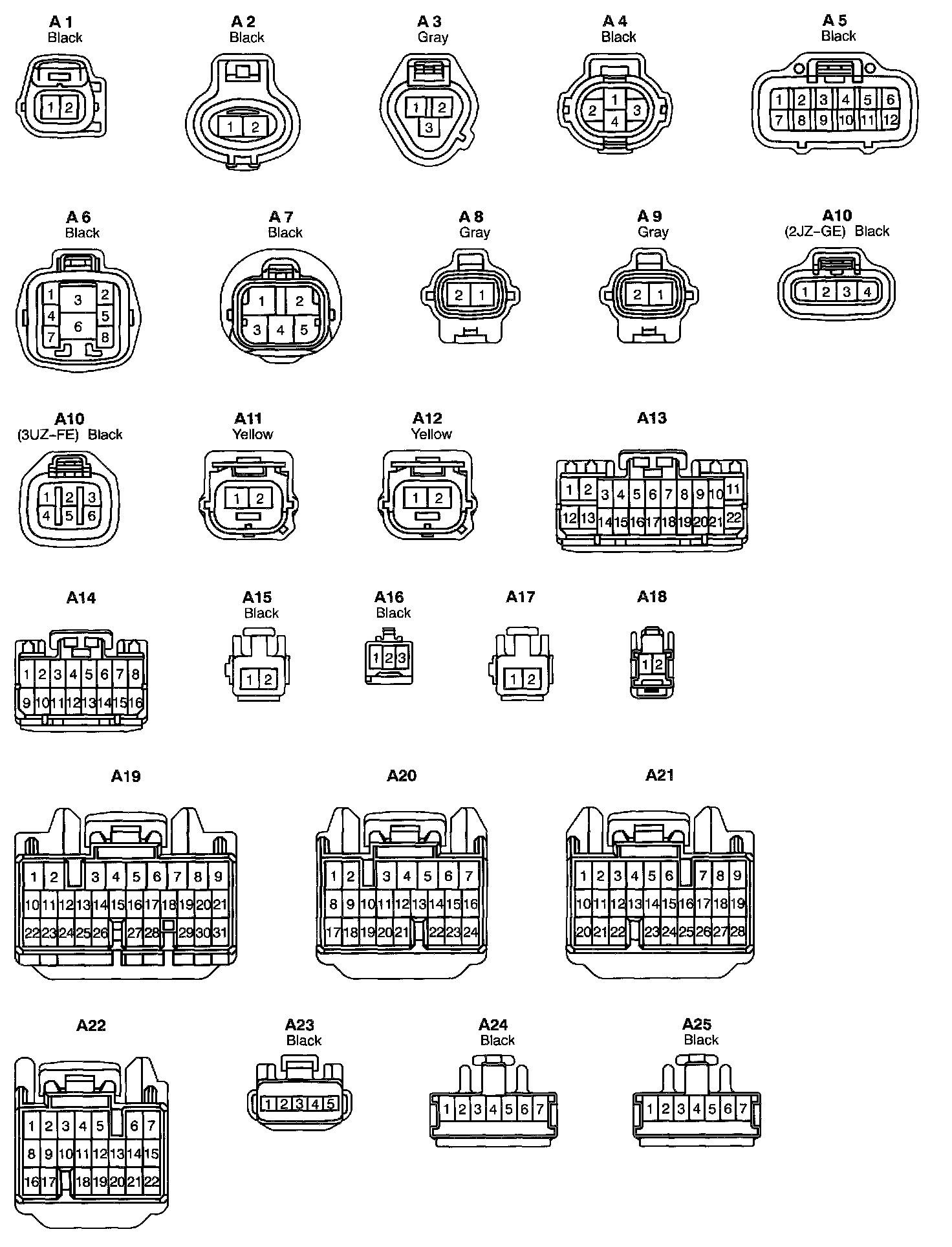

Connector Views (A1 - A25):

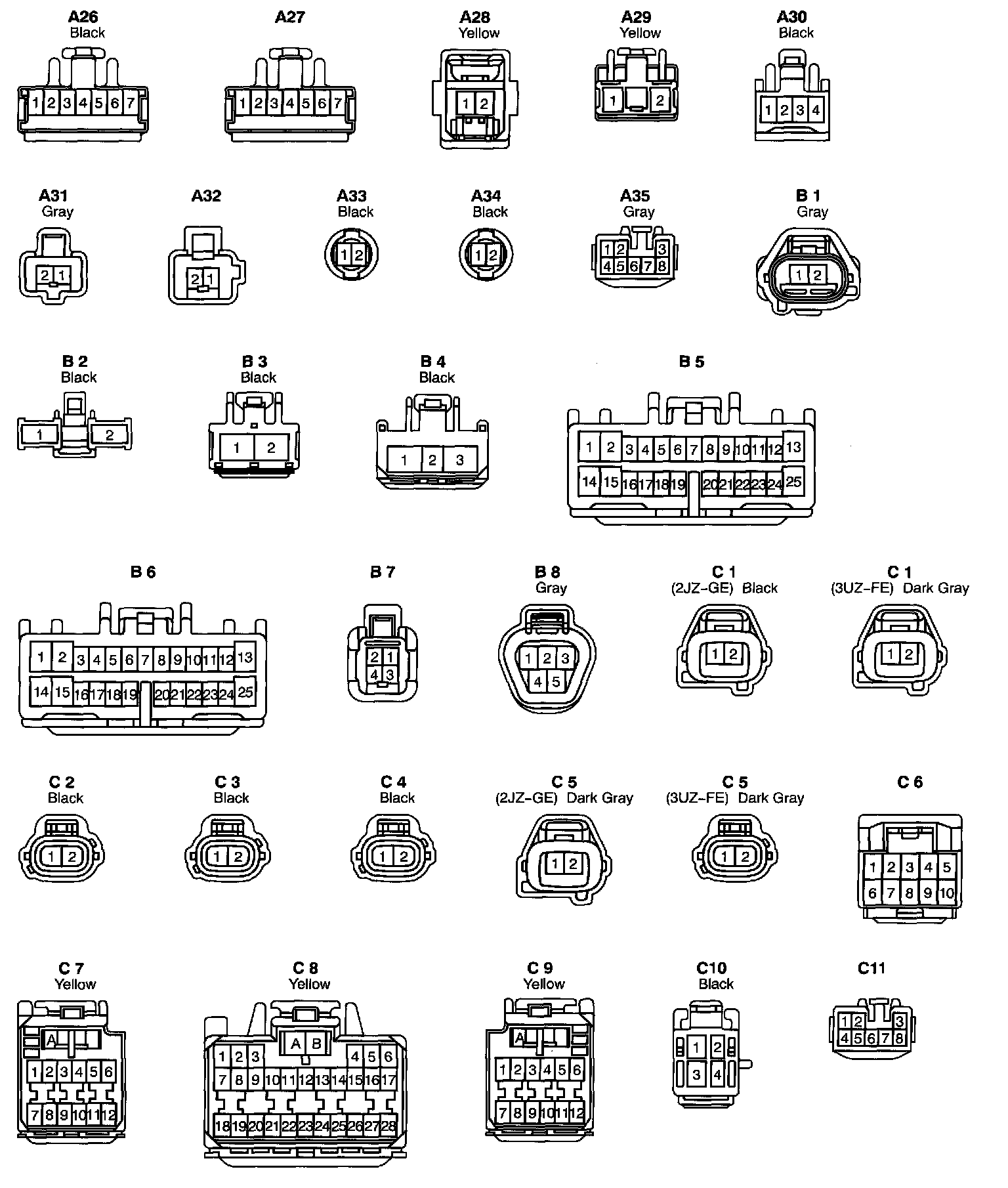

Connector Views (A26 - C11):

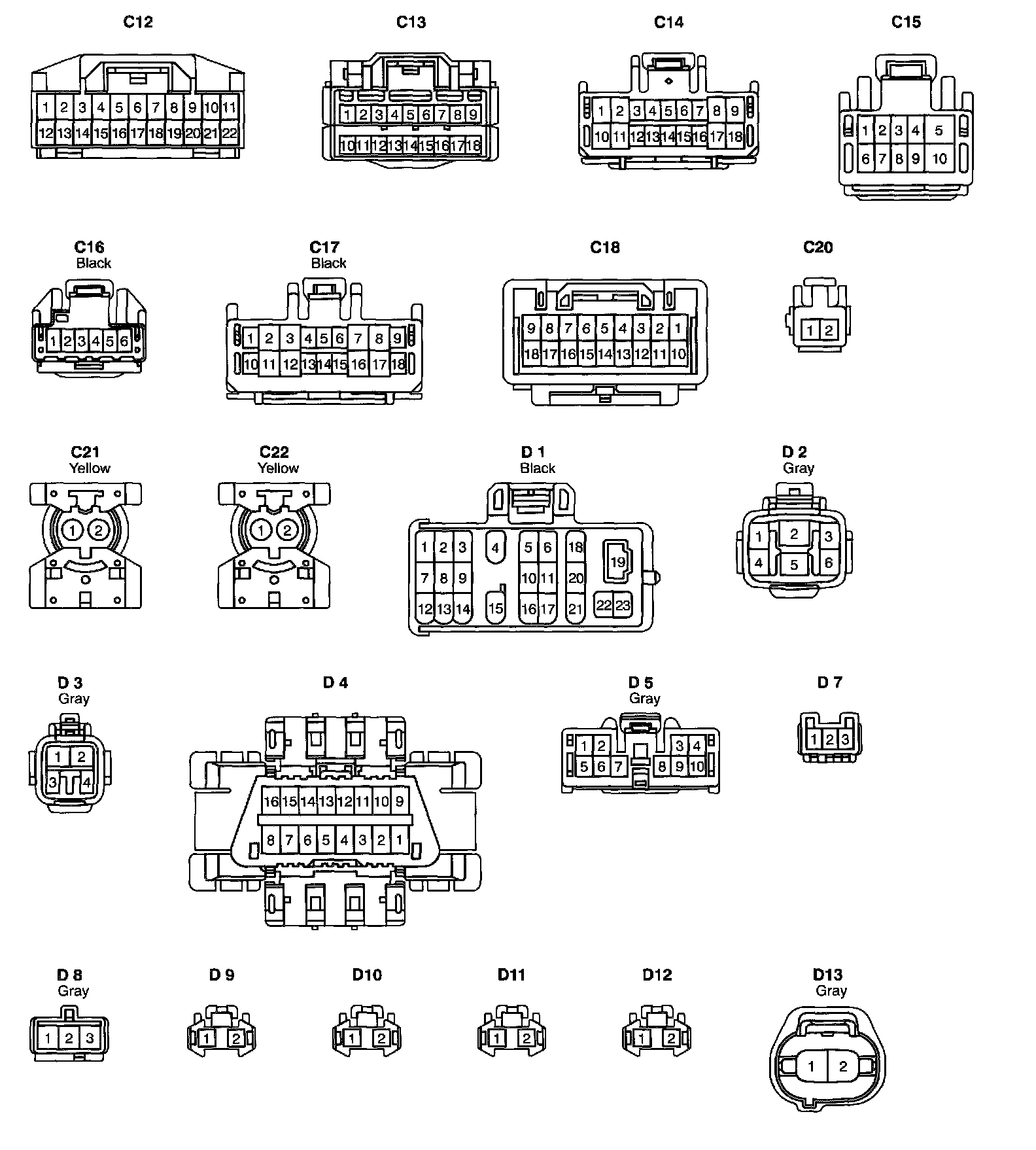

Connector Views (C12 - D13):

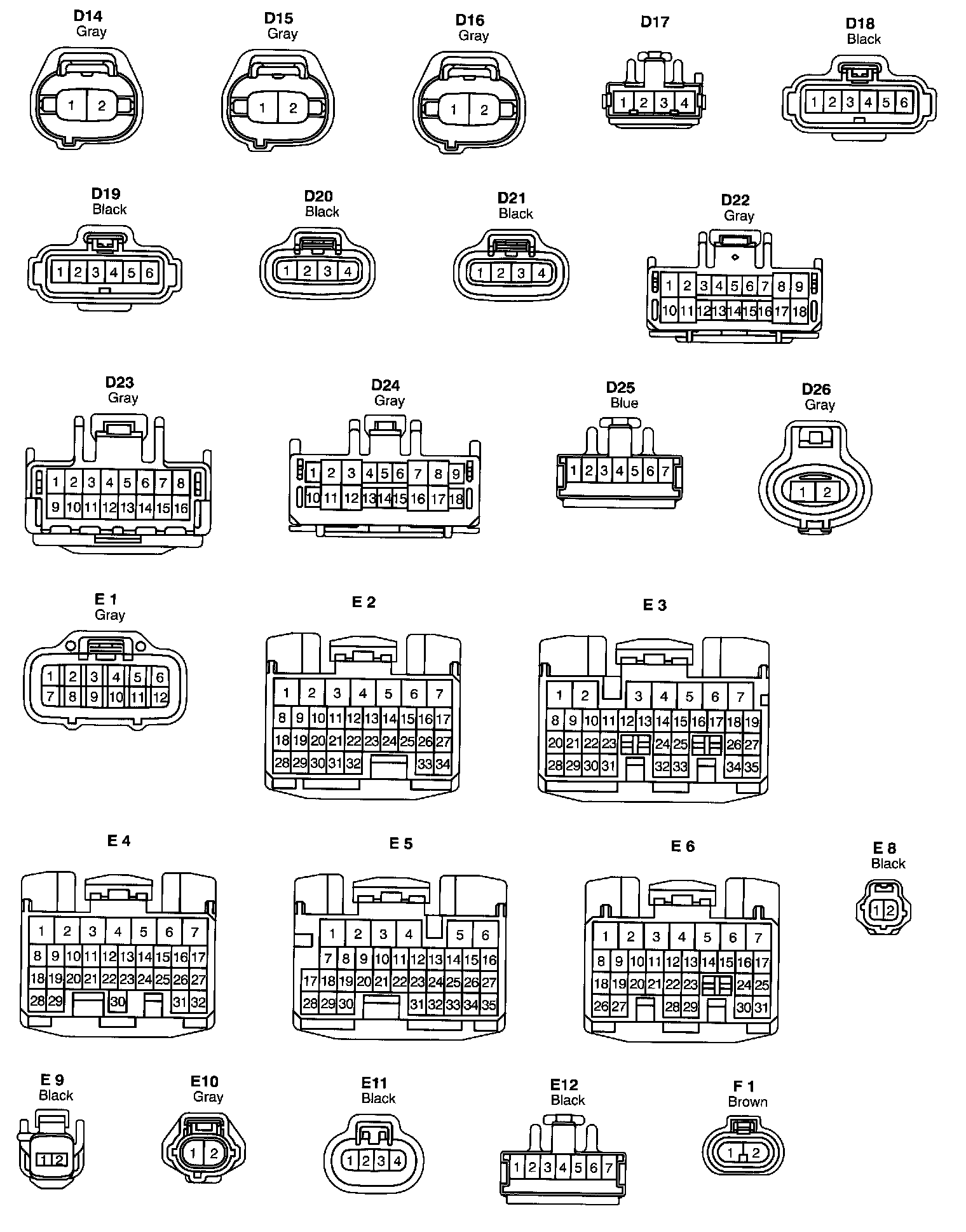

Connector Views (D14 - F1):

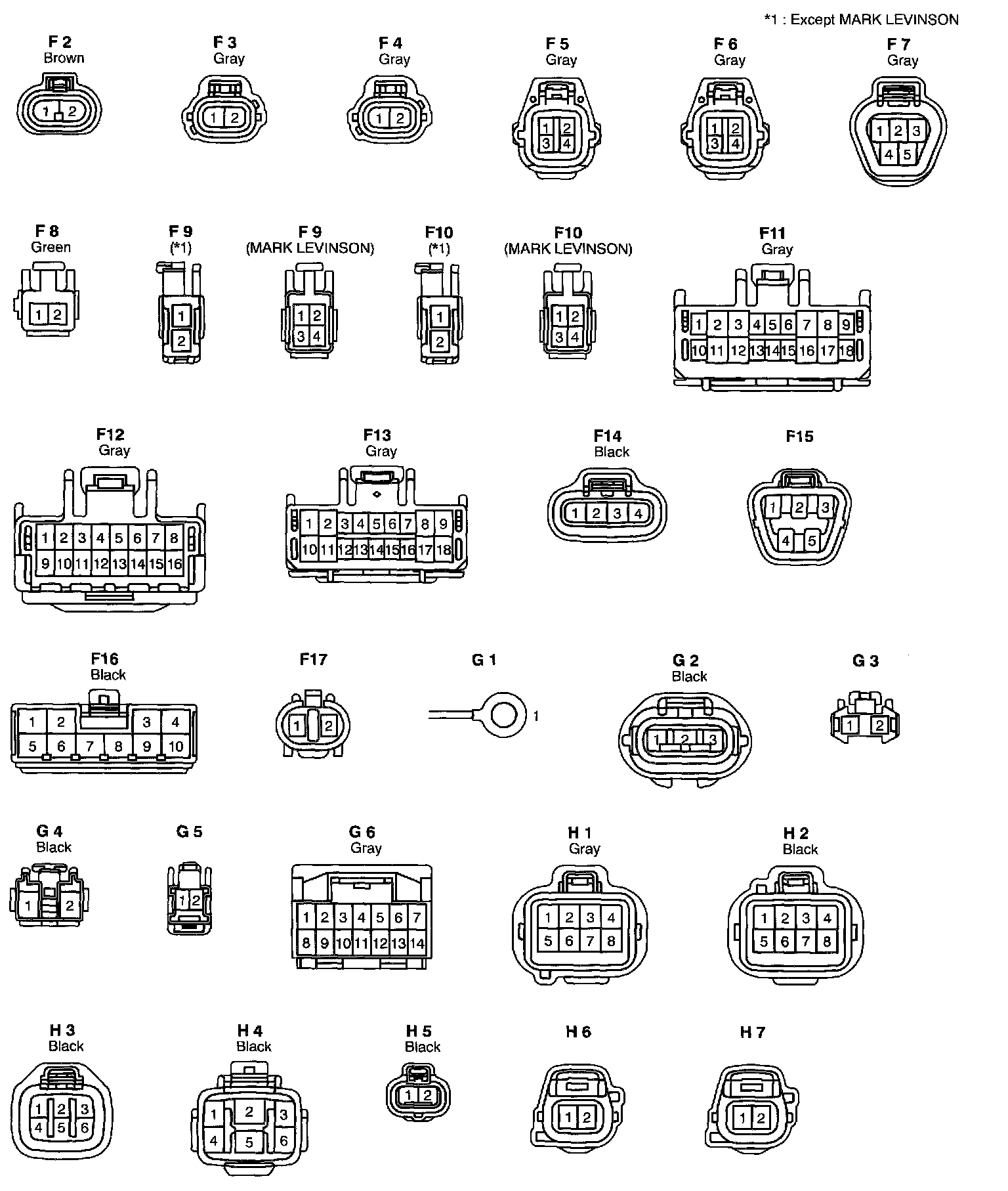

Connector Views (F2 - H7):

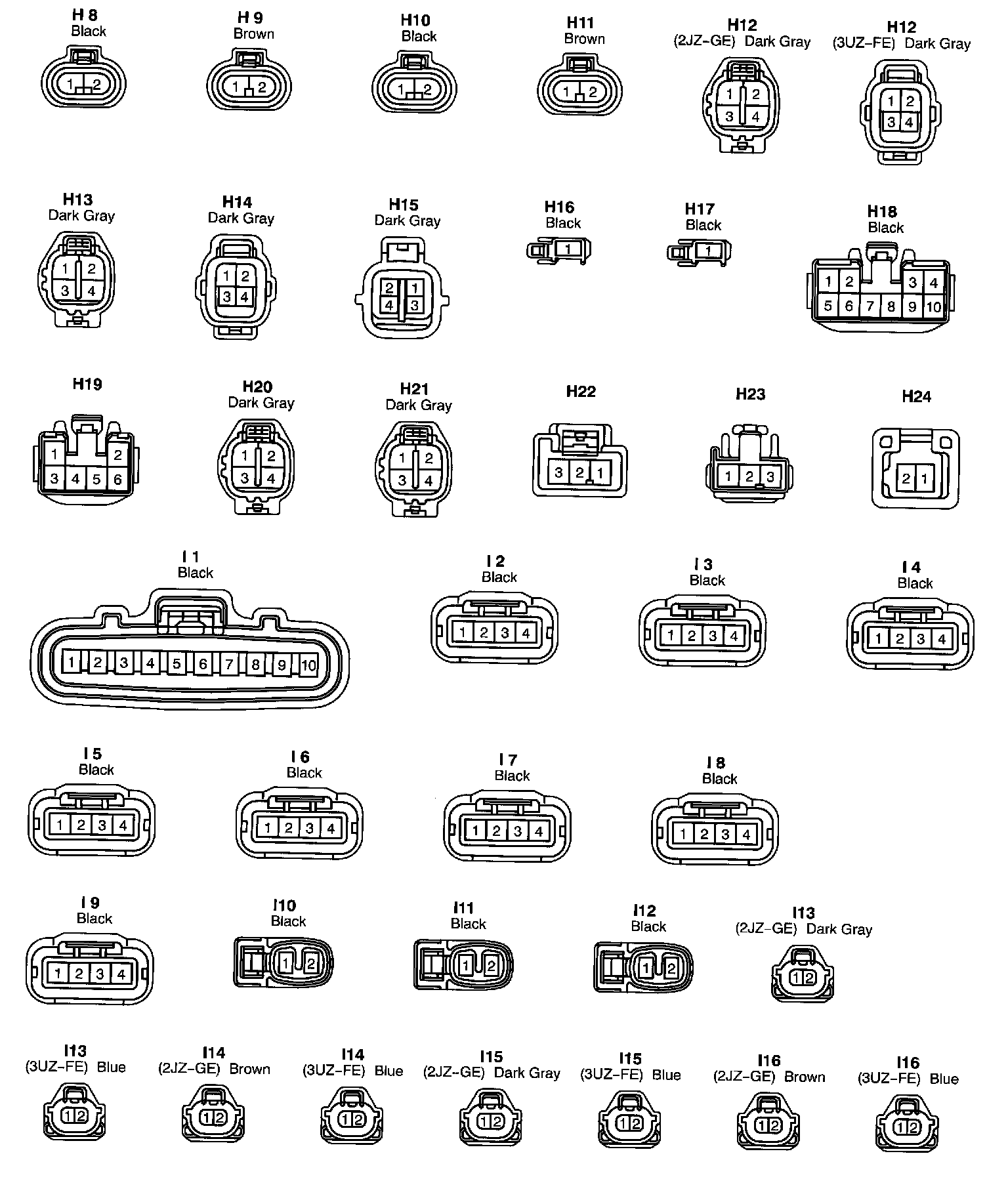

Connector Views (H8 - I16):

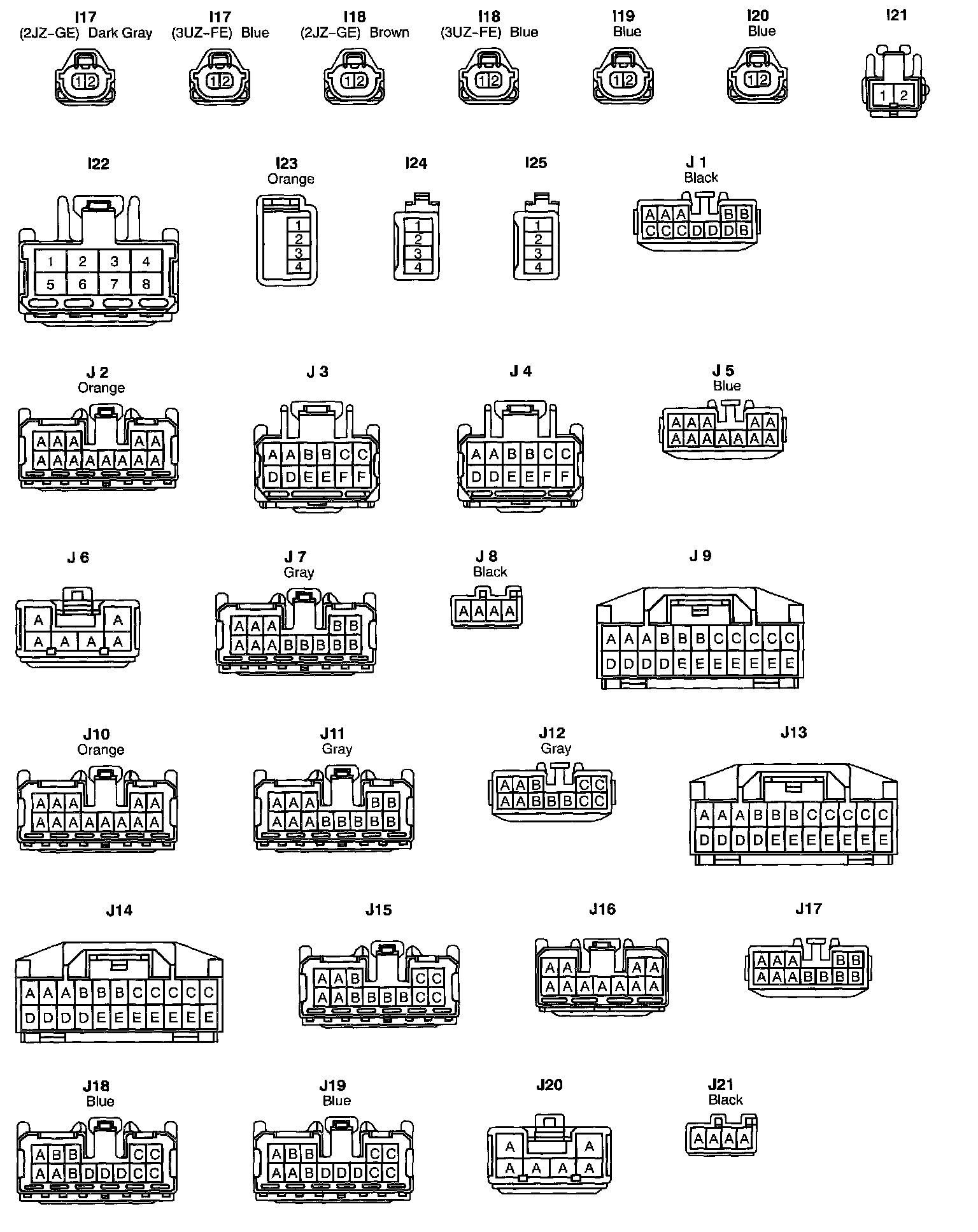

Connector Views (I17 - J21):

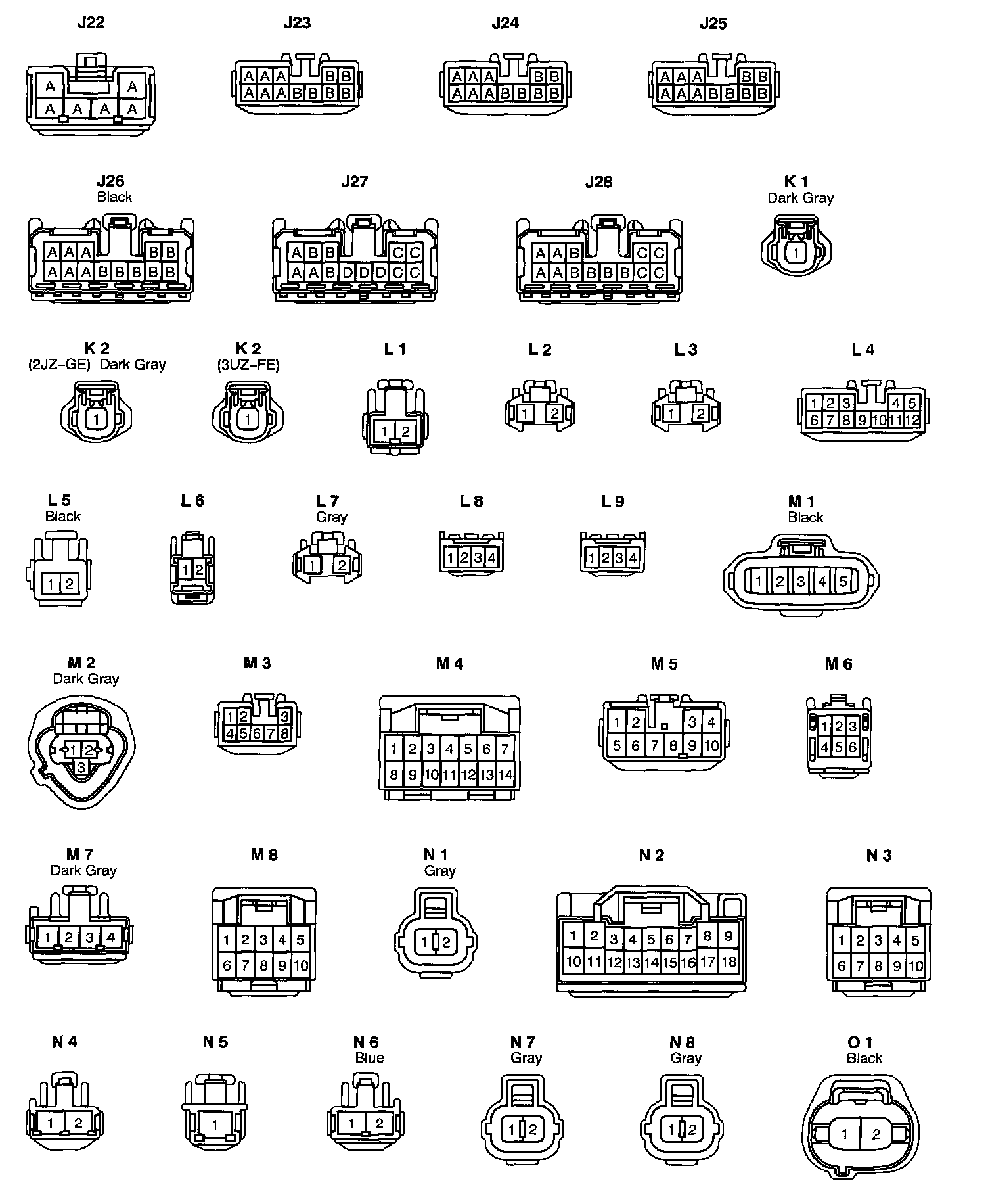

Connector Views (J22 - O1):

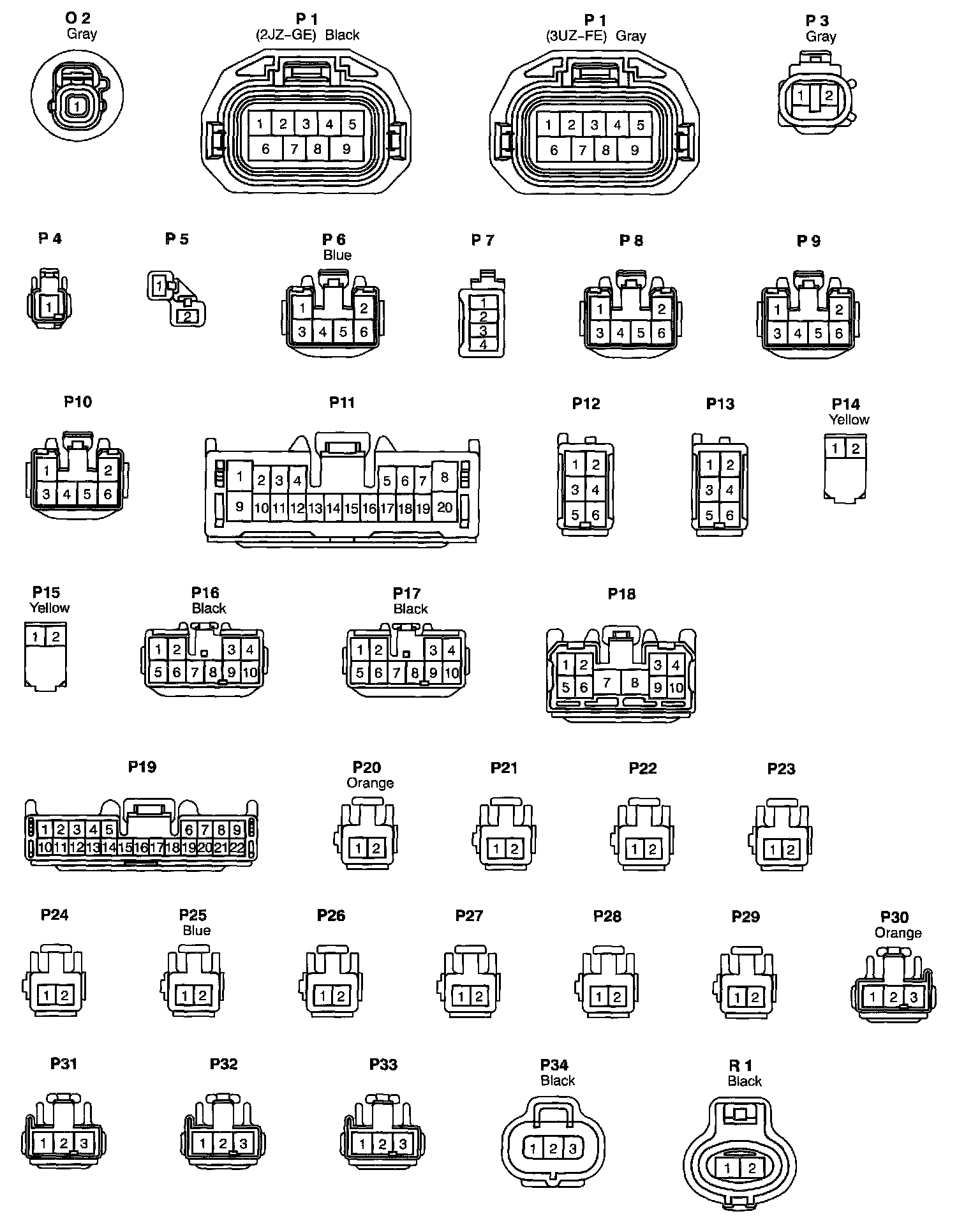

Connector Views (O2 - R1):

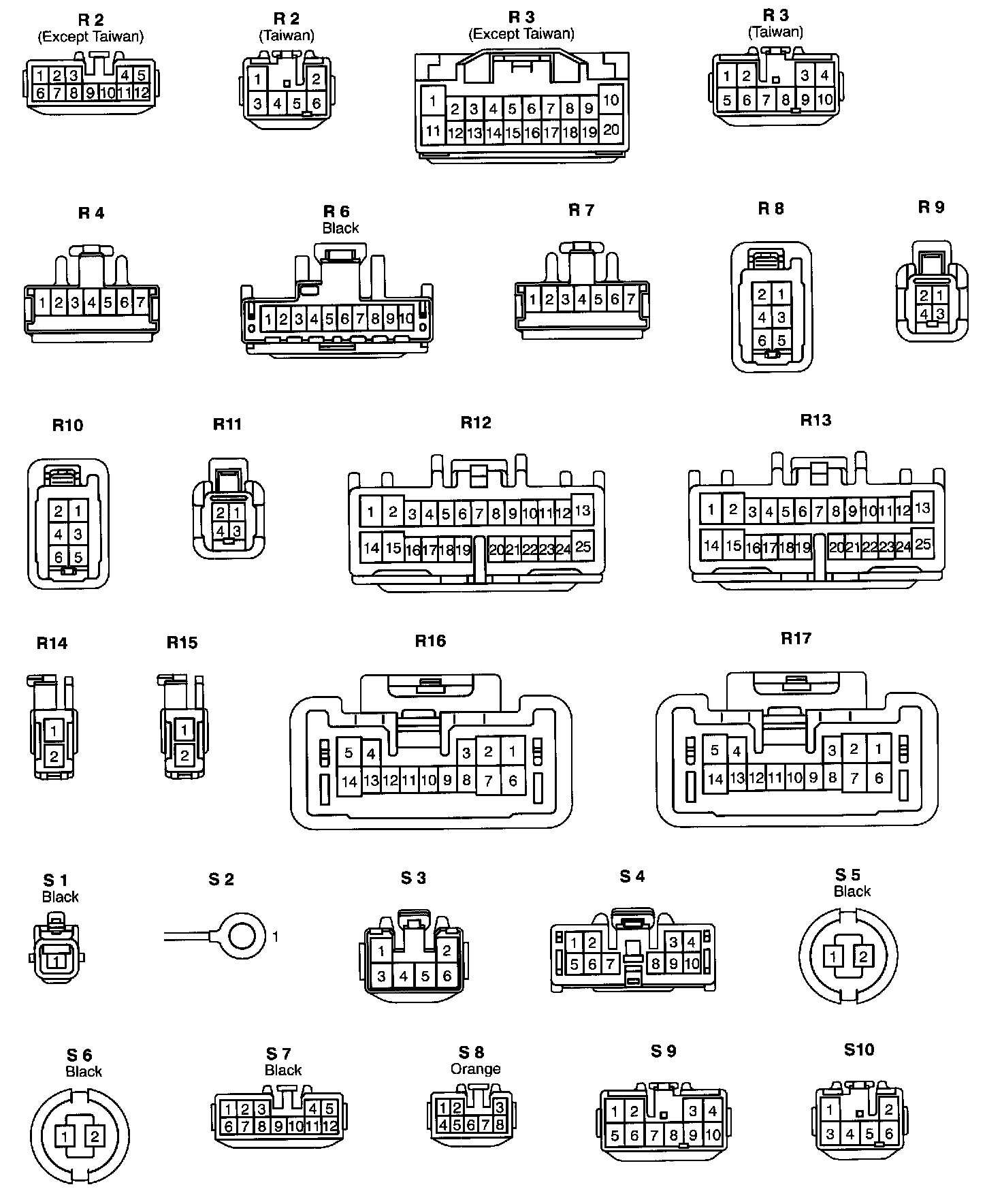

Connector Views (R2 - S10):

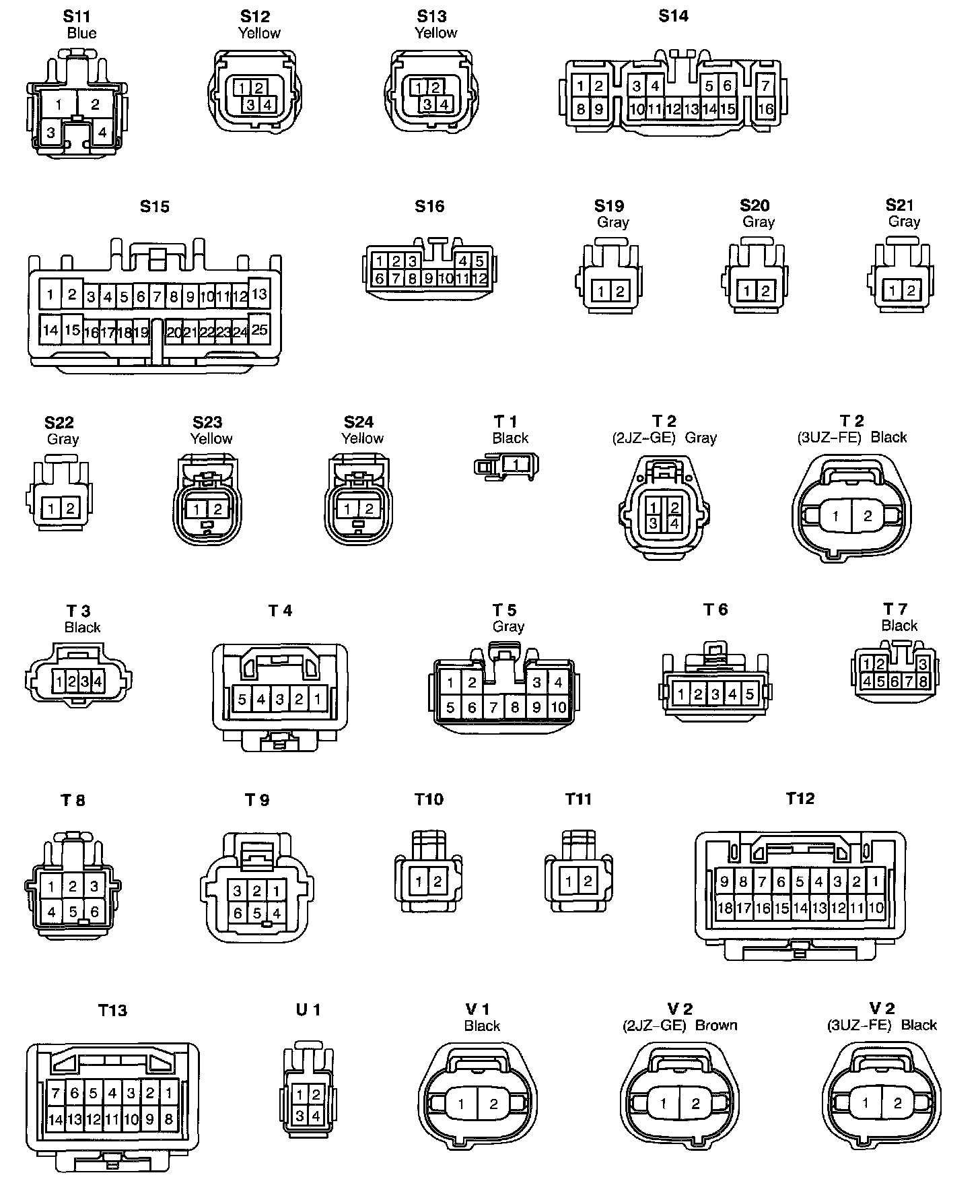

Connector Views (S11 - V2):

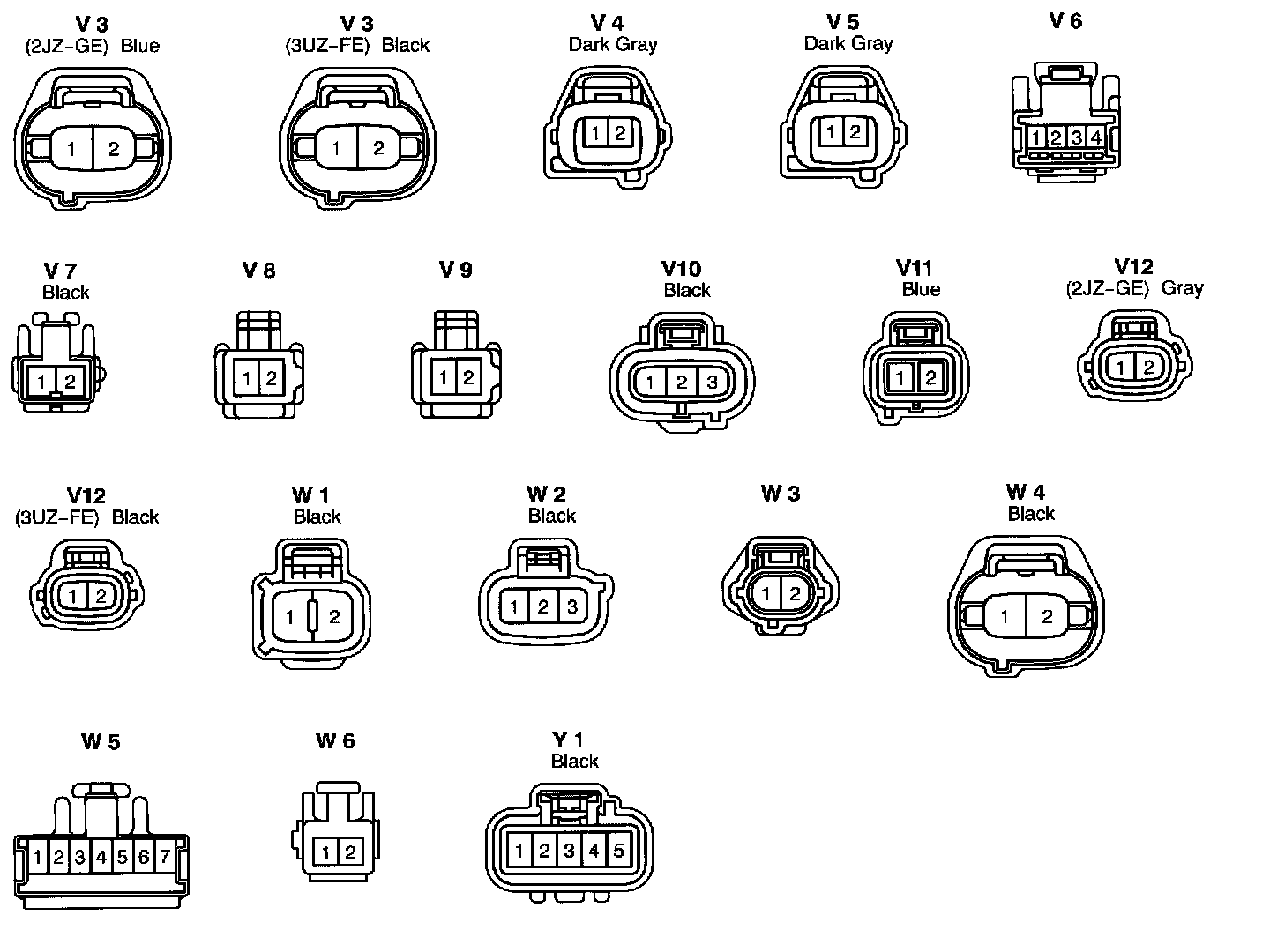

Connector Views (V3 - Y1):
