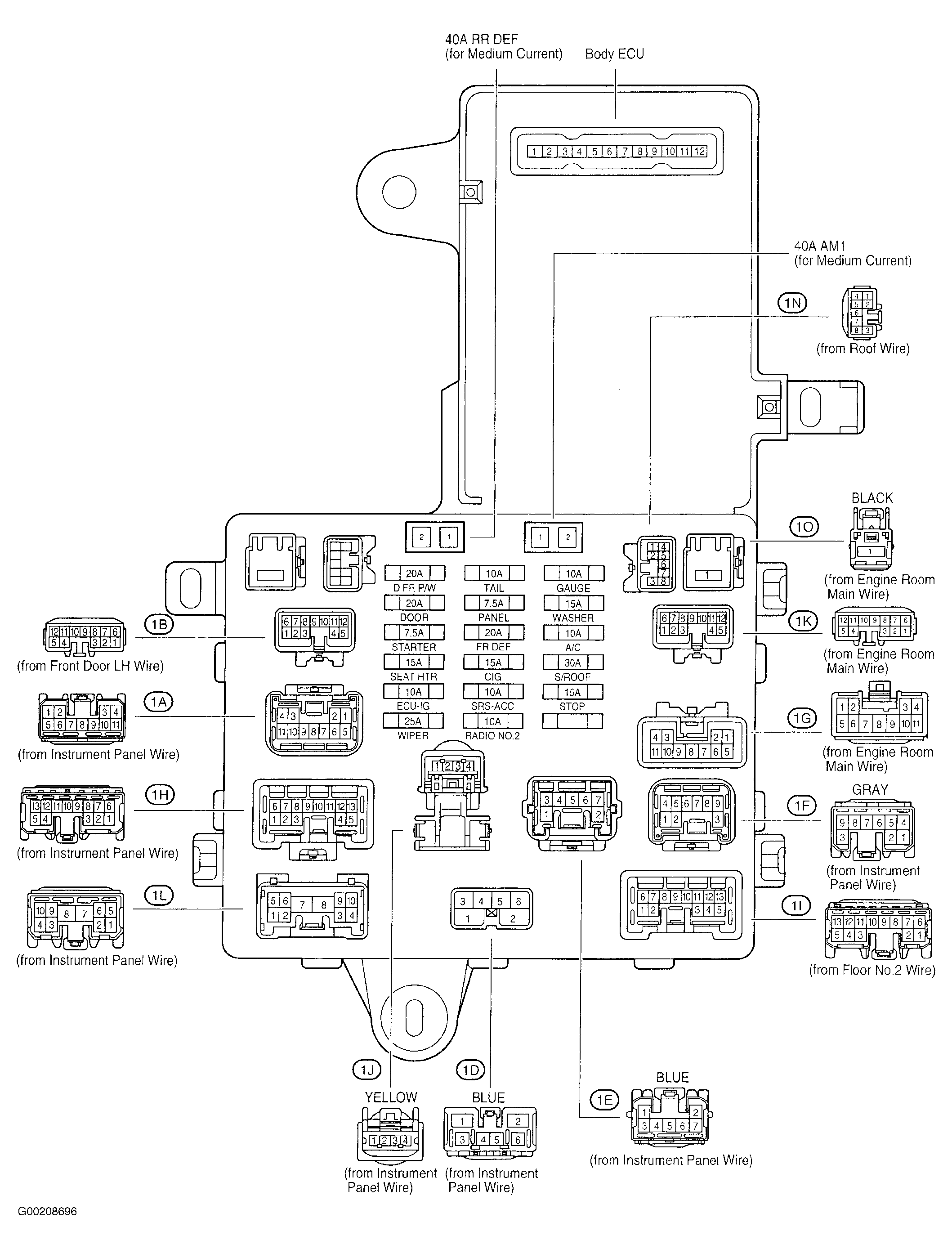

Driver Side Junction Block
DRIVER SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | PANEL | Combination Meter Illumination Multiplex Communication System Rear Fog Light |
| 7.5A | STARTER | Electronically Controlled Transmission and A/T Indicator Engine Control LEXUS Navigation System Starting and Ignition |
| 10A | A/C | Automatic Air Conditioning |
| 10A | ECU-IG | ABS and Traction Control Automatic Air Conditioning Automatic Glare-Resistant EC Mirror Automatic Light Control Compass Cruise Control Door Lock Control and Wireless Door Lock Control Headlight Headlight Beam Level Control Interior Light Key Reminder and Seat Belt Warning LEXUS Navigation System Light Auto Turn Off Moon Roof Multiplex Communication System Power Window Radiator Fan and Condenser Fan Shift Lock Theft Deterrent VSC |
| 10A | GAUGE | ABS and Traction Control Back-Up Light Charging Combination Meter |
| 10A | GAUGE | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Front Window Deicer Headlight Headlight Beam Level Control Interior Light Key Reminder and Seat Belt Warning LEXUS Navigation System Multiplex Communication System Power Window Rear Window Defogger and Mirror Heater Shift Lock Stop Light (S/D) Stop Light (W/G) Taillight (S/D) Taillight (W/G) Turn Signal and Hazard Warning Light VSC |
| 10A | RADIO NO.2 | Automatic Air Conditioning Cigarette Lighter and Power Outlet Clock Door Lock Control and Wireless Door Lock Control Interior Light Key Reminder and Seat Belt Warning LEXUS Navigation System Light Auto Turn Off Multiplex Communication System Power Window Radio and Player (S/D) Radio and Player (W/G) Remote Control Mirror Shift Lock Theft Deterrent |
| 10A | SRS-ACC | SRS |
| 10A | TAIL | Taillight (S/D) Taillight (W/G) |
| 15A | CIG | Cigarette Lighter and Power Outlet |
| 15A | SEAT HTR | Seat Heater |
| 15A | STOP | ABS and Traction Control Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Shift Lock |
| 15A | STOP | Stop Light (S/D) Stop Light (W/G) VSC |
| 15A | WASHER | Front Wiper and Washer Headlight Cleaner Rear Wiper and Washer |
| 20A | DFR P/W | Multiplex Communication System Power Window |
| 20A | DOOR | Back Door Opener Door Lock Control and Wireless Door Lock Control Interior Light Key Reminder and Seat Belt Warning Light Auto Turn Off Multiplex Communication System Power Window Theft Deterrent |
| 20A | FR DEF | Front Window Deicer |
| 25A | WIPER | Front Wiper and Washer Rear Wiper and Washer |
| 30A | S/ROOF | Moon Roof |
| 40A | RR DEF | Rear Window Defogger and Mirror Heater |
