Body Control Systems: Locations

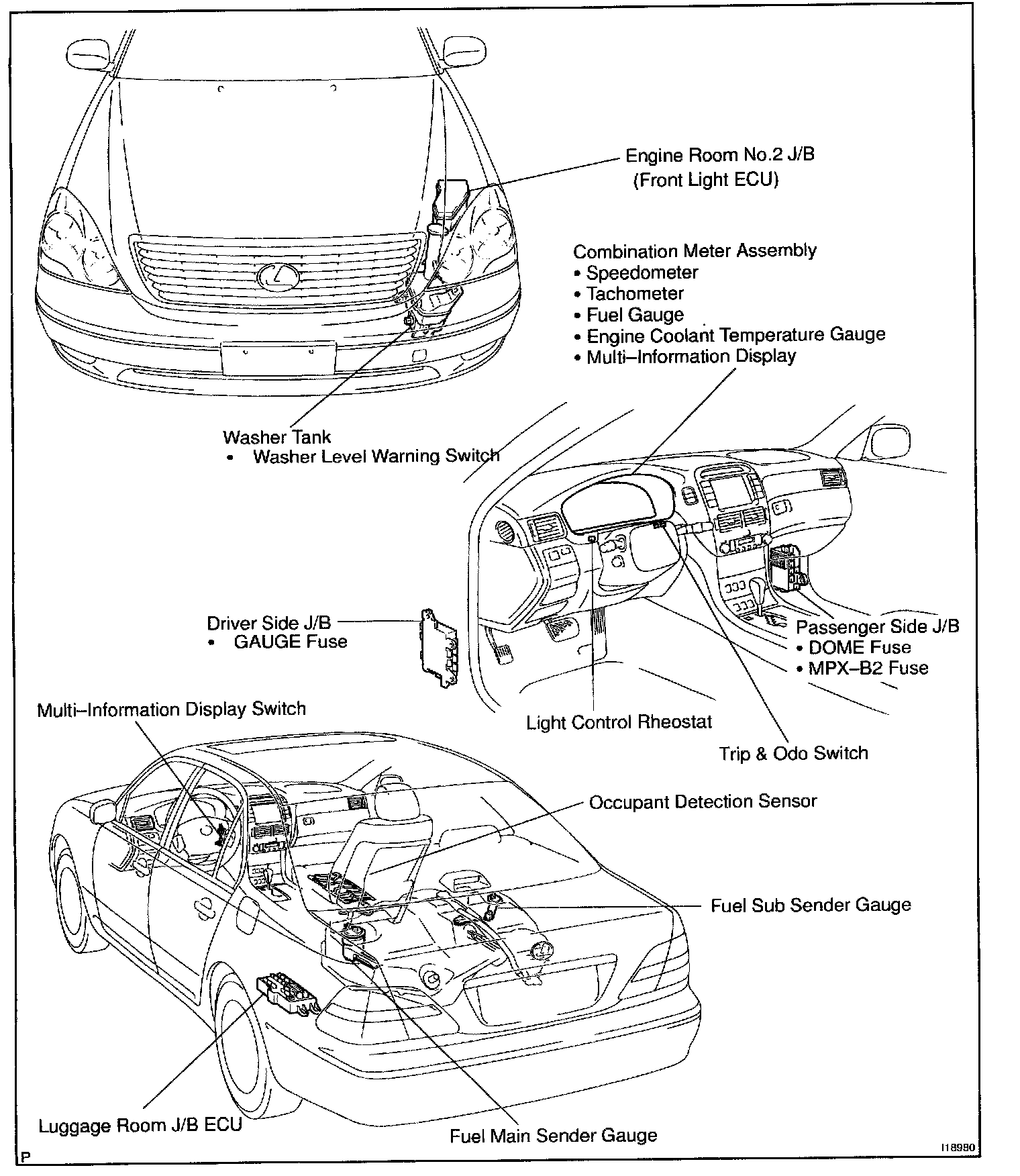

Combination Meter System:

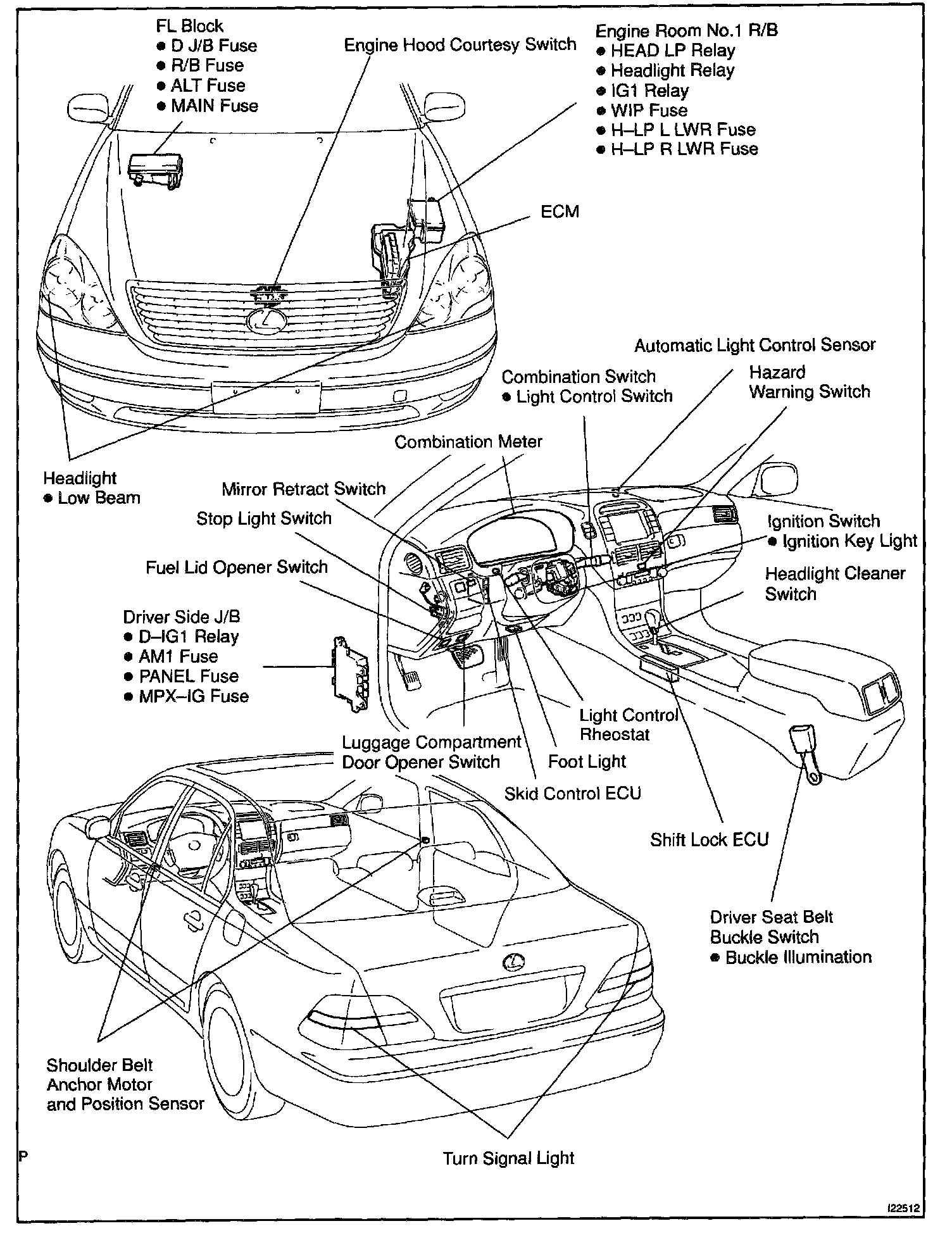

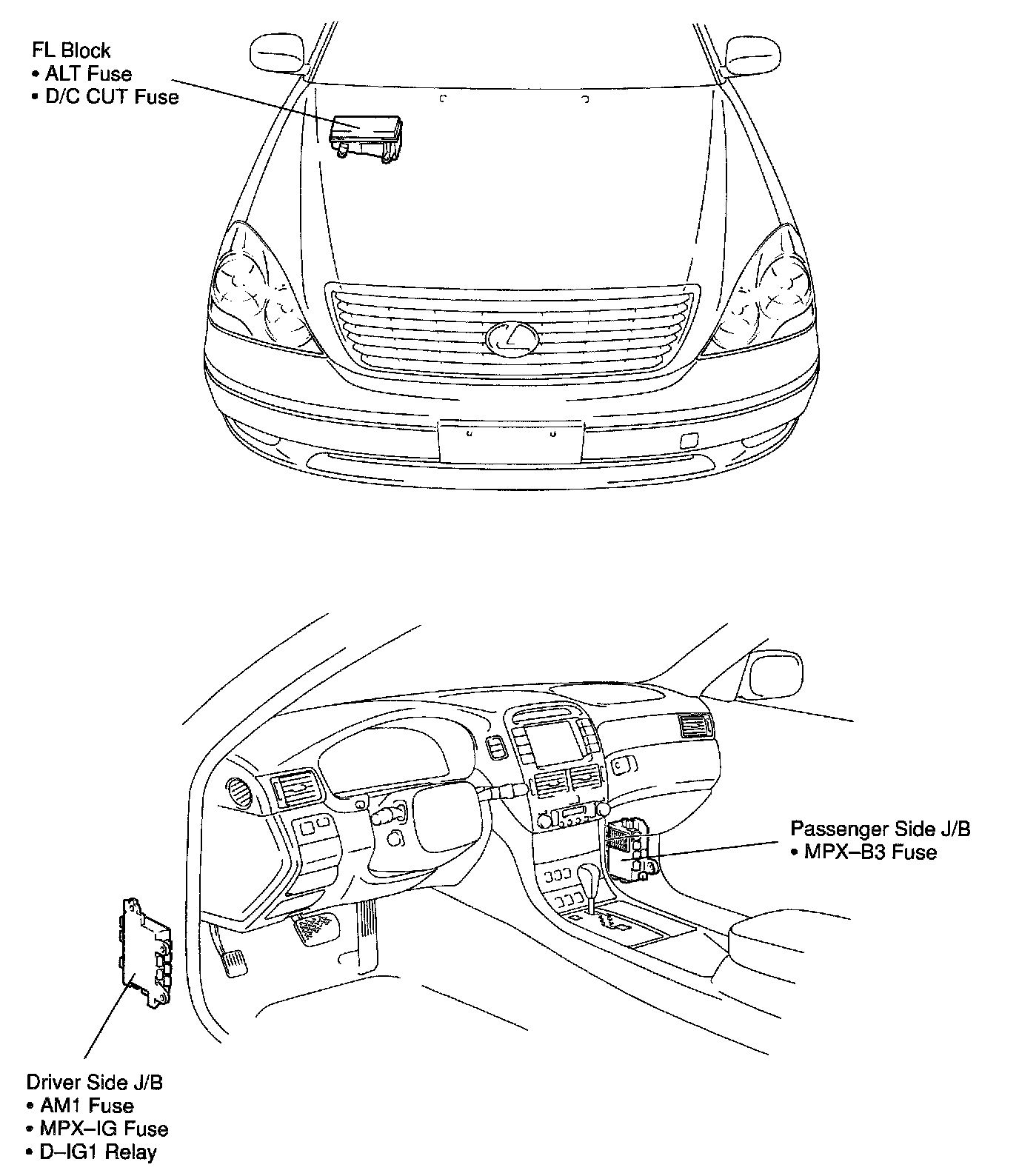

Drive Side Junction Block (Body No.2) Control System:

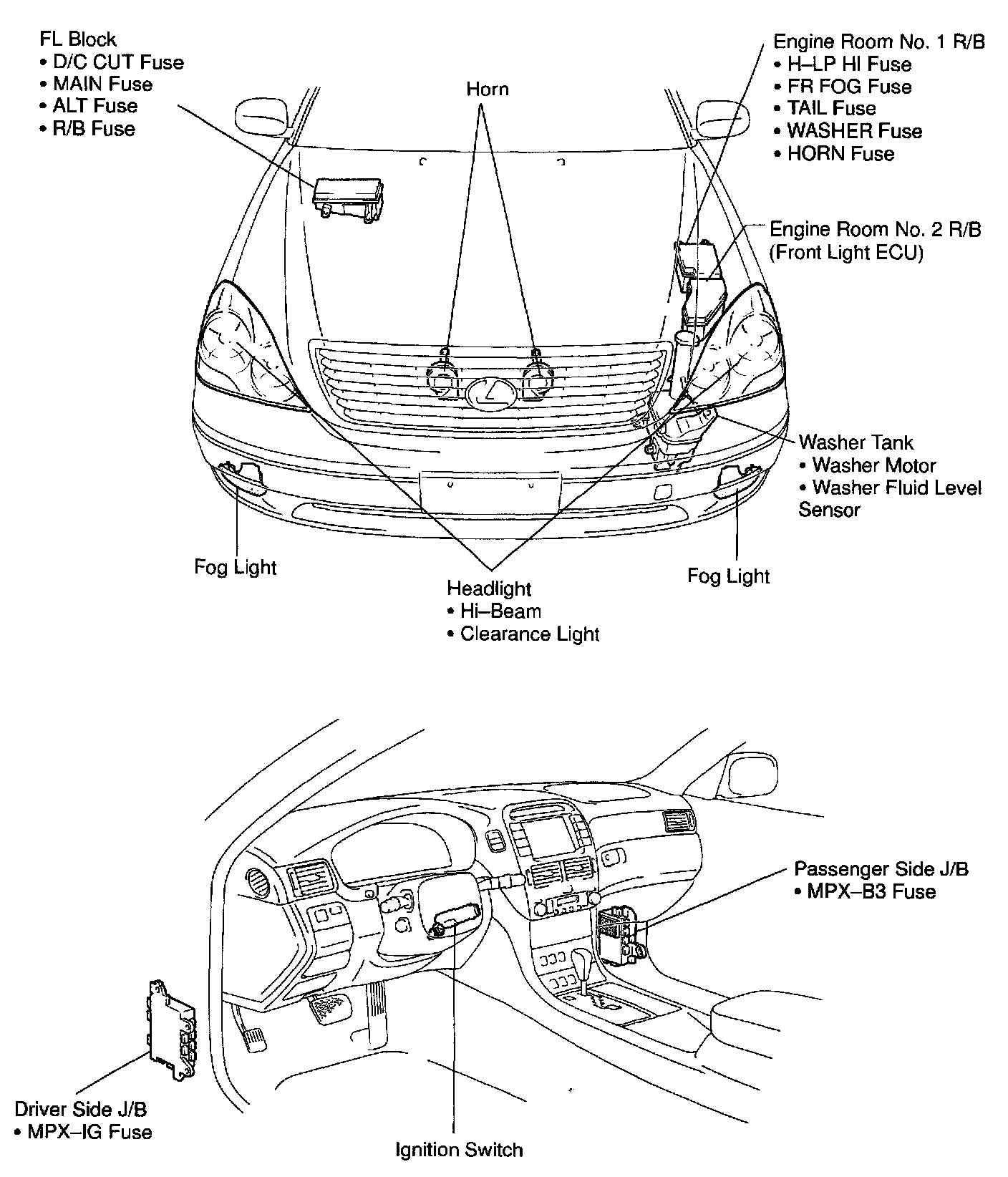

Front Light (Body No. 5) Control System:

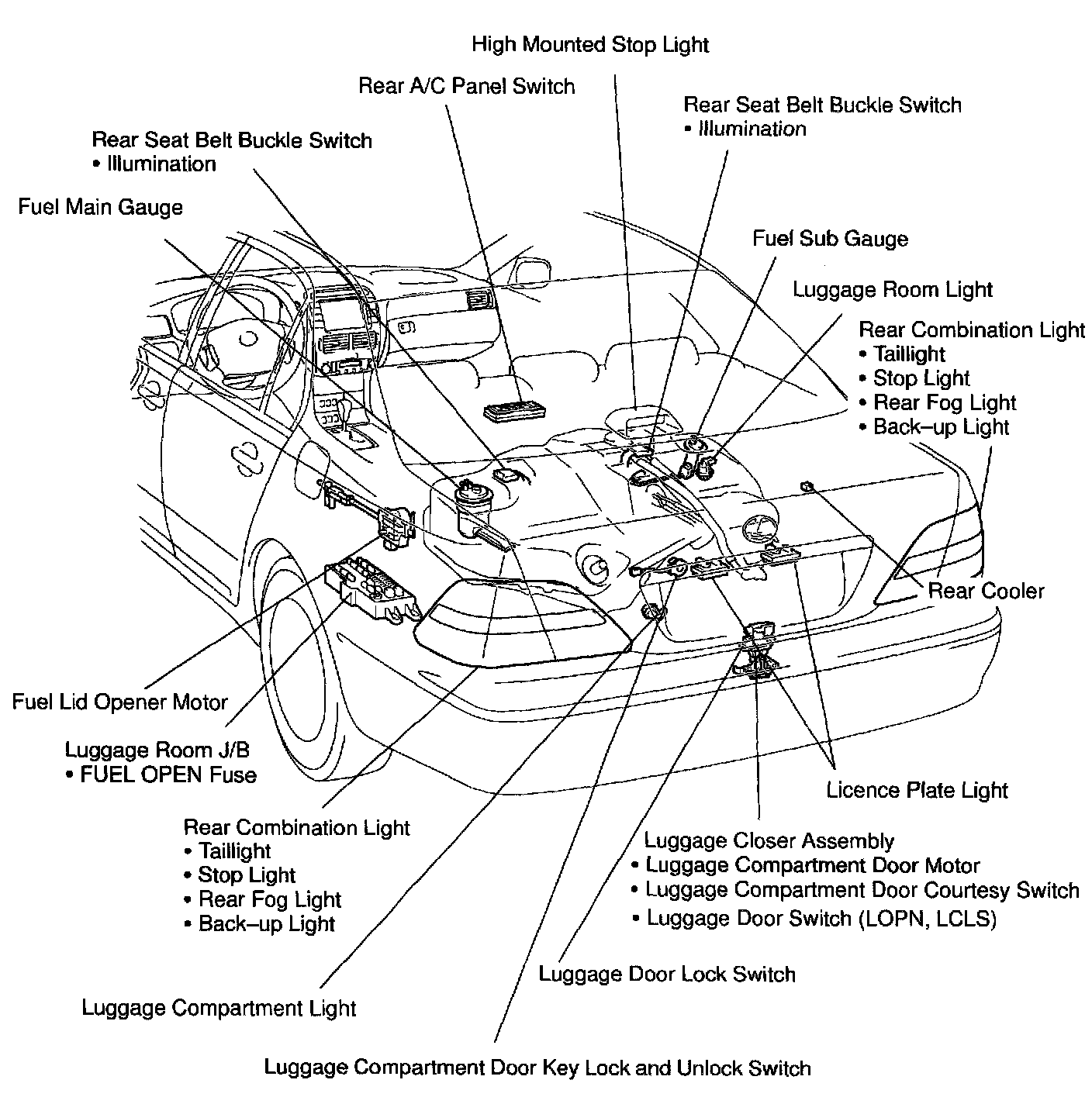

Luggage Room Junction Block (Body No. 4) Control System Part 1:

Luggage Room Junction Block (Body No. 4) Control System Part 2:

Passenger Side Junction Block (Body No. 3) Control System:

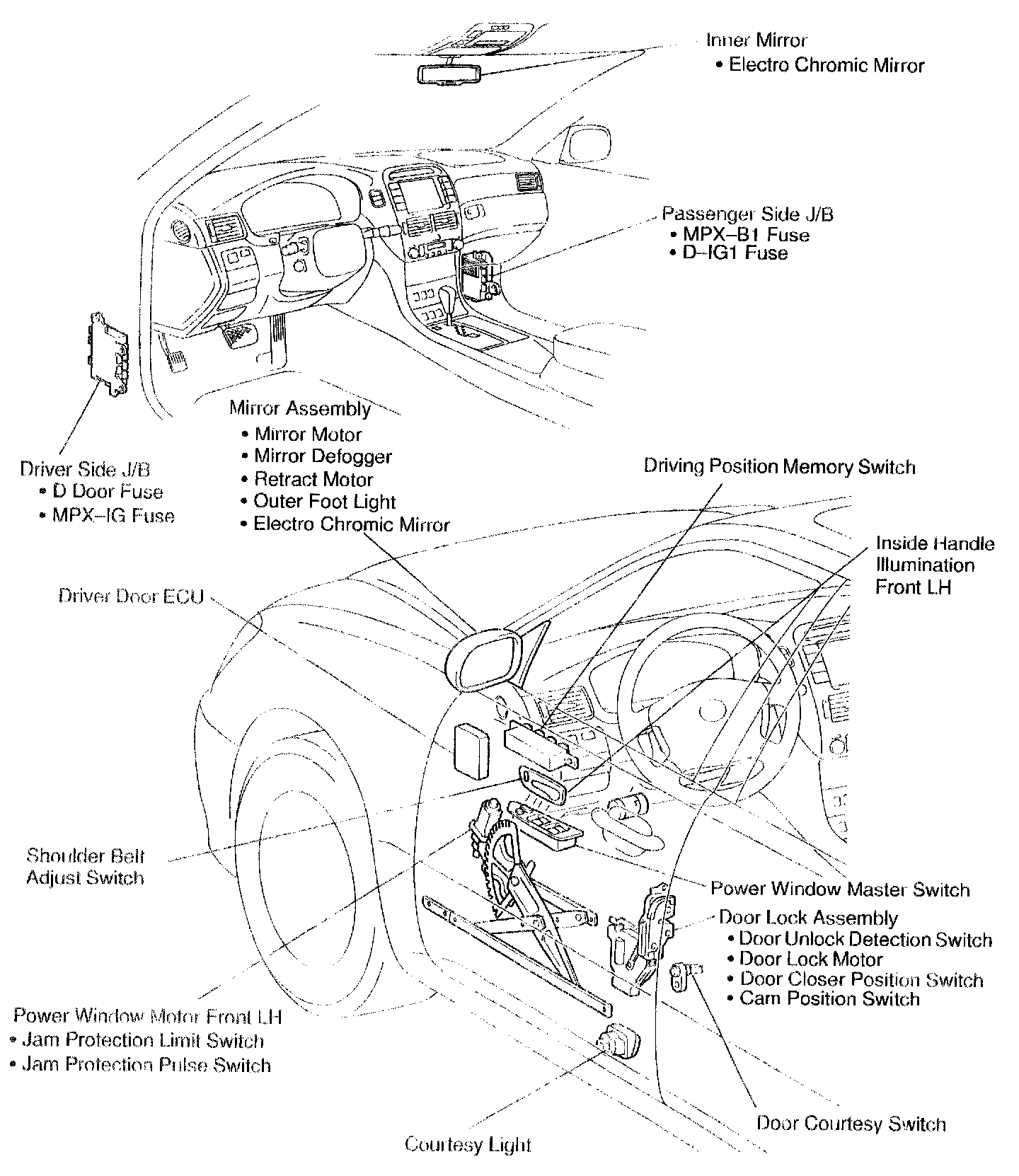

Driver Door Control System:

Passenger Door Control System:

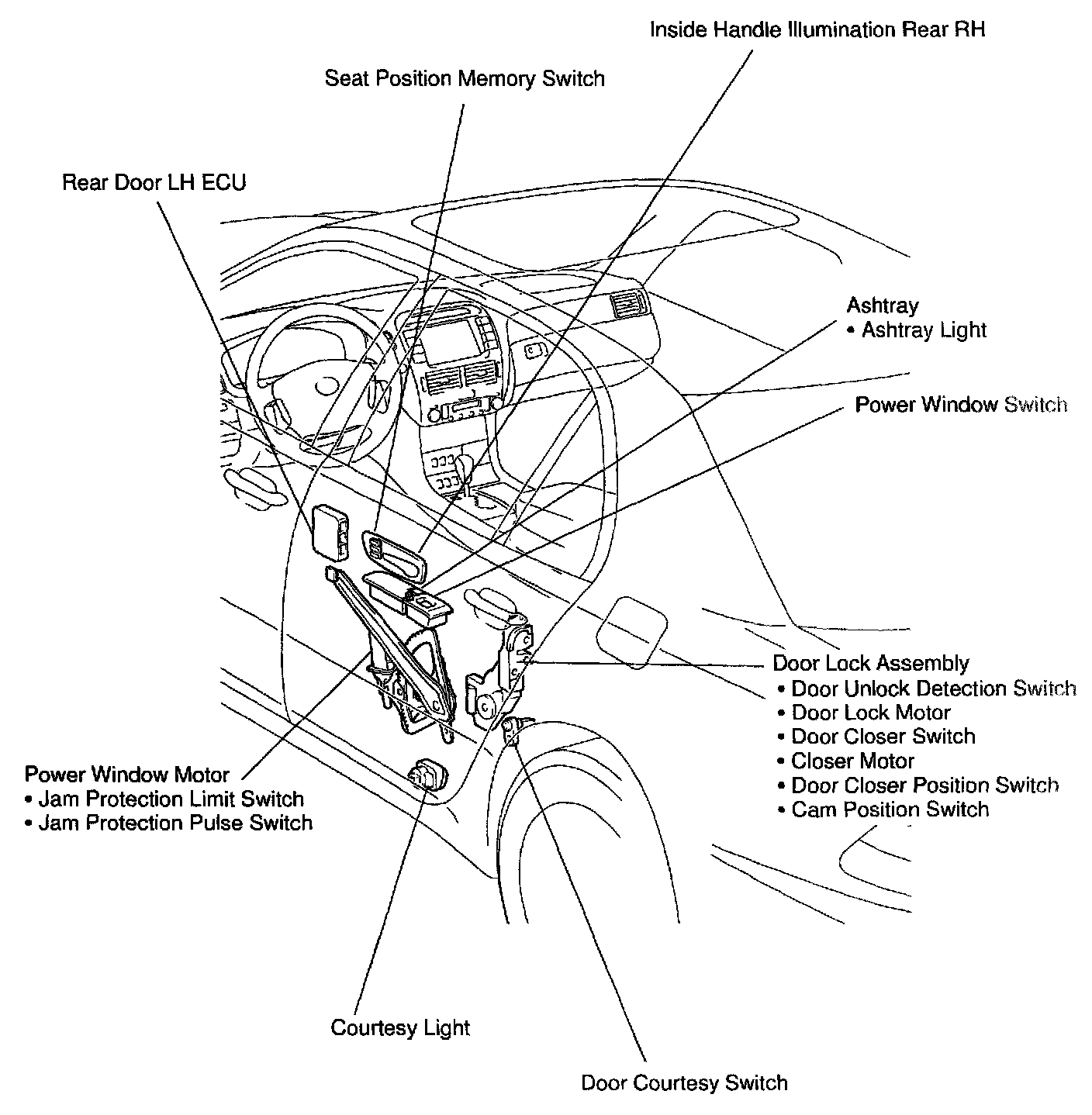

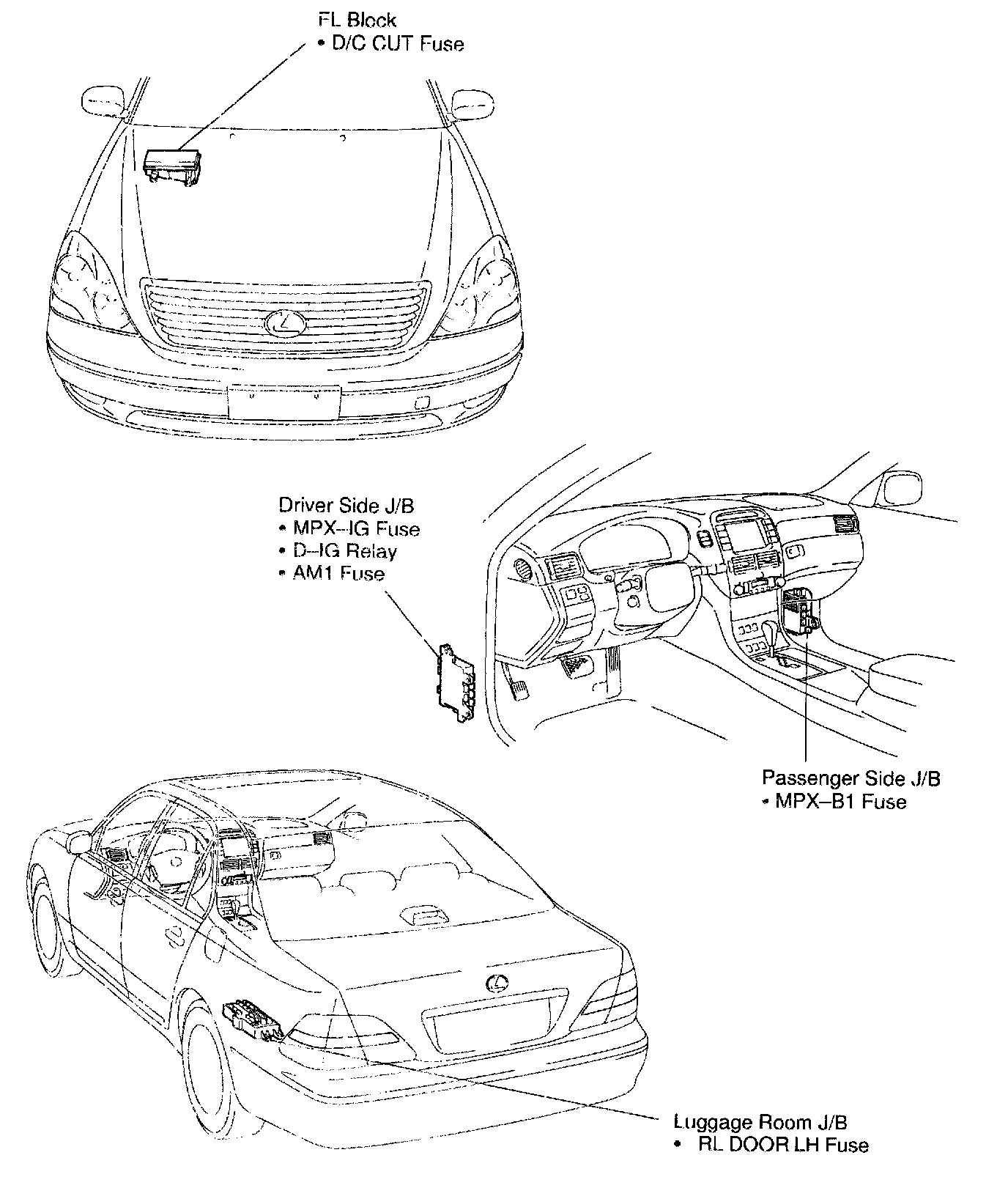

Rear Left Door Control System Part 1:

Rear Left Door Control System Part 2:

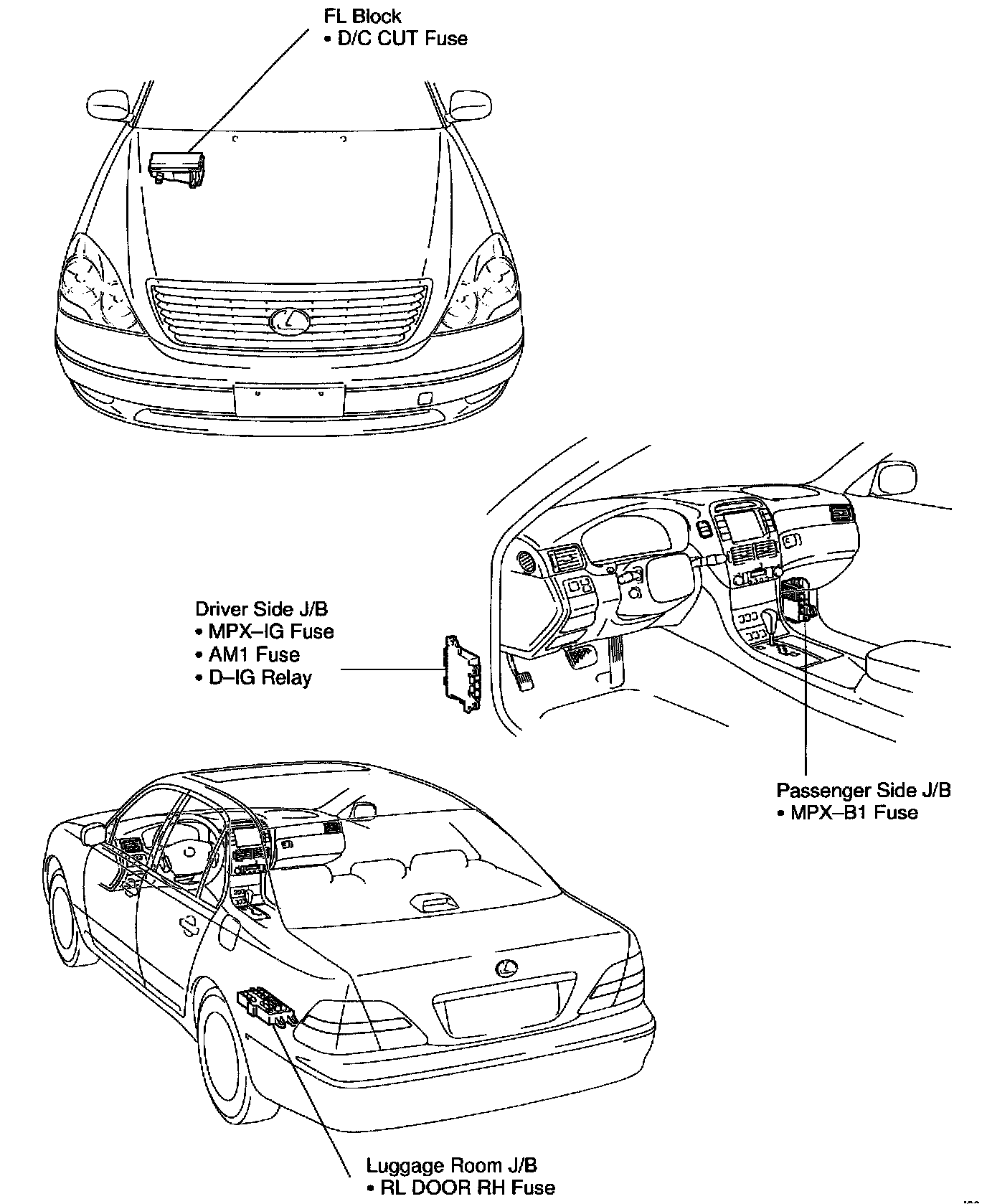

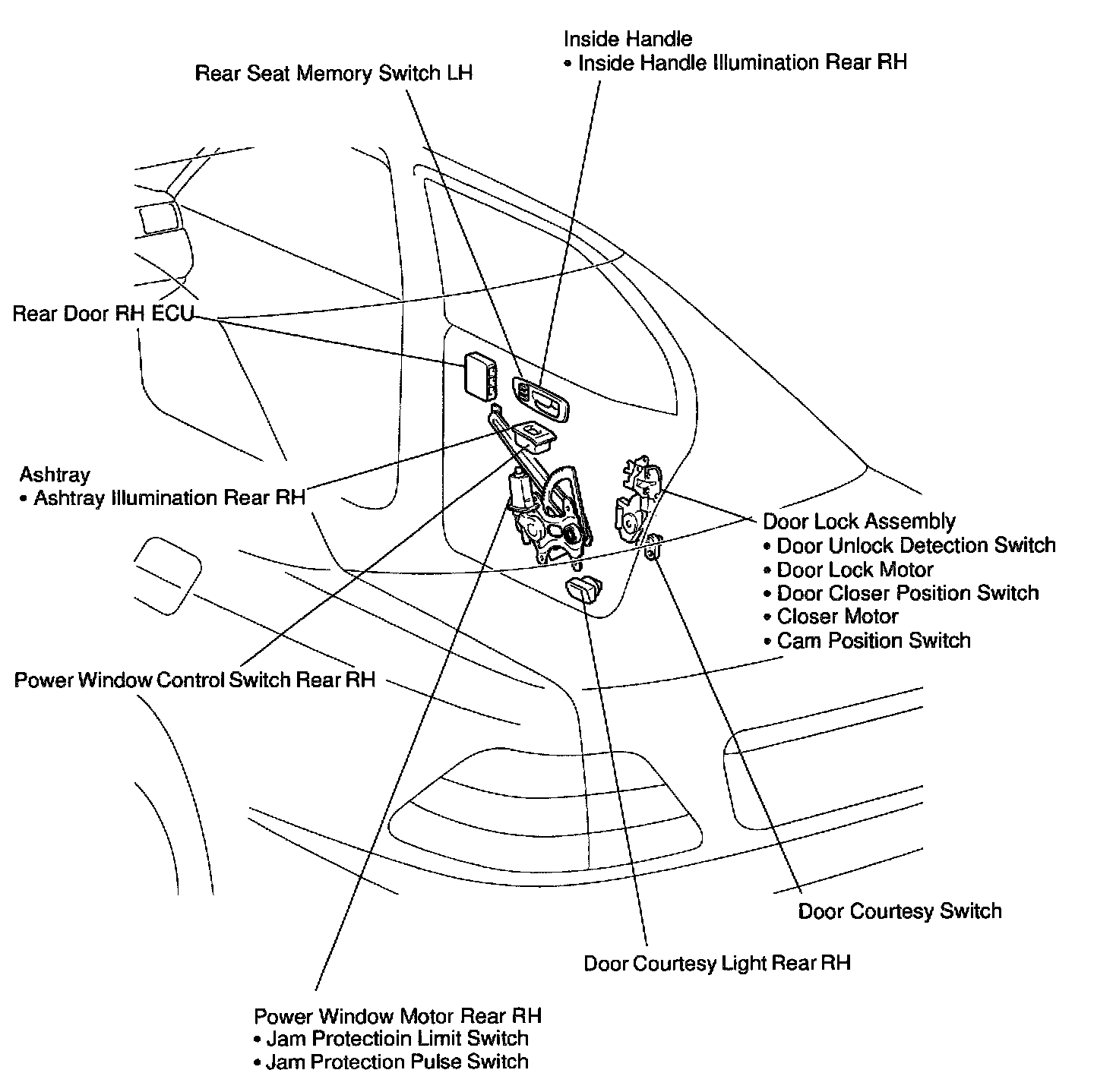

Rear Right Door Control System Part 1:

Rear Right Door Control System Part 2:
