Speed Sensor Circuit

CIRCUIT DESCRIPTION

The combination meter is connected to the skid control ECU with the multiplex communication circuit.

It receives the speed sensor signal from the skid control ECU.

INSPECTION PROCEDURE

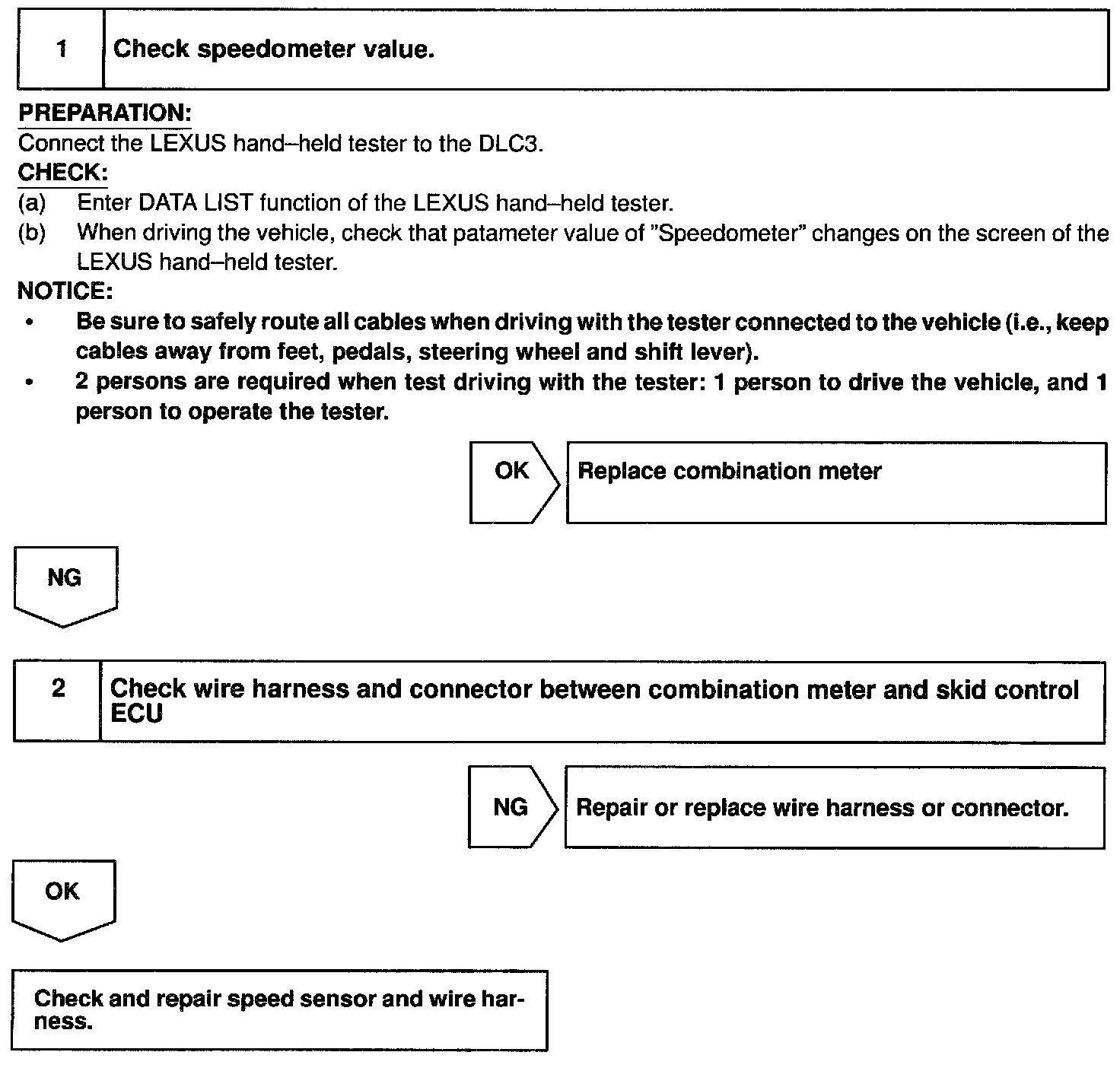

Step 1 - 2:




When using LEXUS hand-held tester:

Step 1 - 2:




When not using LEXUS hand-held tester:
