How To Proceed With Troubleshooting

NOTE: The ECU of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the multiplex communication system.

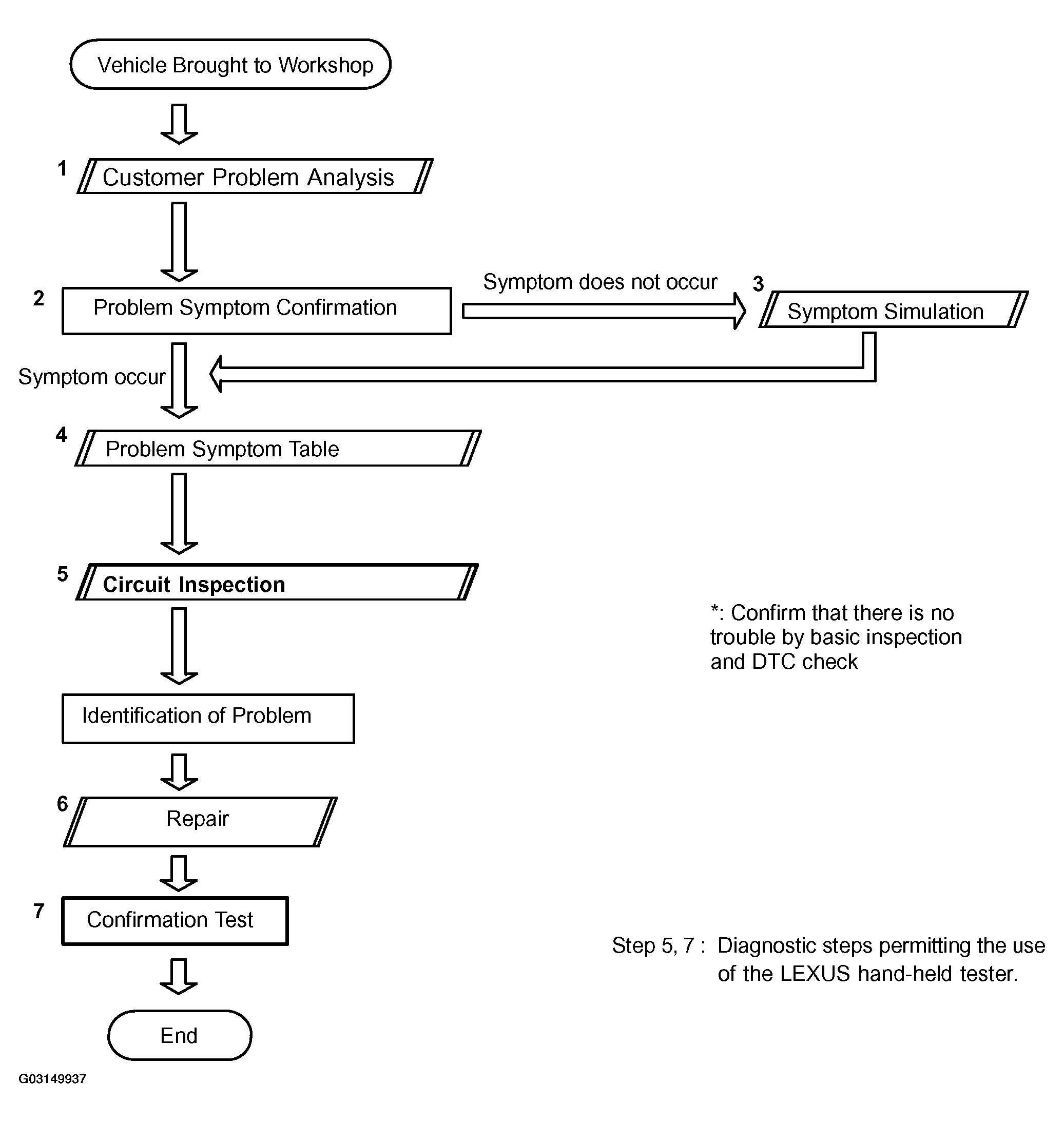

Fig 1: Power Seat Control System Troubleshooting Flow Chart
G03149937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
