Component Locations

For component locations, see Fig 1.

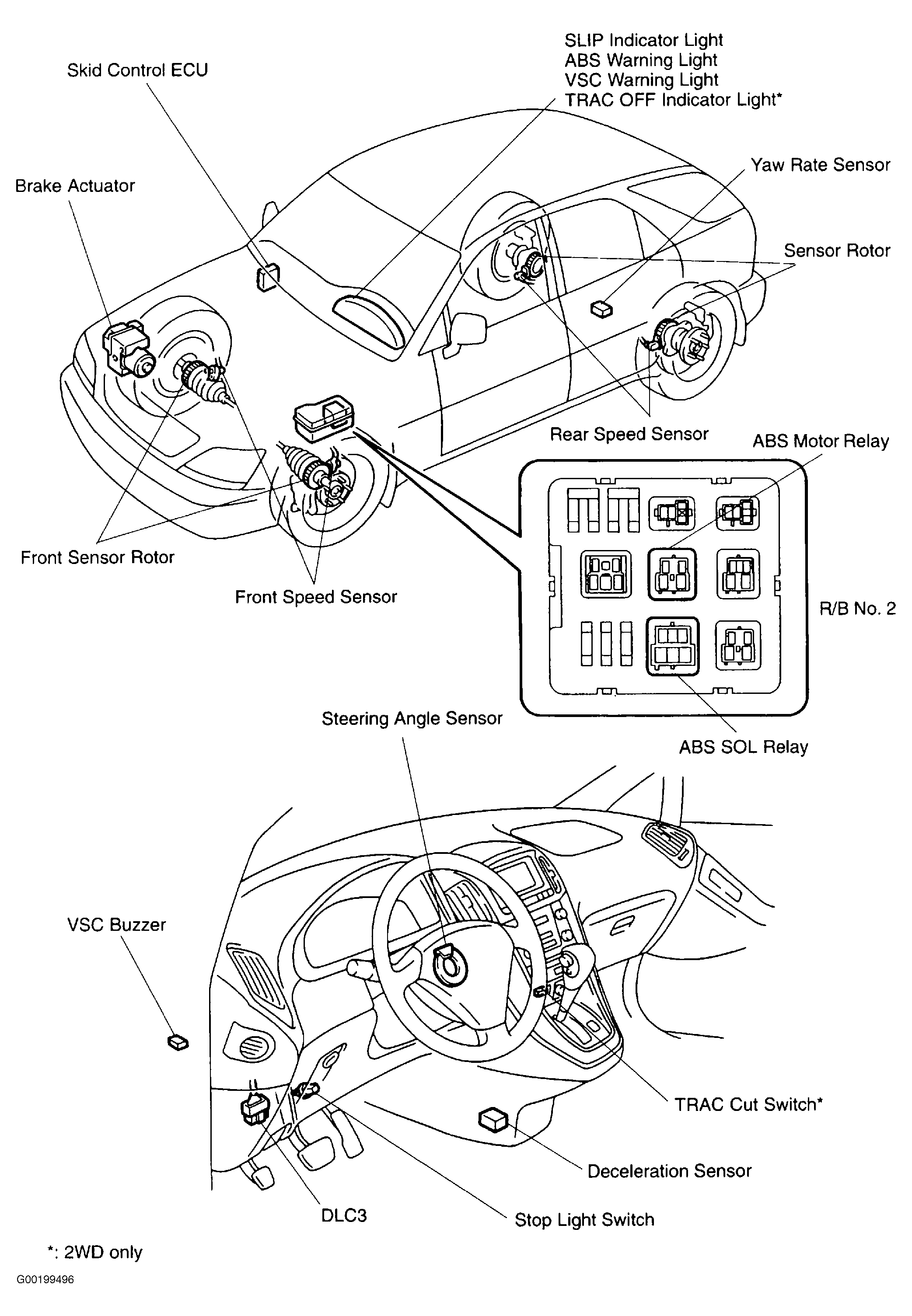

Fig 1: Locating ABS, BA, TRAC & VSC System Components
G00199496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
