Body

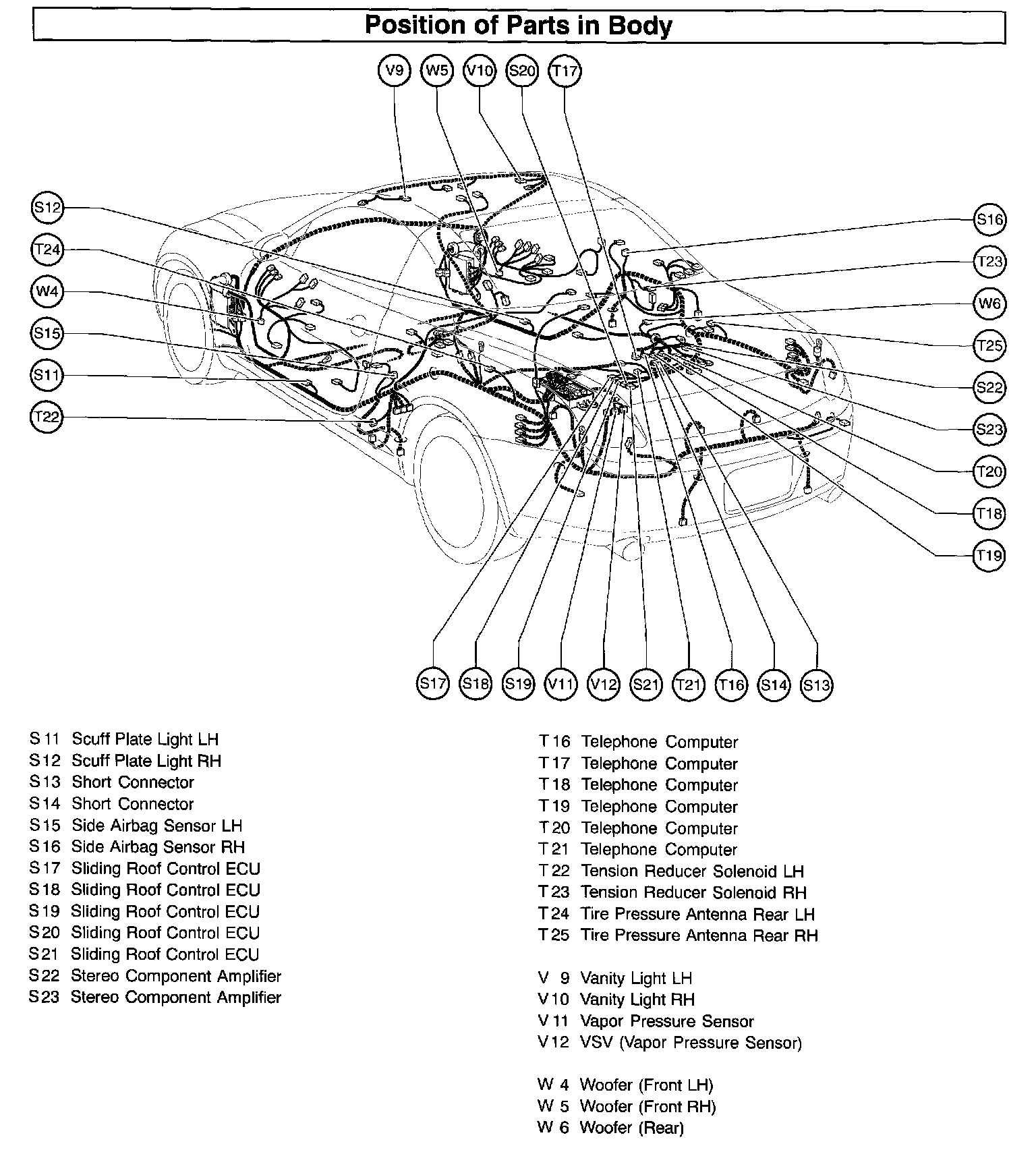

Position Of Parts In Body Part 1:

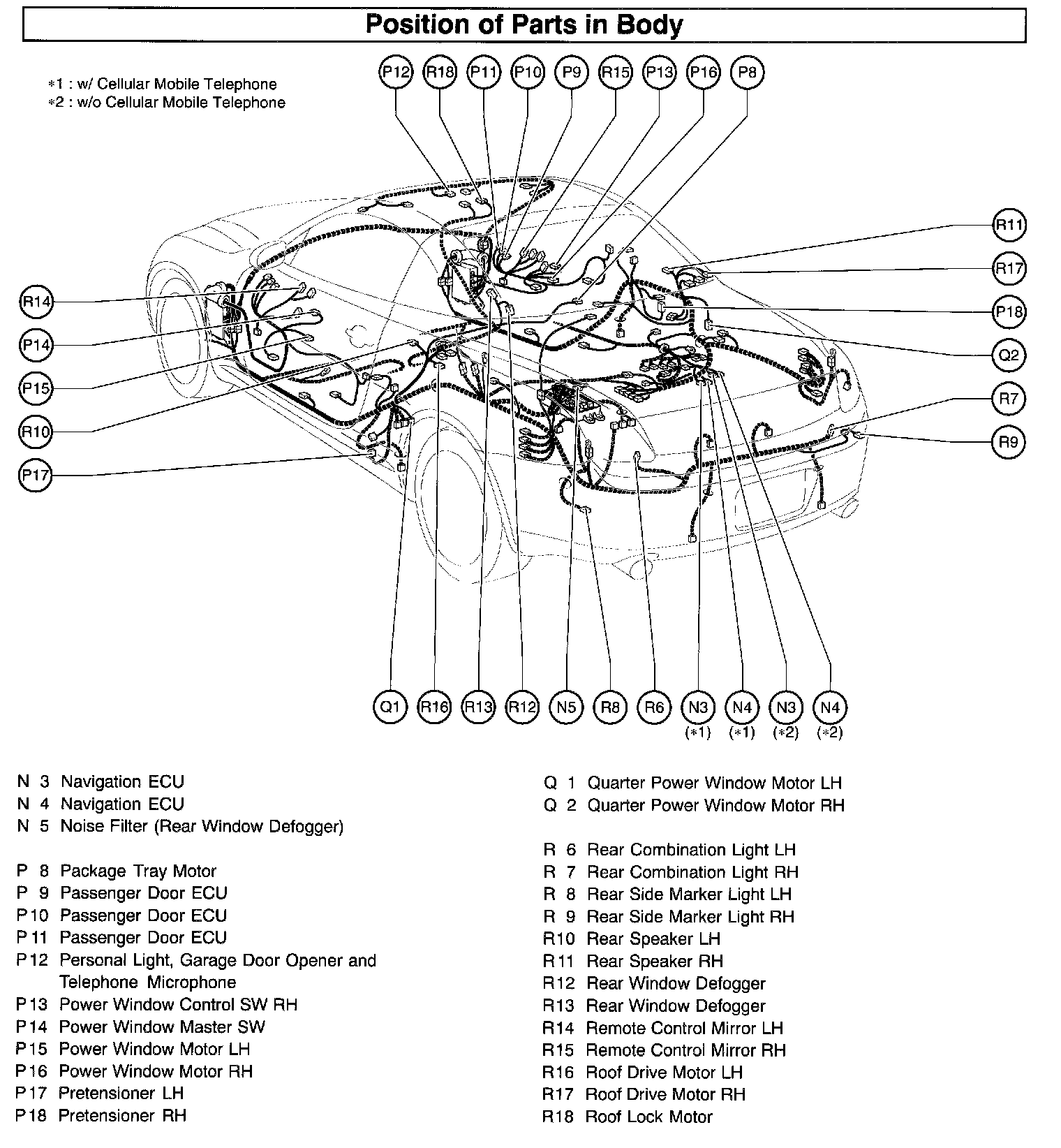

Position Of Parts In Body Part 2:

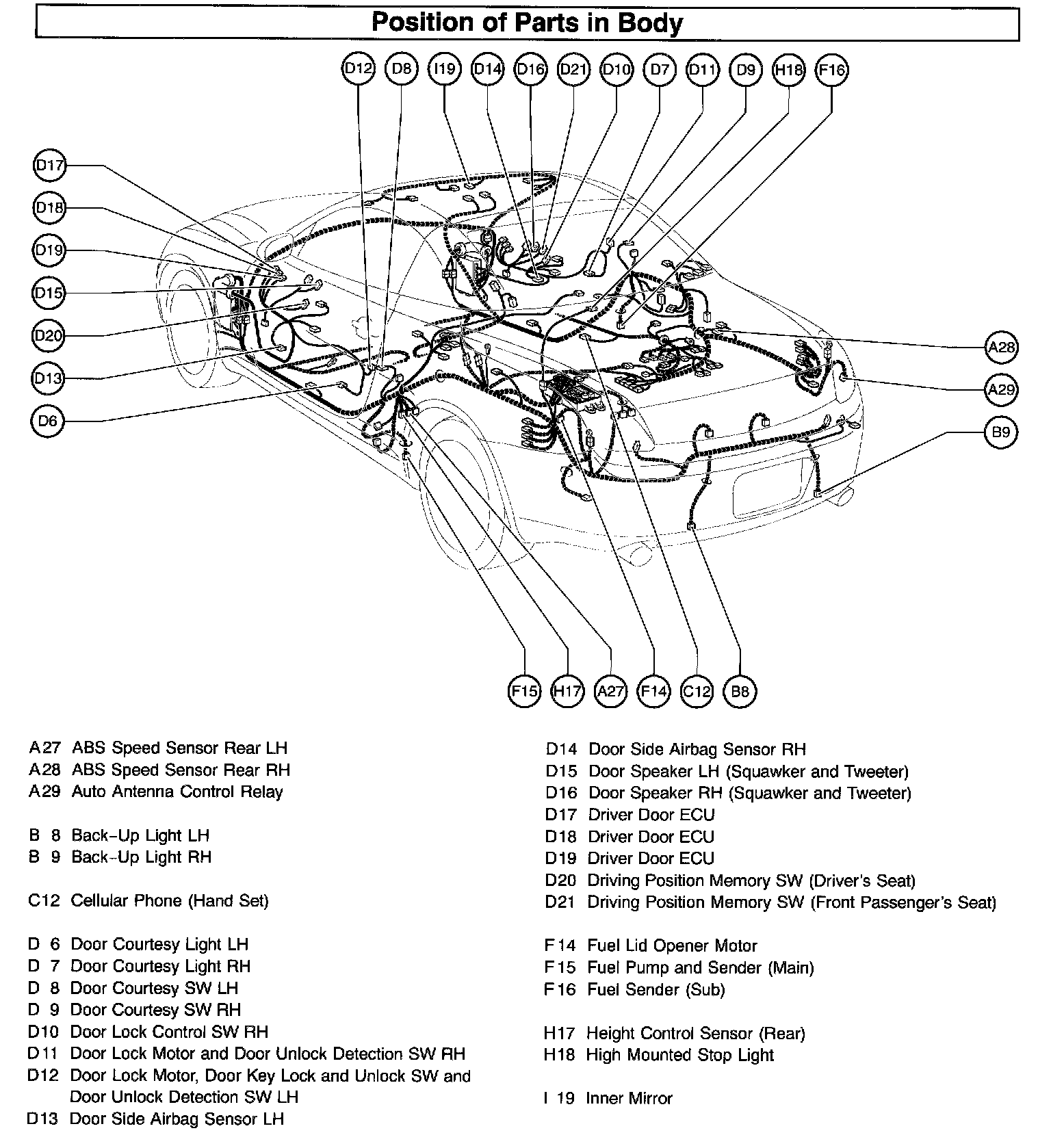

Position Of Parts In Body Part 3:

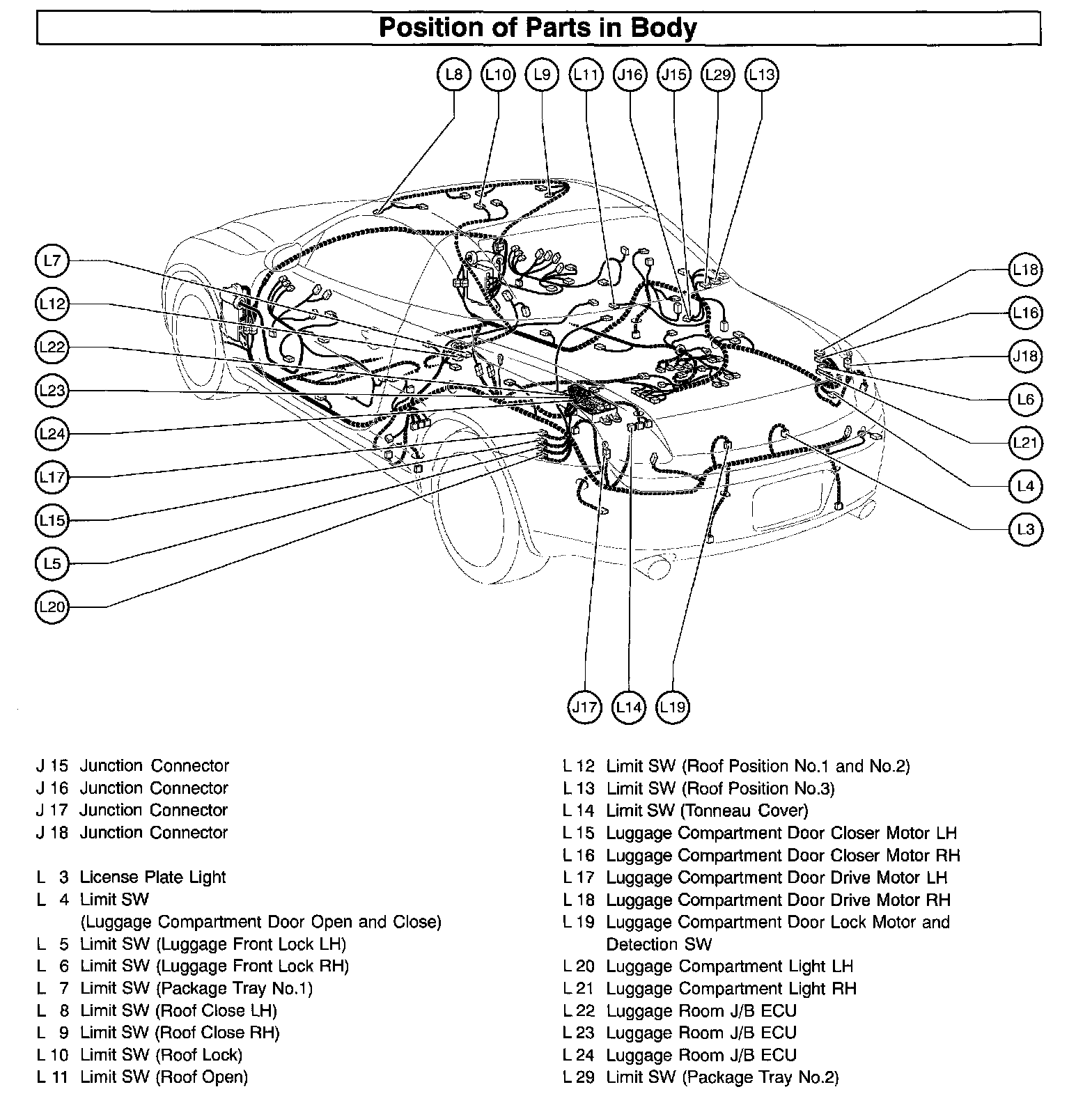

Position Of Parts In Body Part 4:
