Partial Engine Replacement and Overhaul

PARTIAL ENGINE ASSY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

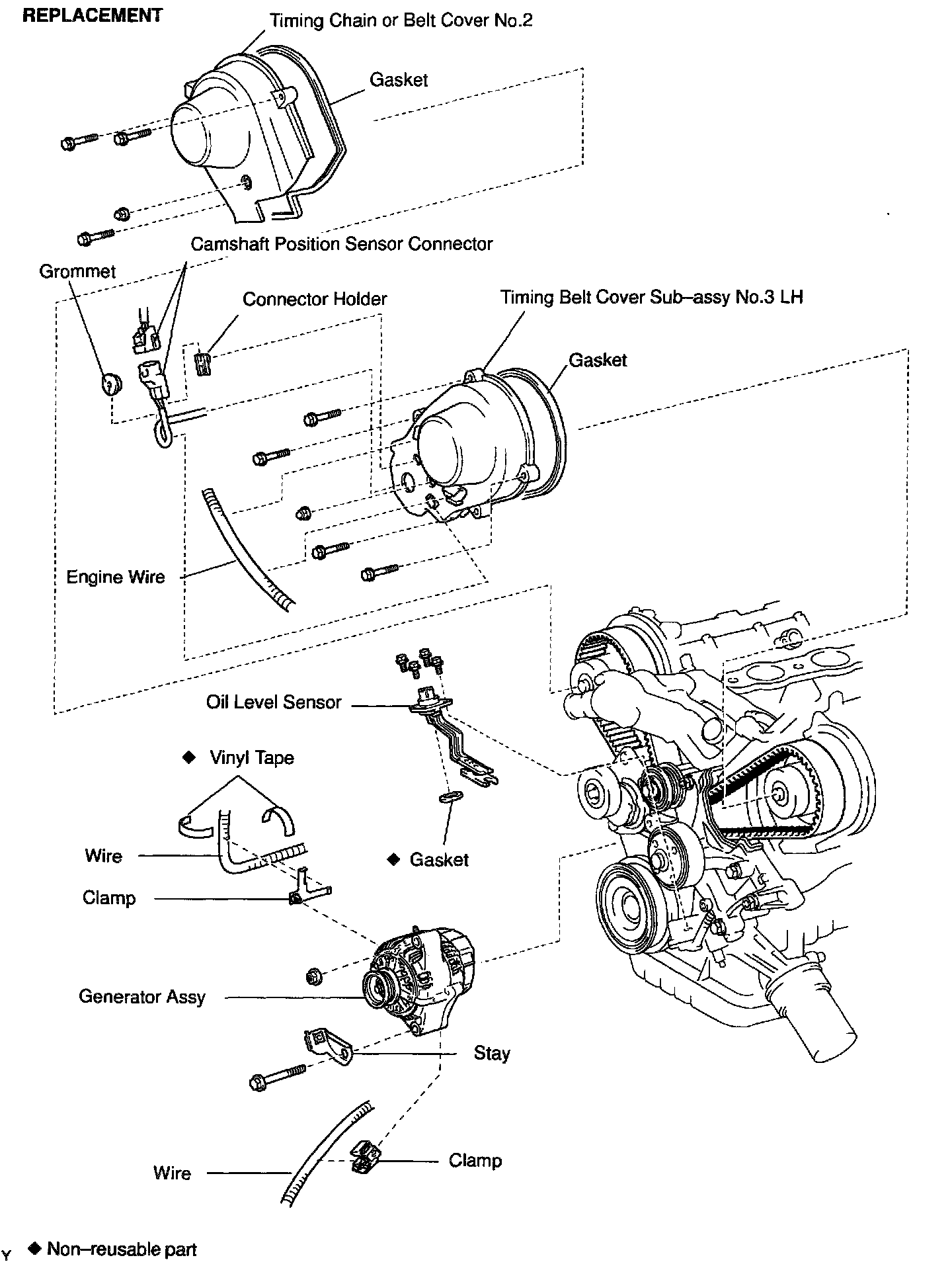

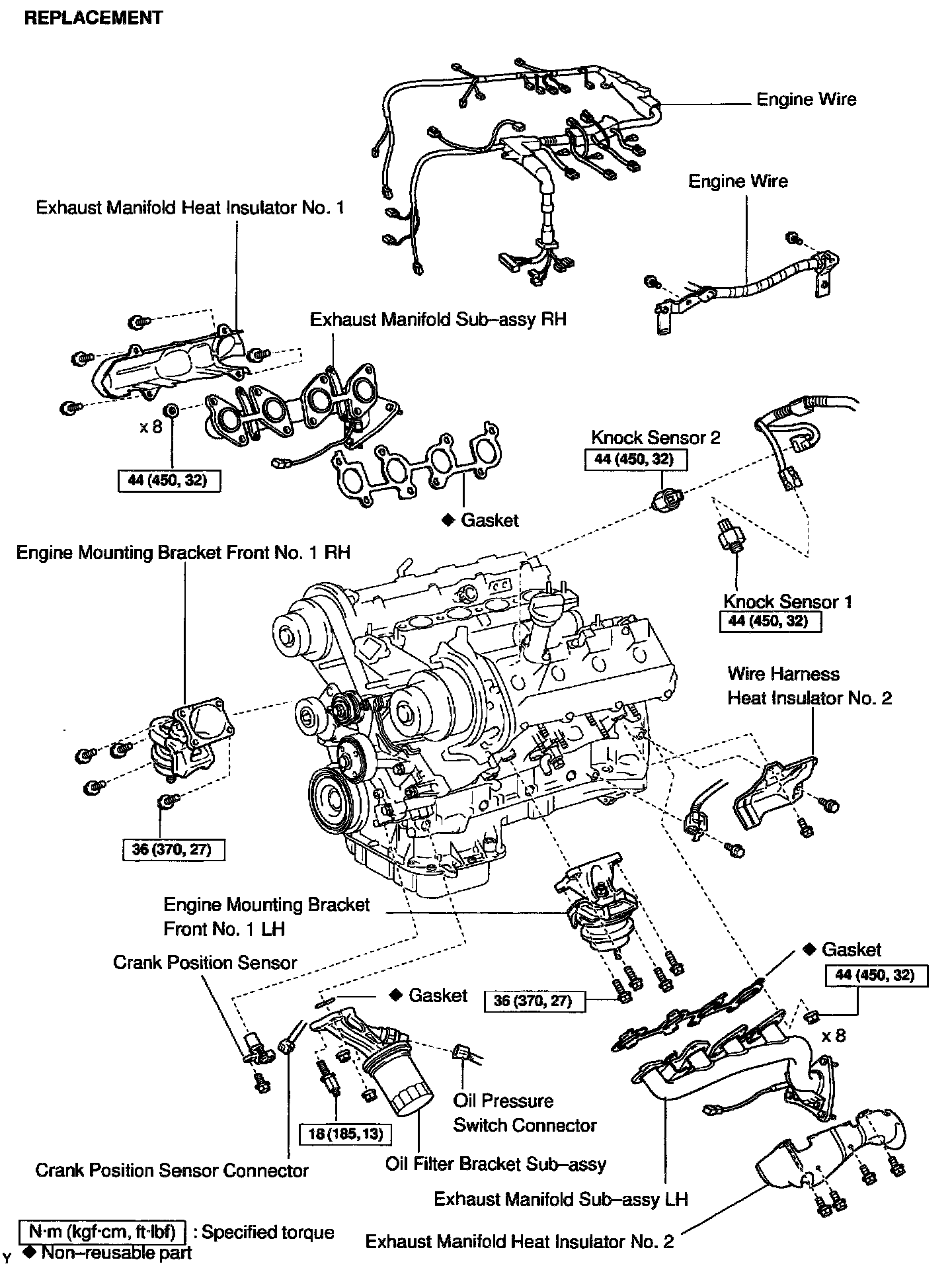

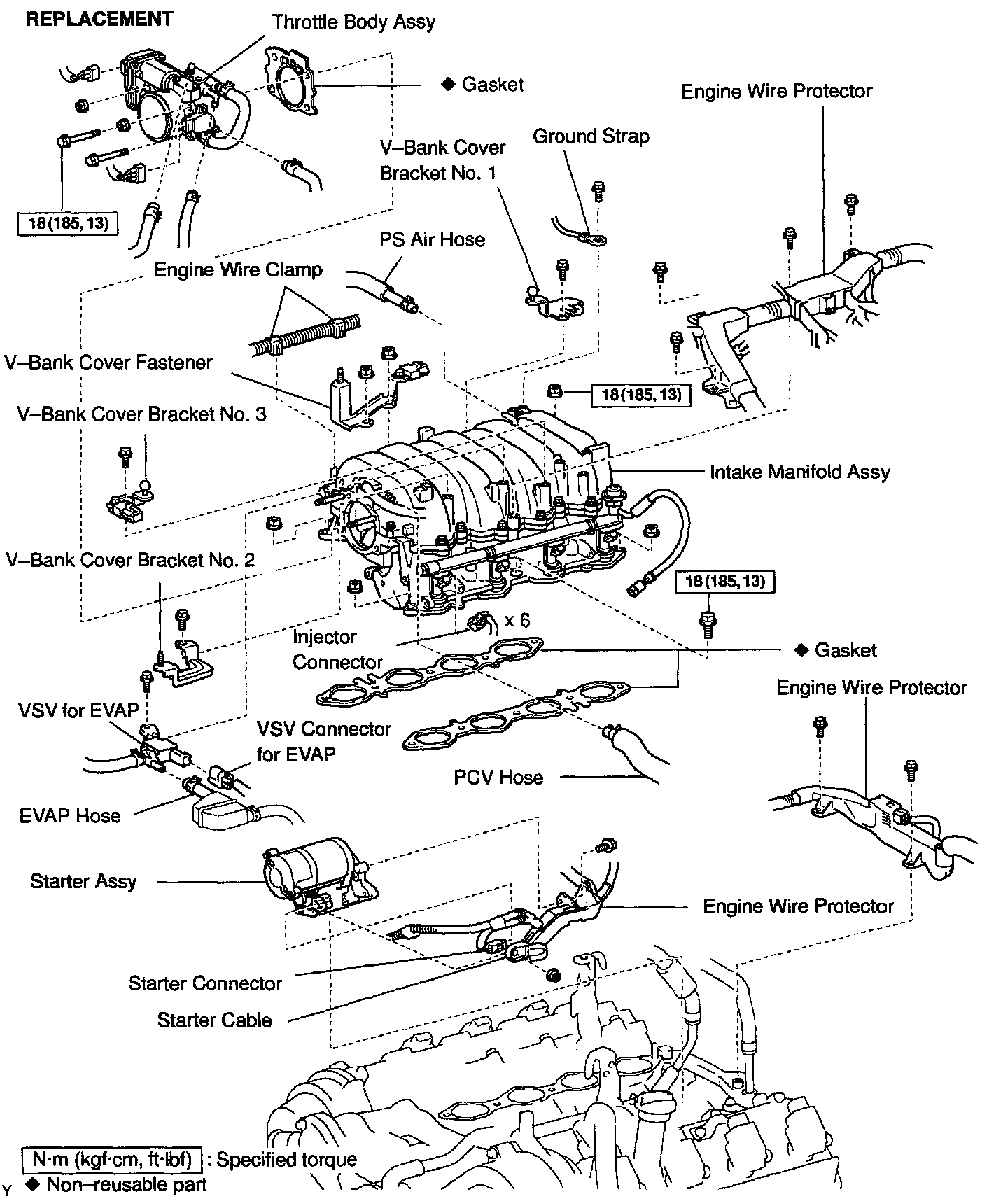

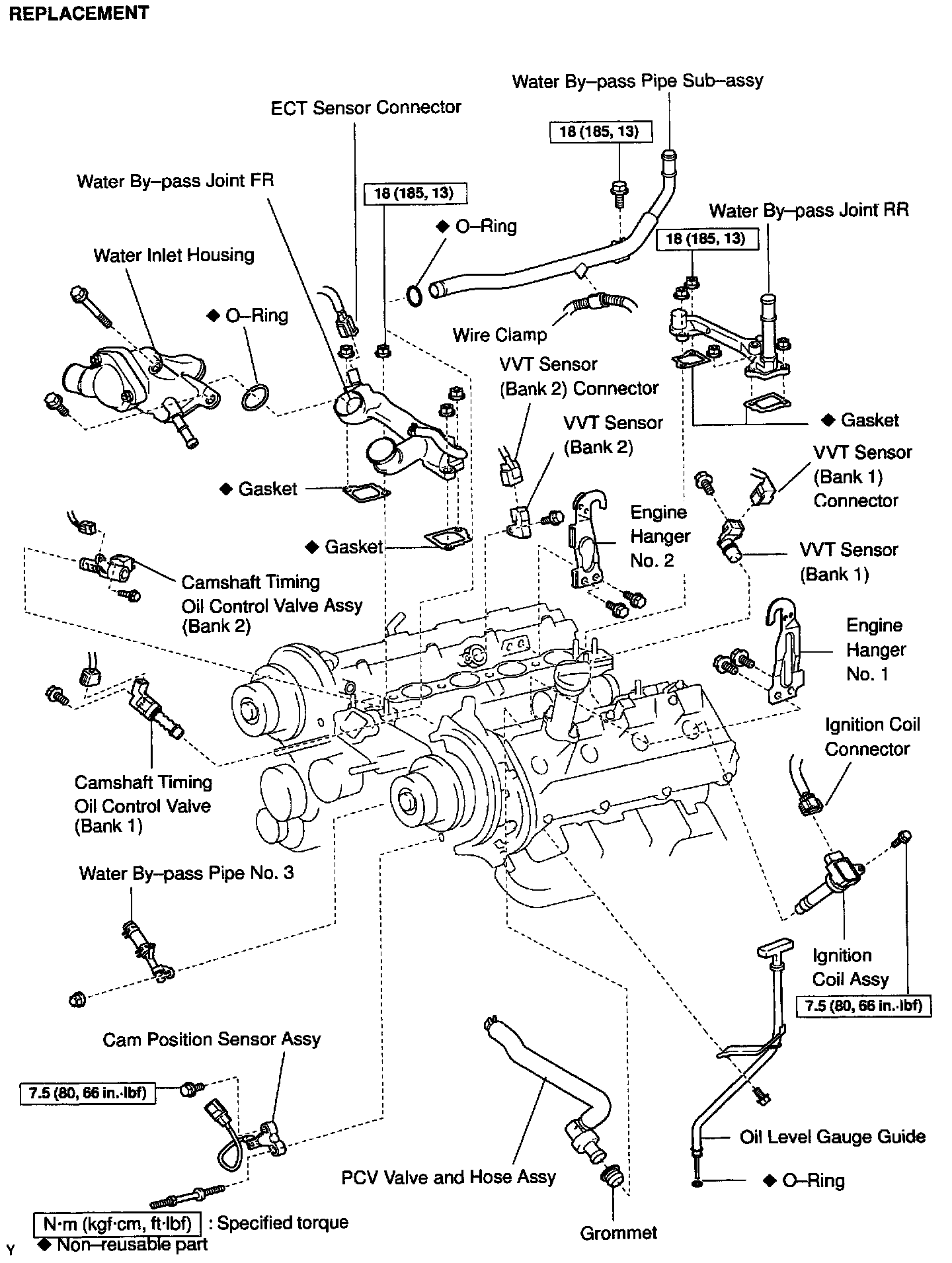

REPLACEMENT

Part 1 of 4

Part 2 of 4

Par 3 of 4

Part 4 of 4

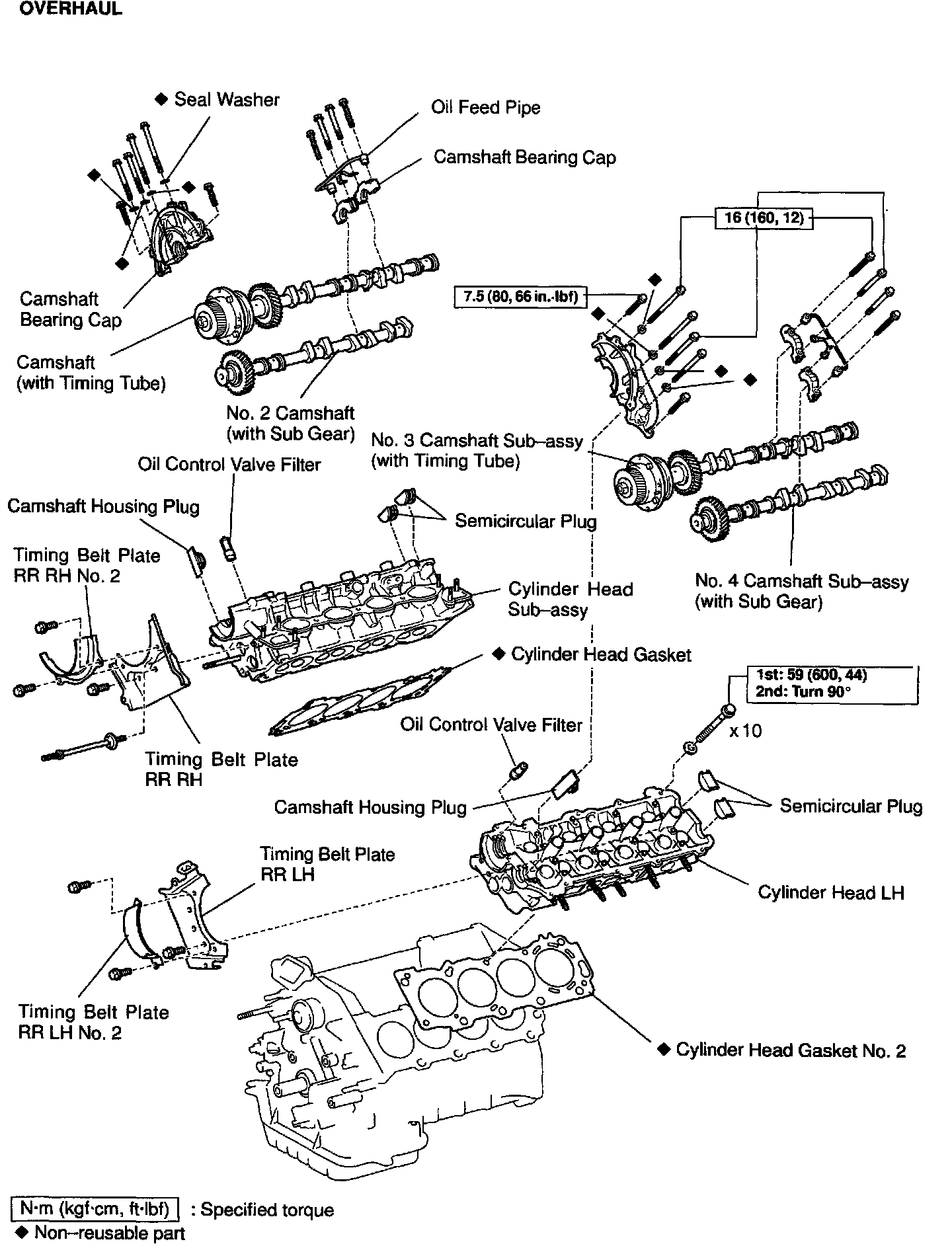

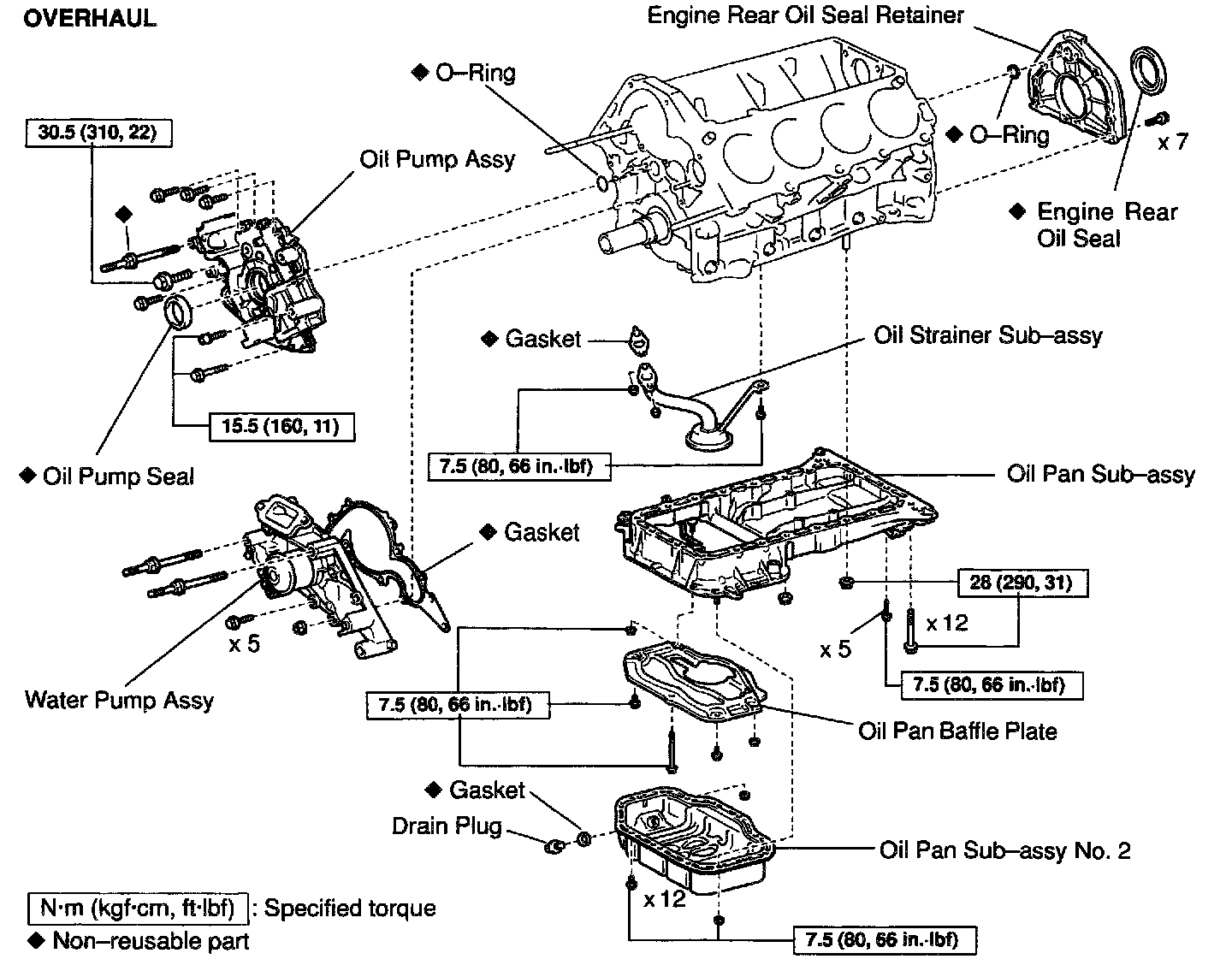

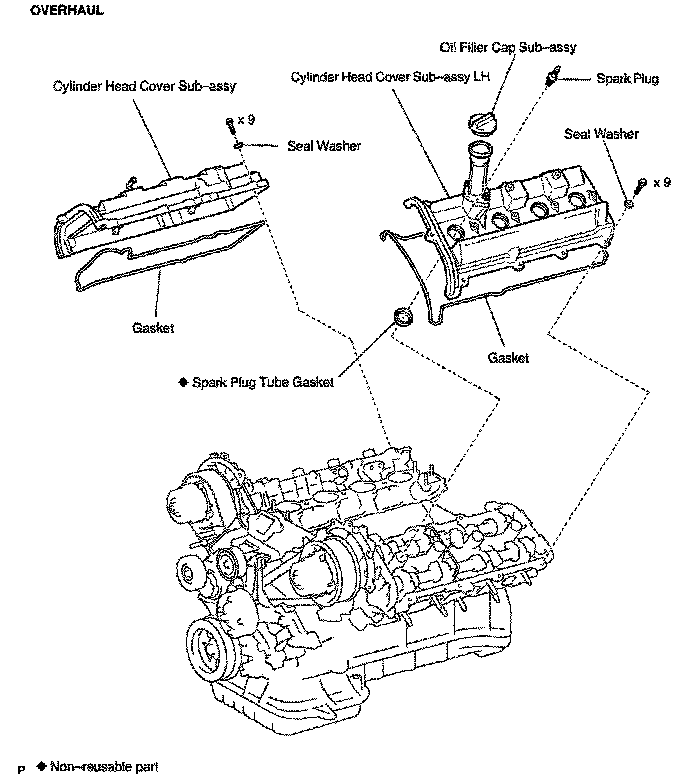

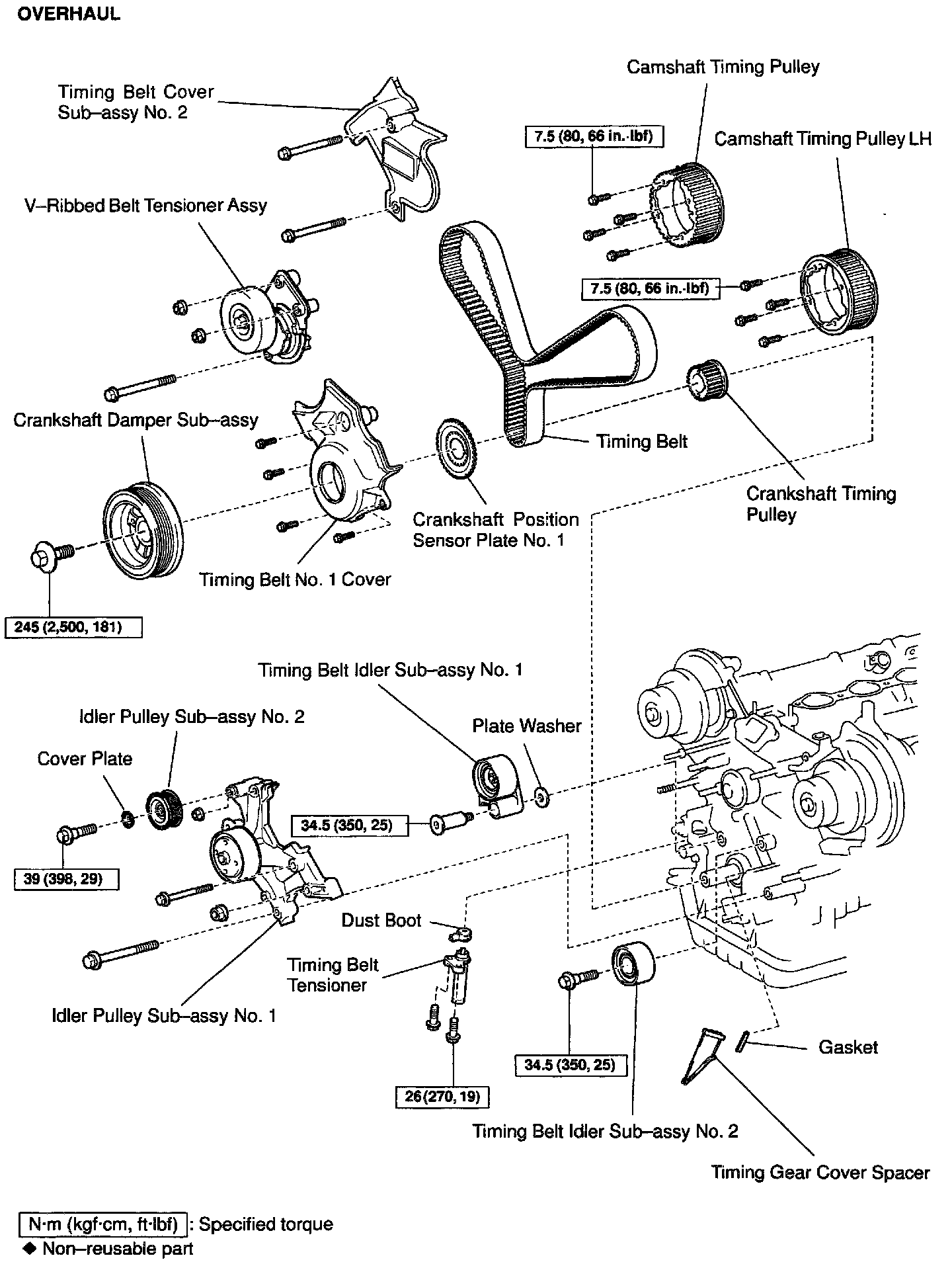

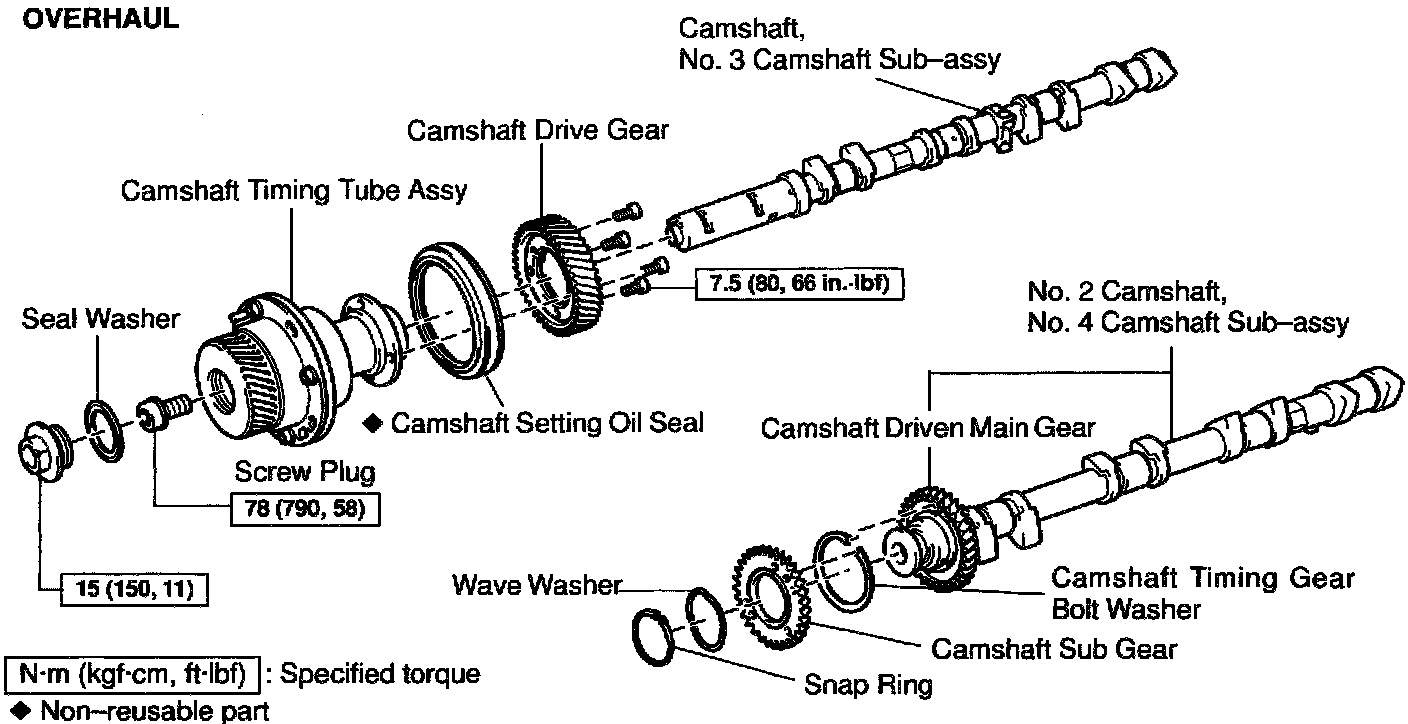

OVERHAUL

Part 1 of 5

Part 2 of 5

Part 3 of 5

Part 4 of 5

Part 5 of 5
