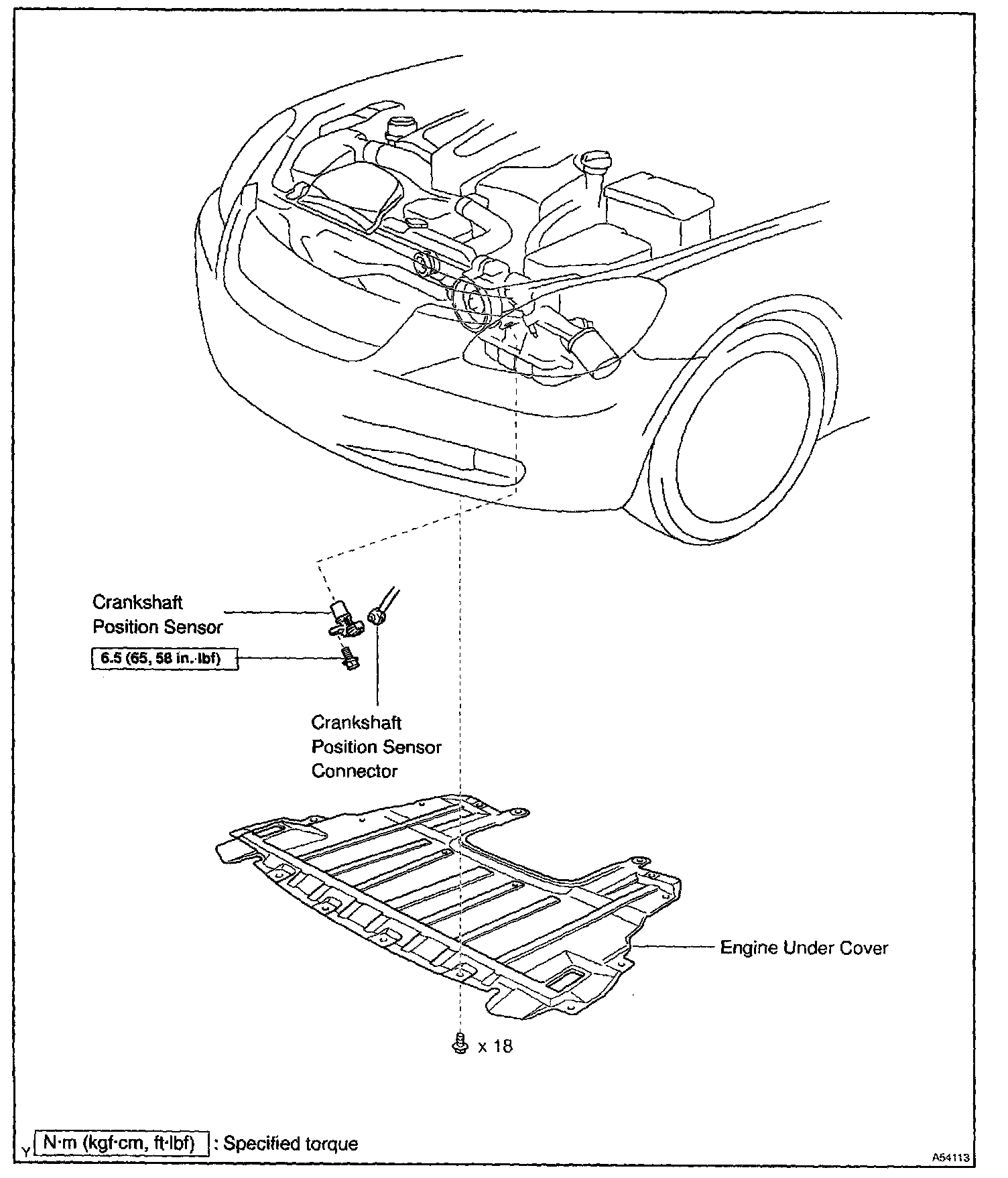

Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

REPLACEMENT

1. REMOVE ENGINE UNDER COVER [51441D]
2. REMOVE CRANKSHAFT POSITION SENSOR [15100R]
3. INSTALL CRANKSHAFT POSITION SENSOR [15100R]

Torque: 6.5 N.m (65 kgf.cm, 57 in.lbf)

4. INSTALL ENGINE UNDER COVER [51441D]
