Tire Pressure Monitor Receiver: Replacement

NOTE: COMPONENTS: See REPLACEMENT

SHIP MODE SETTING
SEPARATE BATTERY NEGATIVE TERMINAL
1. Disconnect the negative terminal.
REMOVE CONSOLE UPPER PANEL GARNISH REAR
(See REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER
(See REPLACEMENT )
REMOVE AIR CONDITIONER CONTROL ASSY (See OVERHAUL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER
SHIP MODE CONFIRMATION
REMOVE TIRE PRESSURE MONITOR RECEIVER ASSY
1. Disconnect the 2 connectors.
2. Remove the 2 bolts and receiver assy.

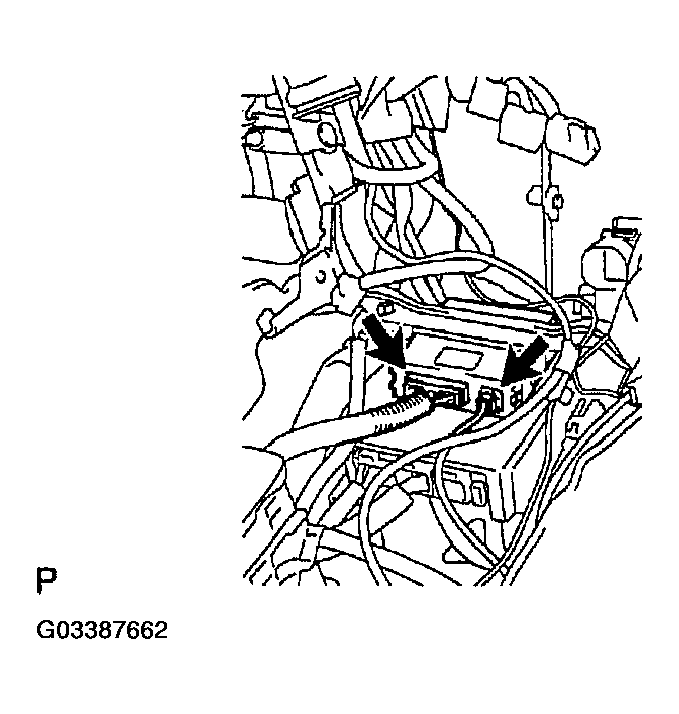

Fig 1: Removing Tire Pressure Monitor Receiver Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIRE PRESSURE MONITOR RECEIVER ASSY
1. Install the receiver assy with the 2 bolts.
  Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
2. Connect the 2 connectors.

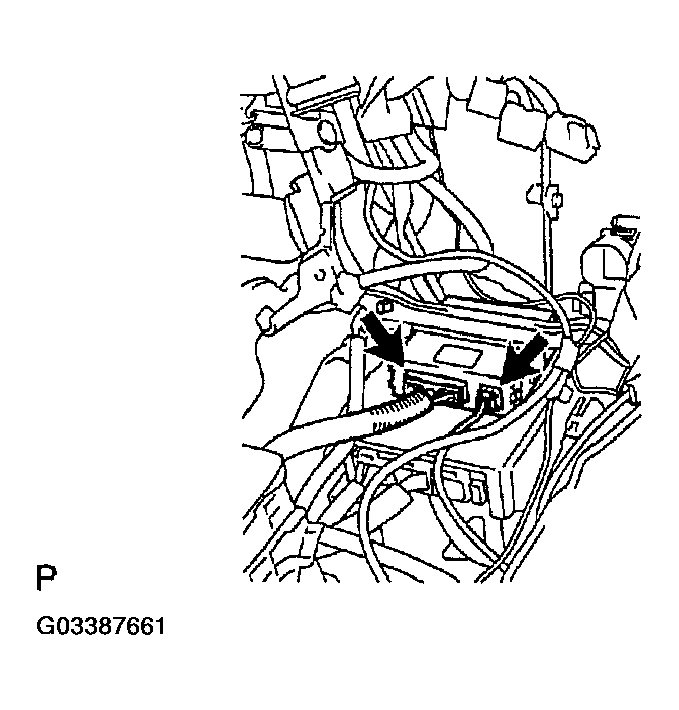

Fig 2: Installing Tire Pressure Monitor Receiver Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TIRE PRESSURE WARNING SYSTEM (See PRE-CHECK )
