Package Tray Trim ASSY: Components

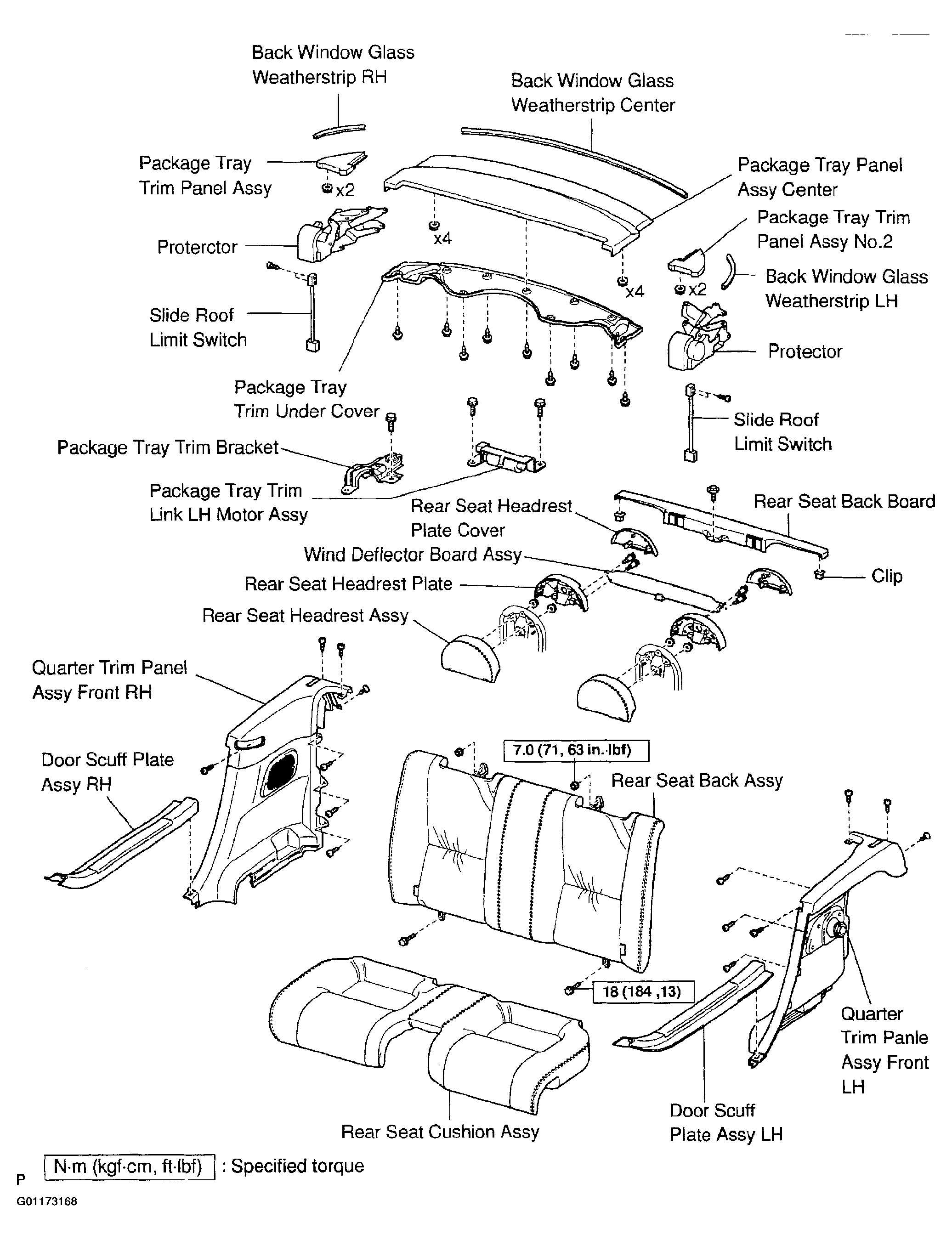

Fig 1: Identifying Components Of Package Tray Trim Assembly
G01173168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
