Terminals Of Ecu

  1. DRIVER DOOR ECU

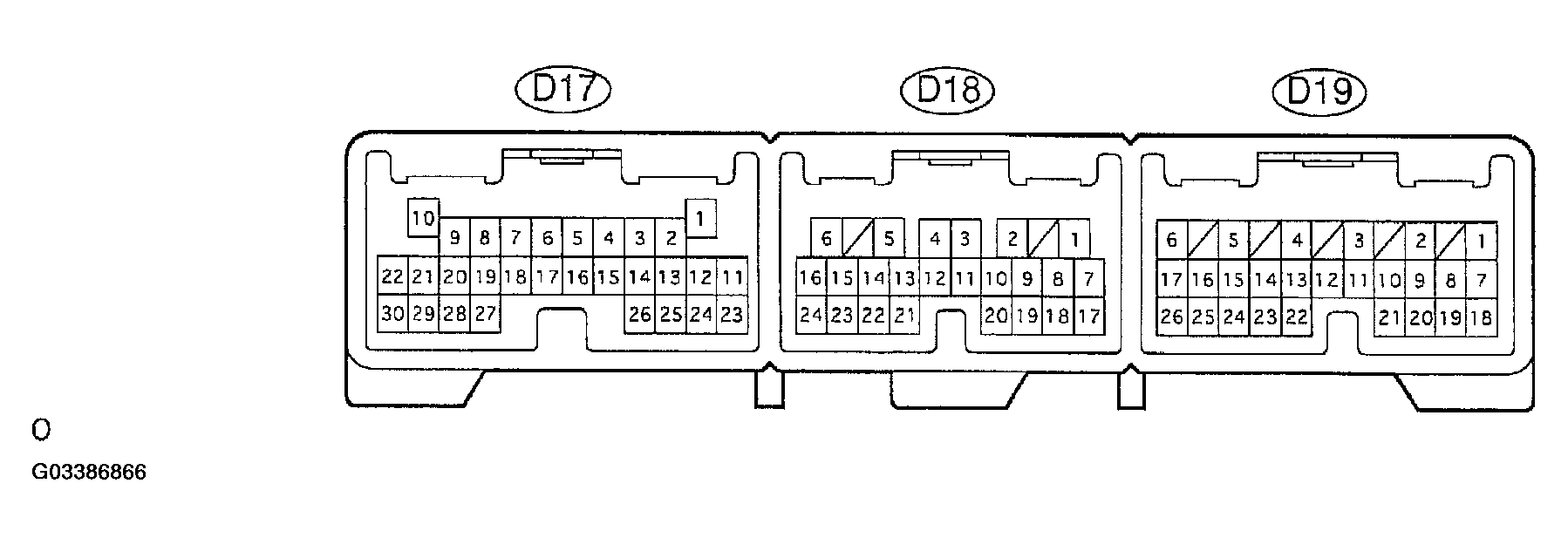

    Fig 1: Identifying Terminals Of ECU
    G03386866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. INSPECT DOOR ECU
      1. Check the voltage and continuity between each terminal of the vehicle's side connector.

      Standard:

      STANDARD CHART

      Symbols (Terminal No.) Wiring Color Condition STD Voltage
      D19-1 <=> Body ground (GND - Body ground) W-B <=> Body ground Constant Continuity
      D19-4 <=> D19-1 (CPUB <=> GND) L-0 <=> W-B Constant 10 - 14 V
      D19-5 <=> D19-1 (SIG <=> GND) V-W <=> W-B Ignition switch OFF --> ON 0V --> 10 - 14 V
      D19-6 <=> D19-1 (BDR <=> GND) B-R <=>. W-B Constant 10 - 14 V
      D19-13 <=> D19-1 (HTR- <=> GND) W-B <=> W-B Constant Continuity
      D19-13 <=> D19-1 (HTR+ <=> GND) R-W <=> W-B Constant Continuity
      NOTE: If the value is not as specified, a malfunction exists in the vehicle's side.
    2. Connect connectors and check the voltage between each terminal of the connectors.

      Standard:

      STANDARD CHART

      Symbols (Terminal No.) Wiring Color Condition STD Voltage
      D19-7 <=> Body ground (MR+ <=> Body ground) Y <=> Body ground Driver outside view mirror is retracting 10 - 14 V
      D19-18 <=> D19-1 (MR-<--> GND) V <=> W-B Driver outside view mirror is reinstating 10 - 14 V
      D19-20 <=> D 19-1 (#M+ R <=> GND) R-B <=> W-B Driver outside view mirror OFF --> turning down OFF --> turning right 10 - 14 --> 0 V
      D19-19 <=> D19-1 (#MHR <=> GND) LG <=> W-B Driver outside view mirror OFF --> turning left 10 - 14 V -->0 V
      D19-8 <=> D19-1 (#MVR <=> GND) LG-B <=> W-B Driver outside view mirror OFF --> burning up 10 - 14 V --> 0 V
      D19-15 <=> D19-1 (EC+ <=> GND) 0 <=> W-B Driver outside view mirror OFF --> turning right and left 10 - 14 V --> 0 V
      D19-26 <=> D 19-1 (HSSR <=> GND) GR <=> W-B Driver outside view mirror OFF --> turning right and left 1O - 14 V --> O V
      D19-25 <=> D19-1 (#E2 <=> GND) R <=> W-B Driver outside view mirror OFF --> turning right and left 10 - 14 V --> 0 V
      D19-16 <=> D19-1 (VSSR <=> GND) G-0 <=> W-B Driver outside view mirror OFF --> turning up and down 10 - 14 V --> 0 V
    NOTE: If the value is not as specified, a malfunction exists in the door ECU or the communication line
  2. PASSENGER DOOR ECU

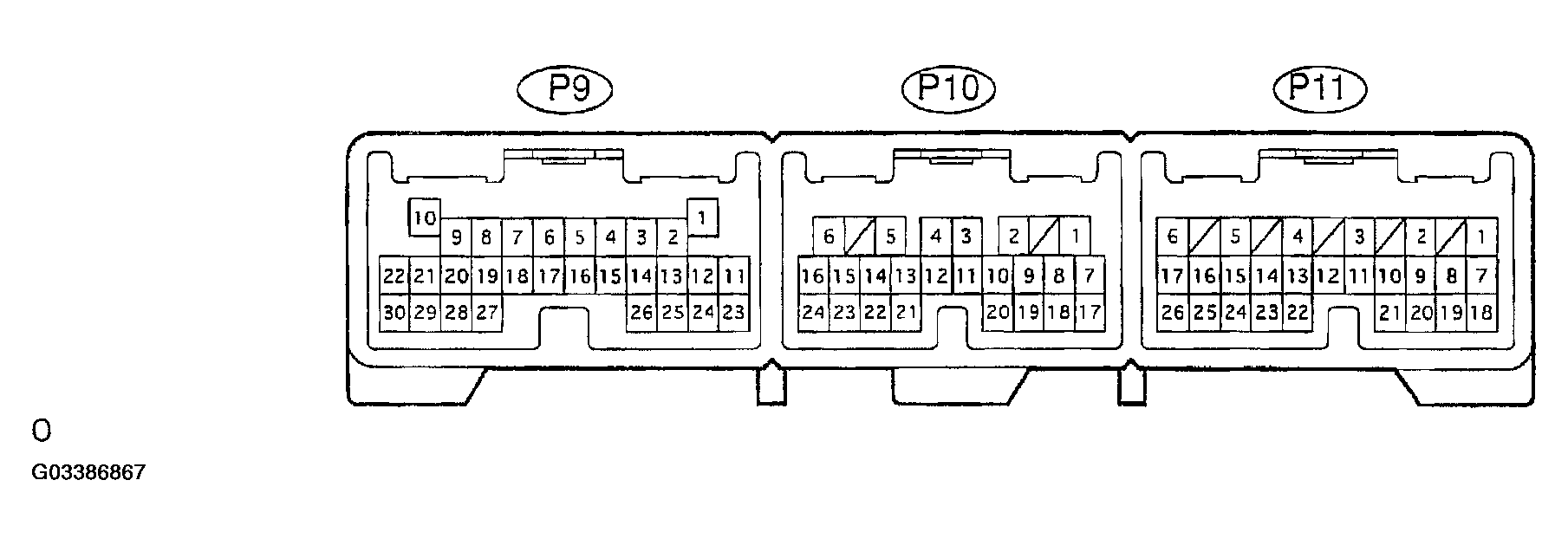

    Fig 2: Identifying Passenger Door ECU
    G03386867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. INSPECT DOOR ECU
      1. Check the voltage and continuity between each terminal of the vehicle's side connector.

      Standard:

      STANDARD CHART

      Symbols (Terminal No.) Wiring Color Condition STD Voltage
      P11-1 <=> Body ground (GND - Body ground) W-B <=> Body ground Constant Continuity
      P11-4 <=> P11-1 (CPUB <=> GND) L-0 <=> W-B Constant 10 - 14 V
      P11-5 <=> P11-1 (SIG <=> GND) V-W <=> W-B Ignition switch OFF --> ON 0 V --> 10 - 14 V
      P11-6 <=> P11-1 (BDR <=> GND) G-Y <=> W-B Constant 0 V --> 4 10 - 14 V
      P11-22 <=> P11-1 (HTR <=> GND) W-B <=> W-B Constant Continuity
      P11-13 <=> P11-1 (HTR+ <=> GND) R-W <=> W-B Constant Continuity
      NOTE: If the value is not as specified, a malfunction exists in the vehicle's side.
    2. Connect connectors and check the voltage between each terminal of the connectors.

      Standard:

      STANDARD CHART

      Symbols (Terminal No.) Wiring Color Condition STD Voltage
      P11-7 <=> Body ground (MR+ Body ground) Y <=> Body ground Driver outside view mirror is retracting 10 - 14 V
      P11-18 <=> P11-1 (MR-4 <=> GND) V <=> W-B Driver outside view mirror is reinstating 10 - 14 V
      P11-20 <=> P11-1 (PM+ R <=> GND) R-B <=> W-B Driver outside view mirror
      OFF-->turning down
      OFF-->turning right      		 1O - 14 V --> O V
      P11-19 <=> P11-1 (PMHR <=> GND) LG <=> W-B Driver outside view mirror
      OFF-->turning left      		 10 - 14 V --> 0V
      P11-6 <=> P11-1 (PMVR <=> GND) G-B <=> W-B Driver outside view mirror
      OFF-->turning up      		 10 - 14 V --> 0 V
      P11-15 <=> P11-1 (EC+ <=> GND) O <=> W-B Driver outside view mirror
      OFF-->turning right and left      		 10 - 14 V --> 0 V
      P11-26 <=> P11-1 (HSSR <=> GND) GR <=> W-B Driver outside view mirror
      OFF-->turning right and left      		 10 - 14 V --> 0 V
      P11-25 <=> P11-1 (PE2 <=> GND) P-L <=> W-B Driver outside view mirror
      OFF-->turning right and left      		 10 - 14 V --> 0 V
      P11-16 <=> P11-1 (VSSR <=> GND) G-0 <=> W-B Driver outside view mirror
      OFF-->turning up and down      		 10 - 14 V --> 0 V
    NOTE: If the value is not as specified, a malfunction exists in the door ECU or the communication line
  3. DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

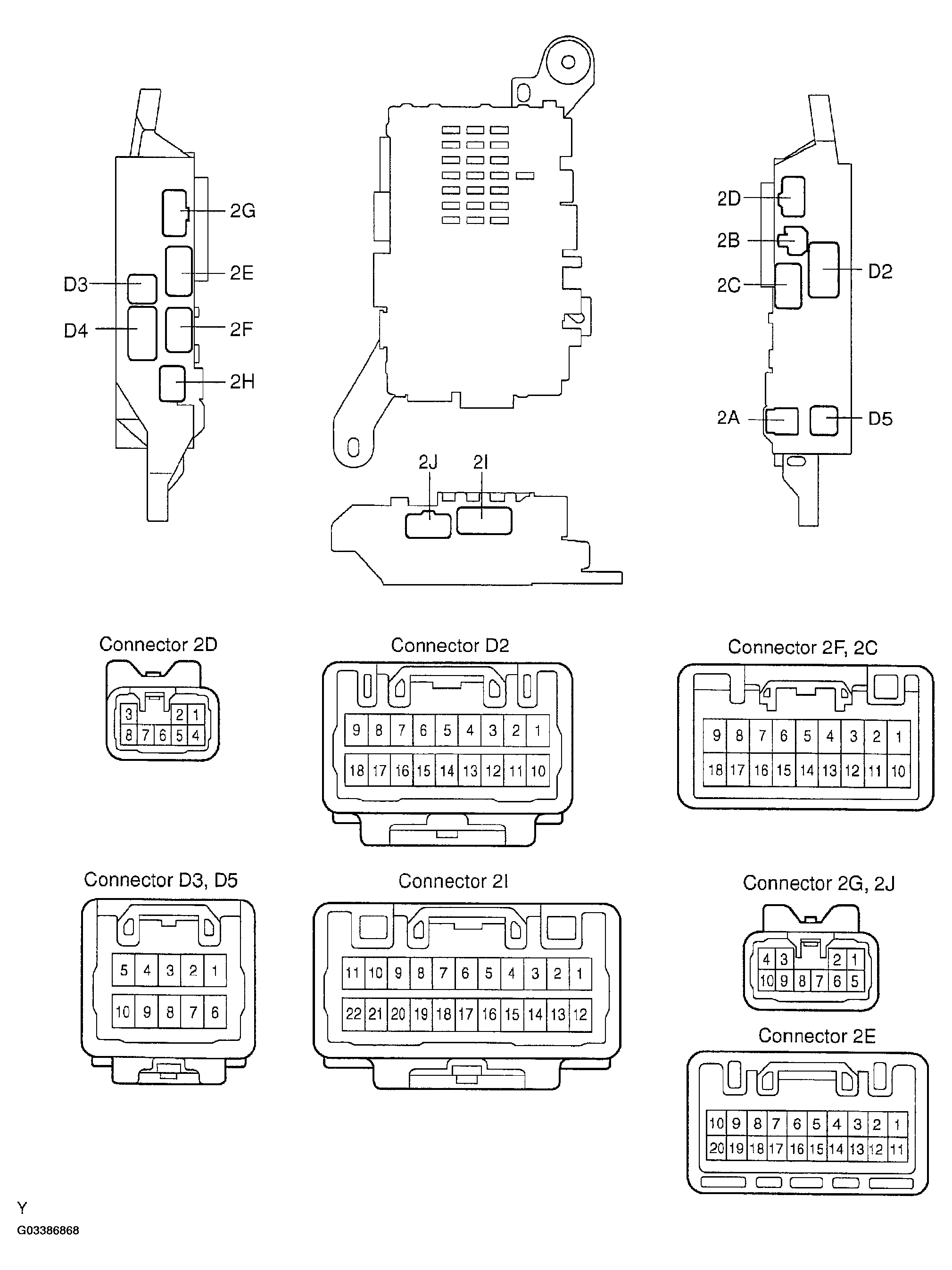

    Fig 3: Identifying Driver Side J/B (Driver Side J/B ECU)
    G03386868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TERMINAL SPECIFICATIONS

    Symbols (Terminal No.) Wiring Color Condition STD Voltage
    D3-5 <=> D3-1 (MPX-B <=> GND2) L-B <=> W-B Constant Below 1 V
    D4-7 <=> Body ground (R/E <=> Body ground) LG <=> Body ground Constant Below 1 V
    D4-8 <=> D3-1 (RET <=> GND2) GR <=> W-B Mirror retract switch OFF Below 1 V
    D4-8 <=> D3-1 (RET <=> GND2) GR <=> W-B Mirror retract switch RETRACT 10 - 14 V
    D4-10 <=> D4-8 (MSW <=> R/E) R <=> LG Mirror right/left adjustment switch OFF Below 1 V
    D4-10 <=> D4-8 (MSW <=> R/E) R <=> LG Mirror right/left adjustment switch LEFT or RIGHT 0 - 5 V
    D4-11 <=> D4-8 (M+ <=> R/E) R-B <=> LG Mirror control switch neutral position Below 1 V
    D4-11 <=> D4-8 (M+ <=> R/E) R-B <=> LG Mirror control switch each position 0 - 5 V
