Window Cannot Be Operated Via Regulator Switch In Driver's Side (Power Window Master Switch Circuit): Wiring Diagram

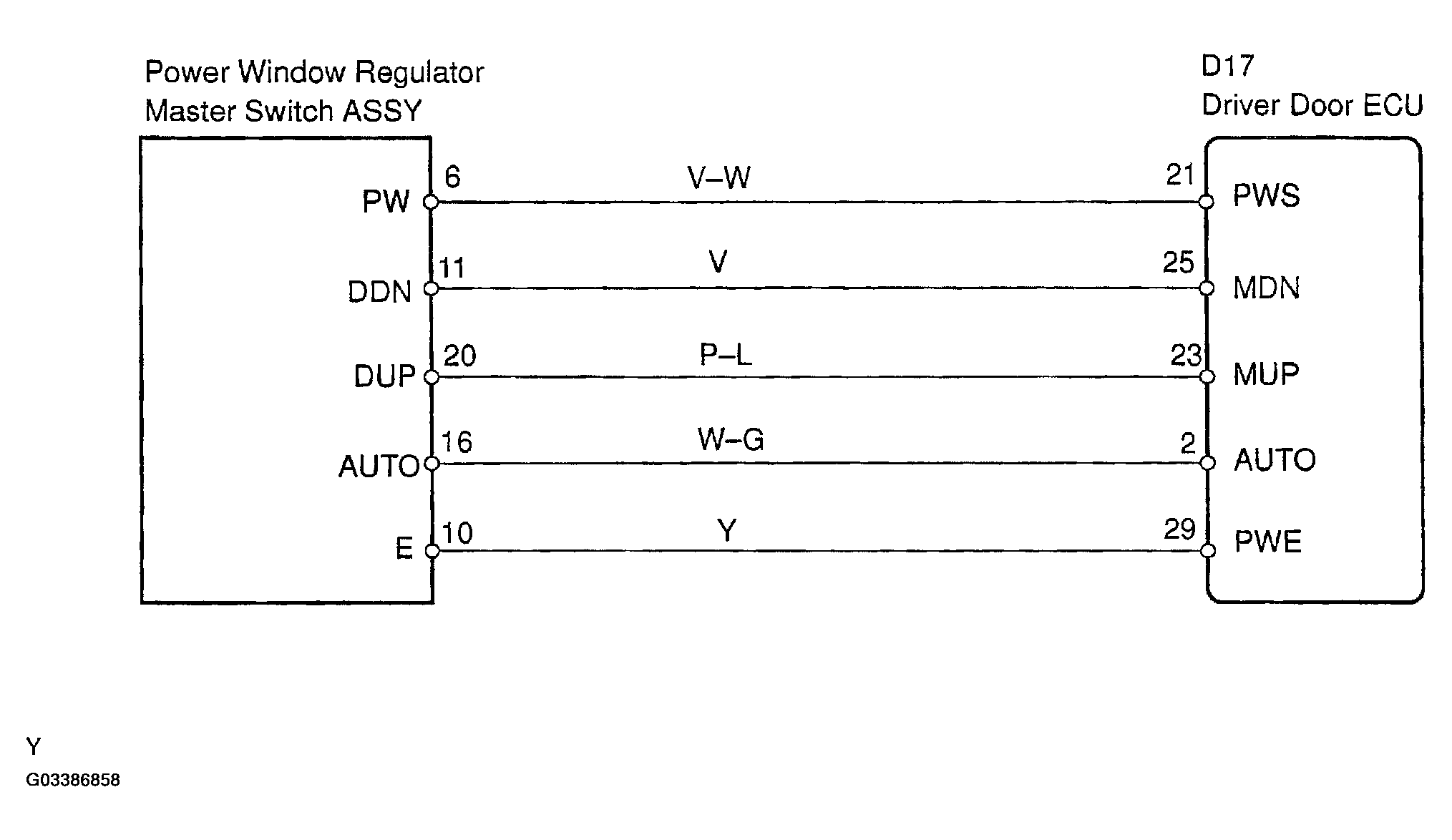

Fig 1: Via Regulator Switch In Driver's Side (Power Window Master Switch Circuit) Wiring Diagram
G03386858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
