Engine Compartment Junction & Relay Blocks: Notes

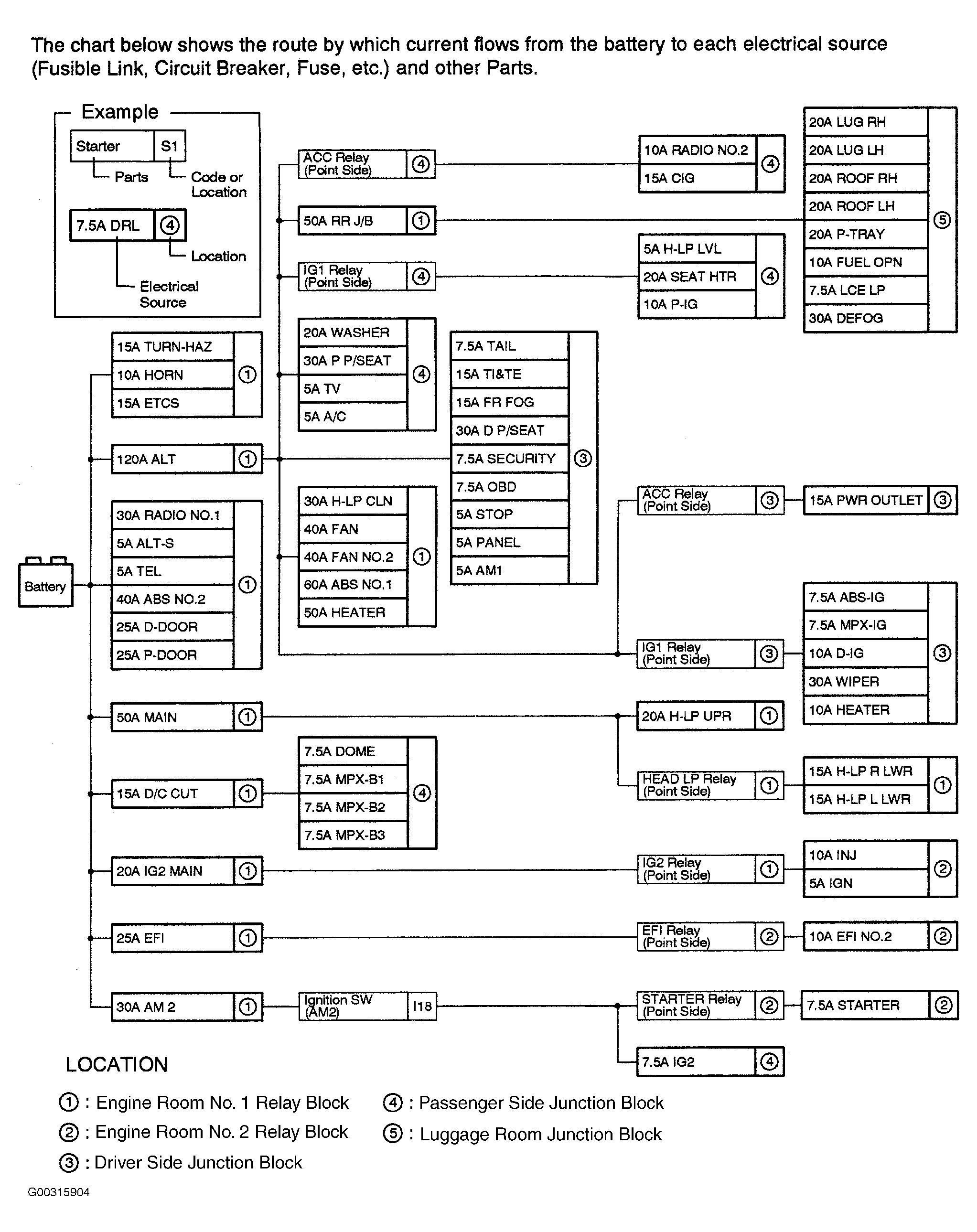

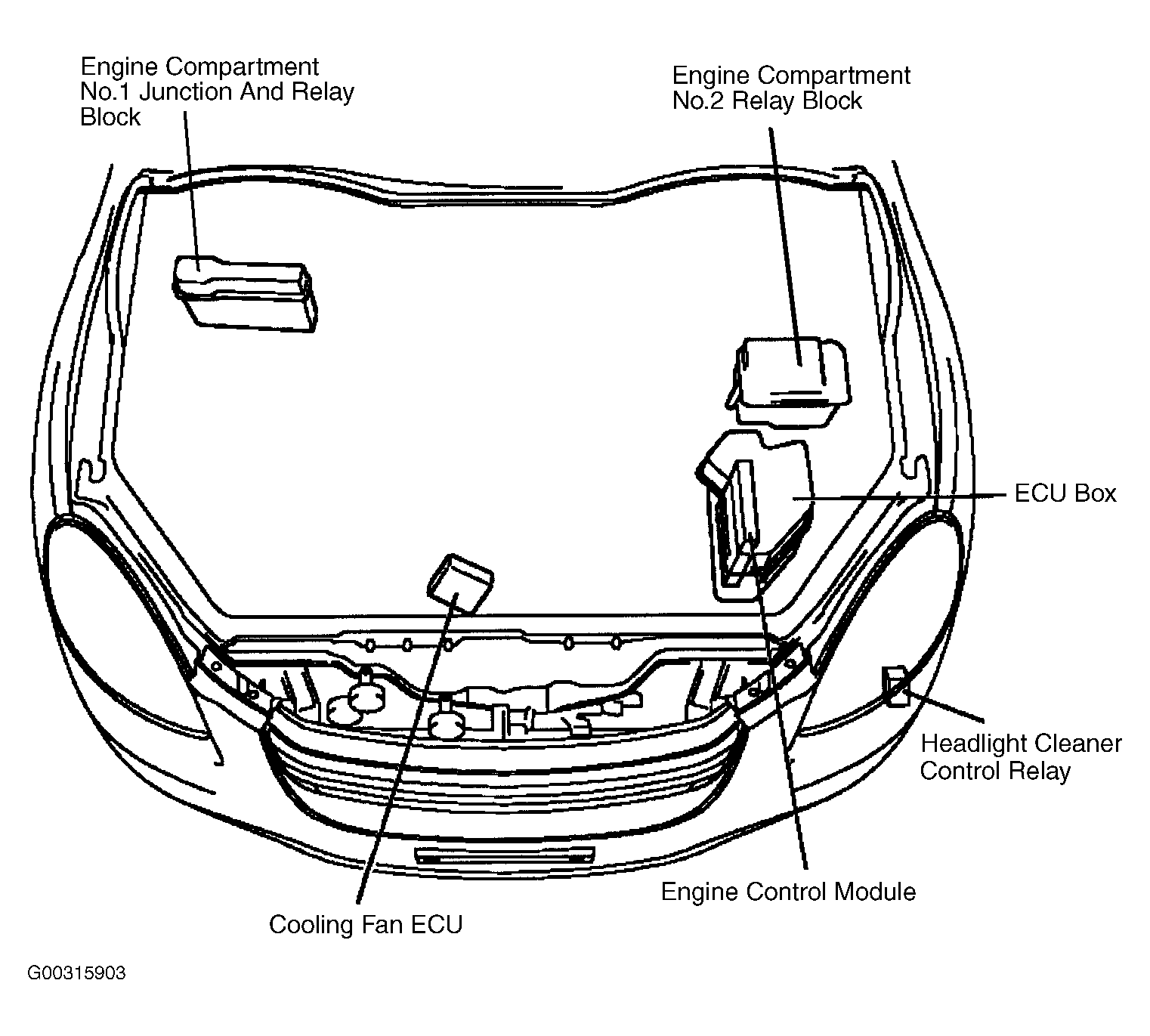

NOTE: For identification and locations of junction and relay blocks in engine compartment, see Figure. For description of electrical power distribution, see Figure.
