Radiator ASSY: Components

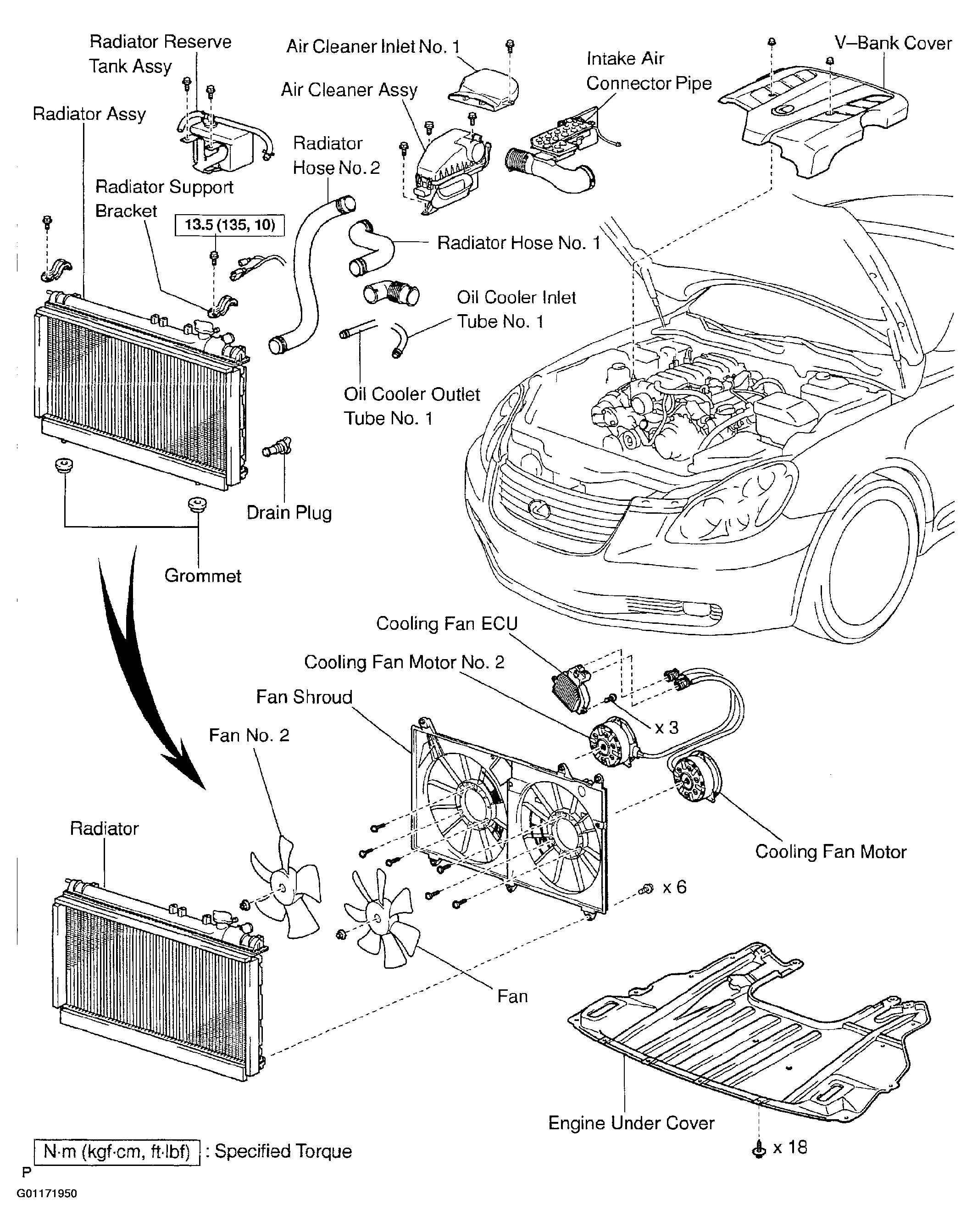

Fig 1: Exploded View Of Radiator Assembly Components
G01171950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
