Cylinder Block: Components

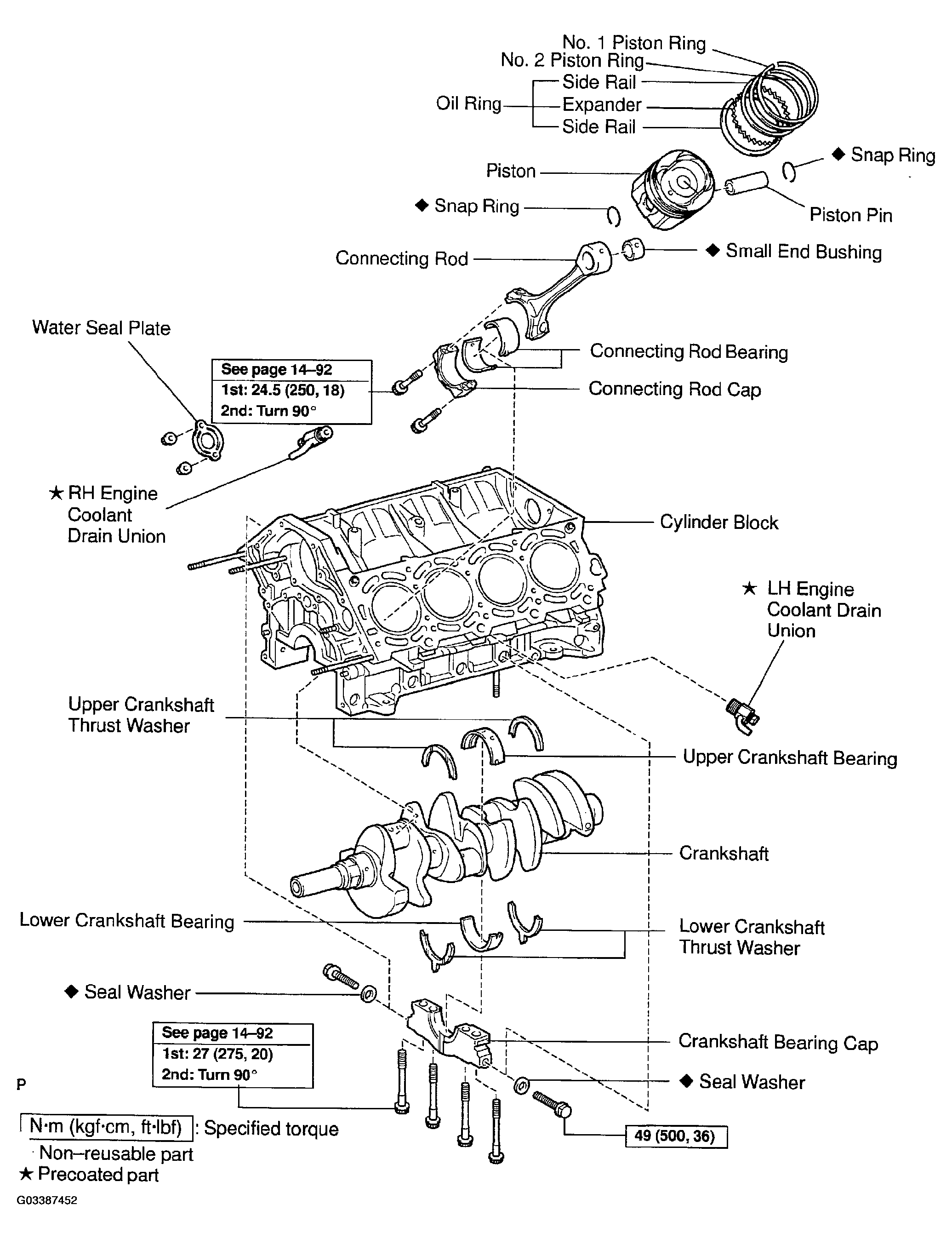

Fig 1: Exploded View Of Cylinder Block Assembly Components
G03387452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
