Cylinder Head: Components

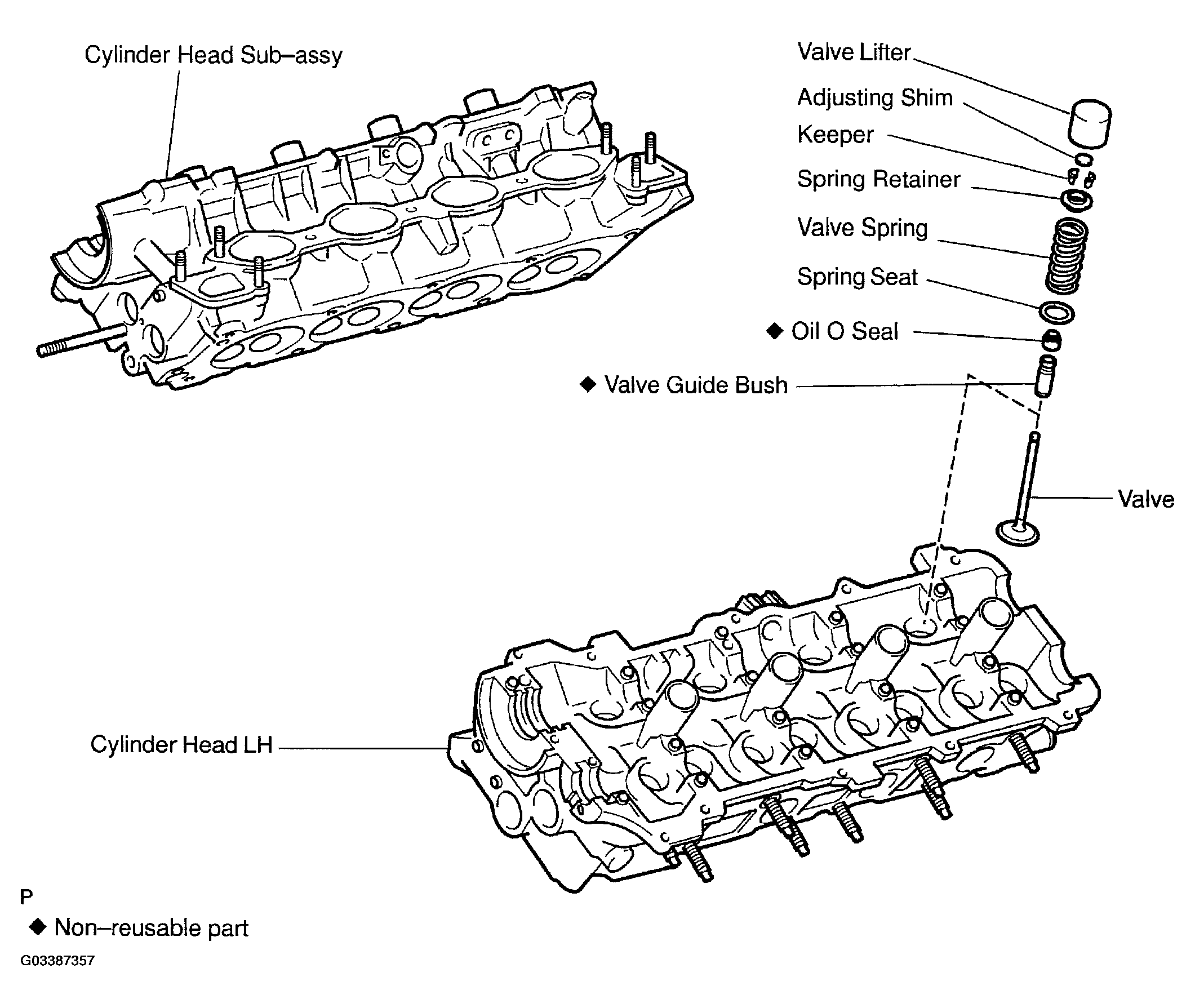

Fig 1: Exploded View Of Cylinder Head Assembly Components
G03387357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
