Partial Engine ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

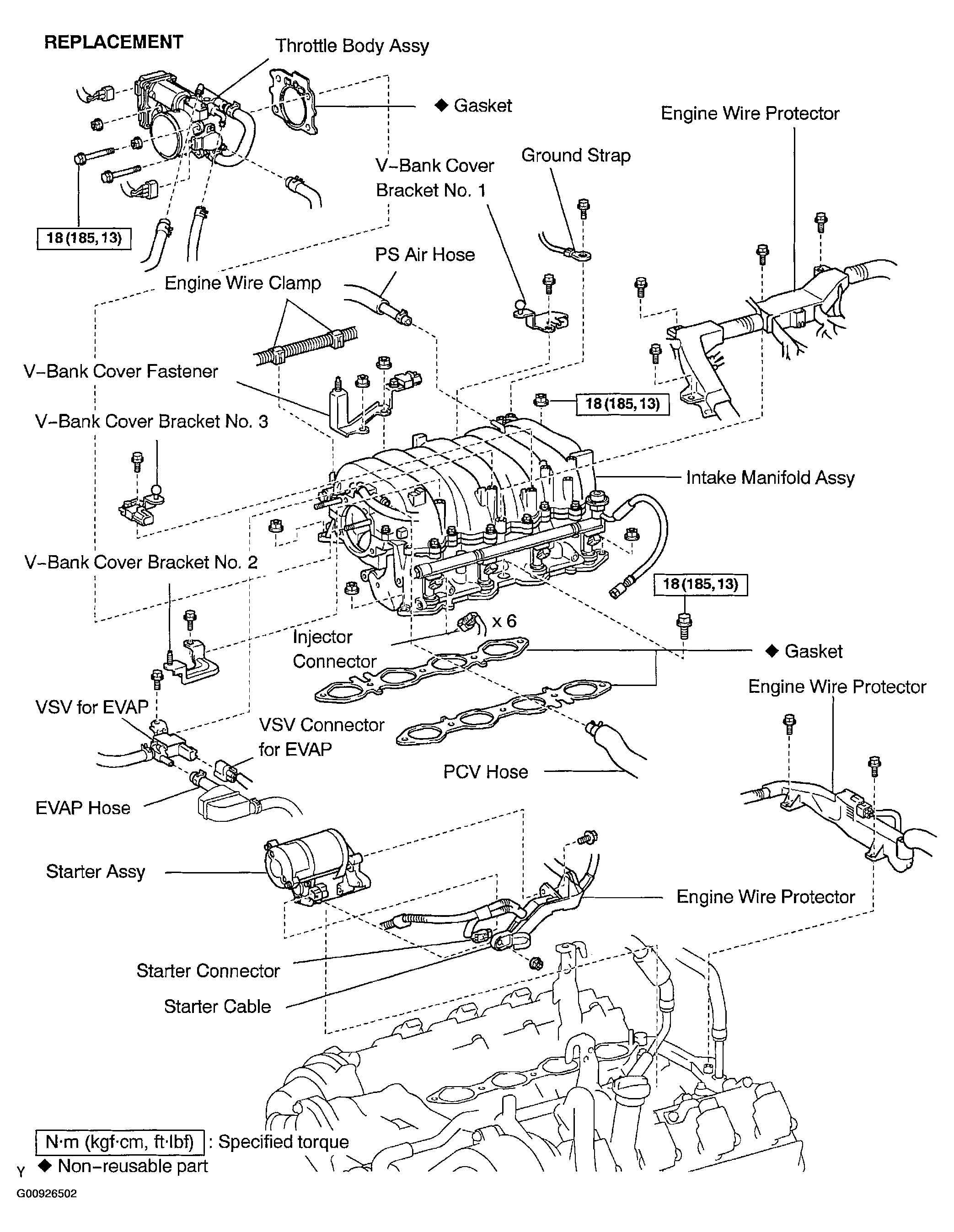

Fig 1: Exploded View Of Intake Manifold And Upper Engine Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

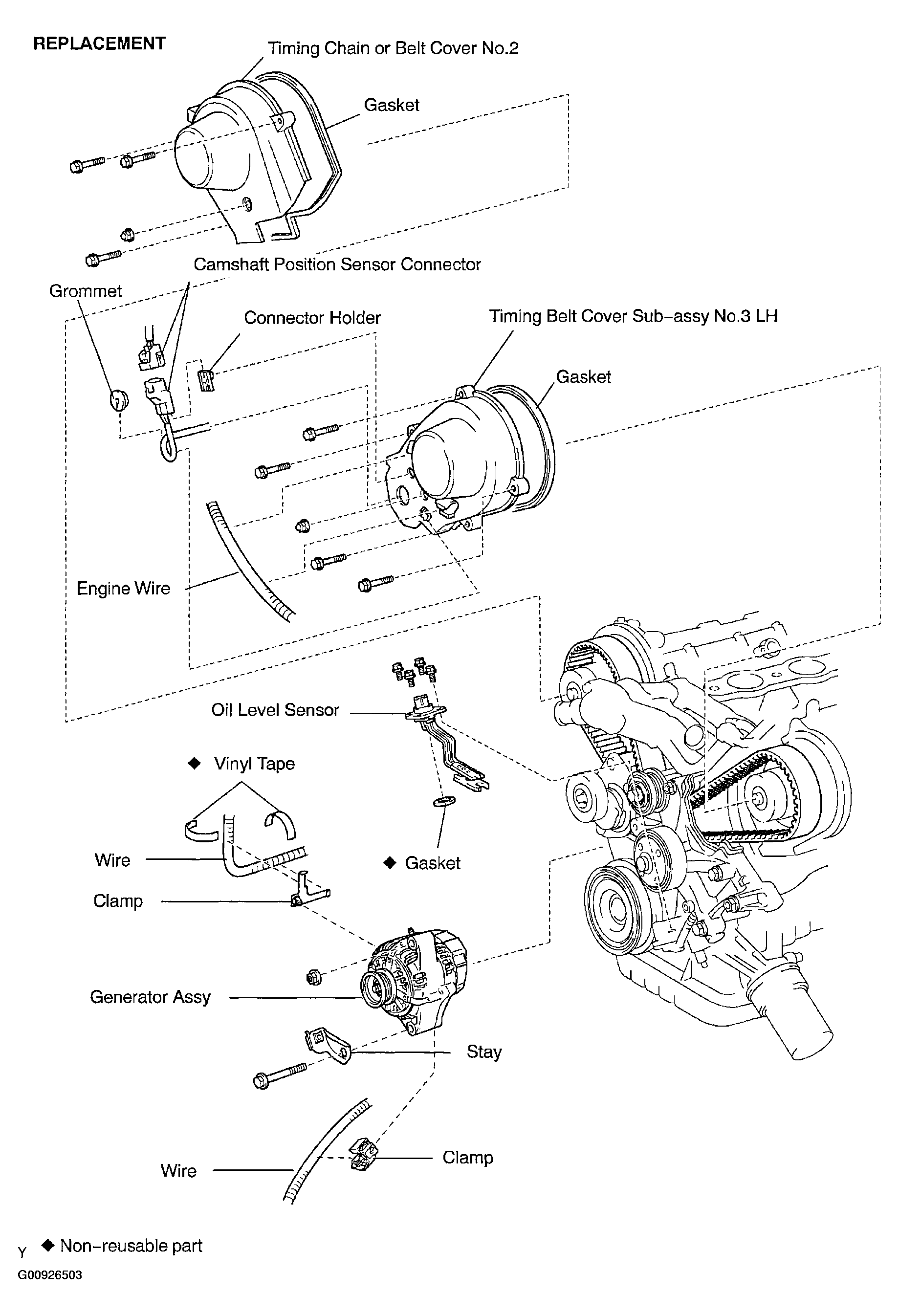

Fig 2: Exploded View Of Front Timing Cover And Generator Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

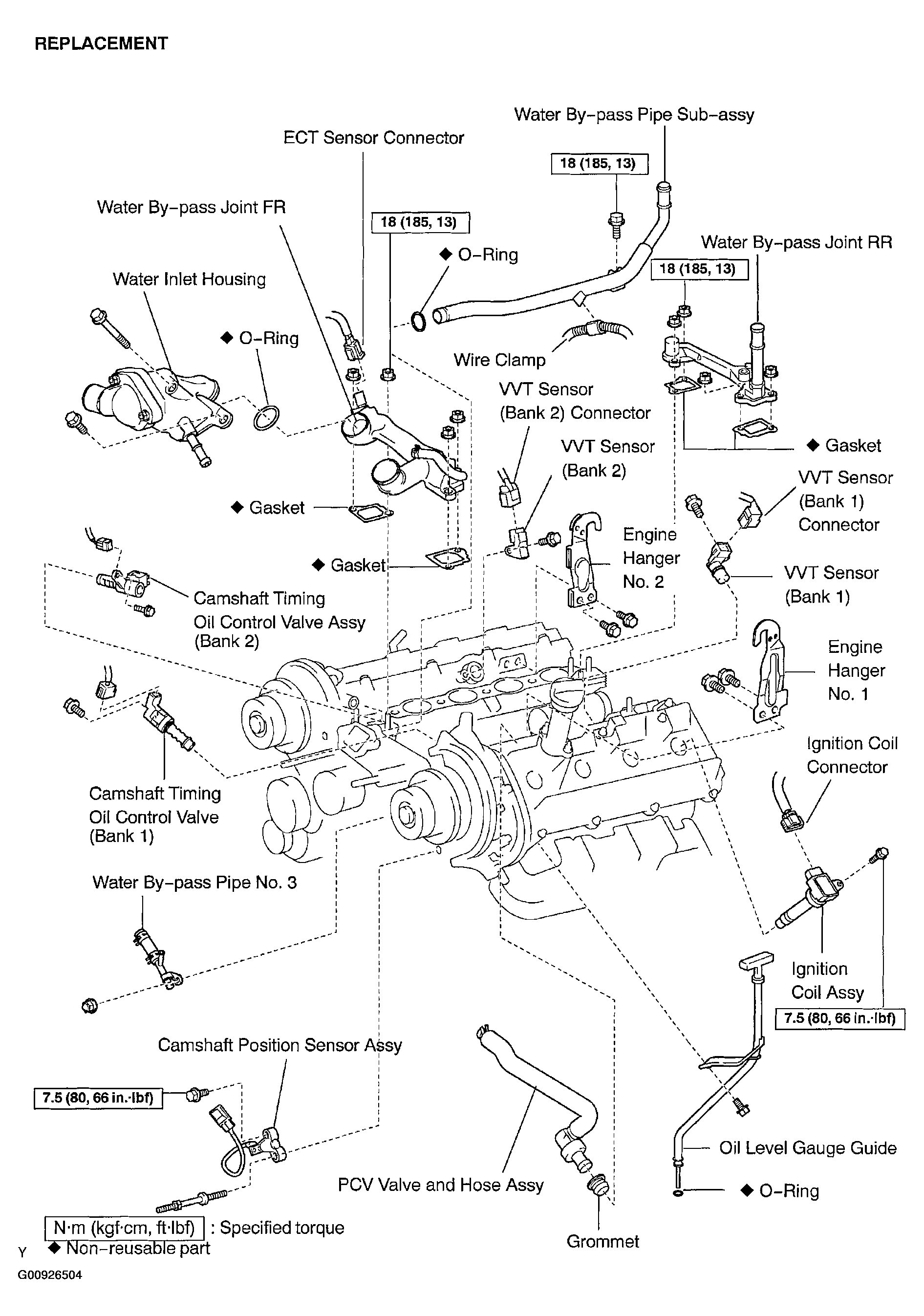

Fig 3: Exploded View Of Cooling System Components And Engine Sensors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

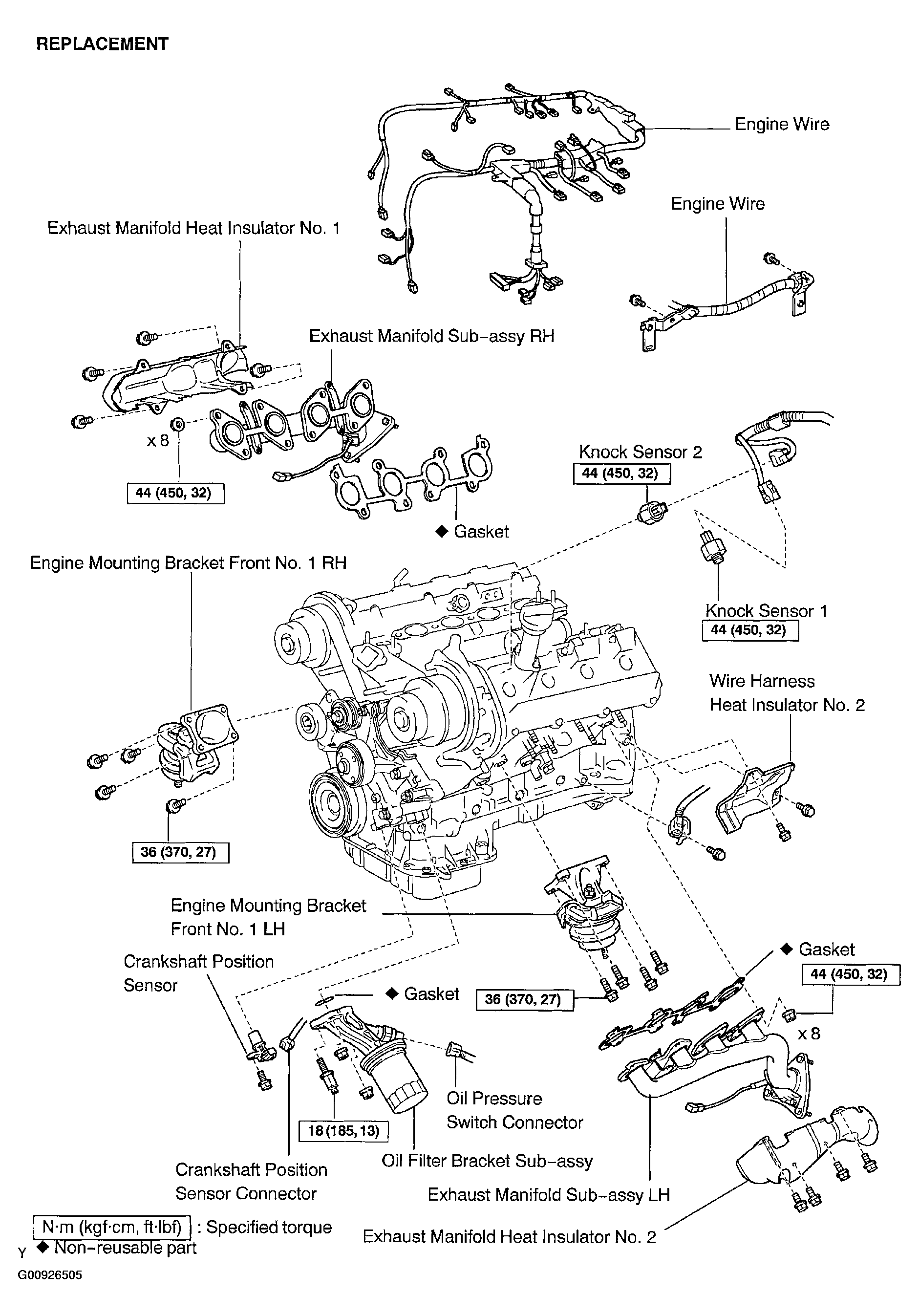

Fig 4: Exploded View Of Exhaust Manifolds And Fuel Rail Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

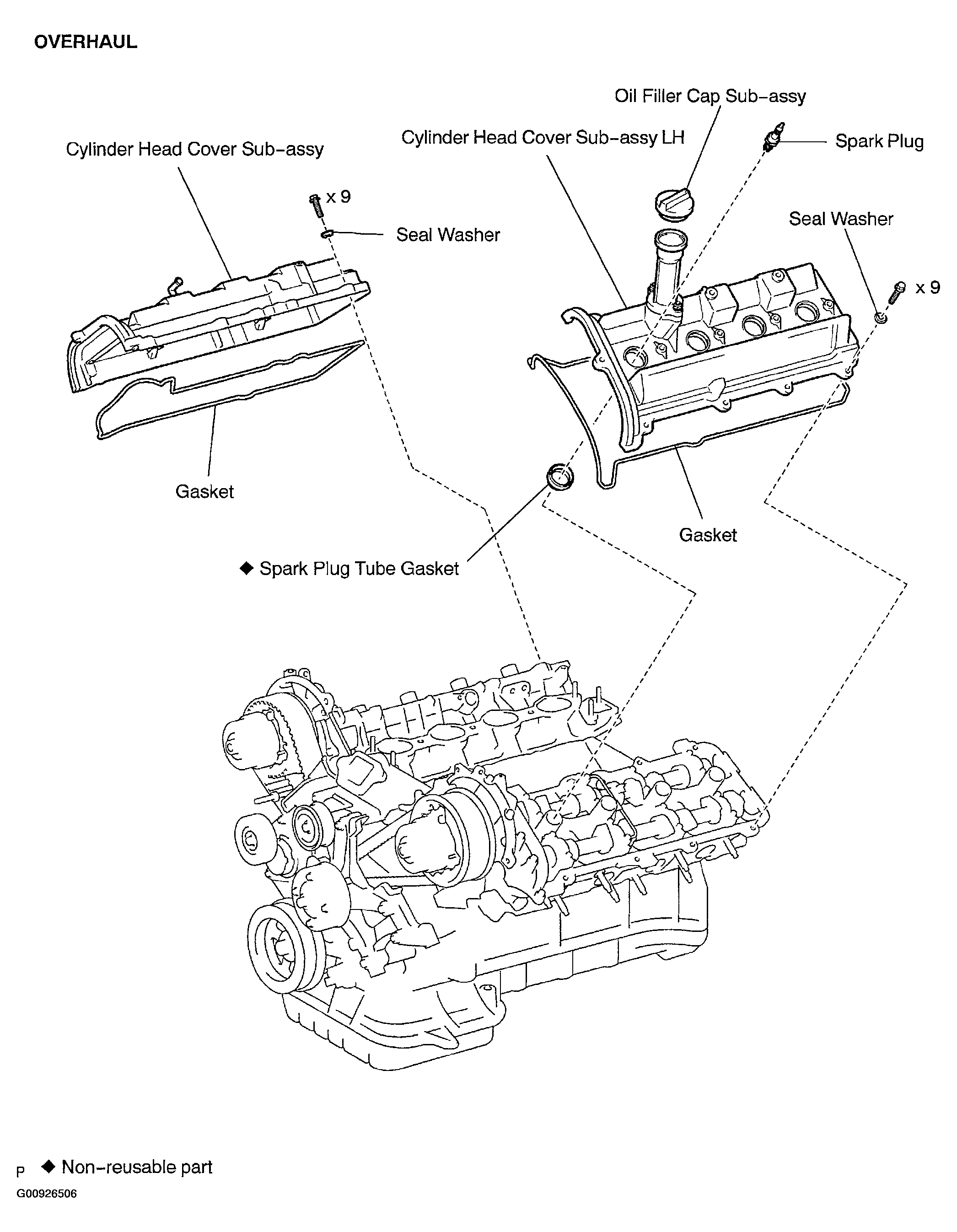

Fig 5: Exploded View Of Cylinder Head Cover Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

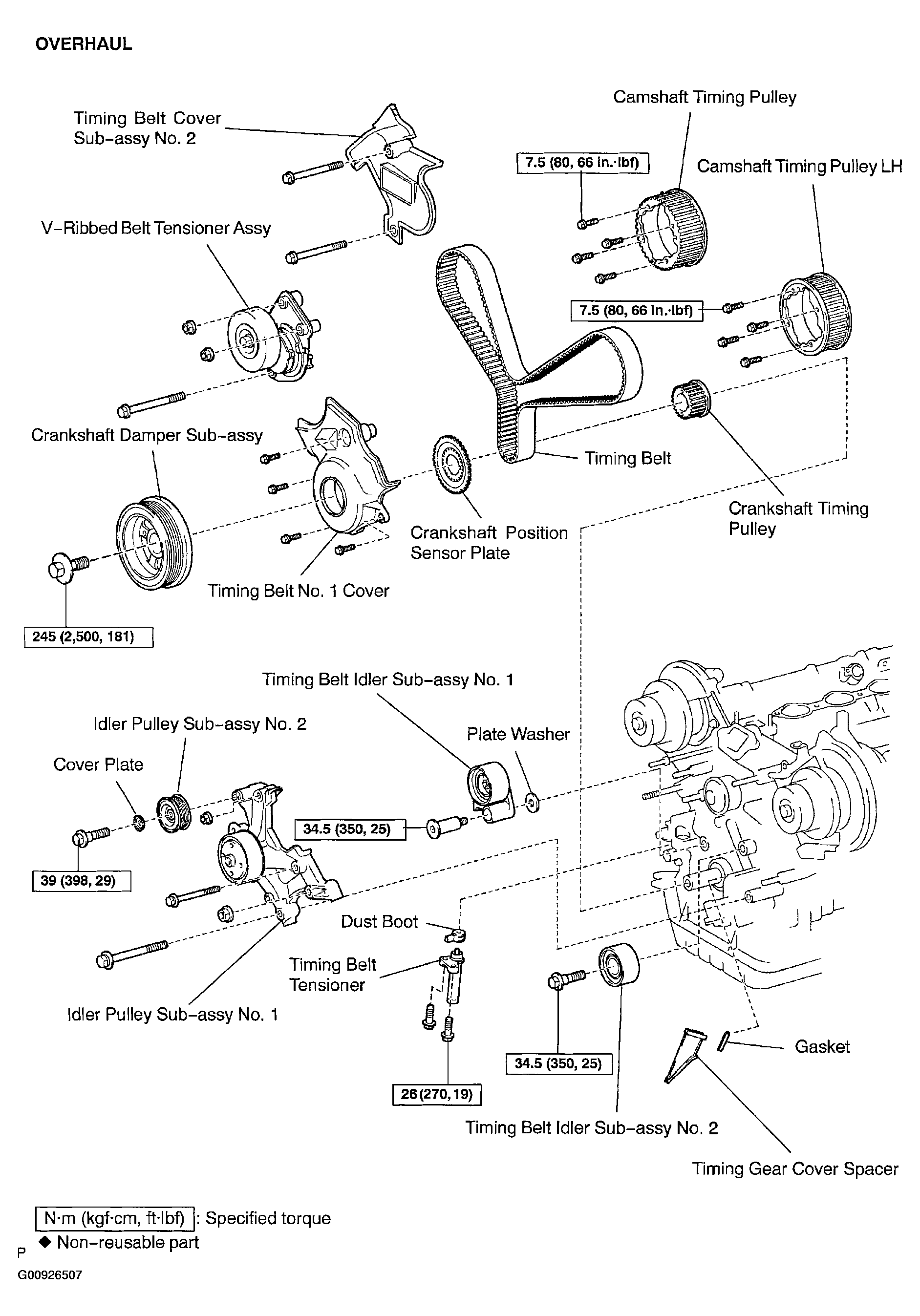

Fig 6: Exploded View Of Timing Belt And Idler Pulley Subassembly Components

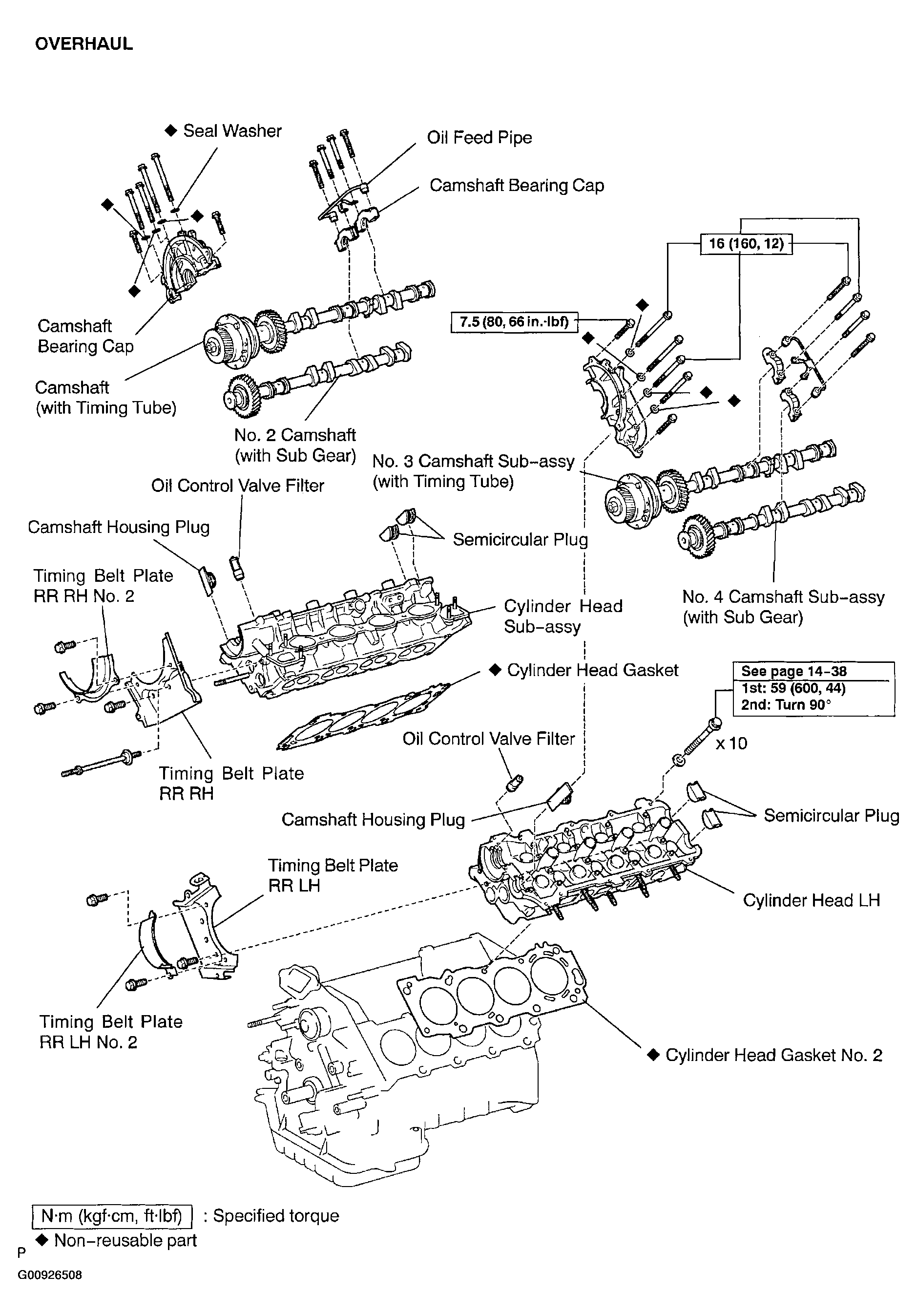

Fig 7: Exploded View Of Camshaft Components

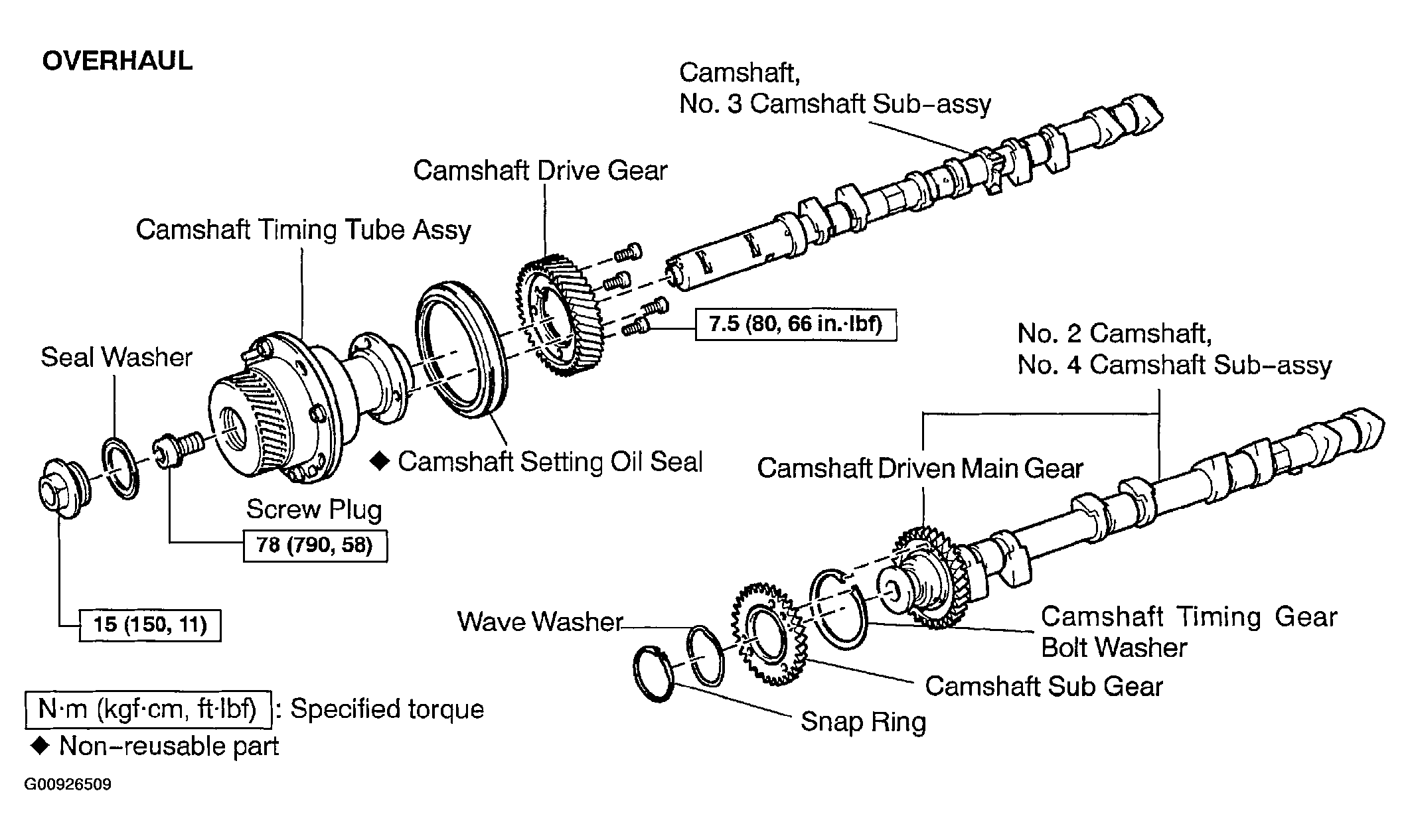

Fig 8: Exploded View Of Camshaft Timing Drive Gear Components

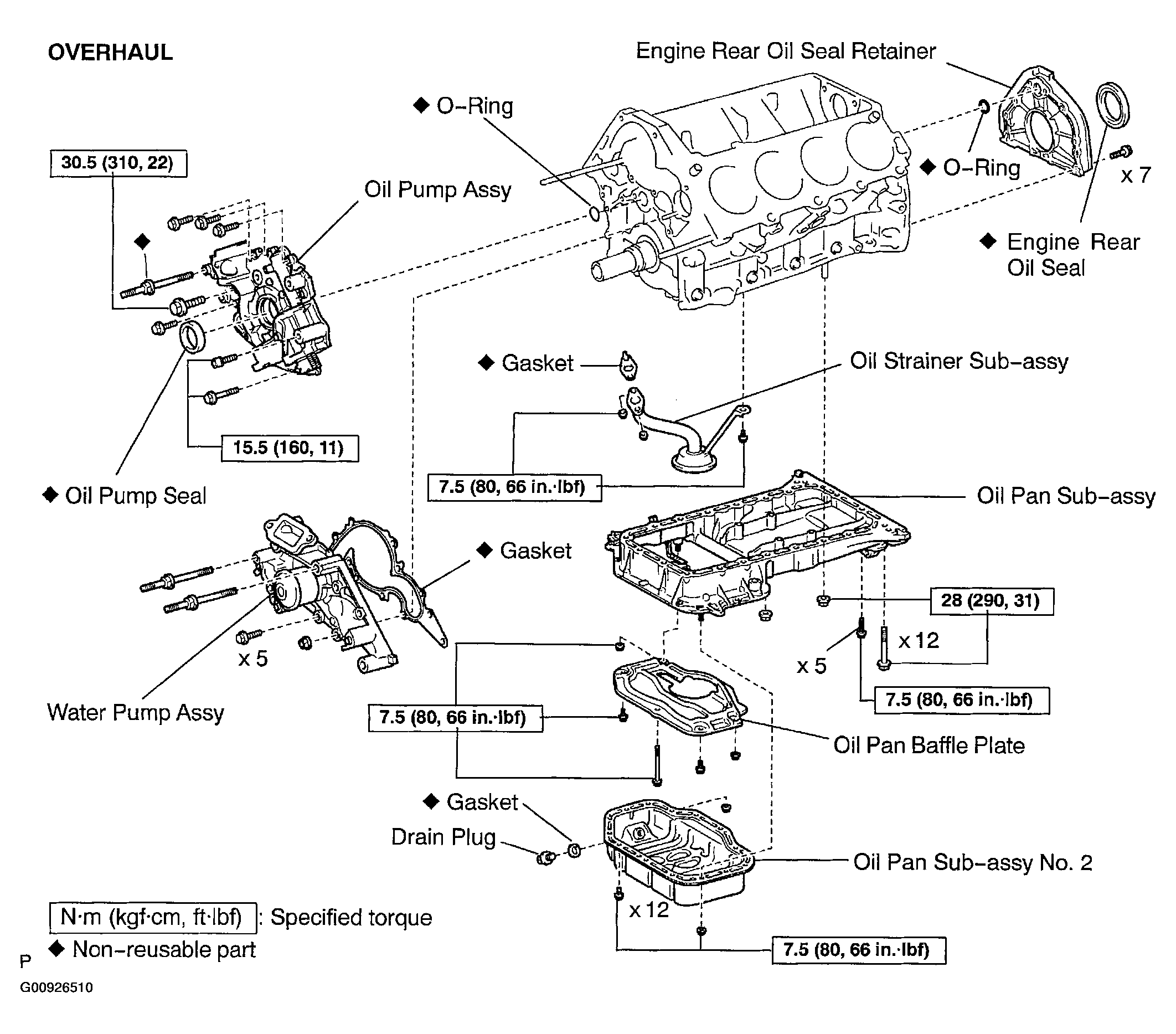

Fig 9: Exploded View Of Lubrication System And Water Pump Components
