How To Proceed With Troubleshooting

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. VEHICLE PULLING DIAGNOSIS (SEE PAGE  REMOVAL & INSTALLATION  )
  2. DIAGNOSIS OF TIRE VIBRATION

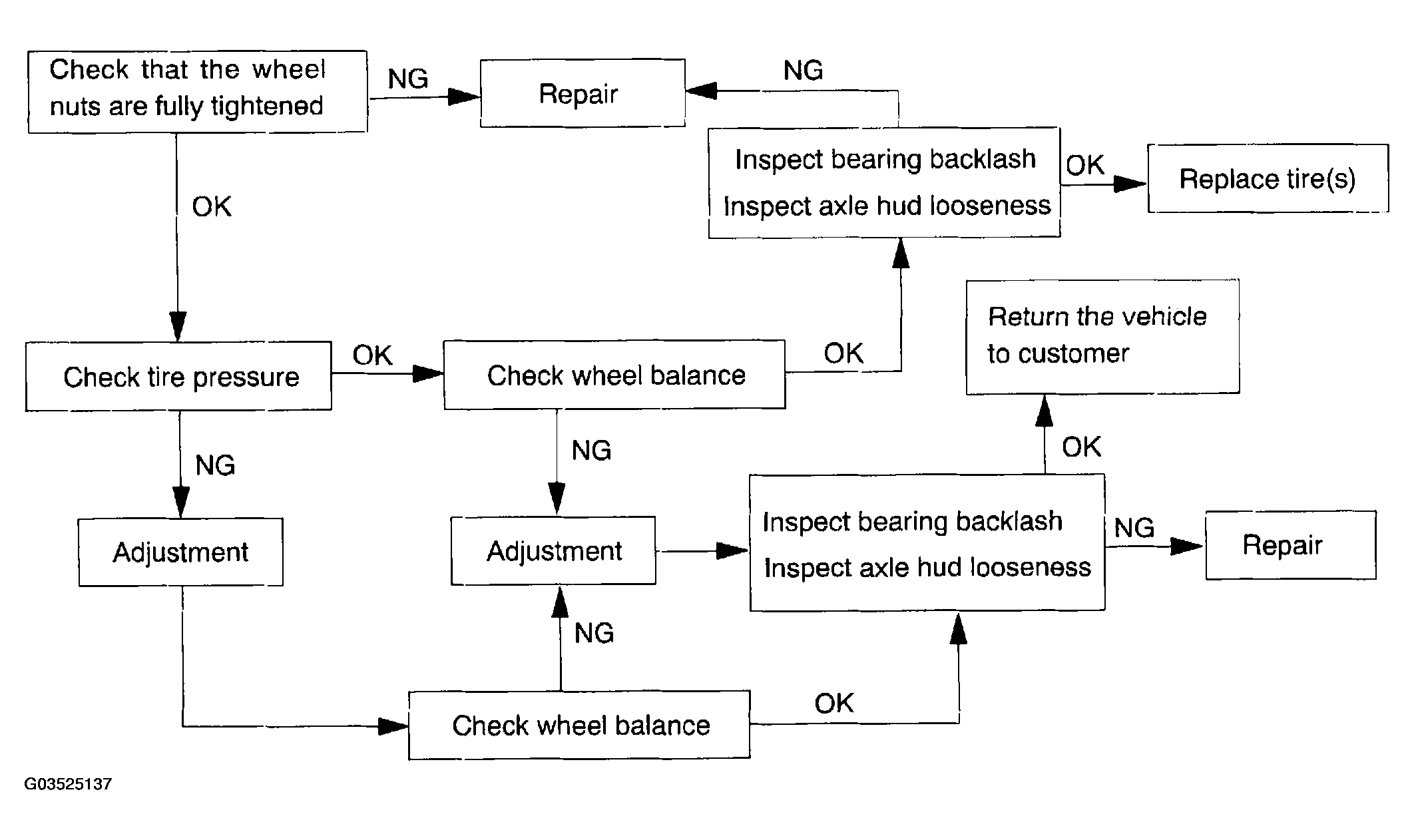

    Fig 1: Tire Vibration Diagnosis Chart
    G03525137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DIAGNOSIS OF PREMATURE OF IRREGULAR TIRE WEAR

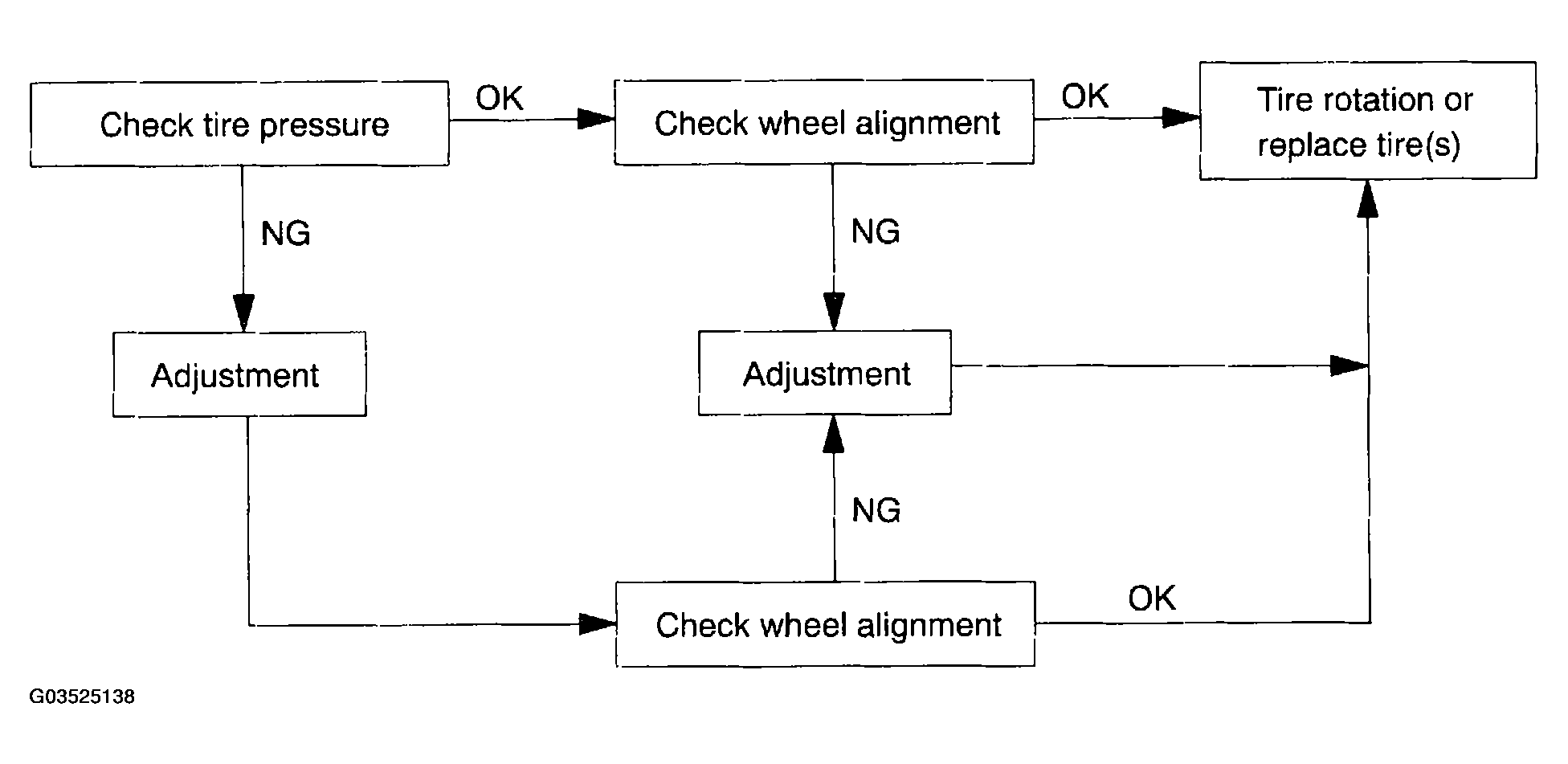

    Fig 2: Premature Irregular Tire Wear Diagnosis Chart
    G03525138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
