Height Control Sensor: Replacement

  1. REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
    1. Disconnect the connector.
    2. Align matchmark with the one on the height control sensor sub-assy rear RH and bracket.
    3. Remove a nut.

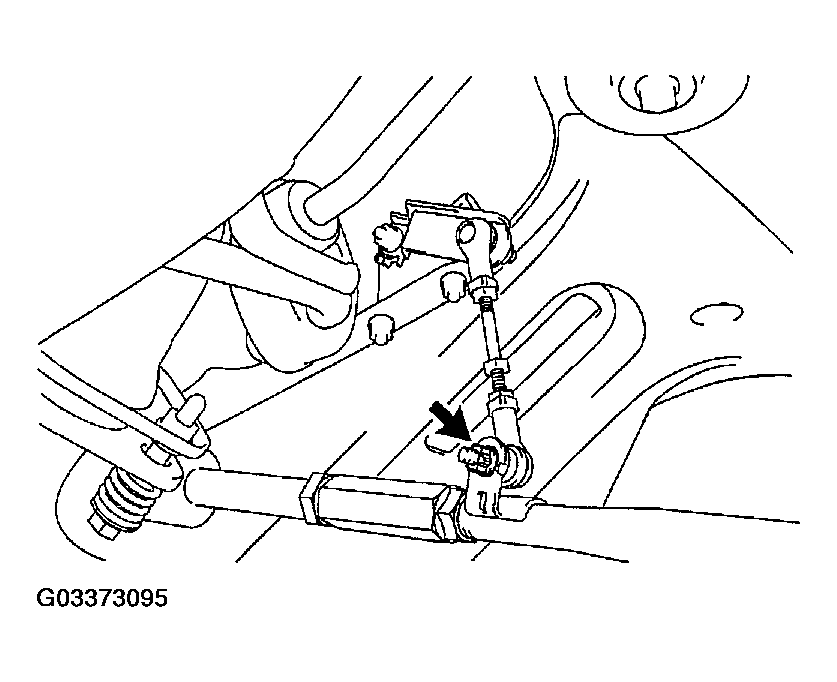

      Fig 1: Removing Nut
      G03373095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and height control sensor sub assy rear RH.

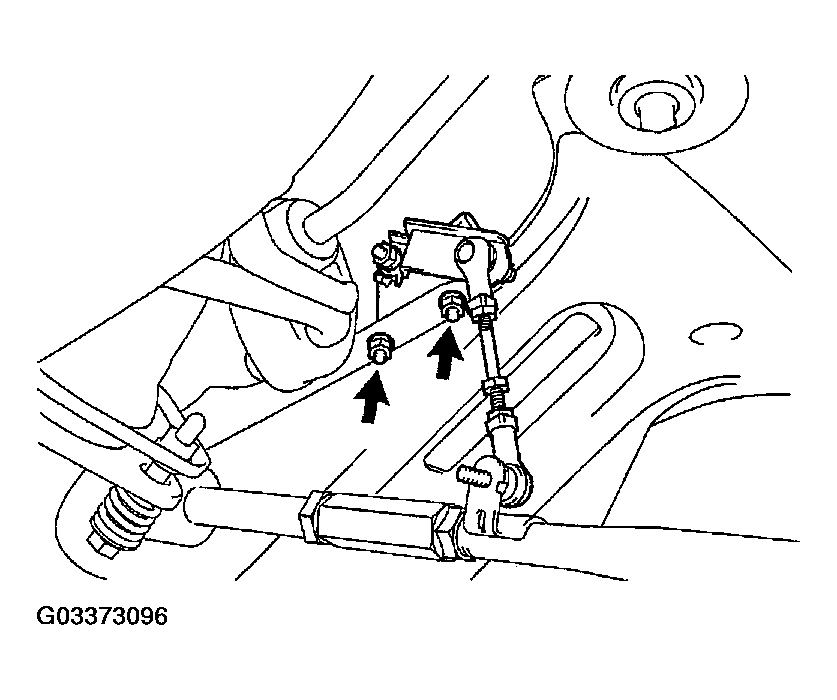

      Fig 2: Removing 2 Nuts And Height Control Sensor Sub Assembly Rear RH
      G03373096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
    1. Install the height control sensor link rear RH with the 2 nuts.

      Torque: 8.0 N.m (81 kgf.cm, 71 in.lbf)

    2. Align the matchmark with the one on the height control sensor sub assy rear RH and bracket.
    3. Install the height control sensor sub assy rear RH

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    4. Connect the connector.
    5. When the work like the vehicle height may be changed is performed, for example, removal and installation of the height control sensor, or replacement of the suspension, etc., initialize the sensor, then adjust the optical axis. (See PRECAUTION )
  3. HEADLIGHT AIM ONLY (See  ADJUSTMENT  )
