Abs Relay Block
NOTE:
ABS refers to anti-lock brake system.

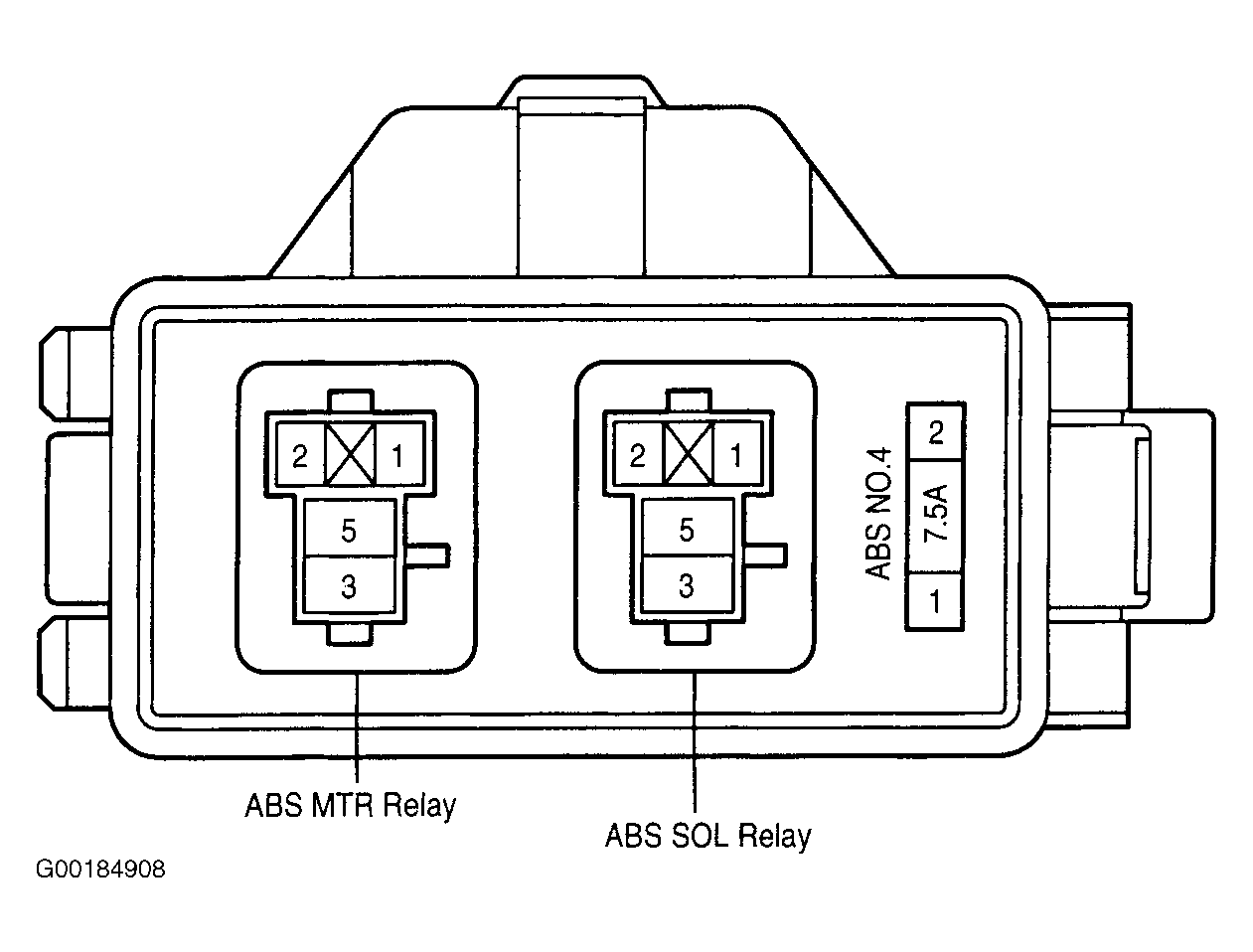

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 ABS RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| ABS SOL Relay |
| ABS MTR Relay |
ABS RELAY BLOCK FUSE IDENTIFICATION LEGEND
| Fuse |
System 1 |
| 7.5A |
ABS NO.4 |
VSC 1 |
