Engine Compartment Junction Block

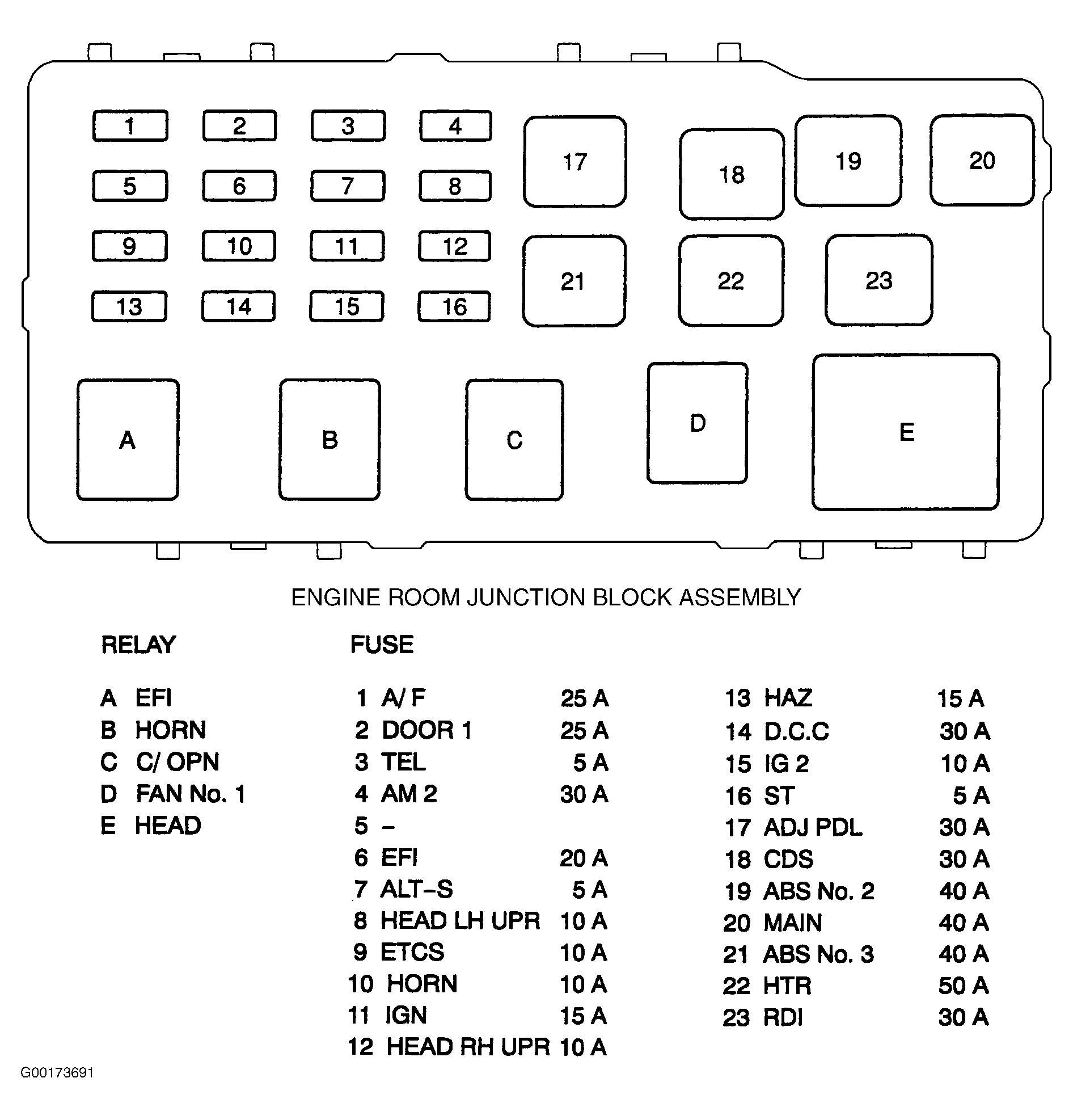

ENGINE COMPARTMENT JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| A | EFI Relay |
| B | Horn Relay |
| C | C/OPN Relay |
| D | Fan No. 1 Relay |
| E | Head Relay |
ENGINE COMPARTMENT JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 5A | ALT-S | Charging |
| 5A | ST | Combination Meter |
| 5A | TEL | Cellular Mobile Telephone |
| 10A | ETCS | Cruise Control Engine Control |
| 10A | HEAD LH UPR | Headlight (w/ Daytime Running Light) Headlight (w/o Daytime Running Light) Multiplex Communication System |
| 10A | HEAD RH UPR | Headlight (w/ Daytime Running Light) Headlight (w/o Daytime Running Light) Multiplex Communication System |
| 10A | HORN | Horn Multiplex Communication System Theft Deterrent and Door Lock Control |
| 10A | IG2 | Charging Combination Meter Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Engine Immobiliser System Headlight Beam Level Control Seat Belt Warning SRS VSC |
| 15A | HAZ | Turn Signal and Hazard Warning Light |
| 15A | IGN | Engine Control Starting and Ignition |
| 20A | EFI | Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Engine Immobiliser System |
| 25A | A/F | Engine Control |
| 25A | DOOR1 | Luggage Compartment Door Opener Multiplex Communication System Power Window Theft Deterrent and Door Lock Control Wireless Door Lock |
| 30A | ADJ PDL | Power Adjust Pedal |
| 30A | AM2 | Charging Engine Control Starting and Ignition |
| 30A | CDS | Radiator Fan and Condenser Fan |
| 30A | RDI | Radiator Fan and Condenser Fan |
| 40A | ABS NO.2 | ABS VSC |
| 40A | ABS NO.3 | ABS VSC |
| 40A | MAIN | Automatic Light Control Headlight Beam Level Control Headlight (w/ Daytime Running Light) Headlight (w/o Daytime Running Light) Light Auto Turn Off Multiplex Communication System Theft Deterrent and Door Lock Control |
| 50A | HTR | Air Conditioning |
