Navigation Module: Testing and Inspection
Terminals Of ECU / Pinouts Part 1:
Terminals Of ECU / Pinouts Part 2:
MULTI DISPLAY
Terminals Of ECU / Pinouts Part 1:
Terminals Of ECU / Pinouts Part 2:

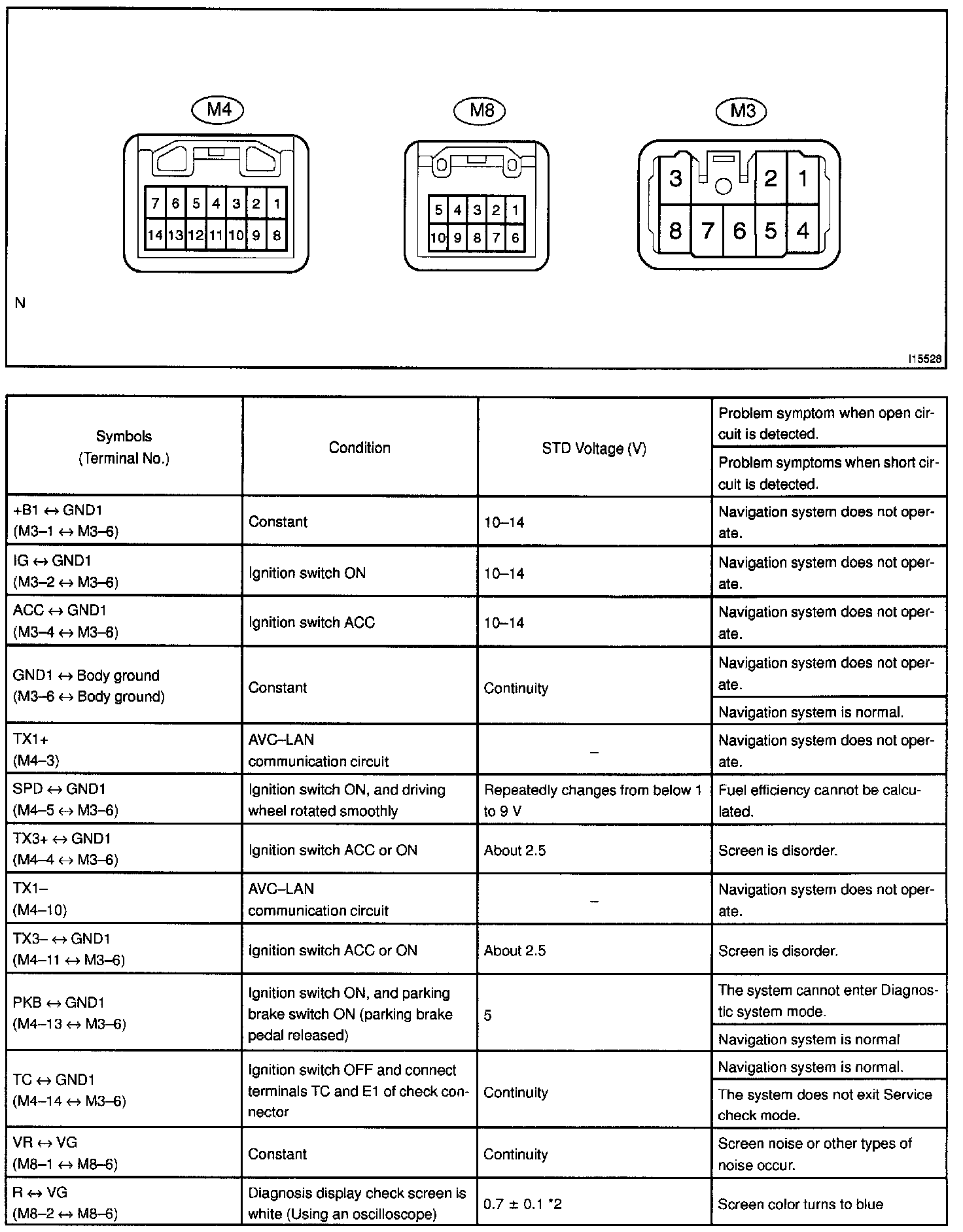

NAVIGATION ECU

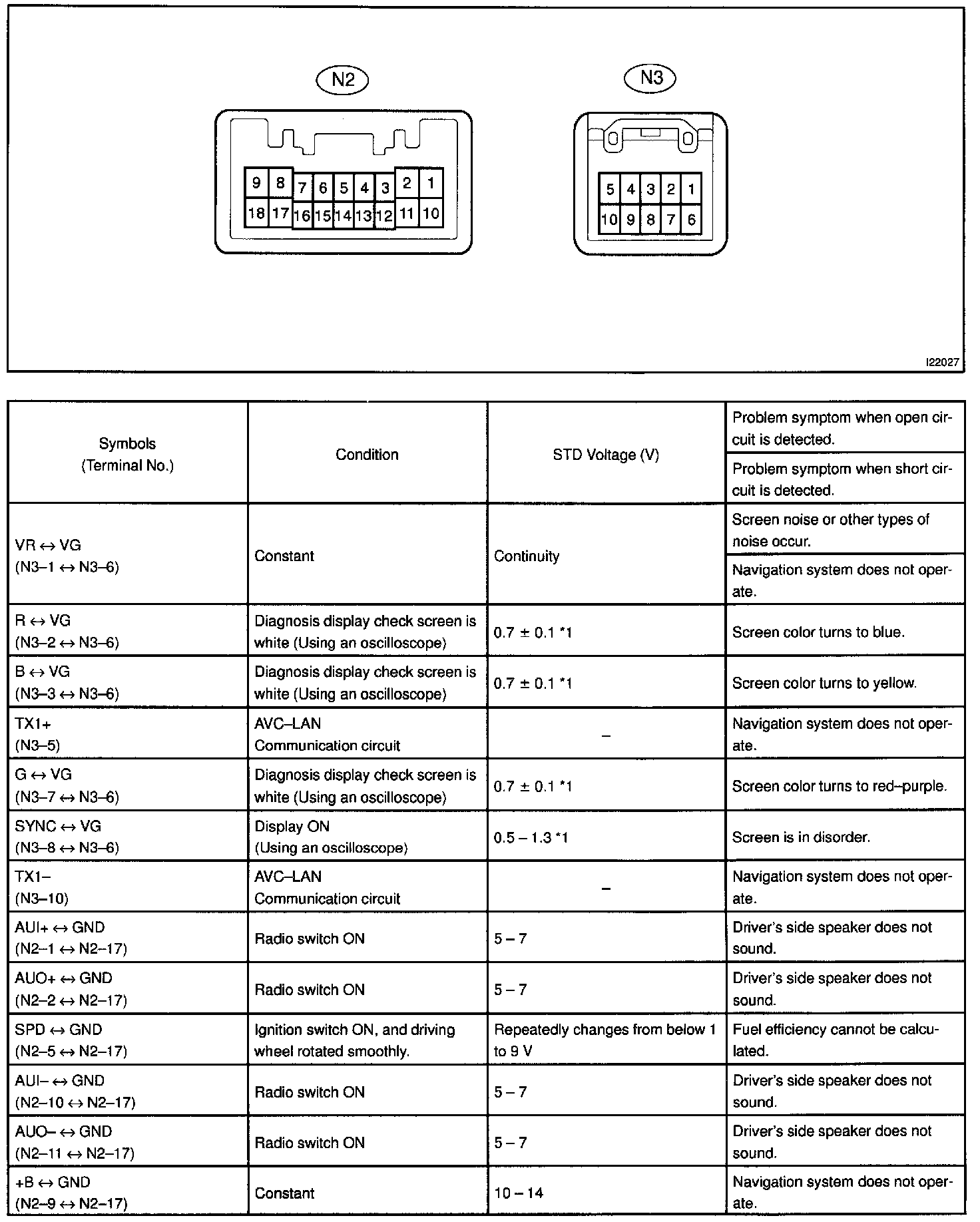

Terminals Of ECU / Pinouts Part 1:
Terminals Of ECU / Pinouts Part 2:

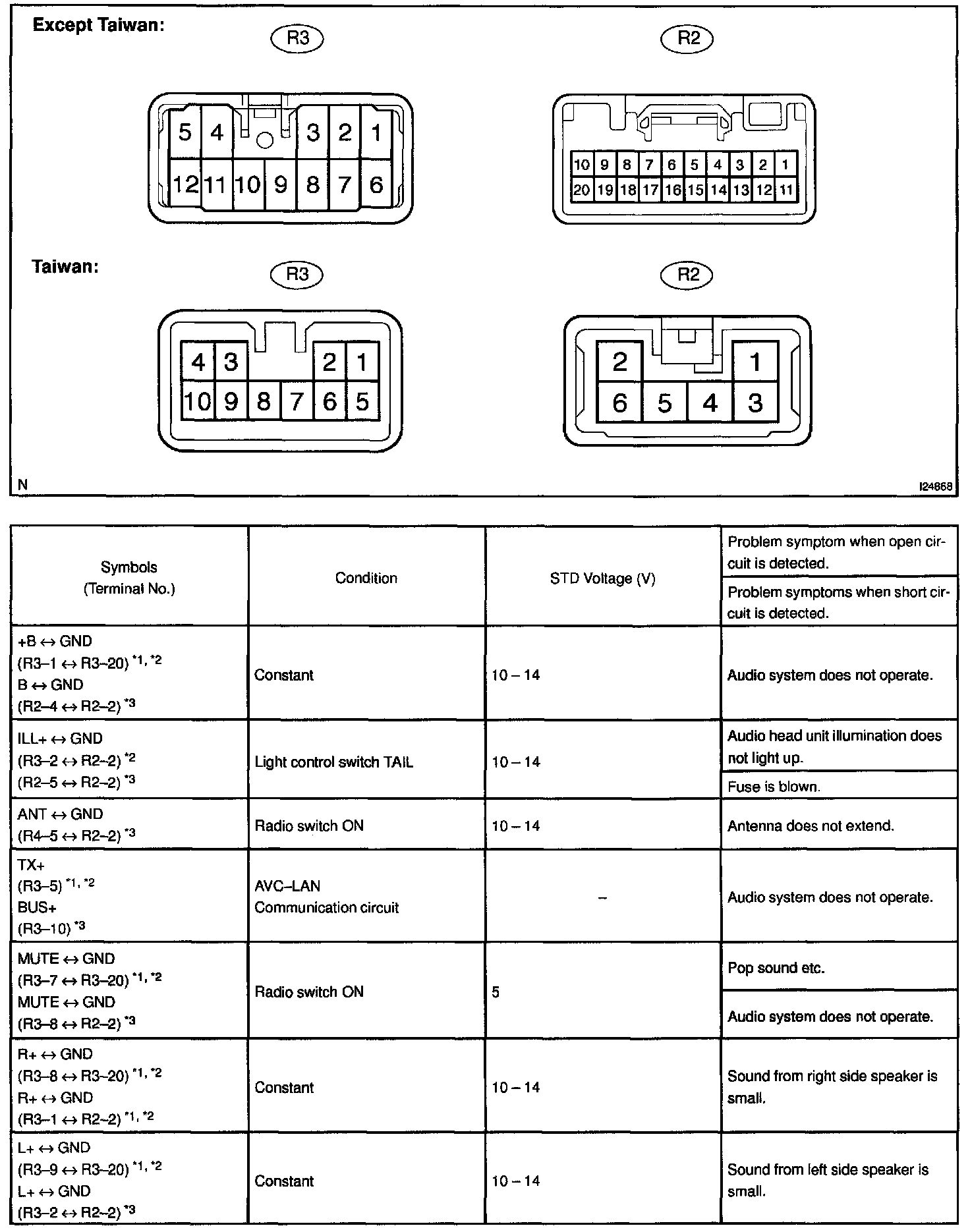

AUDIO HEAD UNIT

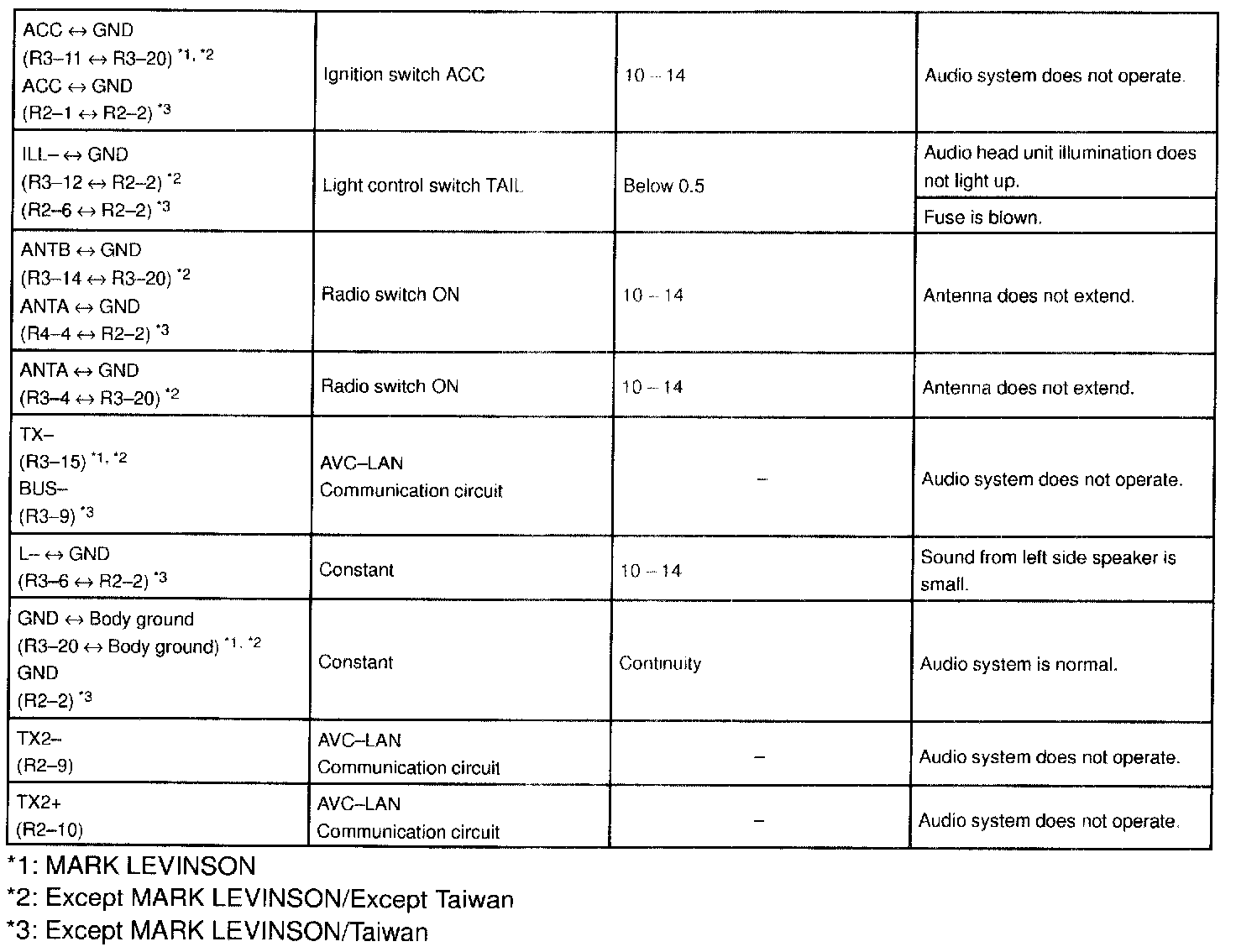

Terminals Of ECU / Pinouts Part 1:
Terminals Of ECU / Pinouts Part 2:

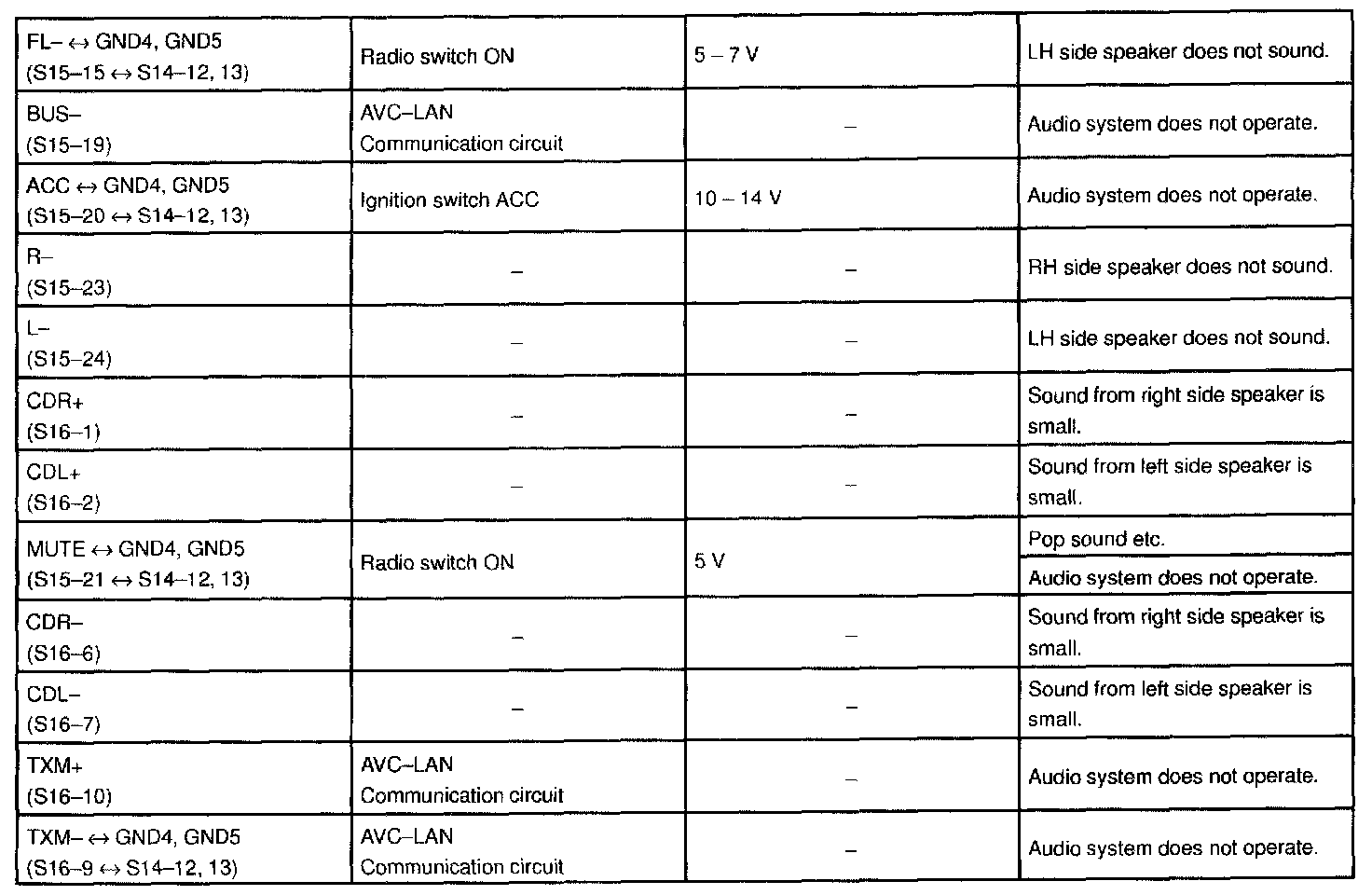

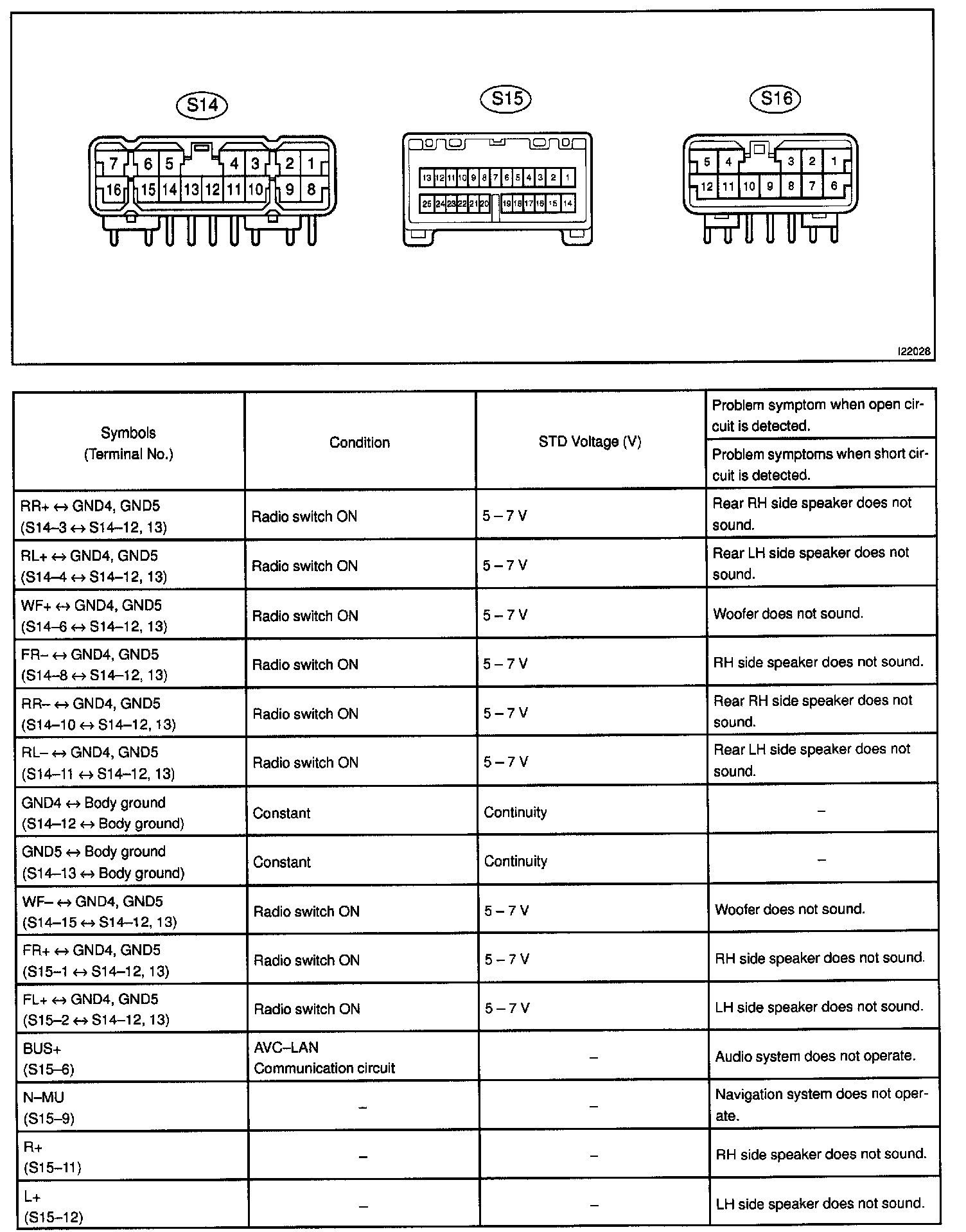

STEREO COMPONENT AMPLIFIER (PIONEER made)
Terminals Of ECU / Pinouts Part 1:
Terminals Of ECU / Pinouts Part 2:

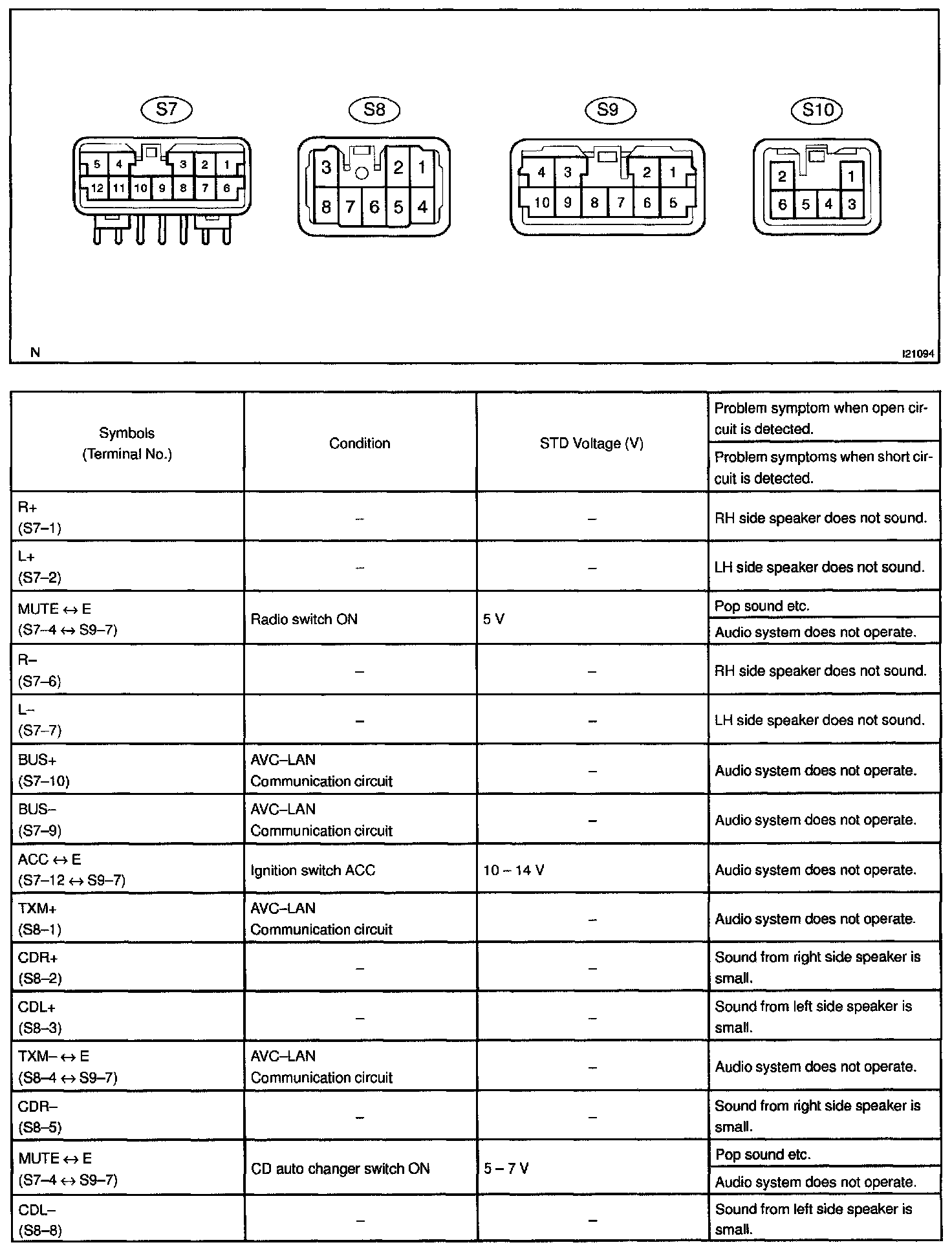

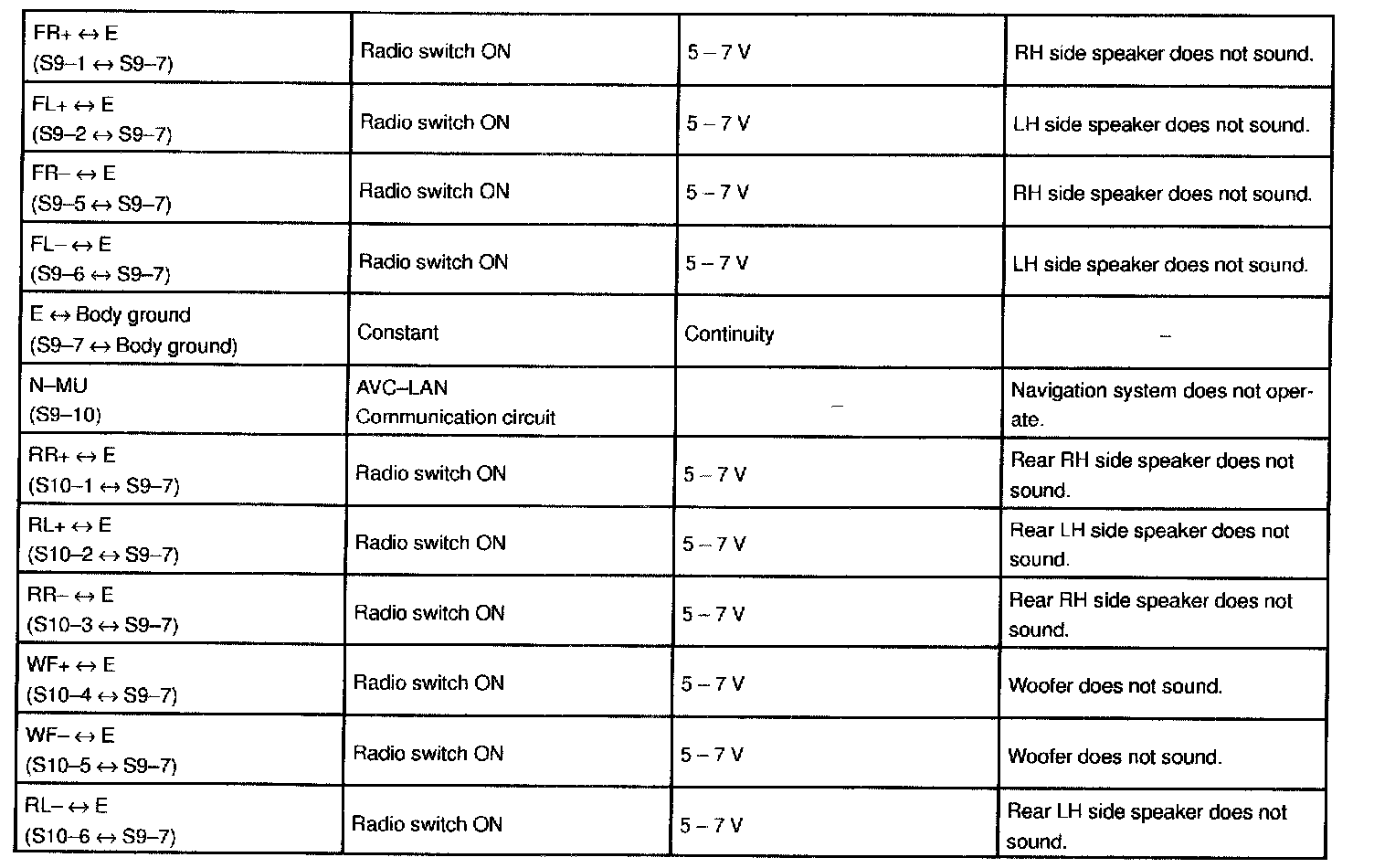

STEREO COMPONENT AMPLIFIER (MARK LEVINSON made)
Terminals Of ECU / Pinouts Part 1:

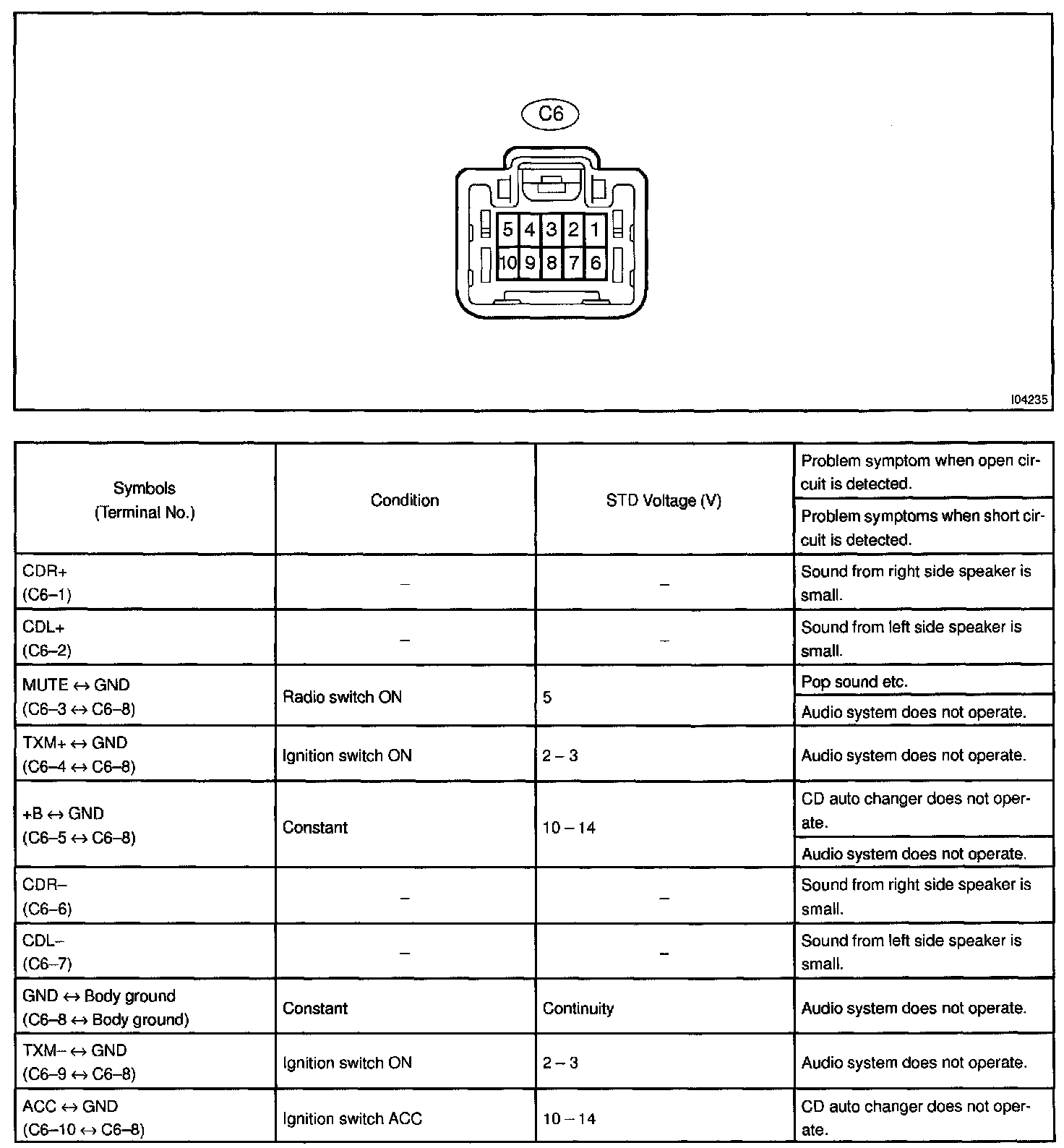

CD AUTO CHANGER
Terminals Of ECU / Pinouts:
Terminals Of ECU / Pinouts:

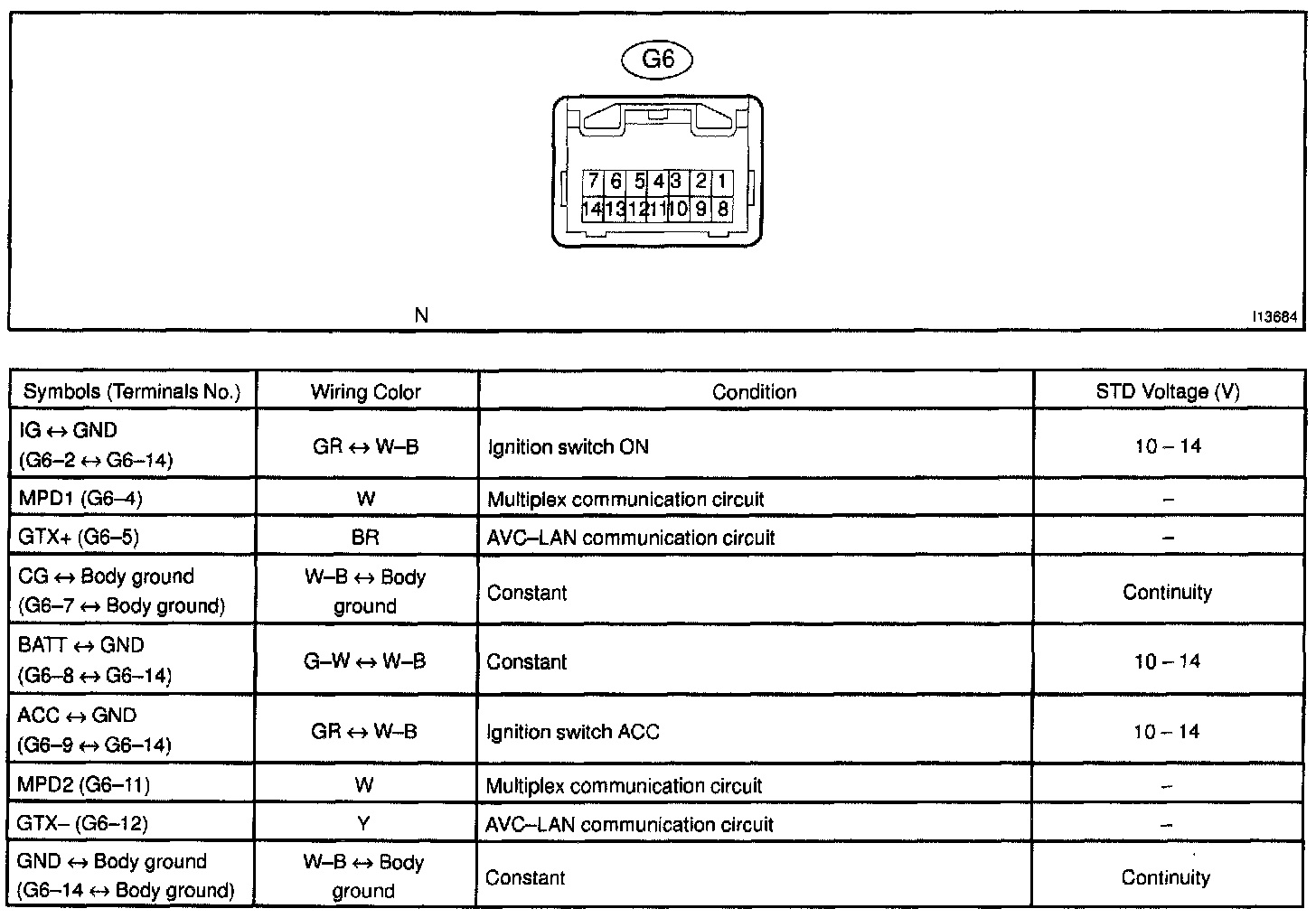

GATEWAY ECU
