Power Door Lock Control Module: Locations

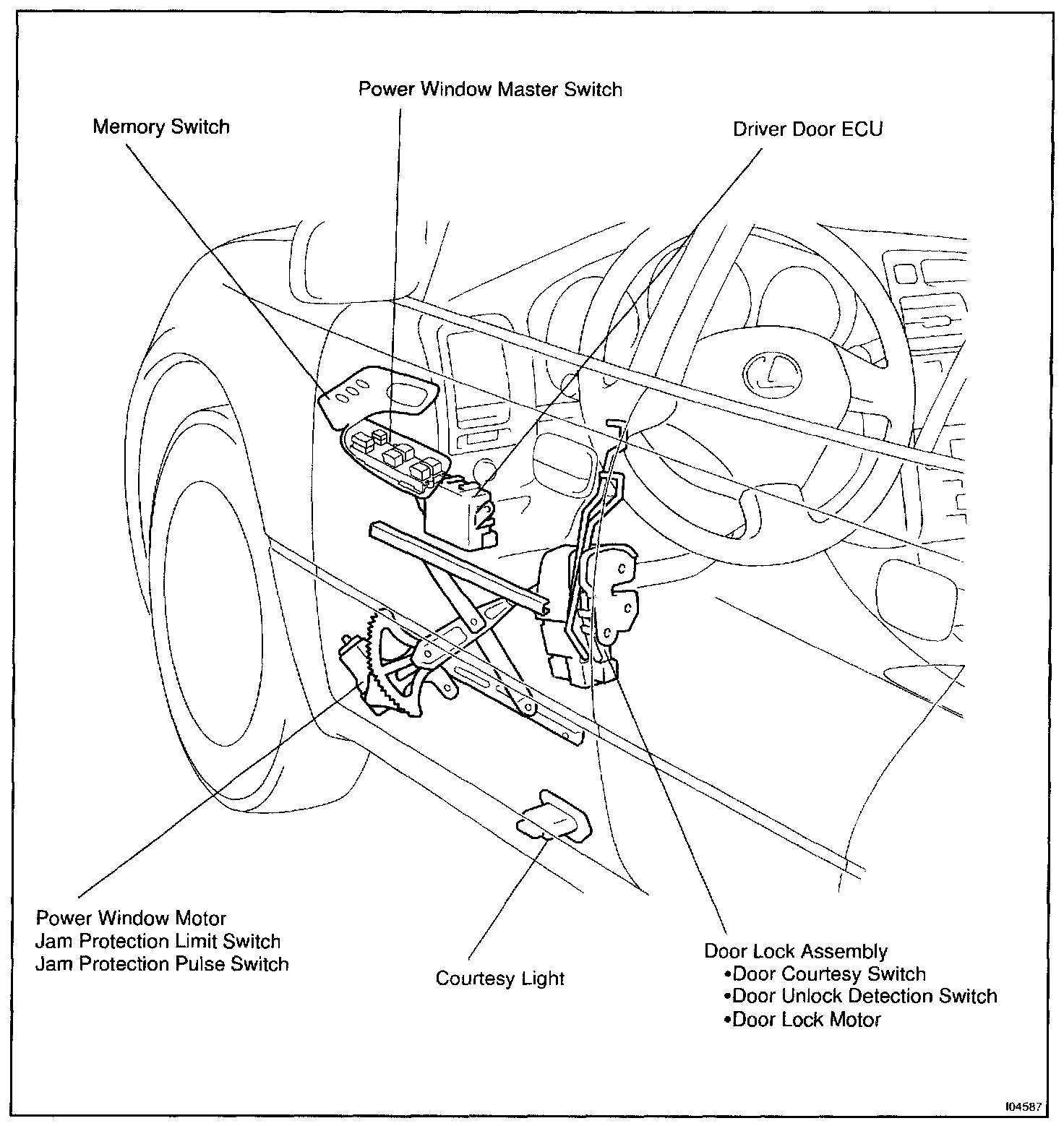

Driver Door Control System:

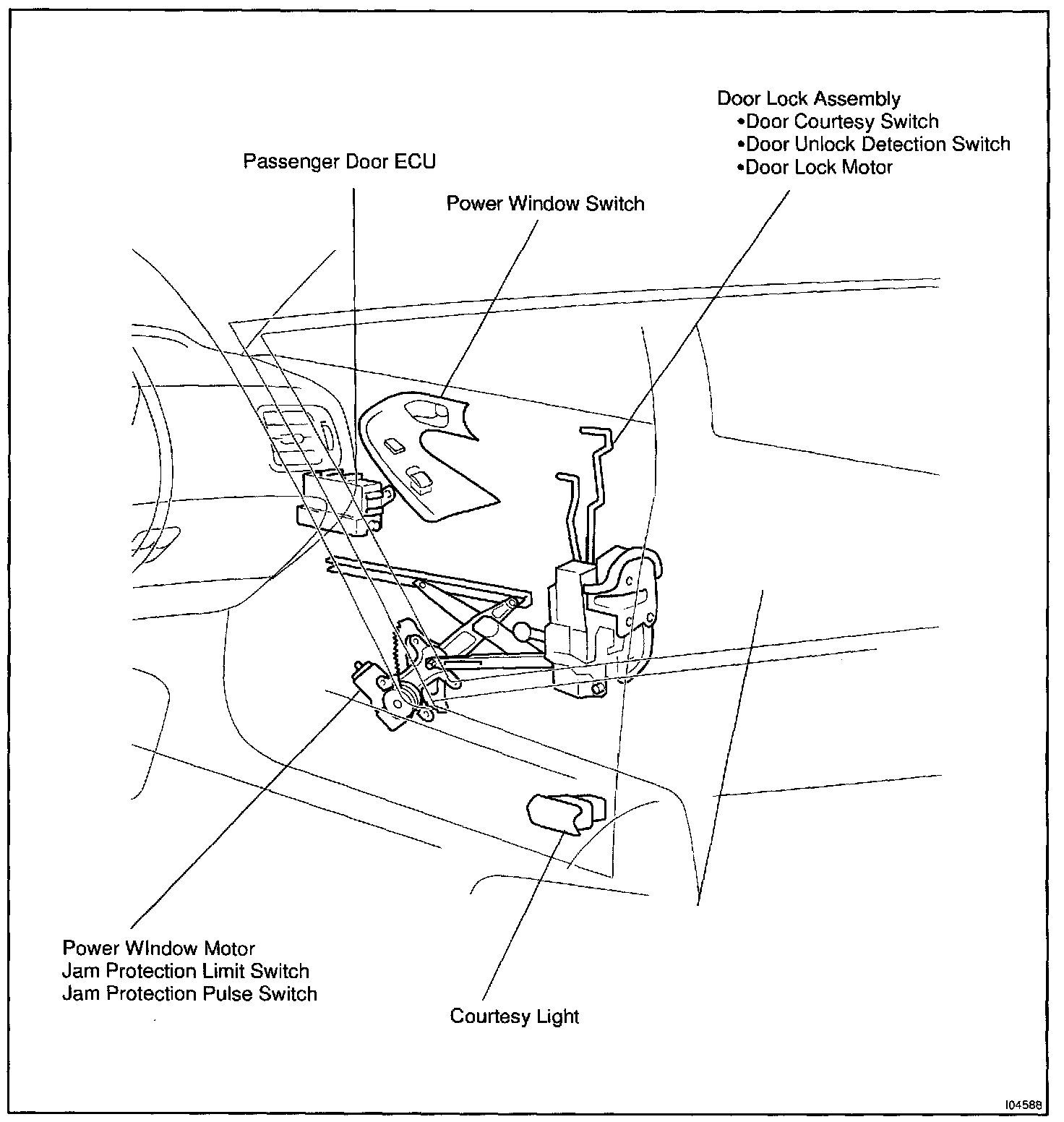

Passenger Door Control System:

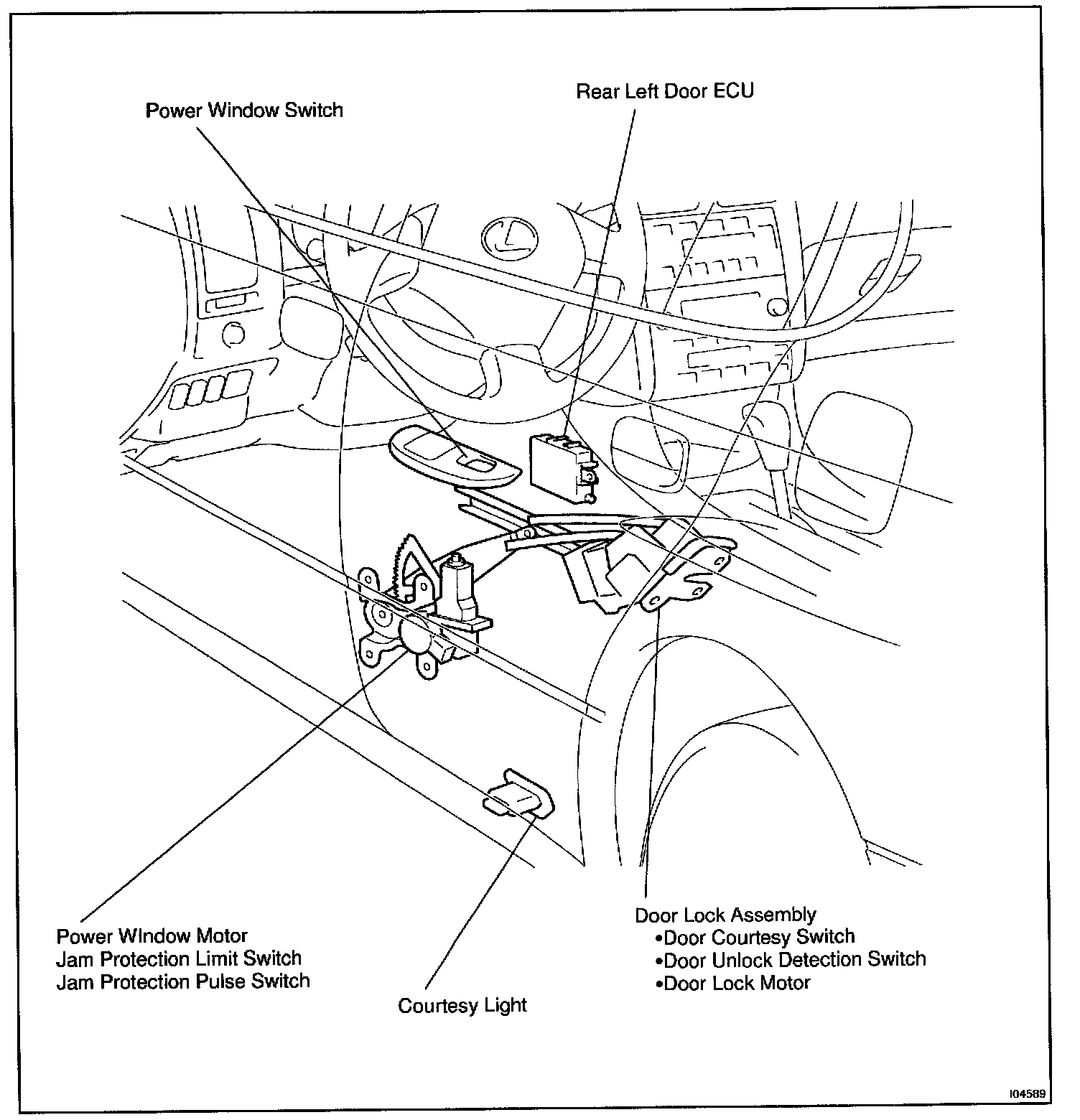

Rear Left Door Control System:

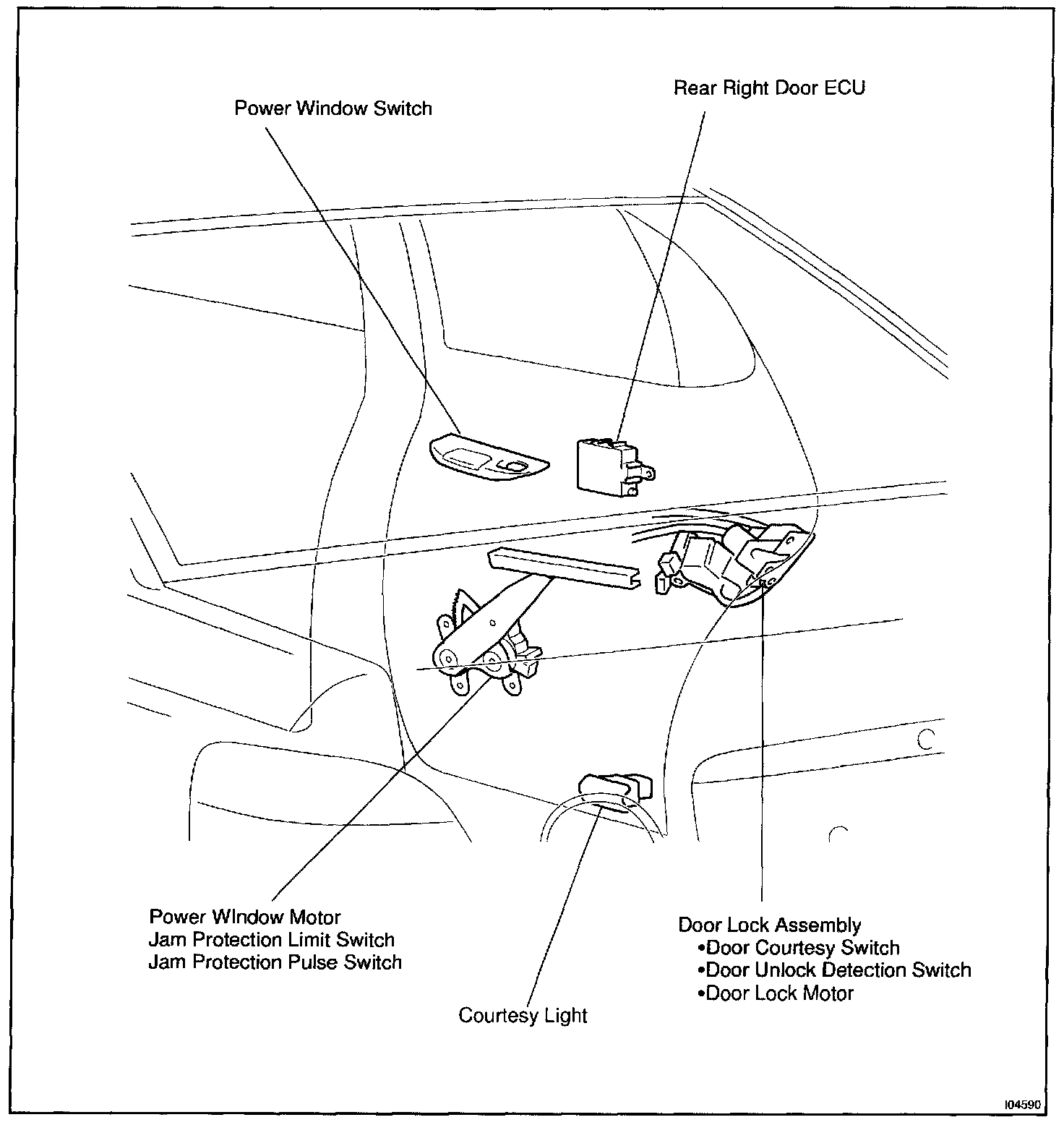

Rear Right Door Control System:
