Section 459 (Sliding Roof System): Reassembly

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BRACKETS

    Install the 2 brackets with the 4 screws to the drive rails.

  2. INSTALL CENTER HOUSING FRAME

    Install the center housing frame with the 4 screws to the drive rails.

  3. INSTALL REAR HOUSING FRAME

    Install the rear housing frame with the 2 screws to the center housing frame.

  4. INSTALL DRIVE CABLES

    Slide the drive cables rearward to install them to the drive rails.

  5. INSTALL SUNSHADE TRIM

    Slide the sunshade trim forward to install it.

  6. INSTALL DRIVE CABLE STOPPERS

    Install the 2 drive cable stoppers with the 2 screws to the drive rails.

  7. INSTALL SLIDING ROOF GUIDE BLOCKS
    1. Slide the sliding roof guide block rearward to install it to the drive rail.
    2. Tighten the screw.
    3. Use the same manner described above to the other side.
      Fig 1: Installing Sliding Roof Guide Blocks
      G02940149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SLIDING ROOF CASING

    Install the sliding roof casing with the 12 screws.

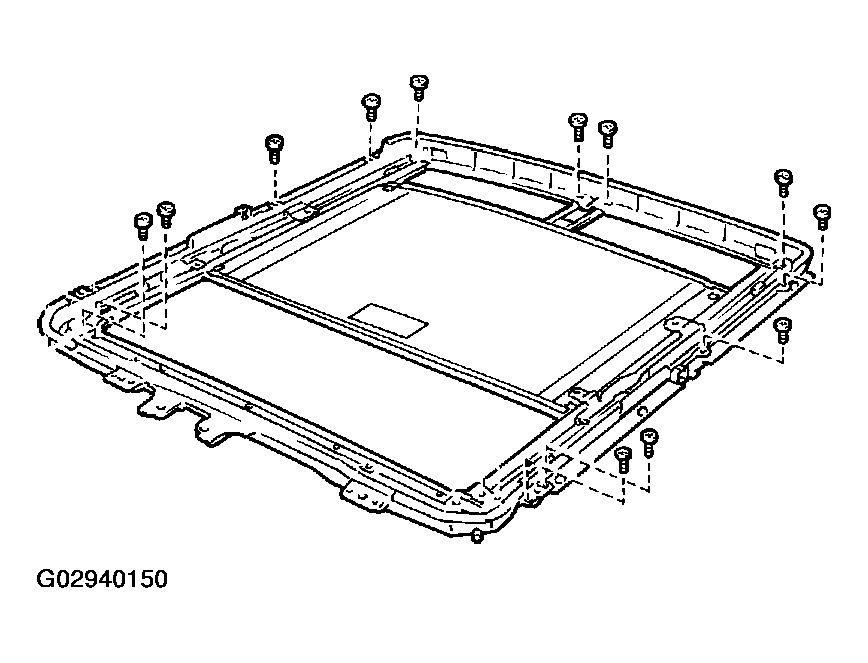

    Fig 2: Installing Sliding Roof Casing
    G02940150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL ROOF DRIP CHANNEL

    Install the roof drip channel to the drive cables.

  10. INSTALL CABLE GUIDE CASING
    1. Slide the drive cables forward.
    2. Insert the drive cables to the cable guide casing.
    3. Install the 10 screws.
  11. INSTALL DRIVE GEAR ASSEMBLY
    1. Using a screwdriver, remove the motor cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Turn the drive shaft with screwdriver to align the housing with gear point mark as shown in Fig 3 .
    3. Install the motor cover.
    4. Install the map lamp bracket with the 2 screws to the gear assembly.
    5. Install the drive gear assembly with the 2 bolts.

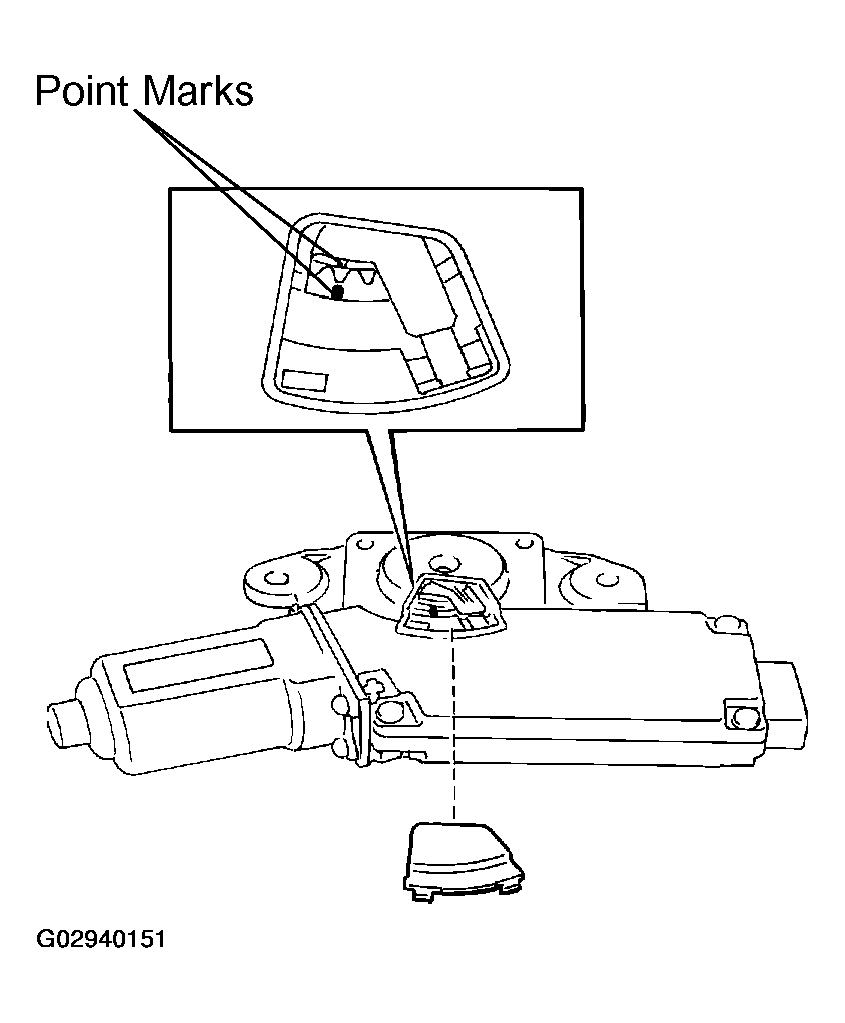

      Fig 3: Installing Drive Gear Assembly
      G02940151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL WIND DEFLECTOR PANEL
    1. Using a screwdriver, slide the drive cable rearward.

      HINT:

      Tape the screwdriver tip before use.

    2. Install the wind deflector panel with the 4 screws.
      Fig 4: Installing Wind Deflector Panel
      G02940152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
