Section 460 (Instrument Panel): Components

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

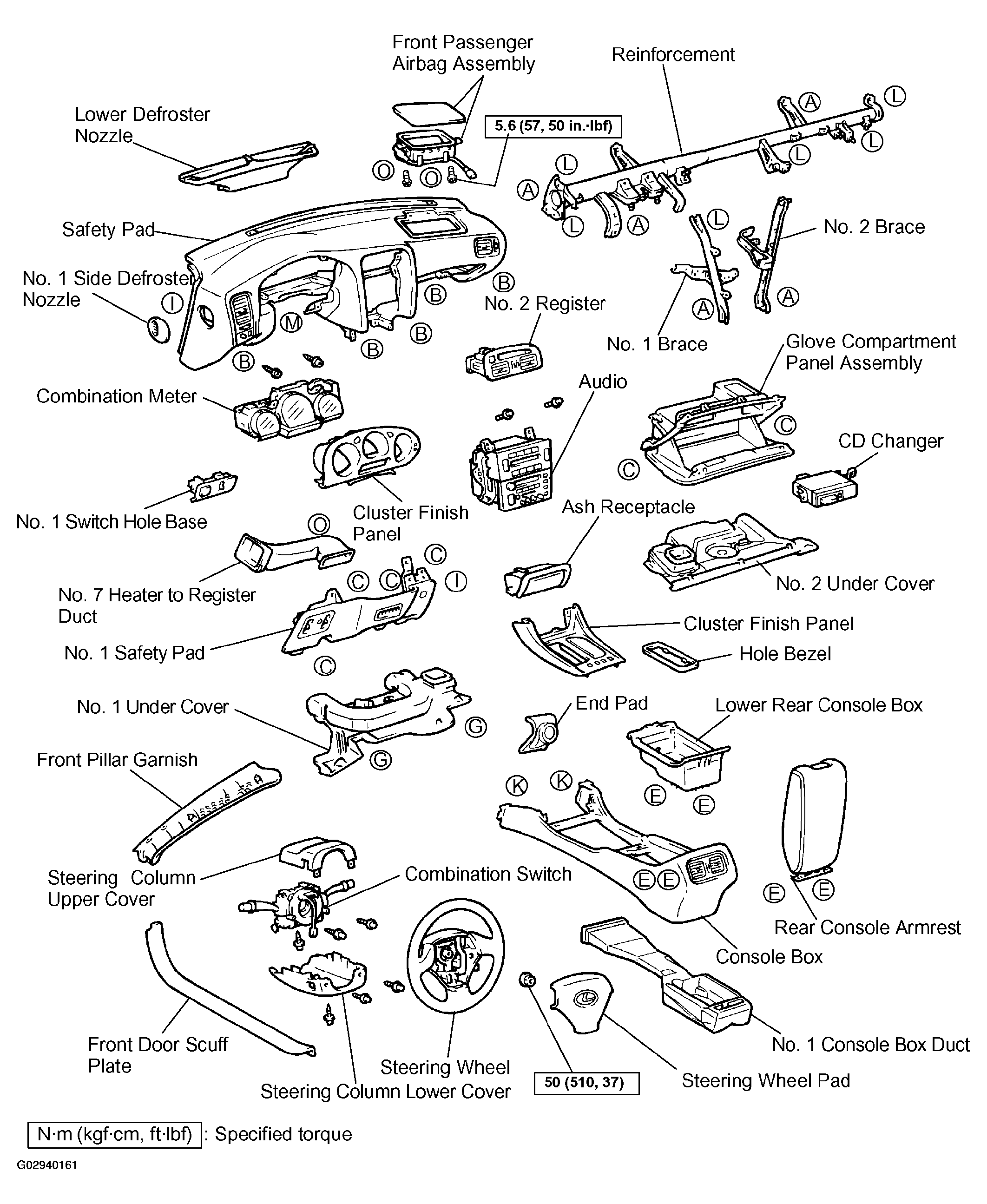

Fig 1: Exploded View Of Instrument Panel (With Specifications)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

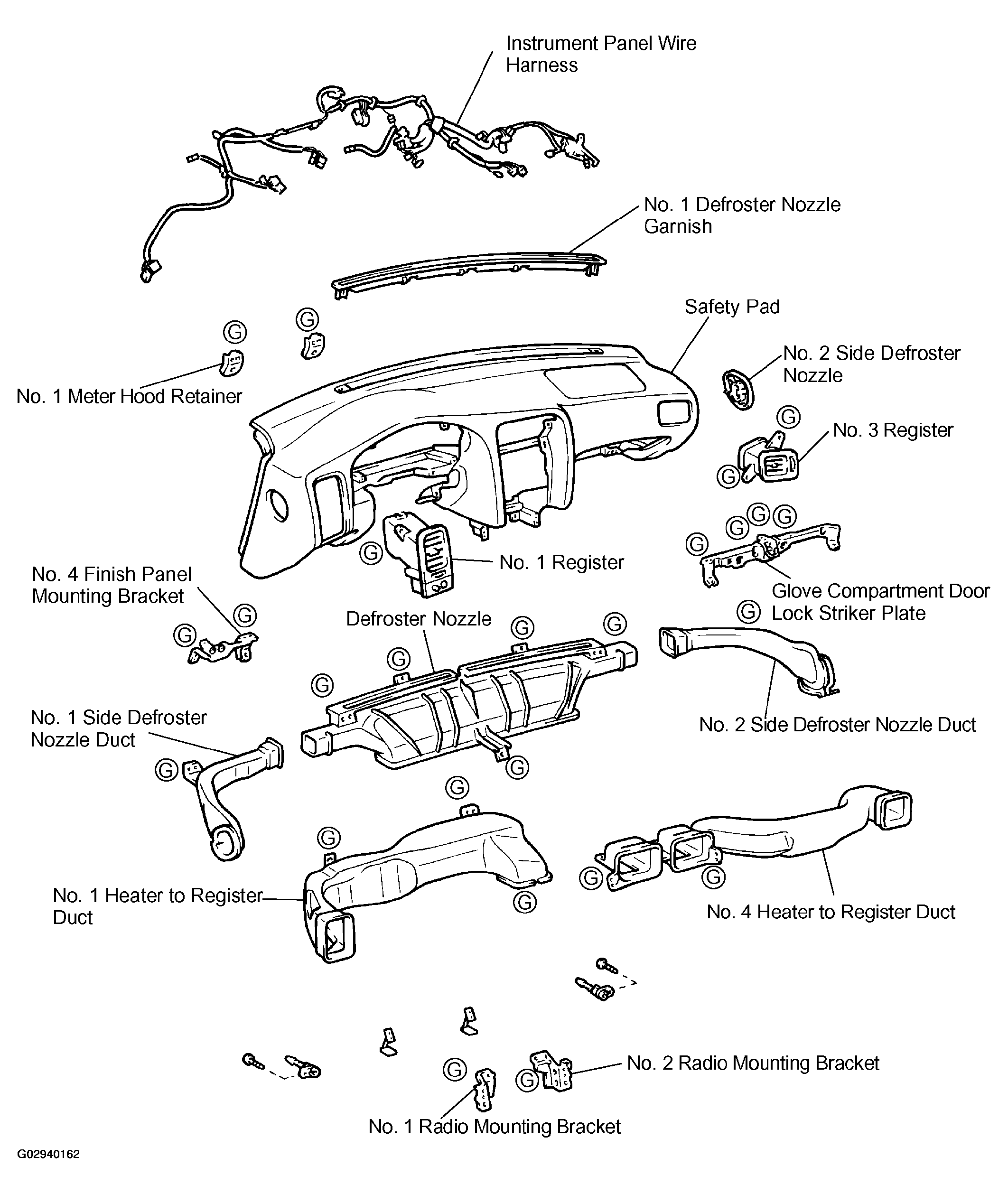

Fig 2: Exploded View Of Instrument Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

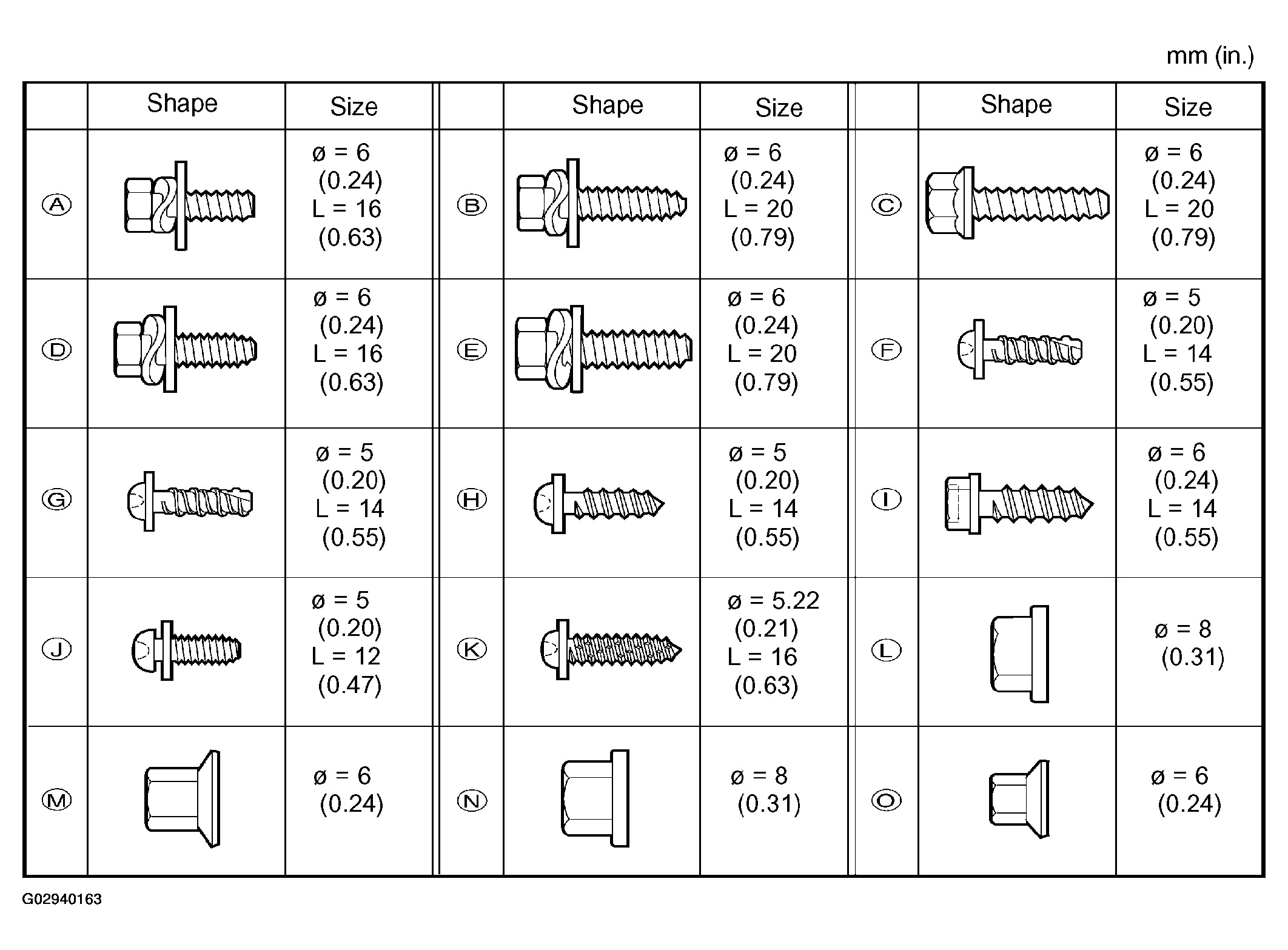

Screw shapes and size are indicated in Fig 3. The codes ("A"-"O") correspond to those indicated on Fig 1 and Fig 2.

Fig 3: Identifying Nuts, Bolts & Screws Table
