Multi-Display (CRT Display) Display: Replacement

HINT:

COMPONENTS: See LOCATION

1. REMOVE CONSOLE UPPER PANEL GARNISH NO. 2 (See  REPLACEMENT  )
2. REMOVE CONSOLE UPPER PANEL GARNISH NO. 1 (See  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (See  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (See  REPLACEMENT  )
5. REMOVE INTEGRATION CONTROL & PANEL ASSY (See  REPLACEMENT  )
6. REMOVE RADIO BRACKET NO. 1 (See  REPLACEMENT  )
7. REMOVE RADIO BRACKET NO. 2 (See  REPLACEMENT  )
8. REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY

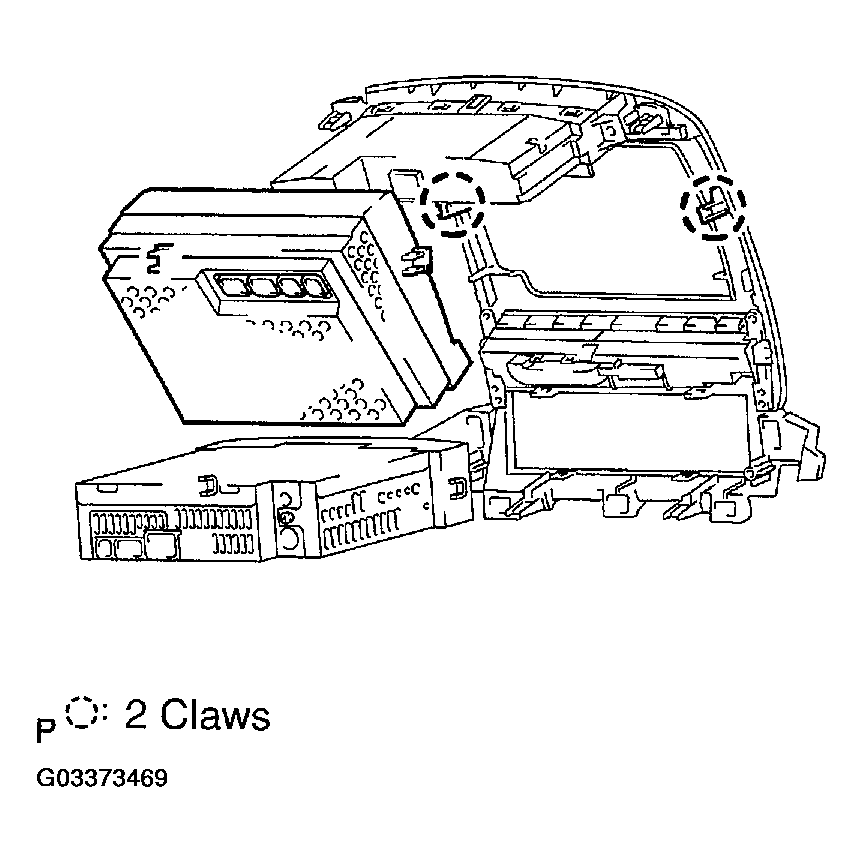

   1. Release the 2 claws and remove the multi display.
      Fig 1: Removing Multi-Display (CRT Display)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
