Circuit Description

For circuit description, see Circuit Description  under DTC P0115, P0117 OR P0118. For DTC detection condition and possible causes, see Fig 1.

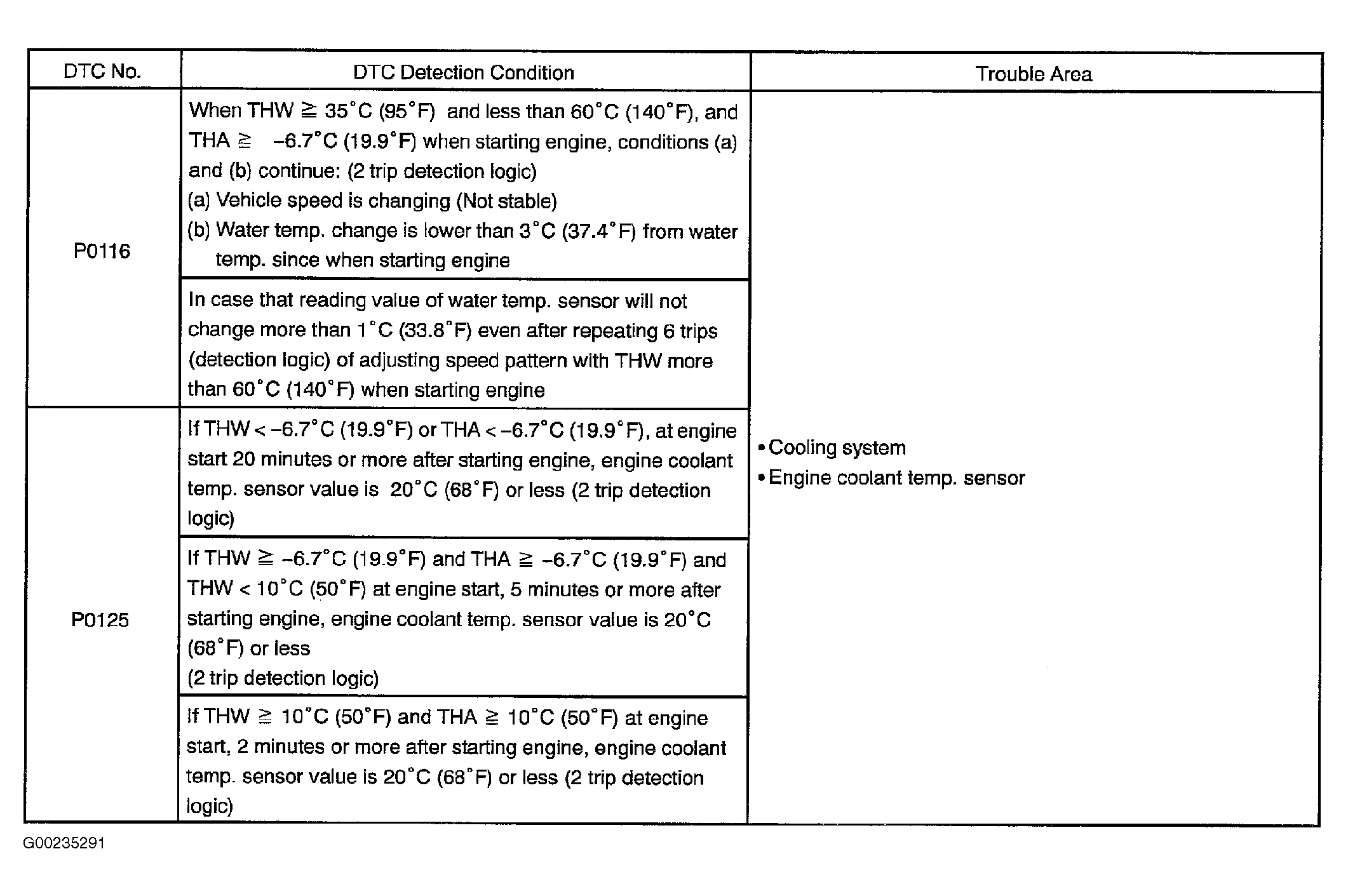

Fig 1: Identifying DTC Detection Condition (DTC P0116 OR P0125)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
