Circuit Description

This circuit provides power to operate the transponder key ECU. See Fig 1.

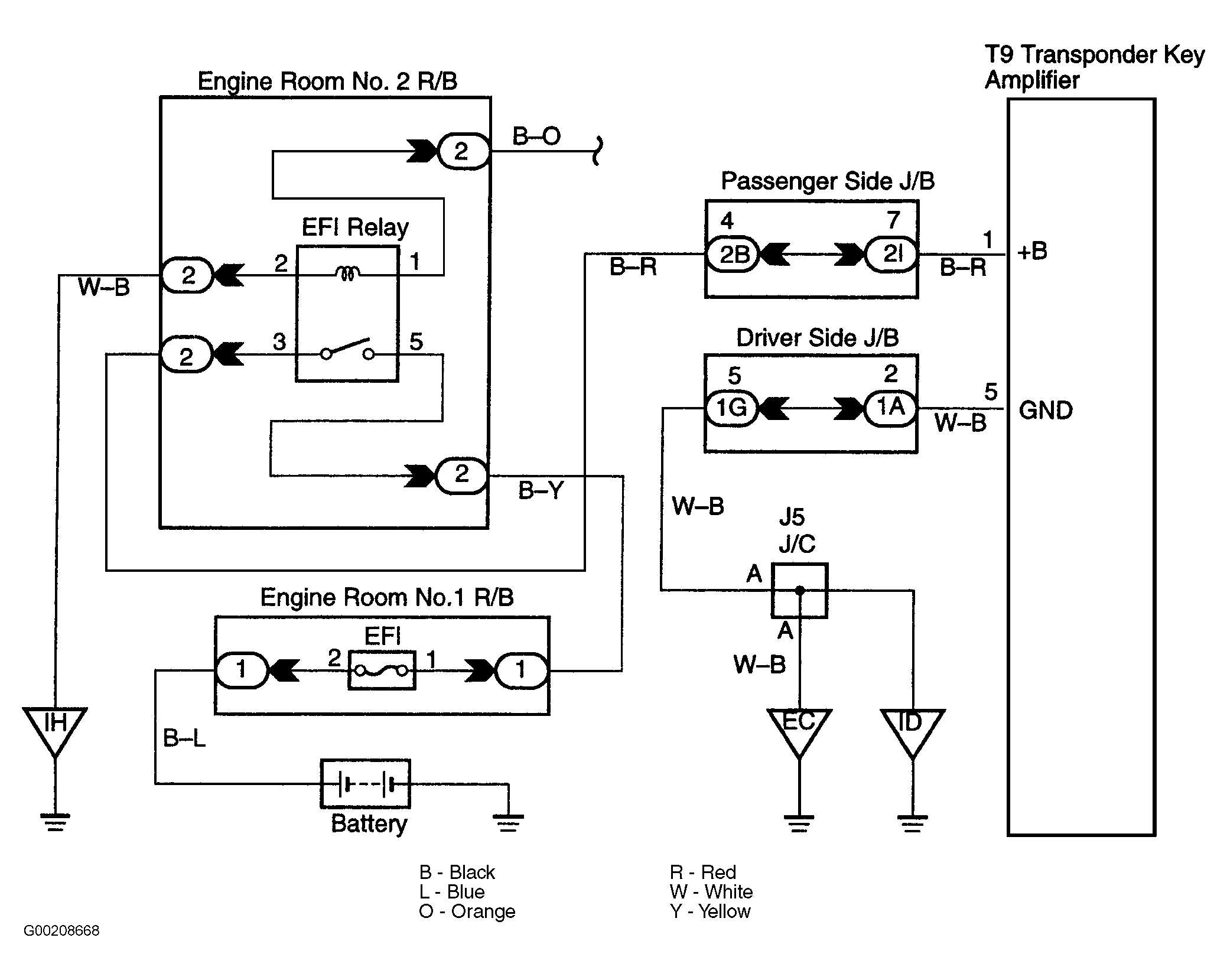

Fig 1: Identifying Power Source Circuit
G00208668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
