Fuel Lid: Components

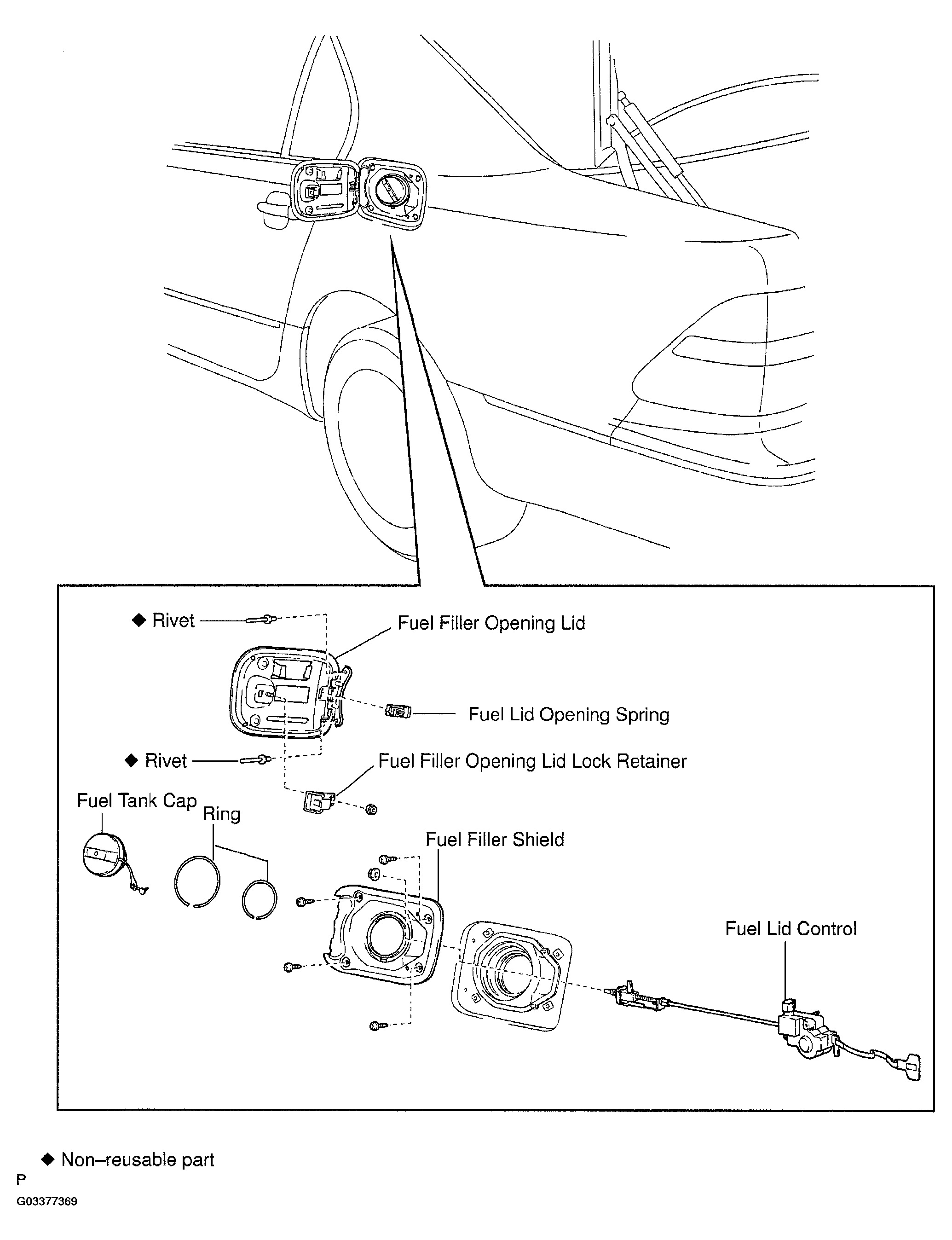

Fig 1: Identifying Fuel Lid Components
G03377369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
