Fuel Lid: Installation

INSTALL FUEL FILLER OPENING LID
Using a riveter, install the fuel filler opening lid with the 2 rivets to the body.

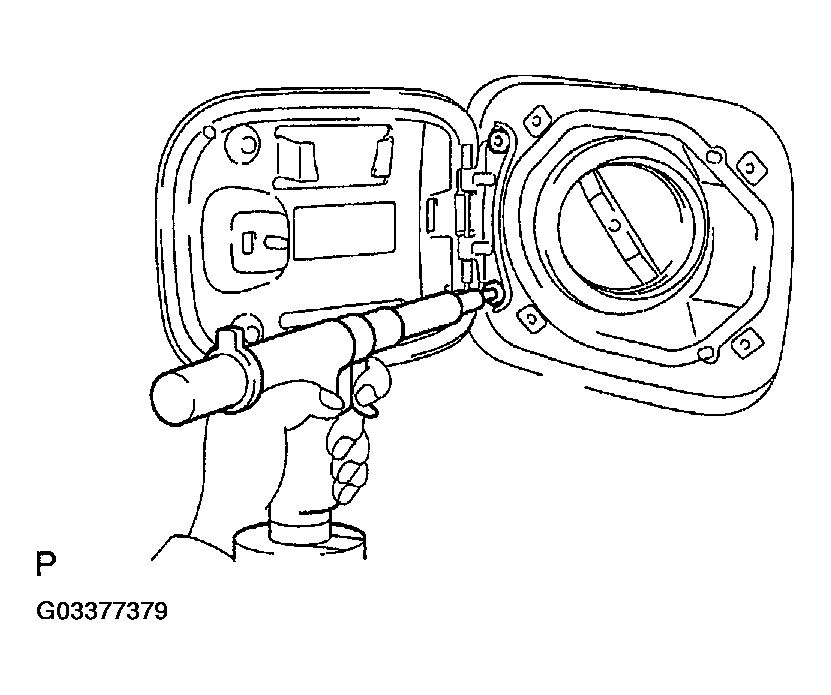

Fig 1: Installing Fuel Filler Opening Lid
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Do not prize a riveter, as riveter is damaged, it is not tightened and the mandrel is bent.

  Fig 2: Precautions While Prizing Rivet (1 Of 3)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Do not tilt the riveter and disconnect the rivet from the material while handling a riveter, as the materials are not tightened firmly.

  Fig 3: Precautions While Prizing Rivet (2 Of 3)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Install the rivet while attaching materials, as they are not tightened firmly.
INSTALL FUEL FILLER OPENING SPRING

Fig 4: Precautions While Prizing Rivet (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL FILLER OPENING LID LOCK RETAINER
Install the fuel filler opening lid lock retainer with the nut.
INSTALL FUEL TANK CAP HANGER

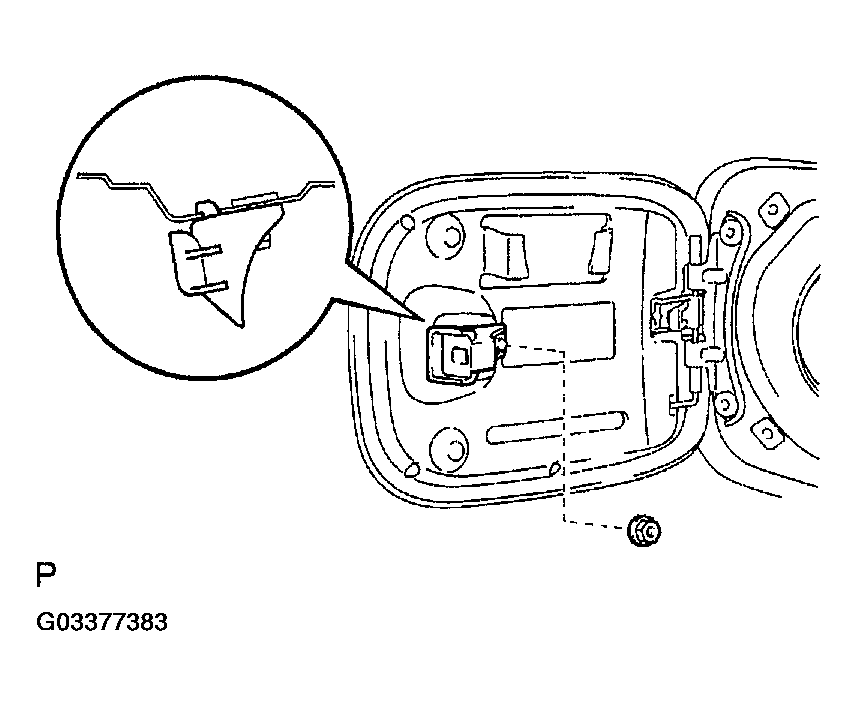

Fig 5: Installing Fuel Filler Opening Lid Lock Retainer With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL FILLER SHIELD
1. Remove the fuel tank cap.
2. Install the fuel filler shield to the body.
3. Install the fuel tank cap quickly.
  CAUTION: Always keep the tank cap closed when it is not required to be open. Keep all fire away during the operation.
4. Install the 4 screws.

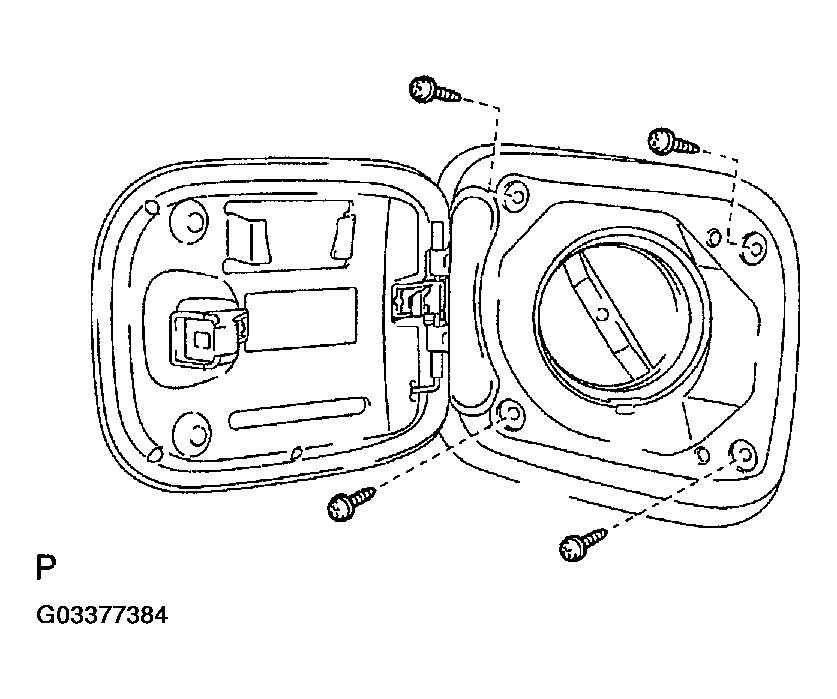

  Fig 6: Installing Fuel Filler Shield
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL LID LOCK CONTROL
1. Install the fuel filler lid opener solenoid with the nut.
2. Connect the connector.

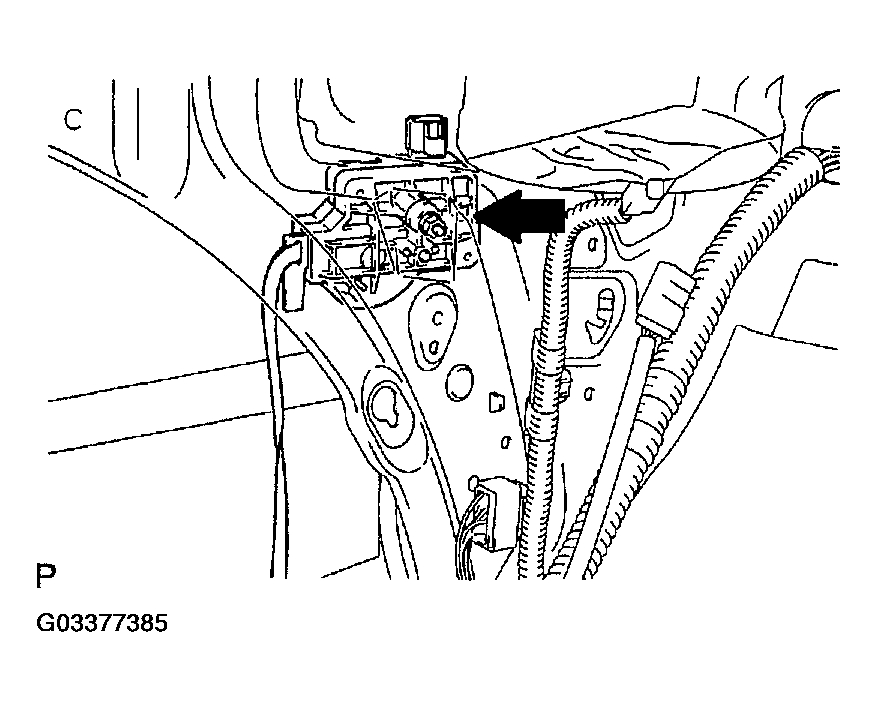

  Fig 7: Installing Fuel Filler Lid Opener Solenoid With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the nut.

  Fig 8: Installing Fuel Lid Lock Control Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT TRIM SIDE COVER LH
1. Install the luggage compartment trim side cover LH with the 2 clips.
2. Install the luggage hold belt striker with the bolt.

  Fig 9: Installing Luggage Compartment Trim Side Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the side trim tool bag cover.

  Fig 10: Installing Side Trim Tool Bag Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR FLOOR FINISH PLATE
1. Install the rear floor finish plate with 5 clips.
2. Install the luggage hold belt strikers with 2 bolts.
INSTALL DECK TRIM SIDE BOARD
1. install the deck trim side board with the clip.
2. Employ the same manner described above to the other side.
INSTALL FLOOR MAT

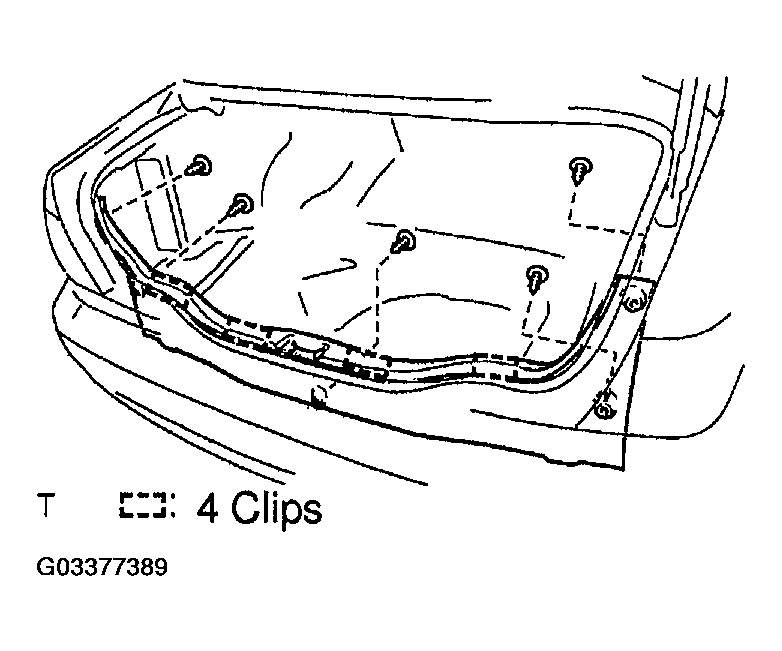

Fig 11: Installing Rear Floor Finish Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
