Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2.

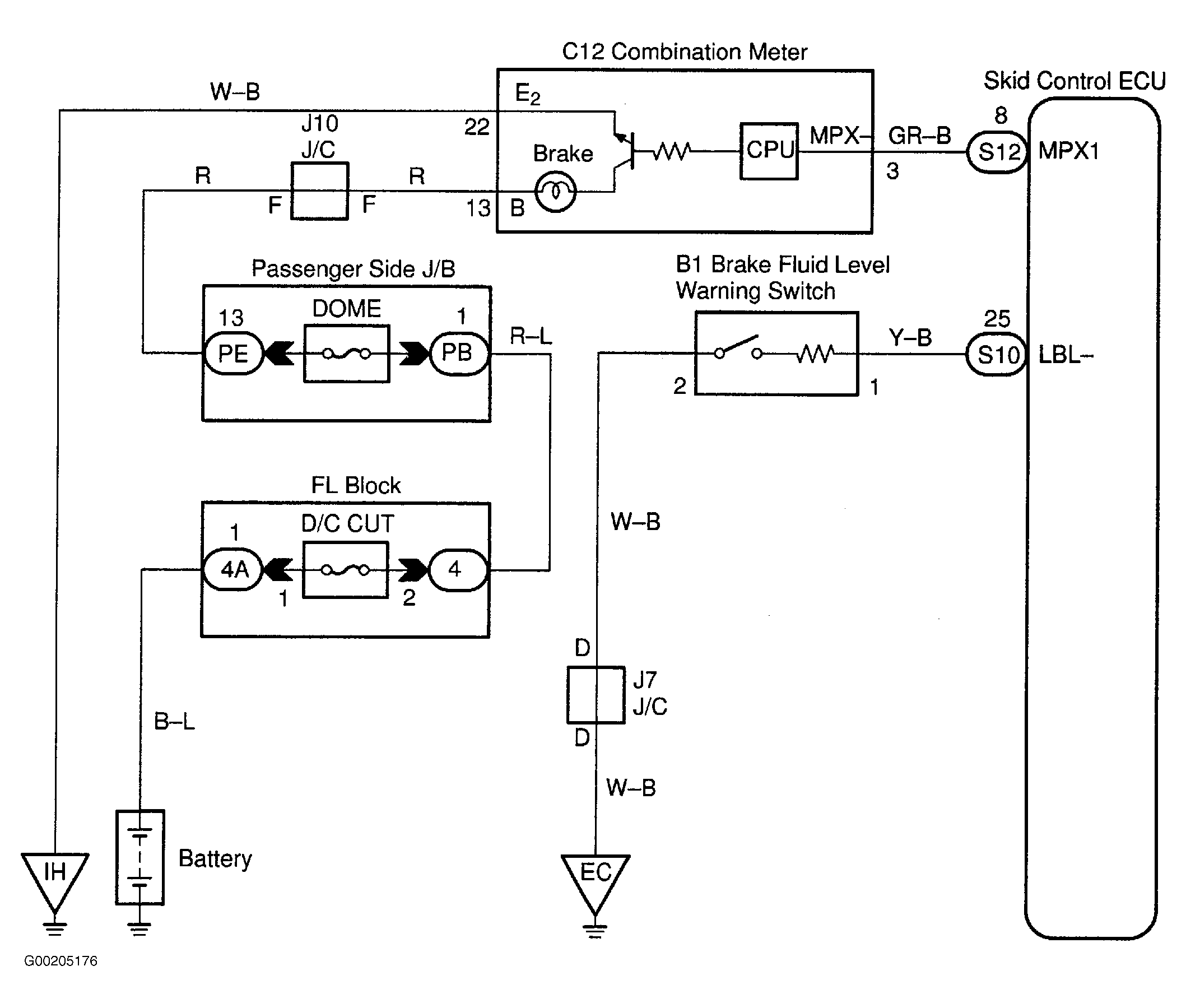

Fig 1: Brake Fluid Level Warning Switch Circuit Wiring Diagram
G00205176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

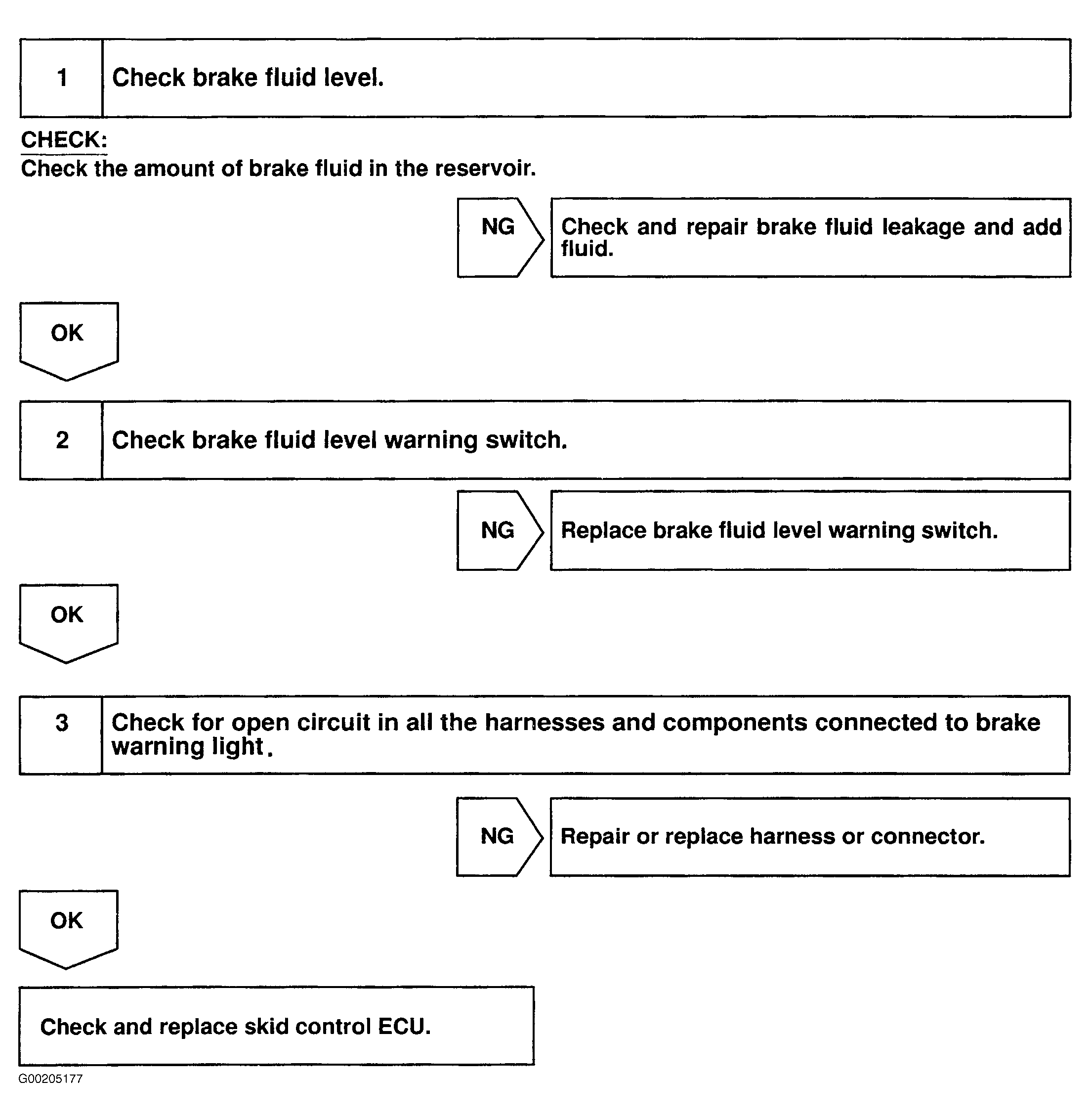

Fig 2: Testing Procedure Brake Fluid Level Warning Switch Circuit
G00205177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
